walk-behind vibrator roller
A construction equipment supplier of construction machinery solutions for 25 years.
Language
A construction equipment supplier of construction machinery solutions for 25 years.
1.A water-cooled single-cylinder diesel engine or an alternative air-cooled unit is fitted into the roller. Output power of the motor is transferred via the centrifugal clutch. The purpose of the clutch is to engage when the engine speeds up and disengage when the engine is idling.
2. The drum features a built-in clutch that transfers power from the engine to the drum and provides energy for drum riding forward.
3. The hydraulic pump generates hydraulic pressure through out hydraulic hose coming from oil tank. The pressure is converted into torque to drive the drum shaft for rotation thereby going forward.
4. The traveling speed of forward or reverse motion is adjusted by the movement of operating lever.
5. The vibration action is generated the vibrator unit, exerting vibrating force into the ground for compaction.

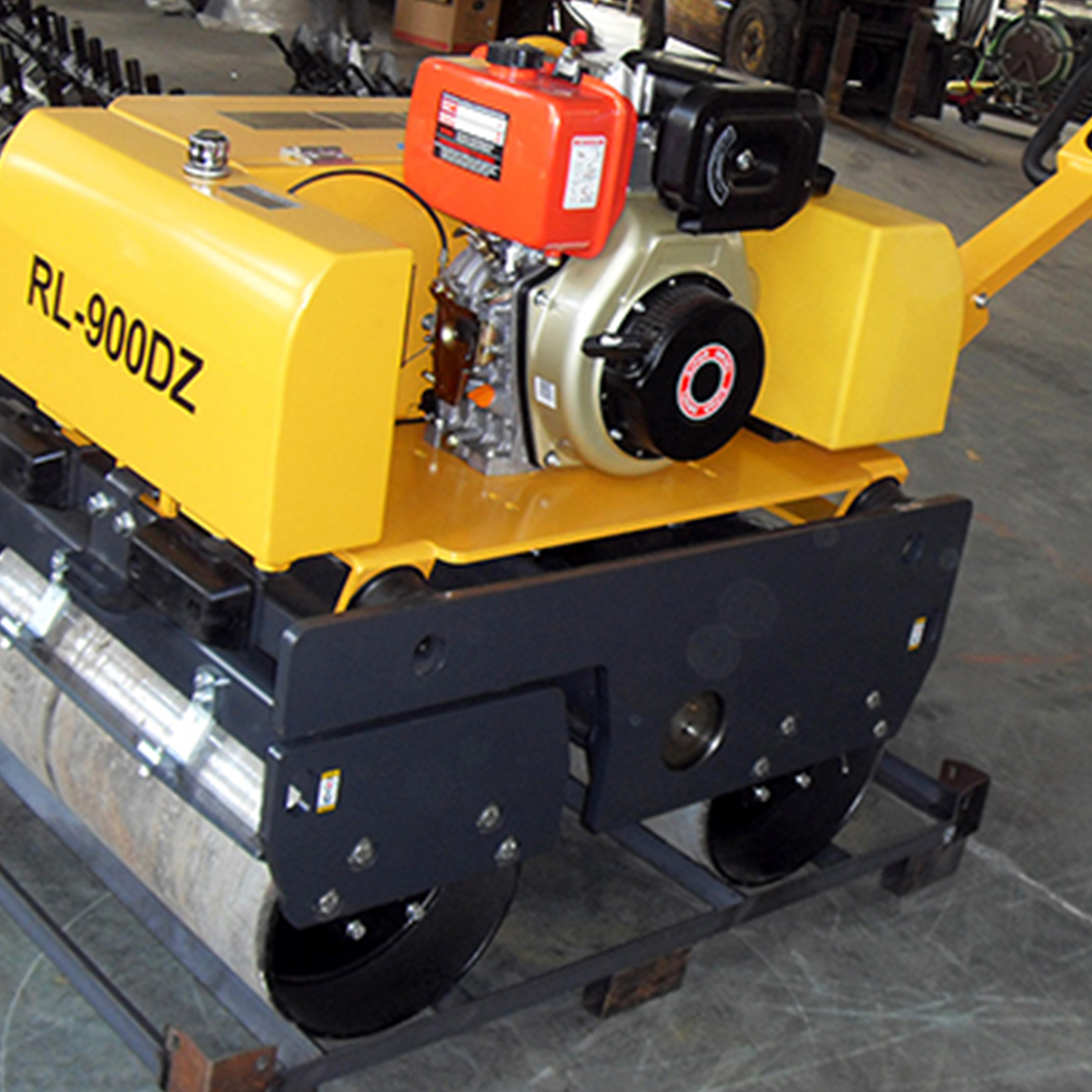

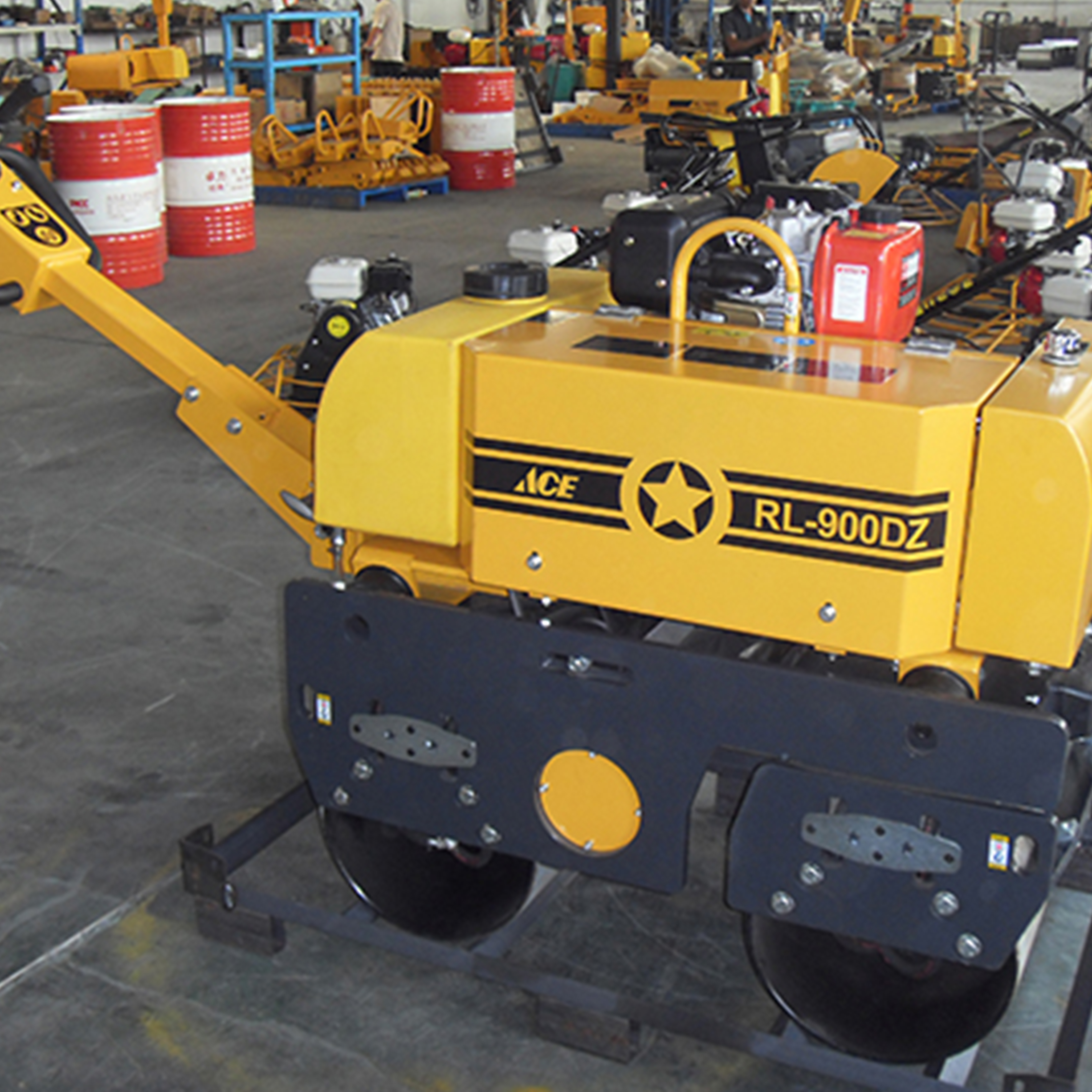

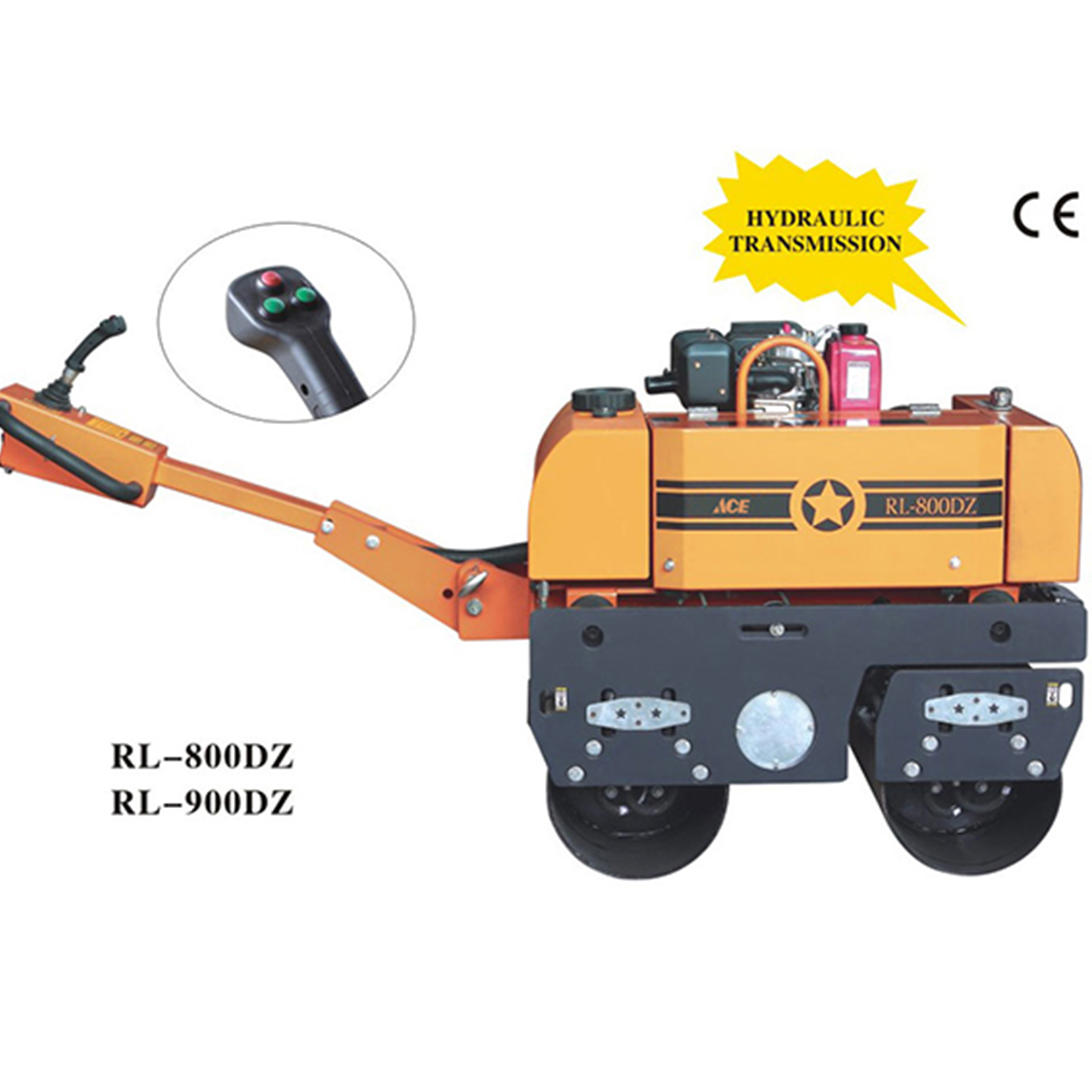

| Model | RL-800DZ | RL-900DZ |
| Engine | Diesel engine 178F 6.0HP | |
| Weight (KGS) | 852 | 920 |
| Vibratory Frequency (times/min) | 3600 | 3600 |
| Centrifugal Force (KN) | 24 | 30 |
| Max. Travelling Speed (KM/H) | 2.5 | 2.5 |
| Gradeability (%) | 30 | 30 |
| Water tank capacity (L) | 35 | 35 |
| Fuel tank capacity (L) | 23 | 23 |
| Vibratory Wheel Dia (mm) | 377 | 377 |
| Vibratory Wheel Width (mm) | 650 | 750 |
| Packing size(cm) | 131*74*112cm (handle 162*31*38) | |
