Concrete Vibrator Shaft Compatibility: How to Match the Head, Coupling and Drive Unit
A concrete vibrator shaft often gets little attention until something goes wrong. The hose is worn, the poker stops working properly, or a contractor needs a replacement before the next pour. The old part looks straightforward enough to replace, so ordering one with the same head diameter seems reasonable. Then the new shaft arrives, and the coupling does not fit.
It is an easy mistake to make. The diameter of a poker head tells you how wide it is, but it does not tell you which drive unit it fits. The coupling, shaft construction and operating requirements matter just as much. If you are buying a replacement concrete vibrator shaft, or putting together a new set for a job, a few details are worth sorting out before you place the order.
Start with the Drive Unit, Not the Poker Diameter
When replacing a shaft, begin with the machine already on site. Find the drive-unit model number and look for the shaft assembly specified for it. If the original part number is still readable, that is useful too. These details give the supplier a much better starting point than a description such as “a 45 mm vibrator shaft”.
The reason is simple: the poker head and the drive unit are two parts of a working system. The head must suit the concrete and the available space, while the shaft and coupling must match the drive. Getting one part right does not automatically make the other parts compatible.
| What to look at | What it tells you |
|---|---|
| Drive-unit make and model | Which shaft assemblies are specified for the machine |
| Coupling and connection details | Whether the shaft can connect correctly to the drive |
| Poker head diameter and length | Whether the head suits the working space and concrete placement |
| Flexible shaft length | Whether the assembly can reach the working area comfortably |
| Operating specifications | Whether the drive and poker are intended to work together |
If the label has worn away, take a few clear photographs of the drive connection and the end of the old shaft. Include the machine model and any dimensions you can identify. It is much easier to compare those details with a product drawing than to guess from appearance alone.
Understanding the Parts of a Concrete Vibrator Shaft
Before comparing products, it helps to know which part a specification is describing. A typical internal concrete vibrator has a drive unit, a shaft assembly and a vibrating poker head. The exact arrangement varies between product families, so catalogue descriptions and drawings are more useful than assumptions based on appearance.
The Drive Unit
The drive unit supplies the power that operates the poker. Some systems use a petrol or diesel engine, while others use an electric motor or a dedicated high-frequency drive. Their connections and operating requirements can differ, so a shaft intended for one system should not be treated as a universal replacement for another.
The Flexible Shaft and Its Hose
The flexible shaft transmits motion to the poker head. Around it sits a protective hose, which allows the operator to position the head while protecting the internal components. Product sheets may list the overall shaft length, hose outside diameter and internal shaft-core diameter separately.
Those figures are easy to mix up when comparing catalogues. A 30 mm hose does not mean the shaft core inside it is also 30 mm. If you are matching an old part to a new one, keep each measurement under its own heading and compare like with like.
Length needs a little thought as well. The assembly must reach the area being poured, but a longer shaft is not automatically a better one. Choose a length that suits the working position and the specified equipment range. If the supplier measures length differently from the original manufacturer, ask for clarification before comparing the figures.
The Poker Head

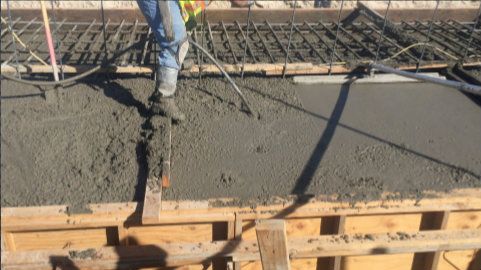

The poker is the part inserted into fresh concrete. Its vibration helps the concrete settle around reinforcement and into the formwork, reducing trapped air. The head diameter affects how easily it can pass through tight spaces, while its operating characteristics affect how vibration is transferred to the concrete.
That gives you two separate questions to answer: does the head fit the drive system, and is it suitable for the pour? A head can be compatible with the machine but still be awkward to use in a congested column or a narrow section of formwork.
Concrete Vibrator Coupling Types: Look Beyond the Name
Concrete vibrator catalogues use different names for coupling families, including Japanese-type, Chinese-type and Dynapac-type connections, alongside other regional or brand-related descriptions. These labels are useful when identifying a product, but they are not enough on their own to prove that two parts will fit together.
What matters is the connection itself. Depending on the design, the relevant details may include the coupling diameter, internal dimensions, pin positions, drive shape, threads or locking method. Not every connector uses the same features, so the correct drawing should determine what needs to be measured.
Why Two Similar Couplings May Not Fit
A small difference can make a big difference here. A pin may sit in a different position, a drive end may have a different shape, or the locking arrangement may not match. Two connections can look almost identical in a photograph and still be incompatible.
Do not force a connection that does not seat correctly. Nor is modifying a coupling a sensible shortcut when the intended fit has not been confirmed. The safer option is to compare the dimensions or send photographs to the supplier and ask them to identify the correct assembly.
If you regularly maintain several machines, keep a record of the approved shaft for each drive unit. It is a small administrative job that can save a surprising amount of time when a replacement is needed in a hurry.
Choosing a Poker Head Diameter for the Job
Once the shaft and drive are matched, the next decision is the head size. This is where the site conditions matter. A poker that works well in an open slab may be difficult to position in a column packed with reinforcement. The right choice depends on the available space, the concrete and the equipment's published performance.
Reinforcement Clearance Comes First
In reinforced concrete, look at the actual clear space between the bars rather than relying on the name of the structure. Two columns can have very different reinforcement layouts. Inserts, embedded services and formwork details may restrict access further.
A smaller head can make it easier to reach a congested area, but the smallest head available is not automatically the right answer. It still needs to provide suitable performance for the concrete and the placing conditions. The aim is to get the head into the right position and consolidate the concrete properly, not simply to find something that will squeeze through the gap.
Workability and Formwork Matter Too
The American Concrete Institute's ACI 309R-05, Guide for Consolidation of Concrete, discusses how consolidation depends on concrete workability, placing conditions and vibrator characteristics. Head diameter is one part of that decision, not the whole decision.
Think about how the mix will move around the reinforcement, how much room the operator has and what the equipment manufacturer recommends. These factors help determine whether a particular head is suitable for the job. There is no single diameter that works equally well for every slab, wall, column and foundation.
For more detail on insertion technique, spacing and vibration time, read ACE's guide to concrete vibration time, spacing and needle size. That article covers the working method; this one deals with matching the equipment.
Concrete Vibrator Shaft Length and Dimensions
Length is best judged against the actual working area. The shaft needs to reach where the concrete is being placed without making the equipment awkward to handle. Before ordering, find out how the manufacturer measures the assembly length. One supplier's stated dimension may not be directly comparable with another's if the measurement points differ.
It is also worth checking the other dimensions listed on the product sheet. The head, hose, shaft core and coupling each have their own measurements, and each serves a different purpose.
| Dimension | Why you need it |
|---|---|
| Poker head diameter | To check access between reinforcement and inside formwork |
| Poker head length | To understand the physical size of the vibrating head |
| Flexible shaft length | To make sure the assembly reaches the working area |
| Hose outside diameter | To confirm the size of the protective hose |
| Shaft-core diameter | To compare the internal shaft specification |
| Coupling dimensions | To identify the correct connection to the drive unit |
When replacing a worn shaft, use the original part number or drawing if possible. Measuring a damaged hose or coupling can be misleading, particularly if the component has worn or deformed. If the original details are no longer available, give the supplier the machine model and clear photographs rather than relying on one rough measurement.
Matching the Shaft to the Drive System
Petrol, diesel and high-frequency electric vibrators do not necessarily use the same shaft assemblies. The important question is not whether a shaft can be made to connect, but whether it is specified to work with that drive unit.
Engine-Driven Concrete Vibrators
Engine-driven systems can be useful on sites where a suitable electrical supply is not available. When ordering a replacement, identify the exact drive model and use the corresponding shaft specification. A shaft listed for one engine-driven vibrator should not be assumed to fit every petrol or diesel unit.
ACE's published gasoline concrete vibrator information lists shaft and poker combinations including ZX-32, ZX-38, ZX-45/6M and ZX-60/6M. These are examples from the listed product range, not a universal set of interchangeable shafts. Check the relevant model and connection details before ordering.
High-Frequency Electric Concrete Vibrators
The same principle applies to high-frequency equipment. ACE's product page for the ZID-230C high-frequency concrete vibrator lists a 2300 W rated input, 220 V rated voltage, 50 Hz supply frequency and 18,000 r/min no-load speed. Its published vibrating-rod specifications include the following options.
| Specification | ZX-35 | ZX-45 | ZX-50 |
|---|---|---|---|
| Poker head diameter | 35 mm | 45 mm | 50 mm |
| Poker head length | 330 mm | 390 mm | 410 mm |
| Published vibration frequency | 200 Hz | 200 Hz | 200 Hz |
| Published amplitude | 0.91 mm | 1.2 mm | 1.3 mm |
| Flexible hose diameter | 30 mm | 30 mm | 30 mm |
| Flexible shaft diameter | 10 mm | 10 mm | 10 mm |
These figures apply to the specifications published for this product series. They should not be copied across to other vibrator models without checking their data sheets.
One detail is easy to overlook: the electrical supply frequency, the motor's no-load speed and the poker's vibration frequency are different measurements. For the ZID-230C, the listed values are 50 Hz, 18,000 r/min and 200 Hz respectively. They describe different parts of the system and should not be compared as if they were the same parameter.
If you need to understand how vibration frequency and amplitude affect performance, ACE's article on concrete vibrator frequency versus amplitude explains the difference. For replacement parts, though, first make sure the drive and poker belong to a compatible system.
Should You Replace the Shaft or Buy a Complete Set?
If the drive unit is in good condition and its model is known, replacing the shaft assembly may be all that is needed. The job is more complicated when the original part number is missing, several components are worn or the existing setup has been assembled from parts of uncertain origin.
In those cases, ask the supplier to compare the cost and suitability of a replacement shaft against a complete set. The decision should be based on the condition of the existing equipment and the availability of a confirmed compatible part, rather than the assumption that replacing one component will always be cheaper.
For Contractors
If the machine is already on site, send the supplier the drive model, the required shaft length and photographs of the connection. Explain what needs replacing and where the vibrator will be used. This gives the supplier enough context to check the proposed part instead of guessing from the head diameter.
For Dealers and Rental Companies
Keeping a simple record of each machine's approved shaft assembly is worth the effort. Record the drive model, coupling type, compatible head sizes and available shaft lengths. When a customer needs a spare, your team can work from that record instead of identifying the same part from scratch.
Common Mistakes When Ordering a Replacement Shaft
Most ordering problems come from comparing only one feature of the equipment. The head diameter may match, for example, but the coupling may not. Or the connection may fit while the proposed assembly is not specified for that drive unit.
| Common mistake | What to do instead |
|---|---|
| Ordering by poker diameter alone | Confirm the drive model, coupling and complete shaft assembly. |
| Assuming connector names are universal | Compare the actual interface dimensions and product drawing. |
| Ignoring the required shaft length | Measure the working reach and check how length is specified. |
| Mixing up hose and shaft-core diameters | Record the two dimensions separately. |
| Treating motor speed as poker vibration frequency | Read each parameter with its unit and definition. |
| Ordering without model details | Provide the machine model, photographs and any available measurements. |
None of these checks is complicated, but skipping them can turn a routine spare-parts order into an avoidable delay. A little information at the start is usually more useful than a hurried attempt to make the wrong part fit later.
What to Send When Requesting a Quote
You do not need to prepare a full engineering report to enquire about a replacement shaft. A few clear details will usually make the discussion more productive:
The drive-unit brand and model.
The original shaft or poker part number, if available.
The required head diameter and shaft length.
Clear photographs of both connection ends.
Any available coupling drawing or measured dimensions.
The quantity required and destination market.
Whether you need a shaft assembly or a complete vibrator set.
If you are comparing options, start with the ACE concrete vibrator shaft range and the concrete vibrator range. If you are unsure which assembly fits your machine, send the model details and connection photographs with your enquiry. It is better to confirm the match before dispatch than to find out otherwise on site.
Concrete Vibrator Shaft Compatibility FAQs
Are concrete vibrator shafts interchangeable?
Not necessarily. The shaft must match the drive connection and the equipment's operating requirements. Check the exact model and the manufacturer's compatibility information before using a replacement.
Can a 45 mm poker fit any 45 mm concrete vibrator drive?
No. The 45 mm measurement describes the poker head diameter, not the coupling. Heads with the same diameter may belong to different shaft systems, so the connection and drive compatibility still need to be confirmed.
How do I identify a concrete vibrator coupling?
Start with the drive-unit model and any part number on the existing shaft. Photograph the connection and record the relevant dimensions. If the connector is still unclear, ask the supplier to compare it with the correct product drawing.
How long should a concrete vibrator shaft be?
The shaft should reach the working area comfortably and suit the intended method of use. The required length depends on the pour, the operator's position and the available equipment. Check how the supplier measures the assembly before comparing lengths.
Can I use a high-frequency poker with a petrol drive unit?
Only if the manufacturer confirms that the specific components are compatible. Similar dimensions or a connection that appears to fit are not enough to establish that the two systems can operate together.
What information is needed to order a replacement concrete vibrator shaft?
Provide the drive-unit model, the original shaft or poker model, the required head diameter and shaft length, and photographs of the connection. A drawing or measured interface details will also help if the original part number is unavailable.
Get the Compatibility Right Before the Next Pour
When choosing a replacement concrete vibrator shaft, the most useful starting point is the equipment you already have. Identify the drive unit, check the coupling, compare the shaft dimensions and choose a poker that suits the working conditions. The head diameter matters, but it is only one part of the decision.
For product information, visit the ACE concrete vibrator shaft range or the concrete vibrator range. Include your machine model and connection photographs when asking for a quotation so the proposed assembly can be checked against your requirements.
