1.The ZID Series high frequency concrete vibrator is an immersion type vibrator. During operation,the vibrating poker that is attached to the vibrator has to be immersed into the concrete .The poker has an eccentric vibrating element inside it .
2. The electric concrete vibrator incorporates off-centered weights into the 18000rpm electric motor to generate high frequency vibration . Via the flexible tube,the vibrator transmits the vibration to the poker via the flexible tube .It is spun as much as 12000 times per minute,which makes it easy to cause resonance with the poured concrete .
3. The lightweight vibrator only weights to 5.2kgs to 6kgs,giving ease of operation .It is one of the most widely used concrete vibrating tools,know for its low noise,energy efficiency, reliable functioning,high safety,and good vibrating performance.

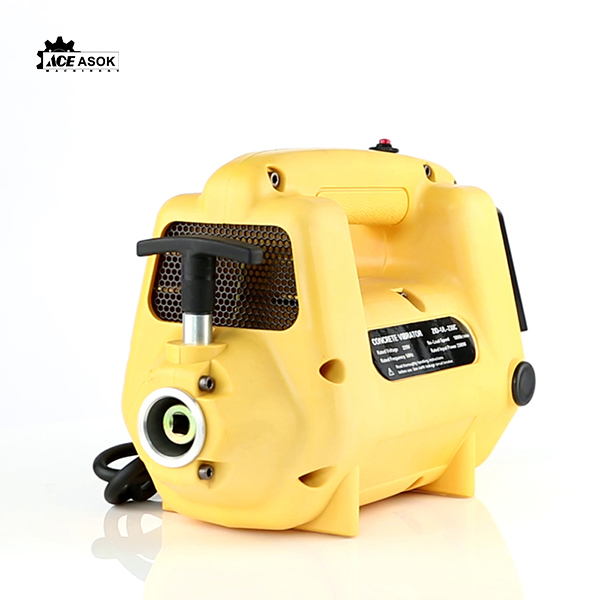

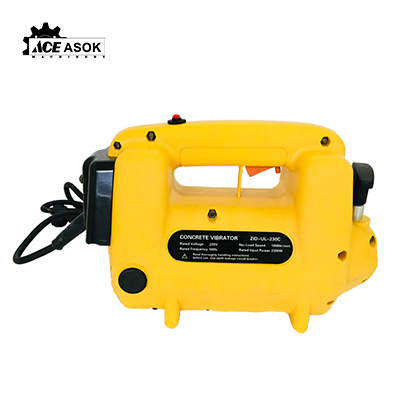

The ZID-230C Wacker type concrete vibrator is a high-frequency vibrator that is capable of rotating 18000 times per minute. This helps to quickly and evenly remove air bubbles from the surface of the concrete, which improves the density and strength of the concrete. The vibrator weighs 6 kilograms, which is neither too heavy nor too light, and strikes a good balance between ease of use and effectiveness.
One of the key benefits of this vibrator is that it operates at low noise levels and is energy-saving, which makes it an eco-friendly option. Additionally, it has a reliable function that ensures it can be used for extended periods without any issues.

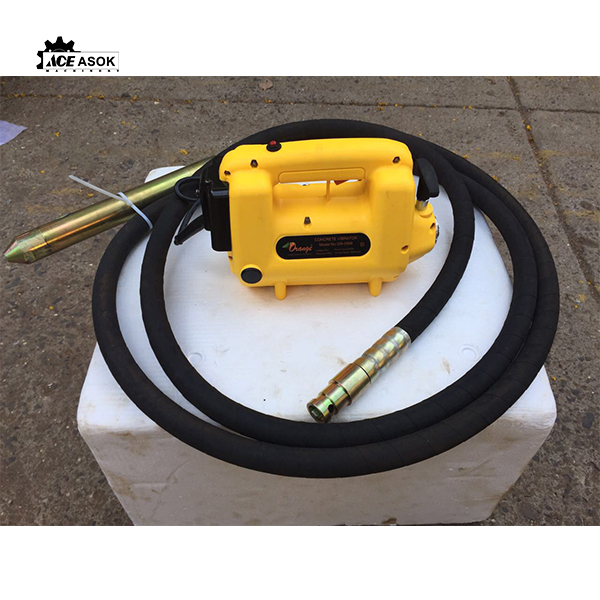

To use the ZID-230C concrete vibrator, you can pair it with various concrete vibrating rods, allowing it to be used for different construction needs. It is also a plug-in vibrator, which makes it easy to connect to a power source quickly and start using it immediately. Overall, this product is an efficient, durable and practical choice that offers good value for money and is worth considering for any construction work that requires high-quality equipment.
Type | Wacker type |
Model | ZID--230C |
Rated input power | 2300W |
Rated voltage | 220V |
Rated Frequency | 50HZ |
No-load speed | 18000 r/min |
Weight | 6 kgs |
Packing size | 31*22*26cm |
Item | High-frequency vibrator shaft | |||
Model | ￠(mm) | ZX-35 | ZX-45 | ZX-50 |
Diameter of head | ￠(mm) | 35 | 45 | 50 |
Length of head | L (mm) | 330 | 390 | 410 |
Vibrating Frequency | (HZ) | 200 | 200 | 200 |
Vibrating Ampitude | (mm) | 0.91 | 1.2 | 1.3 |
Diameter of flexiable hose | D(mm) | 30 | 30 | 30 |
Diameter of flexiable shaft | D(mm) | 10 | 10 | 10 |
packing size | cm | 75*75*5.5cm | ||
18000 rotations per minute
A good choice for energy conservation and environmental protection
6kg weight, small footprint

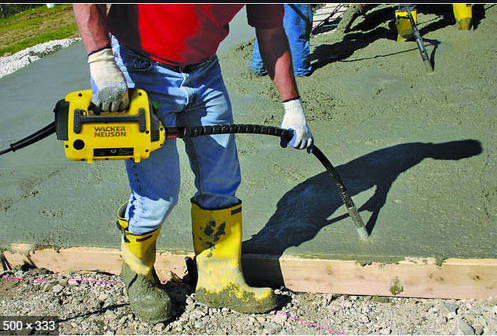

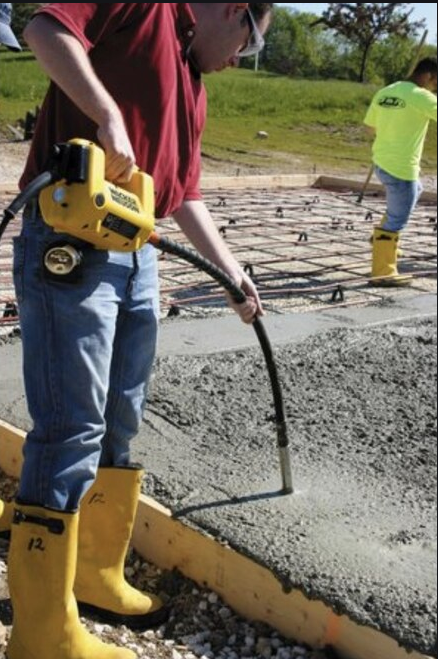

This high-frequency concrete vibrator can quickly and evenly remove bubbles on the surface of concrete, thereby improving the density and strength of concrete. It can be paired with various concrete vibrating rods, making it suitable for different construction needs. Mainly used for Roadworks
