Why Choose ASOK's Concrete Vibrator/Shaft?

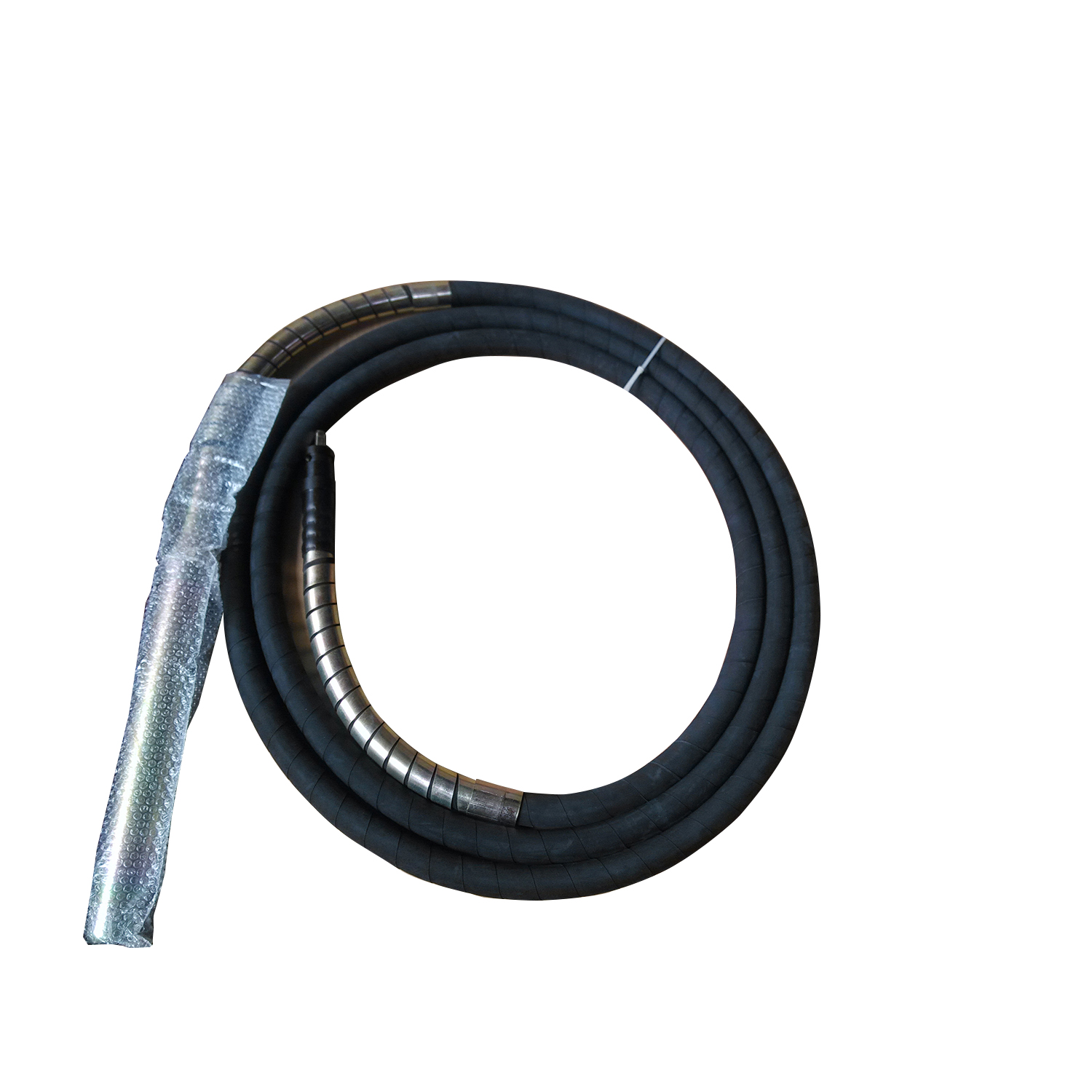

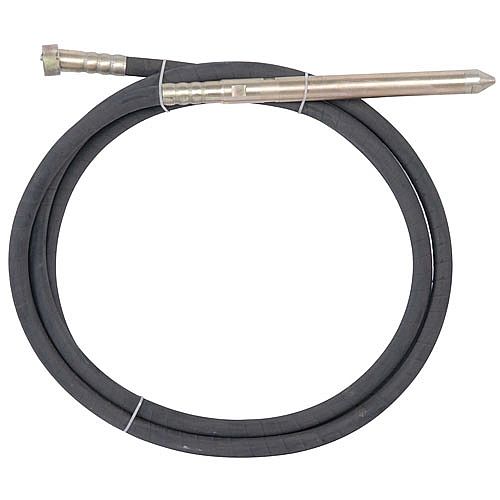

Australian three-claw 38mm-45mm concrete vibrator shaft

38mm/45mm and 60mm Australian three-claw  concrete vibrator shaft  with Stable operation ,good anti-wear and mechanical performance .

We produce different size from 38mm (11/5in) /45mm (13/4in) and 60mm (21/3in)

The tension of rubber hose is 800~900 N,  Hardness： 75~80 ,The tickness is 1.6MM，Width：16~18MM , 96 pcs steel wire and 40Mn steel ling

The torsional of flexible hose  is 57 N.m with 5~7 layers and 70# steel

For Flexible hose, we have done rubber aging test, tensile test, flexible shaft have torsion test, 100% inspection after assembly

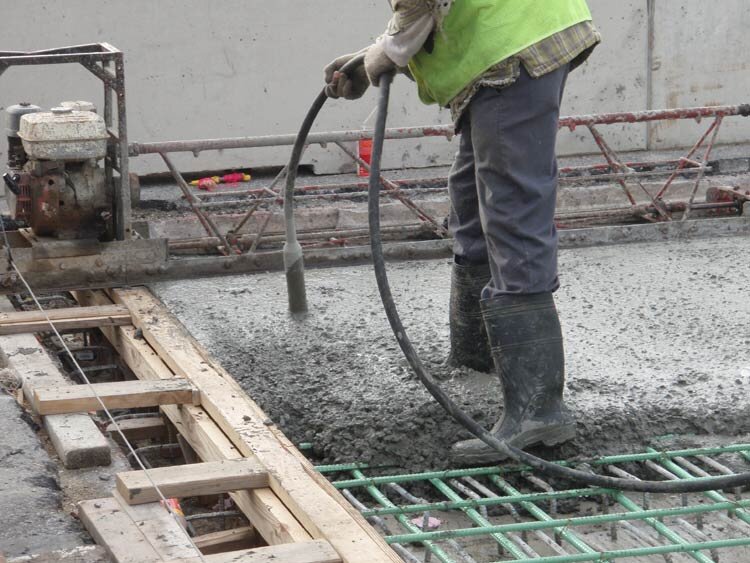

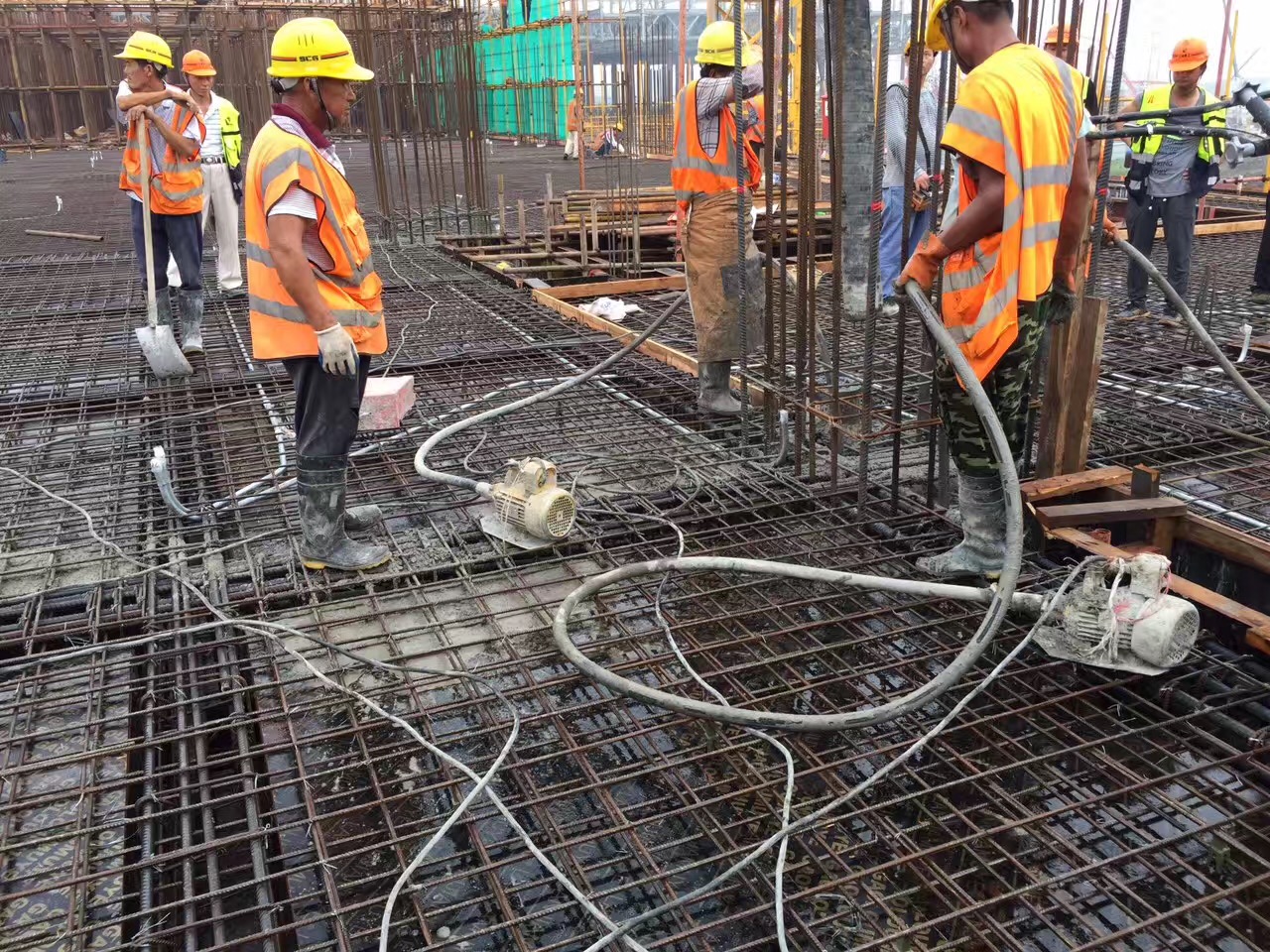

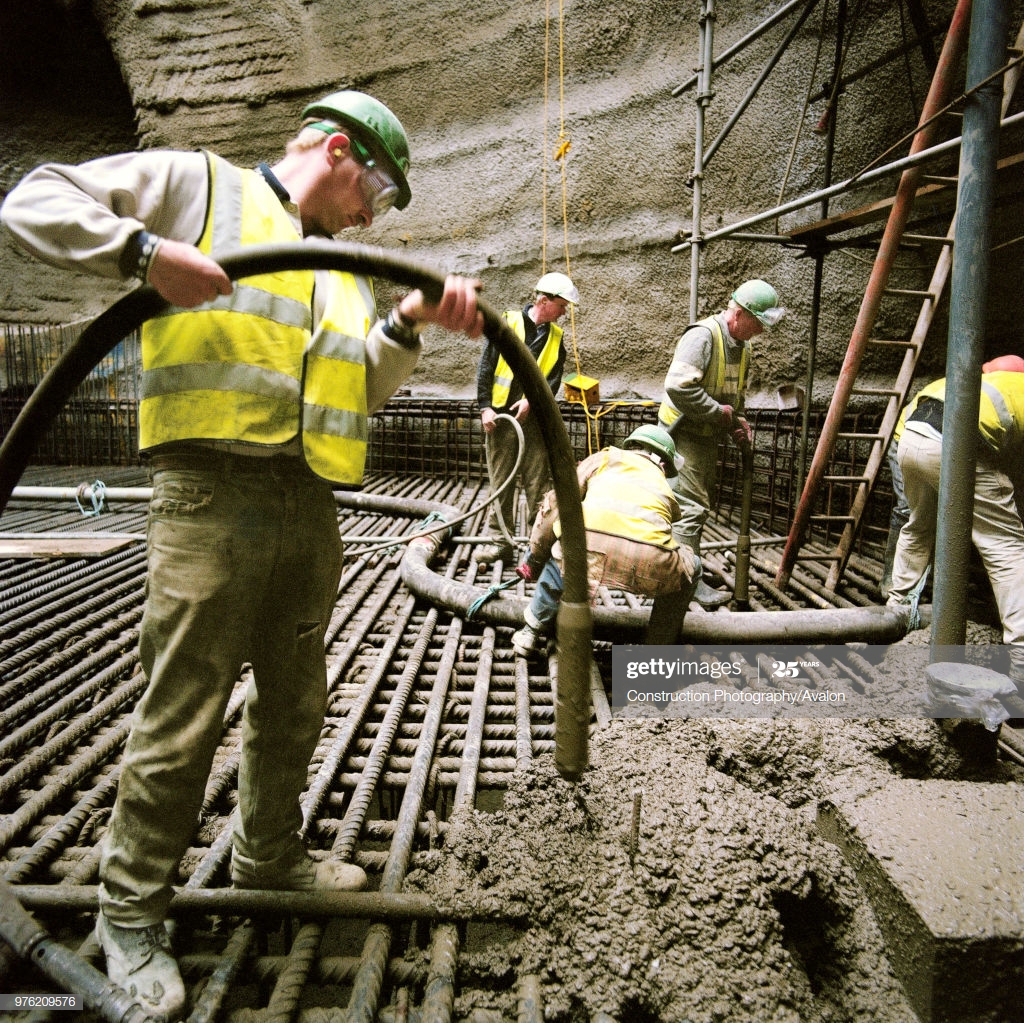

Work in Repair ,build road ,Personal residence, large buildings, airports, highways ... etc. Concrete pouring and tamping

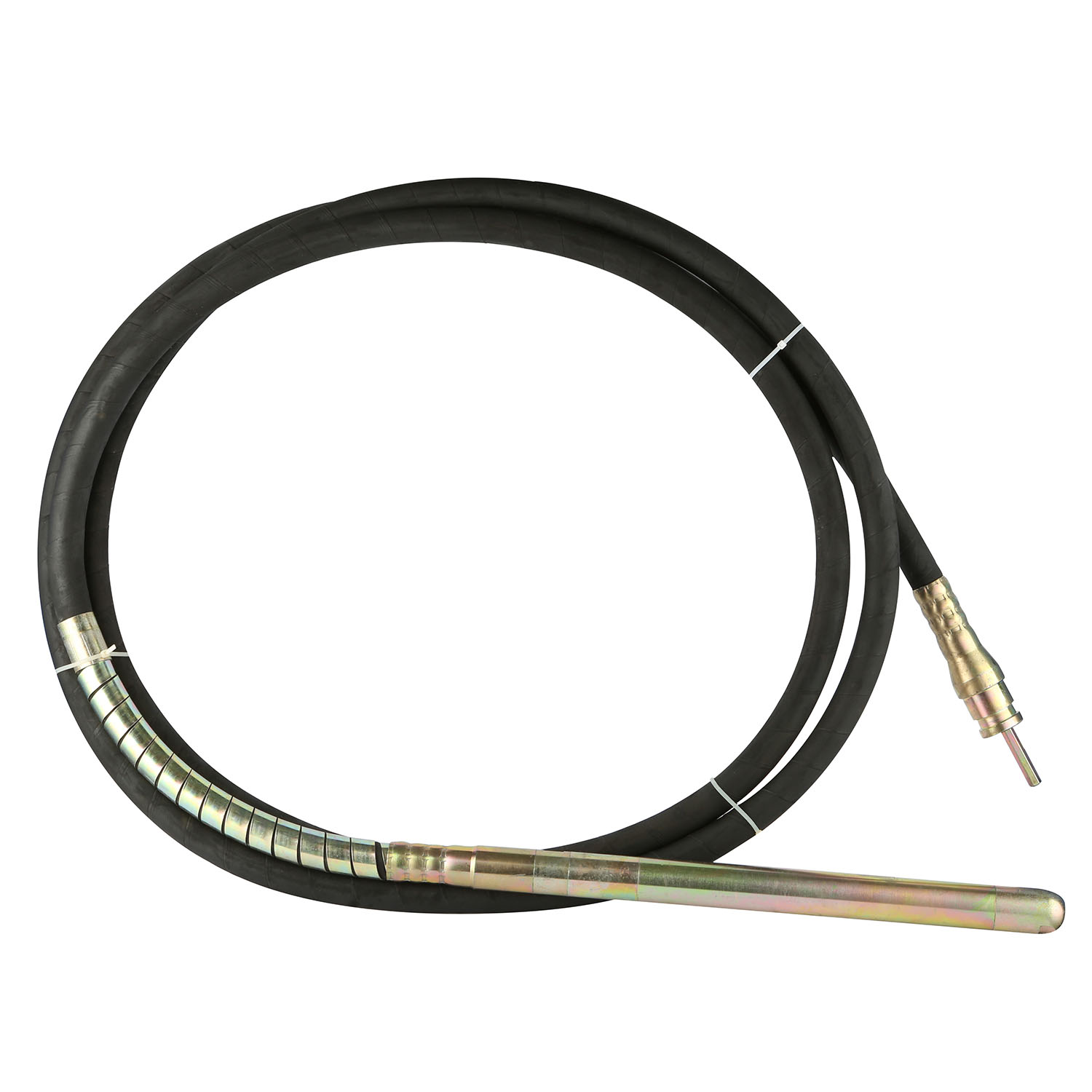

Chinese type 50mm 2inch concrete vibrator needle

Chinese type concrete vibrator needle 35mm/38mm and 50mm .Drive Electric vibrator different brand of Gasoline vibrator or Diesel vibrator.

We have some different size from 35mm/38mm/45mm/50mm/70mm

The ling of flexible hose is base on 40MN Steel,The tickness is 1.6MM，Width：16~18MM , 96 pcs steel wire，The tension of rubber is 800~900 N,  Hardness： 75~80 Flexible shaft：70# steel  ，The torsional：57N.m

15% raw material inspection and 100% Finished product inspection

Applications for: It is suitable for common concrete compaction, widely uesd in many places such as the bridge, the harbor construction, the large-scale dam, the high-level building base irrigation pile acted as a column, the crowded mat reinforcement coagulation dirt wall, the major and medium small architectural engineering.

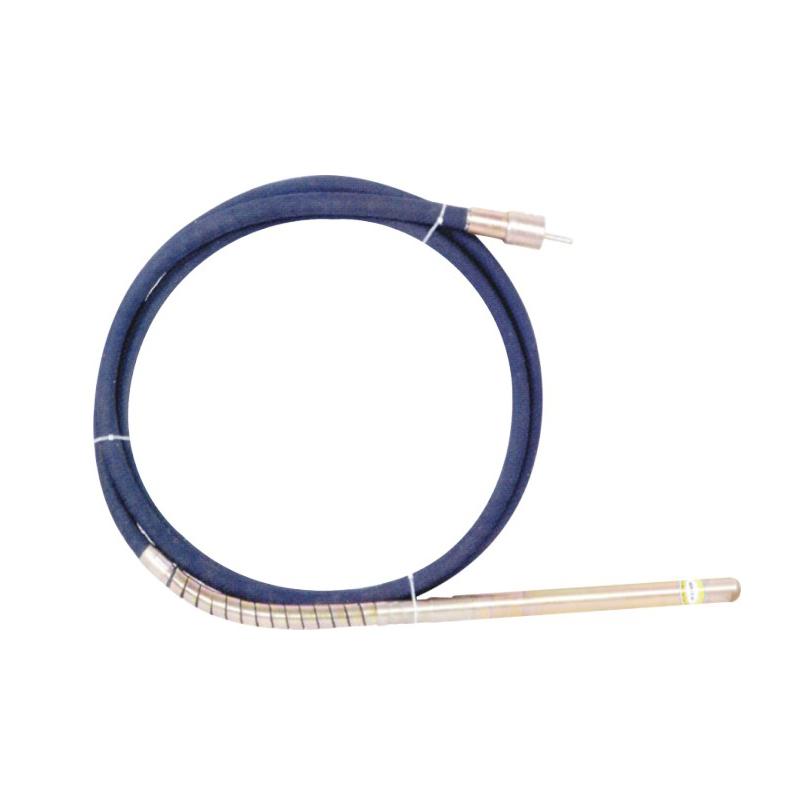

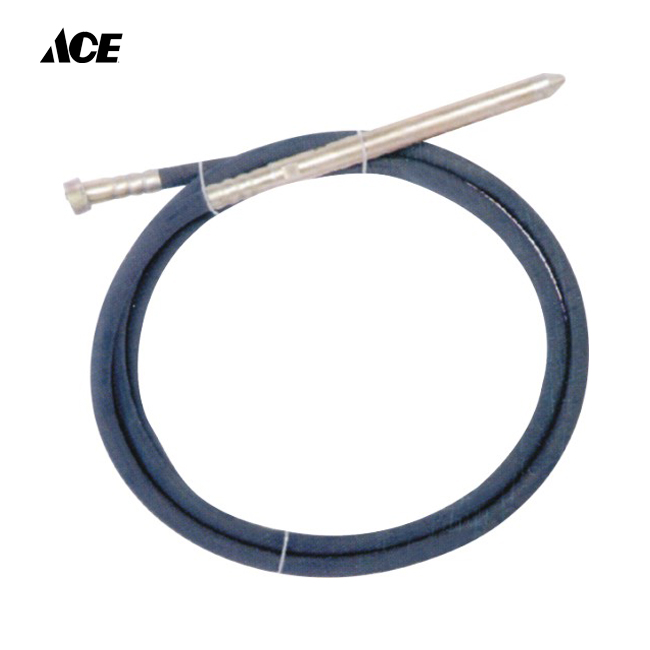

1.5in /38mm Indian type Concrete vibrator needle

Indian /Butterfly type Concrete vibrator needle ,Drive by Electric motor ,Robin 5.0HP petrol engine .Stable operation with good mechanical performance and good anti-wear performance

Head of needle have 35mm/38mm/40mm and 50mm

Rubber hoes with 40Mn steel ling,The tickness is 1.6MM，Width：16~18MM , 96 pcs steel wire .Rubber hose's tension is 800~900n and hardness is  75~80 degree

70# steel of Flexible shaft and the torsional is 57 N.m

 100% Finished product inspection and 15% raw material inspection

Concrete pouring and compactor in Personal residence, large buildings, airports, highways  and  Repair ,build road ,... etc

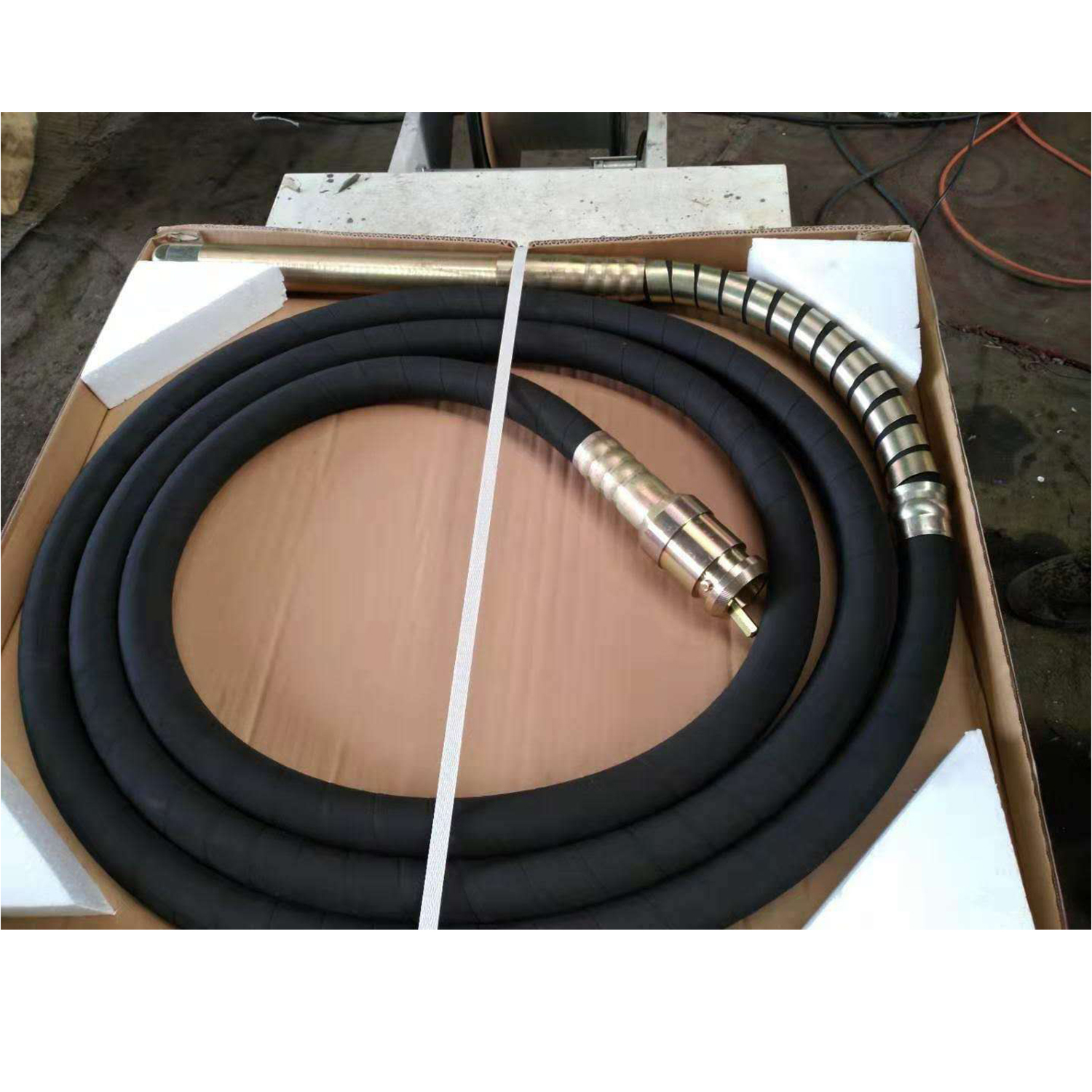

Indonesian type 38mm/45mm Poker vibrator shaft

Indonesian type Poker vibrator shaft  with high speed ,Low-noise with stable operation ,Good mechanical performance and well  anti-wear . Drive by Robin petrol engine ,Honda petrol engine or Chinese petrol engine

Vibrator head is from 28mm/32mm/38mm/45mm/60mm

Rubber hose base on 40Mn steel ling with 16~18mm width and 1.6mm thickness ,the hardness is 75~80 degree and 800~900n tension 70# steel of Flexible shaft and the torsional is 57 N.m

15% raw material inspection and 100% Finished product inspection

Applications for: It is suitable for common concrete compaction, widely uesd in many places such as the bridge, the harbor construction, the large-scale dam, the high-level building base irrigation pile acted as a column, the crowded mat reinforcement coagulation dirt wall, the major and medium small architectural engineering.

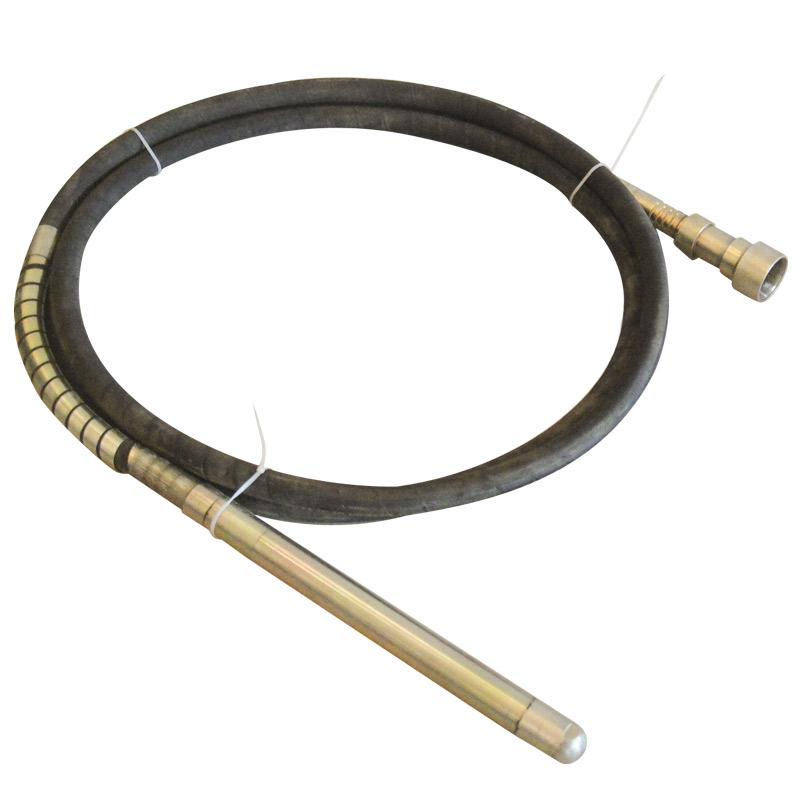

45mm 13/4inch Japanese type concrete vibrator shaft

Japanese (pin) type Vibrator shaft with 28mm/32mm/38mm/45mm and 60mm .Drive by Honda Enigne,Robin Engine or Loncin Engine ,Diesel engine or Electric motor .Stable operation with good mechanical performance and good anti-wear performance

Vibrator head is from 28mm/32mm/38mm/45mm/60mm

The tension of rubber hose is 800~900 N,  Hardness： 75~80 ,The tickness is 1.6MM，Width：16~18MM , 96 pcs steel wire and 40Mn steel ling 70# steel of Flexible shaft and the torsional is 57 N.m

For Flexible hose, we have done rubber aging test, tensile test, flexible shaft have torsion test, 100% inspection after assembly

widely uesd in many build road , harbor construction, the large-scale dam, the high-level building base.It has the density well, the air bubble few and repel seep the nature is strong and so on the merit, is guaranteed and improves the concrete construction quality the important tool.

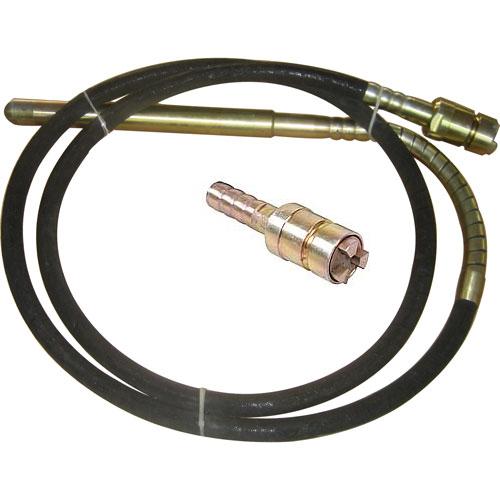

45mm Half moon Turkey type Concrete vibrator shaft

Half moon Turkey type Concrete vibrator shaft ,popular model is 38mm and 45mm .Drive by 750w Electric vibrator .Well mechanical and anti-wear performance for stable operation

Popular size form 38mm/45mm and Length 4.0mtr 4.5mtr and 6.0mtr

The ling of flexible hose is base on 40MN Steel,The tickness is 1.6MM，Width：16~18MM , 96 pcs steel wire，The tension of rubber is 800~900 N,  Hardness： 75~80 Flexible shaft：70# steel，The torsional：57N.m

15% raw material inspection and 100% Finished product inspection

Applications for: It is suitable for common concrete compaction, widely uesd in regular concrete compaction for repair road,build road,building house and some concrete pouring .

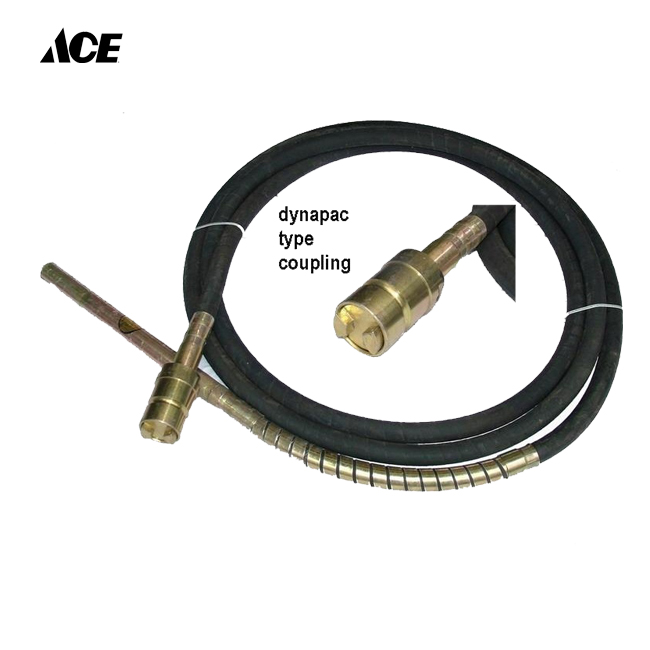

The Dynapac type Concrete vibrator poker has the following features:

1) Adopts an ordinary plug-in type vibrator and stick with a flexible pipe and flexible shaft

2) Good reliability

3) Unique shaft design effectively lowers noise greatly as well as improves efficiency

4) Low noise

5) Competitive price

6) High power intensity

7)The concrete vibrator shaft can be hexagon connector, dynapac connector and half moon type.

Specifications :

We produce series of vibrator, 25mm,28mm, 32mm,35mm,38mm,45mm,50mm,51mm, 60mm,70mm,76mm driven by engine or electric motor,all coupling type.

Concrete vibrator:

Good mechanical performance, stable operation, low noise, longer worktime,good anti-wear performance

12000RPM High speed concrete vibrator shaft

High speed vibrator shaft with 12000rpm ,It can work with Enar type Bosch type high frequency concrete vibator .Stable operation with low-noise  .

Vibrator head is from 35mm/38mm//45mm/50mm

Rubber hose base on 65Mn steel ling with 16~18mm width and 1.75mm thickness ,the hardness is 80~90 degree and 1000~1100n tension The torsional of flexible hose  is 65N.m with 5~7 layers and 65MN steel

For Flexible hose, we have done rubber aging test, tensile test, flexible shaft have torsion test, 100% inspection after assembly

Work in Repair ,build road ,Personal residence, large buildings, airports, highways ... etc. Low noise with stable operation,Good mechanical performance and anti-wear performance.

Wacker type  square 8mm connector concrete vibrator shaft

Heads and shafts can be easily combined and rapidly exchanged to match the right equipment to the job. Unique hybrid heads offer optimum concrete consolidation and movement.  provide reliable performance and quality concrete.

Poker head is from 35mm/38mm/40mm /45mm/48mm/50mm

The tension of rubber hose is 1000~1100 N,  Hardness： 80~90 ,The tickness is 1.75MM，Width：16~18MM , 96 pcs steel wire and 65Mn steel ling 65MN steel of Flexible shaft  with 5 layers and the torsional is 65 N.m

15% raw material inspection and 100% Finished product inspection

widely uesd in many  harbor construction, the large-scale dam, the high-level building base ,build and repair road   .Stable operation with good mechanical performance，low noise with good anti-wear performance

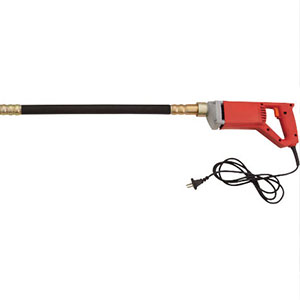

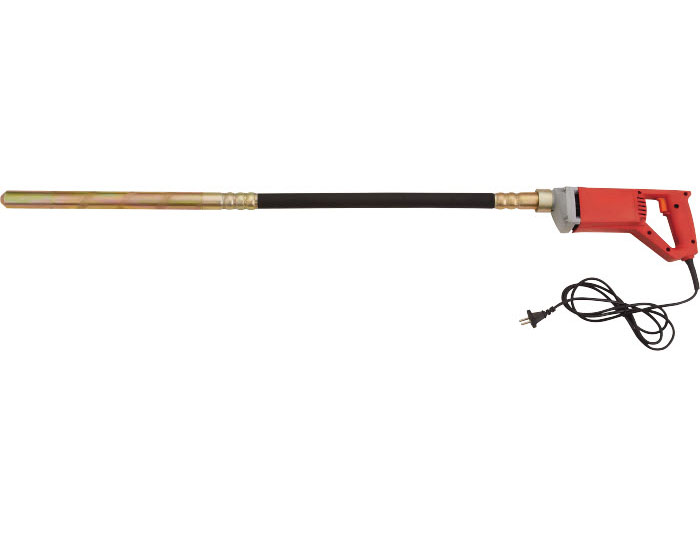

25mm-35mm Portable vibrator shaft

Drive by 580w/800w /1300w portable vibrator and the length from 1mtr -1.5mtr ,2.0mtr and 3.0mtr . The weight is very light and convenience for operation .

Portable vibrator head size with 25mm/35mm/45mm and 50mm .

Rubber hose base on 40Mn steel ling with 16~18mm width and 1.6mm thickness ,the hardness is 75~80 degree and 800~900n tension The torsional of flexible hose  is 57 N.m with 5~7 layers and 70# steel

15% raw material inspection and 100% Finished product inspection

Work in Repair road,build road ,Personal residence to Concrete pouring and compacting .Easy to operation .

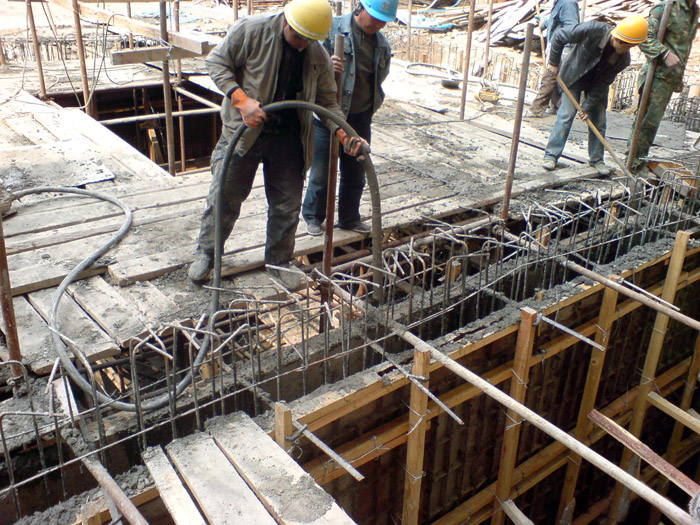

Application:

It is suitable for common concrete compaction, widely uesd in many places such as the bridge, the harbor construction, the large-scale dam, the high-level building base irrigation pile acted as a column, the crowded mat reinforcement coagulation dirt wall, the major and medium small architectural engineering.

It has the density well, the air bubble few and repel seep the nature is strong and so on the merit, is guaranteed and improves the concrete construction quality the important tool.

stable operation

good mechanical performance

low noise

good anti-wear performance

Different size for choice :

ASOK company have produce many different type and models form 25mm/28mm/32mm/35mm/38mm/45mm/50mm/60mm/70mm/75mm,and differerent lengths almost from 1 to 12m for selection .
