Customized Dynapac type concrete vibrator shaft factory in china manufacturers From China | ACE ASOK Machinery
Dynapac (Malaysia ) type concrete vibrator shaft 1'/1.5'/2' ,Work by Robin EY20 5.0HP Engine or Chinese 5.0hp engine or 170F 4.0HP Diesel engine .
Application :Work in Repair ,build road ,Personal residence, large buildings, airports, highways ... etc. Concrete pouring and tamping
Customized Dynapac type concrete vibrator shaft factory in china manufacturers From China | ACE ASOK Machinery
The ACE Dynapac type Concrete vibrator shaft have the size from 28mm/32mm/35mm/38mm/45mm/50mm/60mm and 70mm .The length from 1.0mtr ,2mtr ,4mtr ,6mtr ,8mtr ....12mtr .They all can drive by gasoline engine ,diesle engine or Electric motor .M
AIN
Feature:
1. Rubber hose base on 40Mn steel ling with 16~18mm width and 1.6mm thickness ,the hardness is 75~80 degree and 800~900n tension
2. Head size:Vibrator head is from 32mm/ 35mm/38mm//45mm/50mm/60mm
3. The torsional of flexible hose is 57 N.m with 5~7 layers and 70# steel
4. All accessories are subject to 100% dimensional insepction and hardness testing
Model | ZX-32 | ZX-38 | ZX-45 | ZX-60 | ZX-35 | ZX-50 | ZX-70 | |
Diameter | ￠(mm) | 32 | 38 | 45 | 60 | 35 | 50 | 70 |
Length | L (mm) | 583 | 580 | 583 | 577 | 400 | 479 | 555 |
Vibrating Frequency | (HZ) | 220 | 200 | 200 | 200 | 200 | 200 | 200 |
Vibrating Ampitude | (mm) | 0.82 | 1.2 | 1.2 | 1.25 | 0.91 | 1.15 | 1.35 |
Diameter of flexiable hose | D(mm) | 30 | 30 | 32 | 36 | 30 | 36 | 36 |
Diameter of flexiable shaft | D(mm) | 10 | 10 | 12 | 13 | 10 | 13 | 13 |
Weiht with 6mtr hose | (kg) | 12.42 | 12.65 | 15.92 | 22 | 14 | 20.5 | 24 |
packing size | cm | 75*75*5.5 cm | ||||||

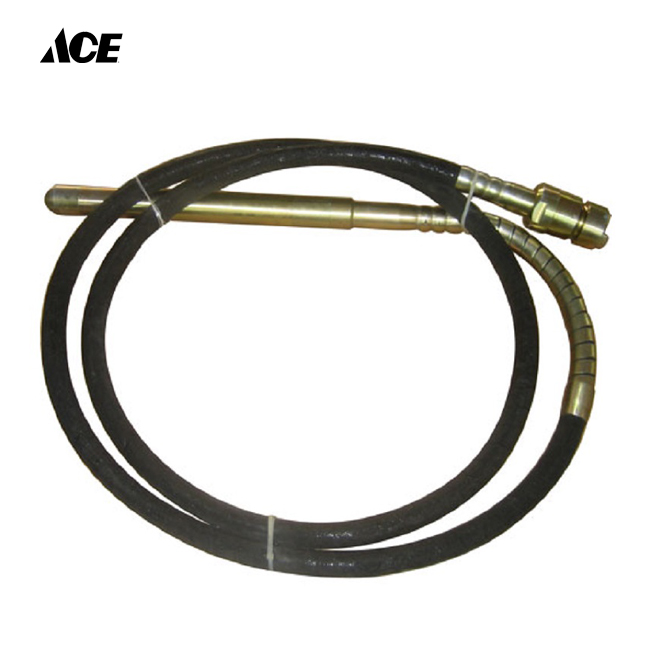

with Dynapac coupling

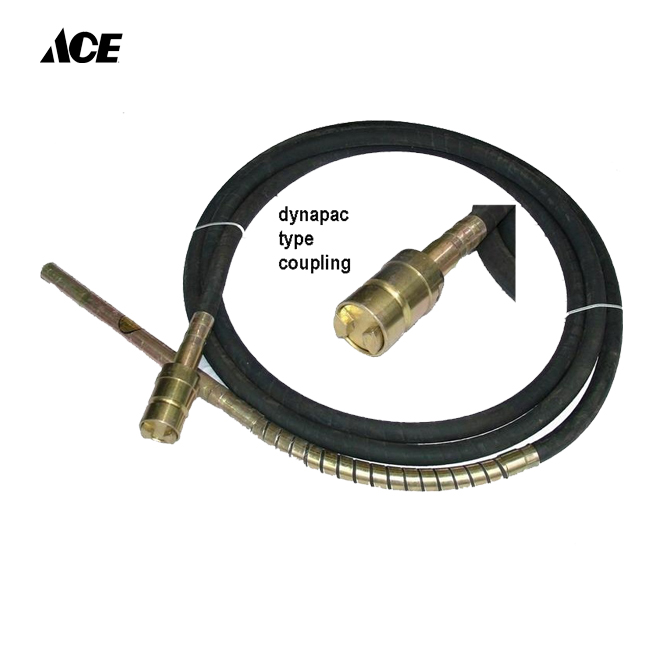

with Dynapac coupling

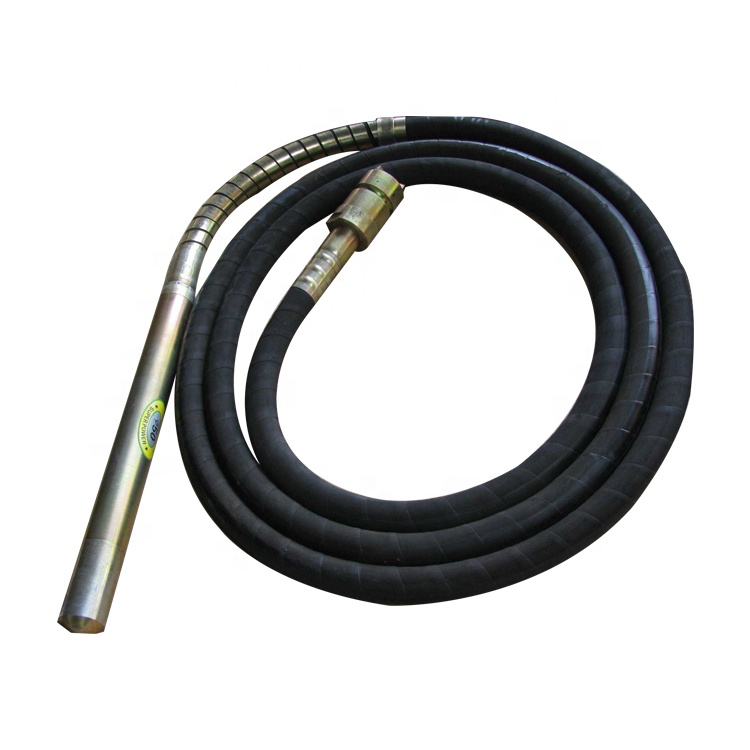

with Dynapac coupling

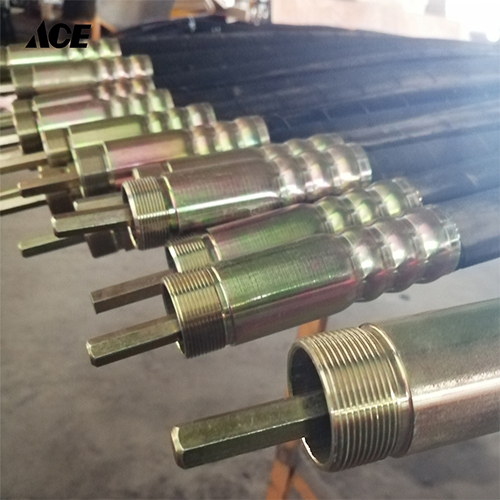

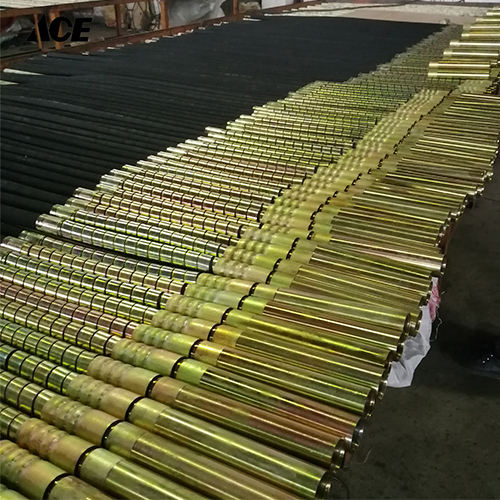

Production Line 2
