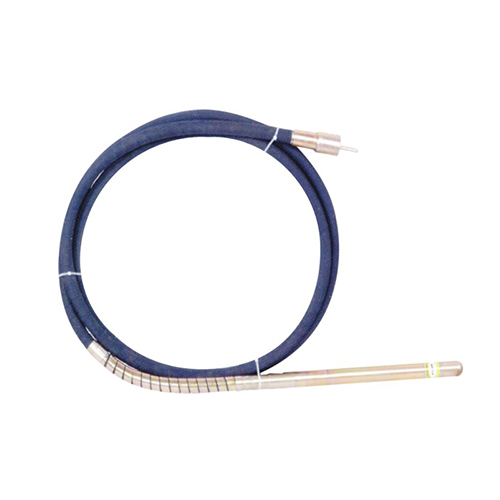

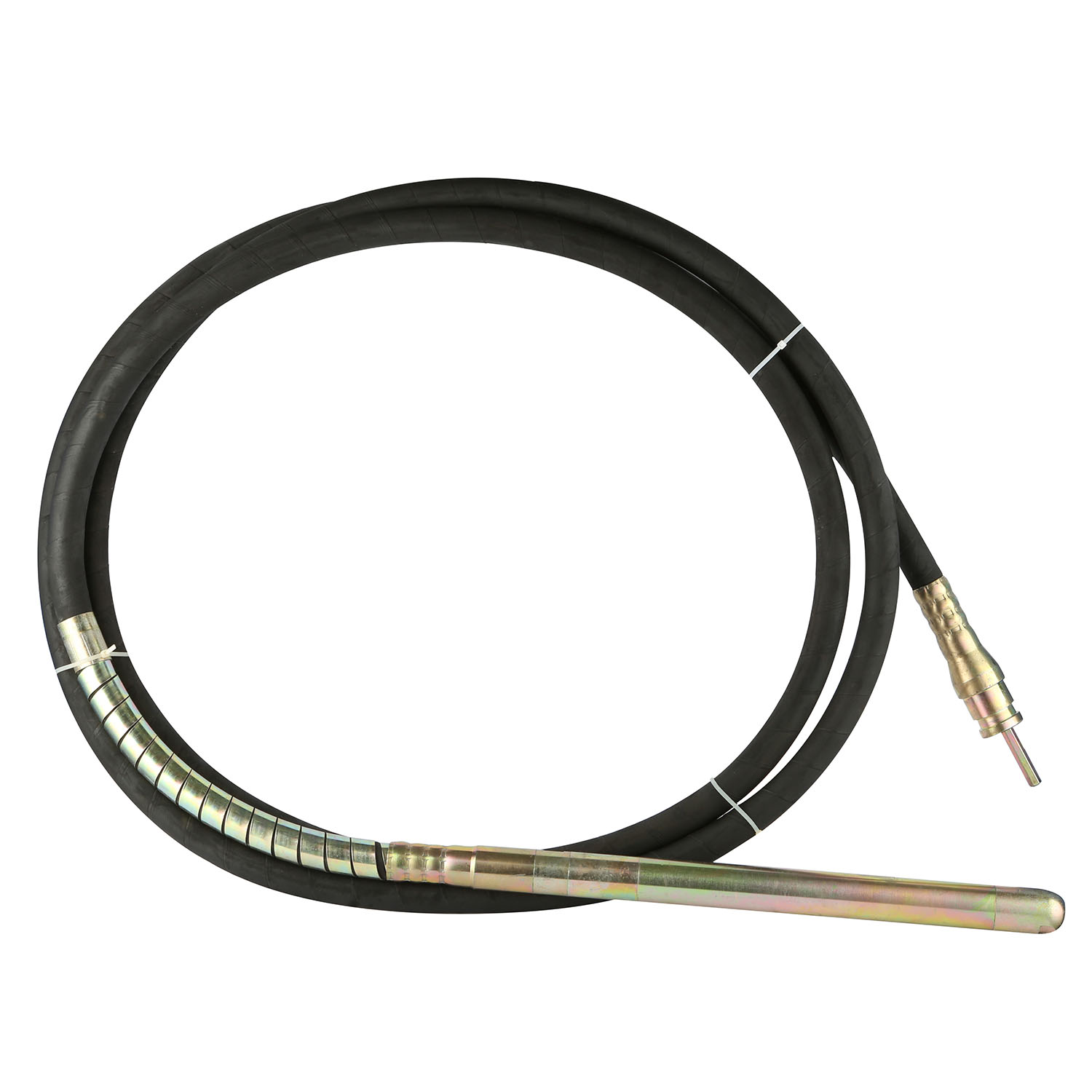

concrete vibrator shaft
VR
DESCRIPTION

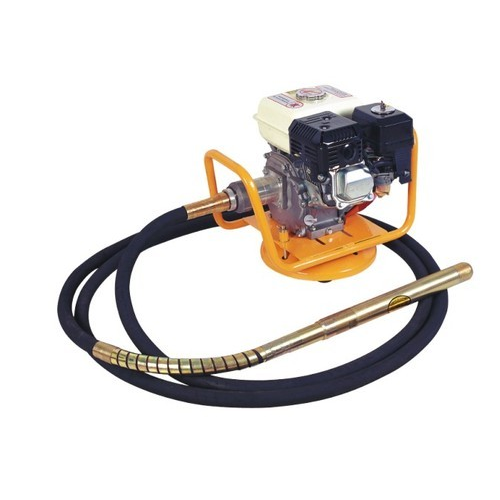

-ASOK specializes in the production of concrete vibrating rods. -The Japanese type concrete vibrator shaft has a diameter of 45mm (1 3/4 inches). -The Japanese (pin) type vibrator shaft is available in sizes 28mm, 32mm, 38mm, 45mm, and 60mm. -These vibrator shafts can be powered by various options including Honda Engine, Robin Engine, Loncin Engine, diesel engine, or electric motor. -The vibrator shafts are known for their stable operation, good mechanical performance, and anti-wear capabilities.


-The vibrator heads are available in sizes 28mm, 32mm, 38mm, 45mm, and 60mm. -The rubber hose used in the concrete vibrating rods has a tension of 800~900 N, hardness ranging from 75 to 80. The thickness is 1.6mm and the width ranges from 16mm to 18mm. It is made of 96 steel wires and has a 40Mn steel lining. -The flexible shaft used in the concrete vibrating rods is made of 70# steel and can withstand a torsional force of 57 N.m.


-ASOK performs rubber aging tests, tensile tests on the flexible hose, and torsion tests on the flexible shaft. They also conduct 100% inspection after assembly to ensure the quality of the products.


-The concrete vibrating rods manufactured by ASOK are widely used in various construction projects such as road building, harbor construction, large-scale dams, and high-level building foundations. -These rods have several advantages including well-distributed density, minimal air bubble formation, strong seepage resistance, and other beneficial properties. They are considered an important tool for improving the quality of concrete construction.




Product Parameters

Model


Interational type



ZX-28

ZX-32

ZX-38

ZX-45

ZX-60

Head Diameter

(mm)

28

32

38

45

60

Head Length

L (mm)

580

583

580

583

577

Vibrating Frequency

(HZ)

220

220

200

200

200

 Vibrating Ampitude

(mm)

0.8

0.82

1.2

1.2

1.25

Diameter of flexiable hose

D(mm)

30

30

30

32

36

Diameter of flexiable shaft

D(mm)

10

10

10

12

13

Product Features



The ling of flexible hose is base on 40MN Steel

15% raw material inspection and 100% Finished product inspection

Width:16~18MM , 96 pcs steel wire,The tension of rubber is 800~900 N,  Hardness: 75~80



Product Uses

It is suitable for common concrete compaction, widely uesd in many places such as the bridge, the harbor construction, the large-scale dam, the high-level building base irrigation pile acted as a column, the crowded mat reinforcement coagulation dirt wall, the major and medium small architectural engineering.


It has the density well, the air bubble few and repel seep the nature is strong and so on the merit, is guaranteed and improves the concrete construction quality the important tool.


1.stable operation


2.good mechanical performance


3.low noise


4.good anti-wear performance



Product Comparison


High vibration frequency and long duration
VS
Low noise, long vibration time



Factory Image



Arranged in order

++

Show in detail

++

Neatly packed

++


Customer Feedback



ASOK's Concrete Vibrator Looks Fit, I Love It - Jack from Nigeria

++


QUESTIONS



FAQ
  • What is the average lead time?
    For samples, the lead time is about 7 days. For mass production, the lead time is 20-30 days after receiving the deposit payment. The lead times become effective when (1) we have received your deposit, and (2) we have your final approval for your products. If our lead times do not work with your deadline, please go over your requirements with your sale. In all cases we will try to accommodate your needs. In most cases we are able to do so.
  • Can you supply the relevant documentation?
    Yes, we can provide most documentation including Certificates of Analysis / Conformance; Insurance; Origin, and other export documents where required.
  • Do you have a minimum order quantity?
    As usually ,the mini order is base on 1~50pcs .Different product will be different .
