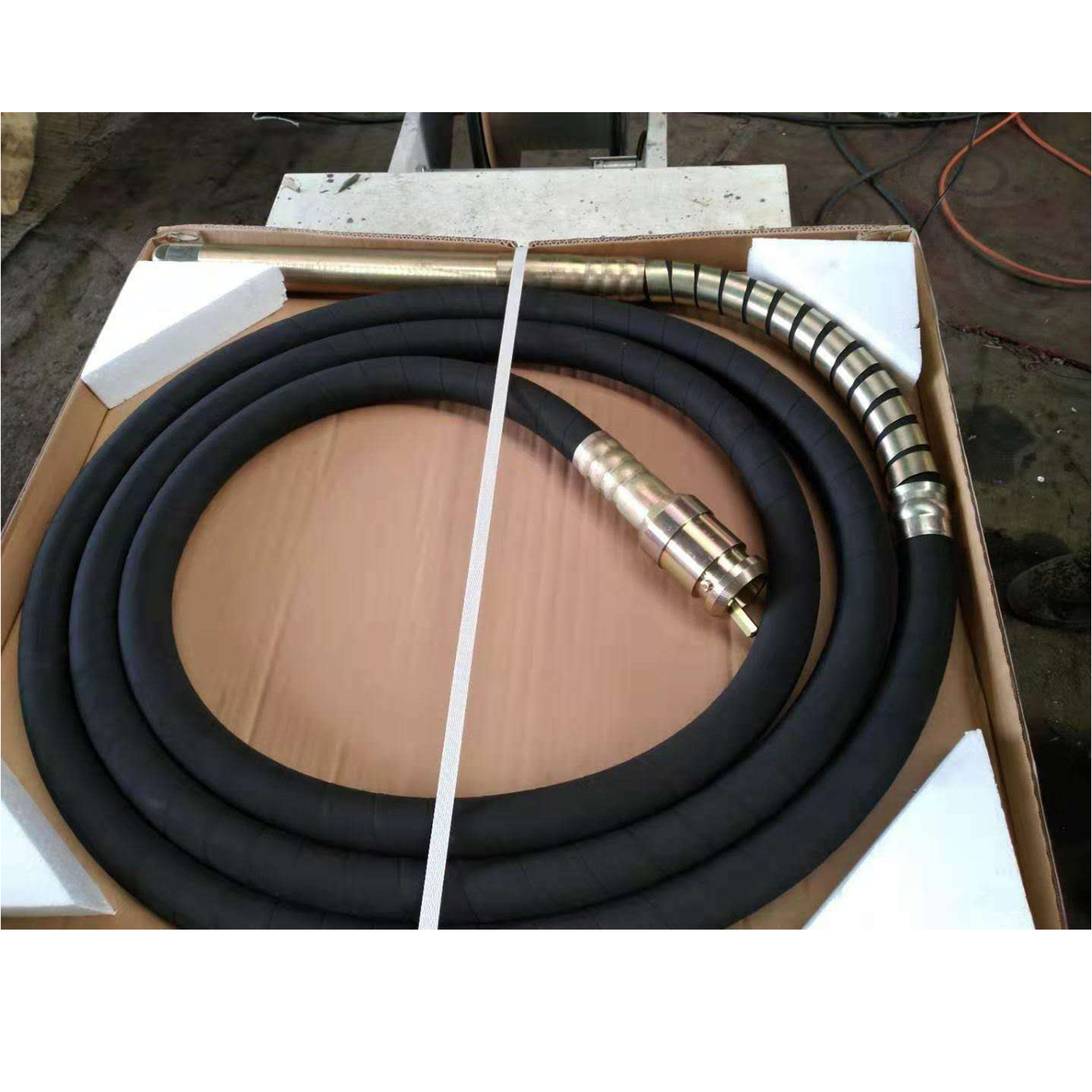

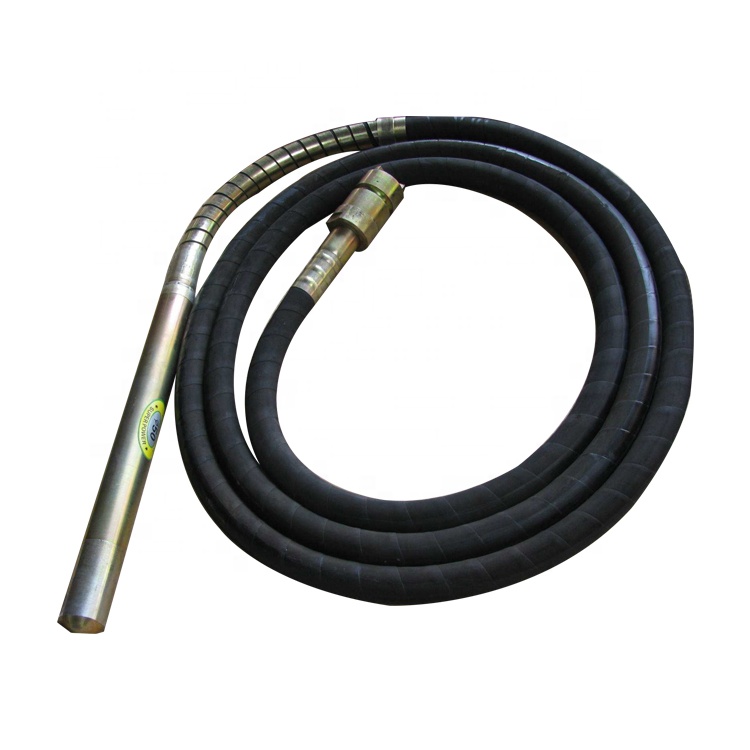

1.5in /32-60mm Indian type Concrete vibrator shaft
Indian /Butterfly type Concrete vibrator shaft ,Drive by Electric motor ,Robin 5.0HP petrol engine .Stable operation with good mechanical performance and good anti-wear performance
Head of needle have 35mm/38mm/40mm and 50mm
Rubber hoes with 40Mn steel ling,The tickness is 1.6MM,Width:16~18MM , 96 pcs steel wire .Rubber hose's tension is 800~900n and hardness is 75~80 degree
70# steel of Flexible shaft and the torsional is 57 N.m
100% Finished product inspection and 15% raw material inspection
Concrete pouring and compactor in Personal residence, large buildings, airports, highways and Repair ,build road ,... etc

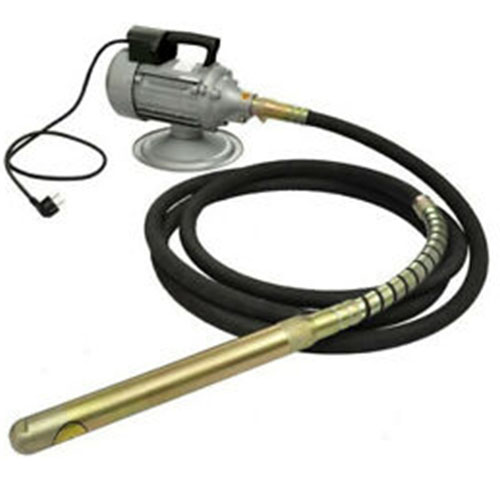

The 1.5in / 38mm Indian type concrete vibrator shaft is designed in the Indian or Butterfly type and is powered by an electric motor or a Robin 5.0HP petrol engine. It offers stable operation with good mechanical performance and excellent anti-wear characteristics.
The head of the needle is available in various sizes including 35mm, 38mm, 40mm, and 50mm. This versatility allows it to be suitable for different concrete pouring and compaction tasks.
The rubber hose is made with a 40Mn steel lining and has a thickness of 1.6mm. Its width ranges from 16mm to 18mm, and it consists of 96 steel wire pieces. The rubber hose's tension capacity is between 800N and 900N, and it has a hardness measurement of 75-80 degrees.
The flexible shaft is made of 70# steel and can withstand a torsional force of up to 57N.m. This ensures its durability and reliability during operation.
The concrete vibrator needle undergoes 100% finished product inspection to maintain quality, and a 15% raw material inspection is conducted to ensure the components meet the required standards.
It is suitable for various applications such as concrete pouring and compaction in personal residences, large buildings, airports, highways, and for repair and road construction projects.
Model | ZX-32 | ZX-38 | ZX-40 | ZX-45 | ZX-60 | |
Diameter | ¢(mm) | 32 | 38 | 40 | 45 | 60 |
Length | L (mm) | 583 | 580 | 580 | 583 | 577 |
Vibrating Frequency | (HZ) | 220 | 200 | 200 | 200 | 200 |
Vibrating Ampitude | (mm) | 0.82 | 1.2 | 1.2 | 1.2 | 1.25 |
Diameter of flexiable hose | D(mm) | 38 | 38 | 38 | 38 | 38 |
Diameter of flexiable shaft | D(mm) | 12 | 12 | 12 | 13 | 13 |
Weiht with 6mtr hose | (kg) | 15 | 17 | 18 | 19 | 22 |
packing size | cm | 75*75*7 cm |
It is suitable for common concrete compaction, widely uesd in many places such as the bridge, the harbor construction, the large-scale dam, the high-level building base irrigation pile acted as a column, the crowded mat reinforcement coagulation dirt wall, the major and medium small architectural engineering.
It has the density well, the air bubble few and repel seep the nature is strong and so on the merit, is guaranteed and improves the concrete construction quality the important tool.
1.stable operation
2.good mechanical performance
3.low noise
4.good anti-wear performance
