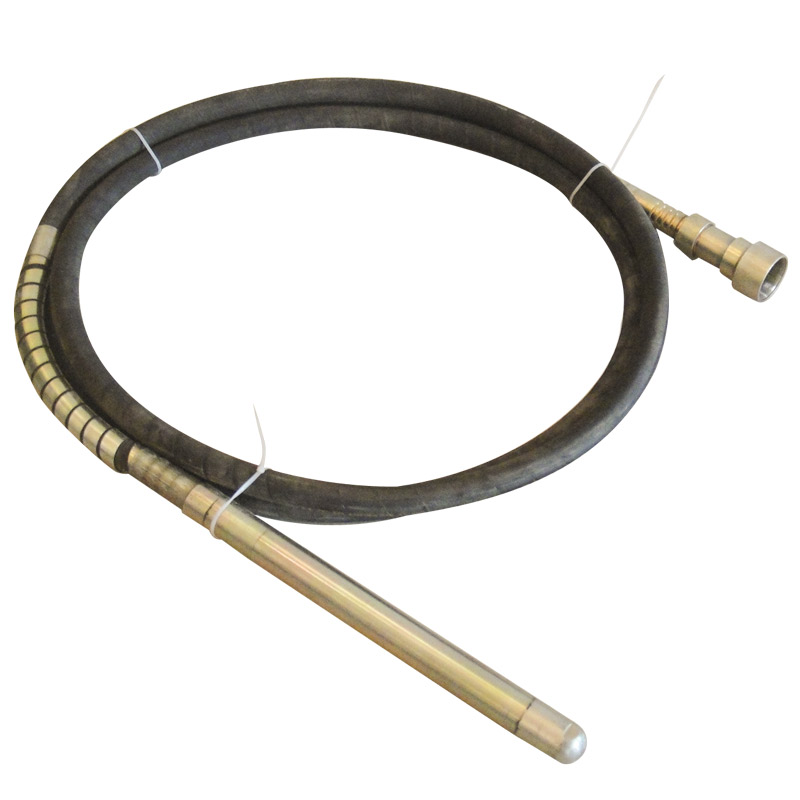

Indonesian type 35mm/50mm Poker vibrator shaft
Indonesian type Poker vibrator shaft with high speed ,Low-noise with stable operation ,Good mechanical performance and well anti-wear . Drive by Robin petrol engine ,Honda petrol engine or Chinese petrol engine
Vibrator head is from 325mm/45mm/50mm
Rubber hose base on 40Mn steel ling with 16~18mm width and 1.6mm thickness ,the hardness is 75~80 degree and 800~900n tension
70# steel of Flexible shaft and the torsional is 57 N.m
15% raw material inspection and 100% Finished product inspection
Applications for: It is suitable for common concrete compaction, widely uesd in many places such as the bridge, the harbor construction, the large-scale dam, the high-level building base irrigation pile acted as a column, the crowded mat reinforcement coagulation dirt wall, the major and medium small architectural engineering.
As a professional concrete vibrator shaft manufacturer, ASOK will meet the needs of customers in all aspects
It is clear that this Indonesian type 35mm/50mm Poker vibrator shaft is designed to offer high speed, low-noise operation with stable performance. Its good mechanical performance and anti-wear properties make it a reliable choice.
The vibrator shaft can be driven by different engines such as Robin petrol engine, Honda petrol engine, or Chinese petrol engine, providing versatility in terms of power options.
The vibrator head comes in sizes of 35mm, 45mm, and 50mm, allowing for flexibility in concrete compaction needs.
The rubber hose, based on a 40Mn steel ling, has a width ranging from 16mm to 18mm and a thickness of 1.6mm. It has a hardness between 75 and 80 degrees and can withstand tension levels of 800N to 900N.
The flexible shaft is made of 70# steel and has a torsional force limit of 57 N.m, ensuring its durability and reliability during operation.
The manufacturing process includes a 15% raw material inspection and a 100% finished product inspection to maintain quality standards.
This type of vibrator shaft is suitable for common concrete compaction tasks and finds applications in various construction projects including bridges, harbor constructions, large-scale dams, high-rise building foundations, irrigation pile columns, reinforcement of crowded mat coagulation dirt walls, as well as major and medium-sized architectural engineering projects.
Should you have any further inquiries or require additional information, feel free to ask
Item | Indonesian type vibrator shaft | |||
Model | ￠(mm) | ZX-35 | ZX-45 | ZX-50 |
Diameter of head | ￠(mm) | 35 | 45 | 50 |
Length of head | L (mm) | 330 | 390 | 410 |
Vibrating Frequency | (HZ) | 200 | 200 | 200 |
Vibrating Ampitude | (mm) | 0.91 | 1.2 | 1.3 |
Diameter of flexiable hose | D(mm) | 30 | 30 | 30 |
Diameter of flexiable shaft | D(mm) | 10 | 10 | 10 |
packing size | cm | 75*75*5.5cm | ||
It is suitable for common concrete compaction, widely uesd in many places such as the bridge, the harbor construction, the large-scale dam, the high-level building base irrigation pile acted as a column, the crowded mat reinforcement coagulation dirt wall, the major and medium small architectural engineering.
It has the density well, the air bubble few and repel seep the nature is strong and so on the merit, is guaranteed and improves the concrete construction quality the important tool.
1.stable operation
2.good mechanical performance
3.low noise
4.good anti-wear performance
