How to choose high-quality walk behind vibrator rollers

July 21, 2023
How to choose high-quality walk behind vibrator rollers
1.Push type walk behind vibrator rollers



Double-Drum Vibratory Roller

 Steering Double-Drum Vibratory Roller


2.Driving type walk behind vibrator rollers



RZ216V-220V

RZ235V-240V

RZ900kg-1500kgs

RZ750kg-900KGS

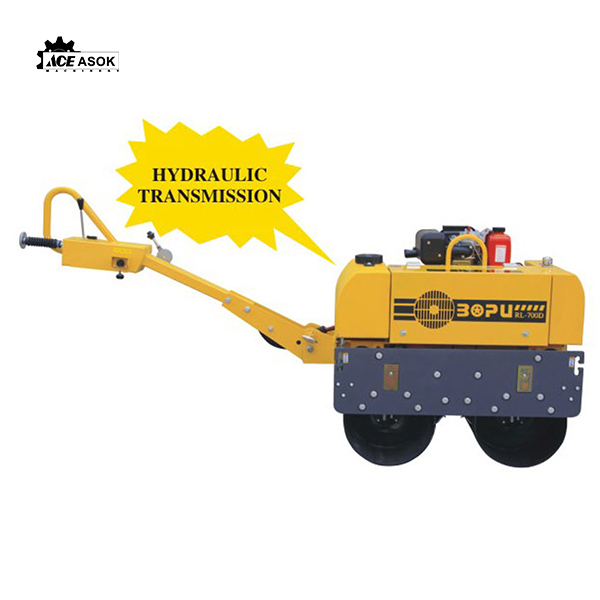

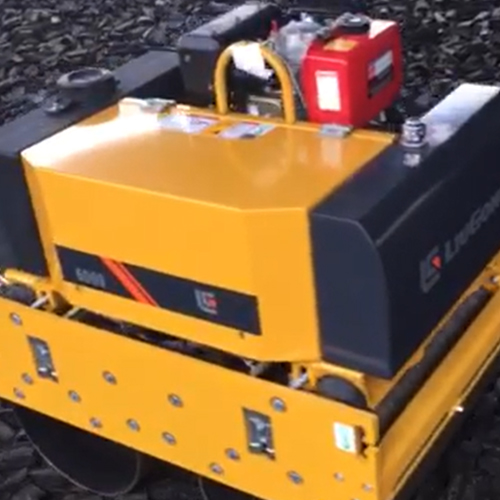

3.Introduction of Double-Drum Vibratory Roller



ACE walk behind rollers are  designed rugged and suitable for a wide range of applications in the construction industry. Applying hydraulic control unit ,imported hydraulic pump from Japan,easy to change direction, ,turn left,turn right and Reversible.

1. Custom made water-cooled diesel engine,with good heat dissipation and great power comparing to gasoline engine,especially fits for running in burning hot areas.

2. Drum and body steel material is C45,better tensile strength than Q235,long service life.

3. Steel cutting by lazer,no deformation from twisting and bending,high demension accuracy comparing to flame cutting

4. 65 Liters, corrosion-free water tanks mounted at the rear of roller reduces reduces sound and keeps dust to a minimum.

5. Vibration is controlled by easy to reach on and off switch in speed controlled hand lever.

6. Two scraper bars on each drum ensure a clean drum when working on asphalt.

7. Minimum overhang offering suitable side and curb clearance.

8. Ergonomically design handle with dead man control offering protection to operator in reversing applications.

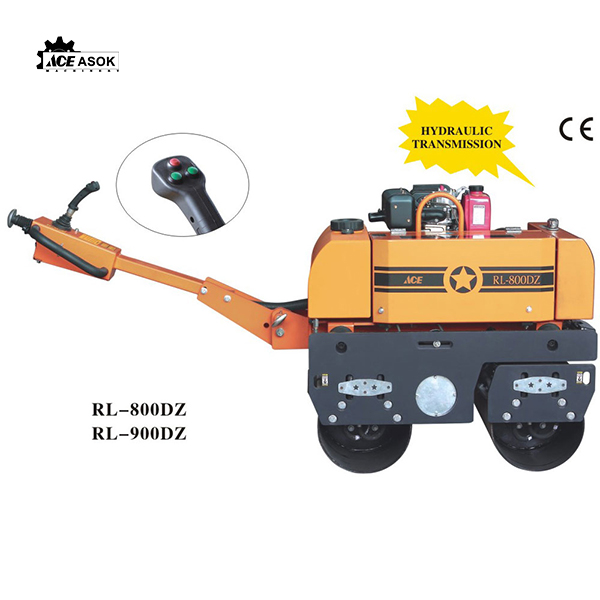

4. Introduction of Steering Double-Drum Vibratory Roller



A water-cooled single-cylinder diesel engine or an alternative air-cooled unit is fitted into the steering vibratory roller. Output power of the motor is transferred via the centrifugal clutch. The purpose of the clutch is to engage when the engine speeds up and disengage when the engine is idling.


2. The drum features a built-in clutch that transfers power from the engine to the drum and provides energy for drum riding forward.


3. The hydraulic pump generates hydraulic pressure through out hydraulic hose coming from oil tank. The pressure is converted into torque to drive the drum shaft for rotation thereby going forward.


4. The traveling speed of forward or reverse motion is adjusted by the movement of operating lever.


5. The vibration action is generated the vibrator unit, exerting vibrating force into the ground for compaction

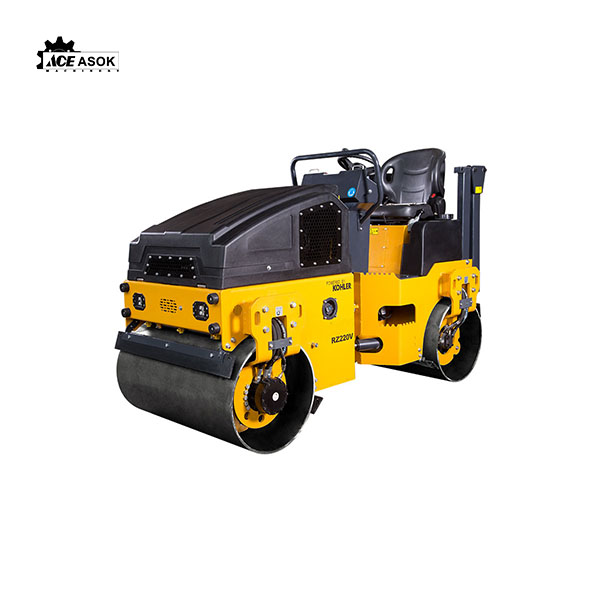

5.Introduction of RZ216V-220V

 ACE RZ216V-RZ220V  articulated tandem roller is suitable for compaction of asphalt, compaction of non-cohesive and cohesive soil and compaction of stabilized soils. It is used in municipal, highway pavement maintenance operations, also apply to groove, pipe trench backfill compaction in the construction engineering, building construction and square homework, rolling lawns, etc.


1. A spacious,vibration-damped operator platform and an ergonomically positioned step make the machine extremely operator-friendly

2. Flip-open engine hood provides easy accessibility to engine and components for daily maintenance and service .

3. Ergonomic layout and design of the operating controls:the easy drive steering wheel,multifunctional control lever,and comfortable armrests .

4. Large 110L water tank is equipped with pressurized water system offers consistent water flow.

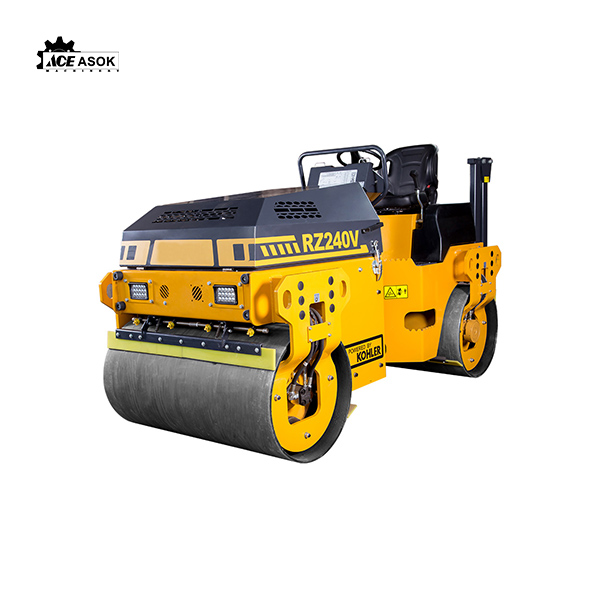

6.Introduction of RZ235V-240V



ACE 3600KGS Ride on Vibration roller is suitable for compaction of asphalt, compaction of non-cohesive and cohesive soil and compaction of stabilized soils. It is used primarily for small-scale compaction work such as pavements, cycle paths, small roads and small parking areas-places that need compaction but are difficult to reach with a larger roller


1.Famous brand KOHLER KDW1404 Diesel  engine , excellent performance, easy to start-up;

2.Famous Italy variable pump, fixed displacement motor, steppless speed, easy to change direction;

3.Ergonomic layout and design of the operating controls:the easy drive steering wheel,multifunctional control lever,and comfortable armrests .

4.Flip-open engine hood provides easy accessibility to engine and components for daily maintenance and service .

5.Large 200L water tank is equipped with pressurized water system offers consistent water flow .

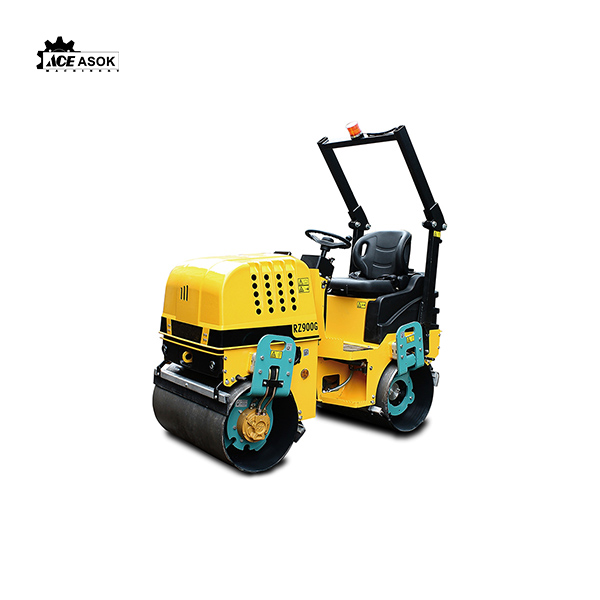

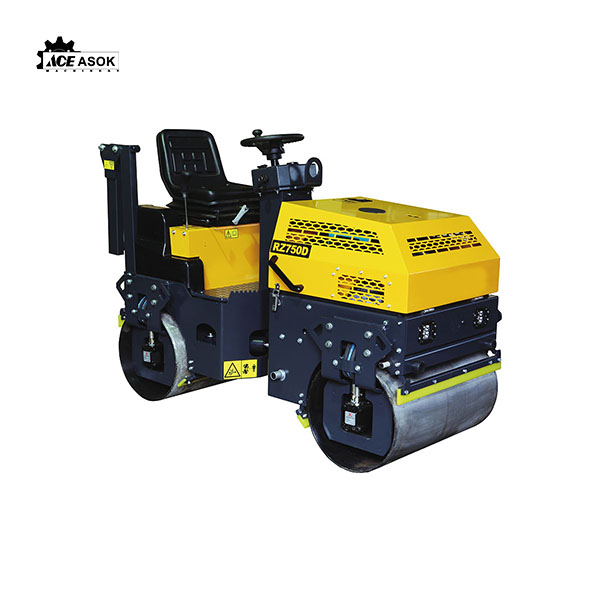

7.Introduction of RZ750kg-900KGS

It is used in soil, asphalt road, walkway, bridge, parking, gym and narrow site. Operate radius small, can work in small area, suitable for groove backfill. Adopt France poclain brand hydraulic pump, walk forward and backward, reversing convenient .Use electrical startup, machine vibration control use electromagnetic clutch, easier operation. It is the ideal equipment for street, road and squares.


1.Famous brand engine , excellent performance, easy to start-up;

2. Famous Italy variable pump, fixed displacement motor, steppless speed, easy to change direction;

3. Hydraulic diversion, efficient and convenient;

4. The whole machine could be controlled by instrument panel;

5. Comfortable driving seat;

6. Streamline surface, more beautiful;

7. Baking treated , anti-rust , anti-corrosion and beautiful;

8. Competitive price with good quality product



8.Introduction of RZ900kg-1500kgs


ACE 1500KGS Road roller mainly used for earthwork and asphalt applications. New construction and repair work for medium and small scale construction projects, on parking lots, sidewalks, cycle paths, playing fields and sports grounds as well as rolling of joints in road construction.


1. Articulated movement with power-assist provides accurate,positive steering control and increases maneuverability in confined job sites .

2. The hydraulic pump and motors are connected in series to offer the maximum traction and smooth rolling as well as excellent gradeability .

3. 40mm side clearance allows close operations near walls and obstructions .

4. Curb clearance 412mm insures flush compaction to the curb.

5. Unobstructed driver visibilit

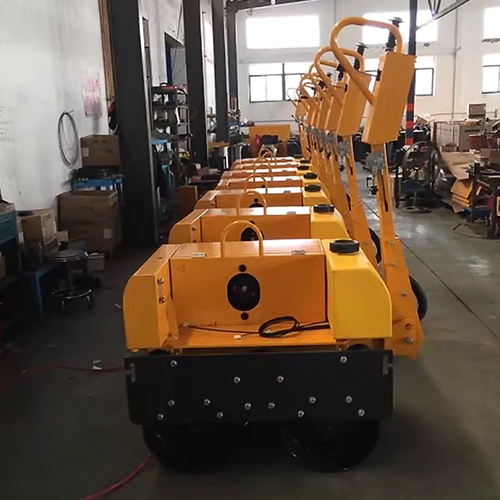

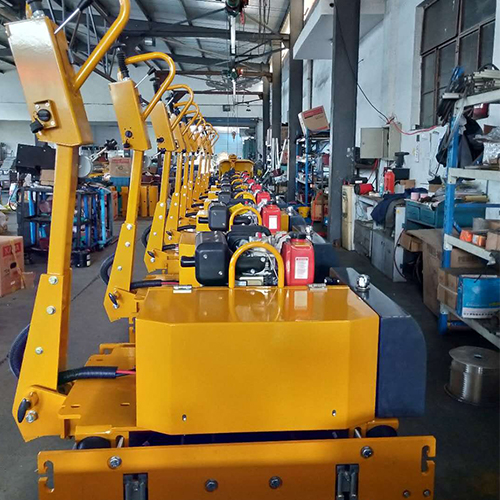

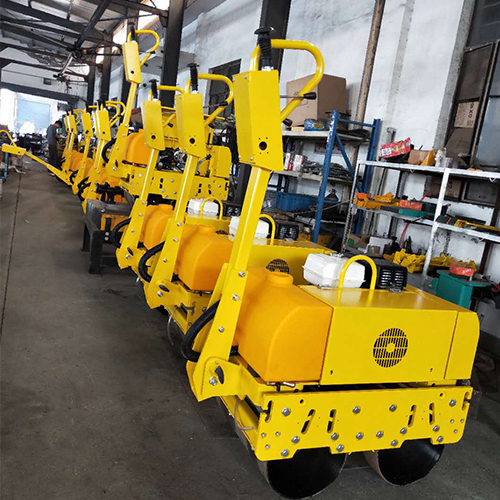

9.ASOK is a manufacturer of walk-behind/Drive vibrator roller



Various styles

neatly arranged

reasonable price

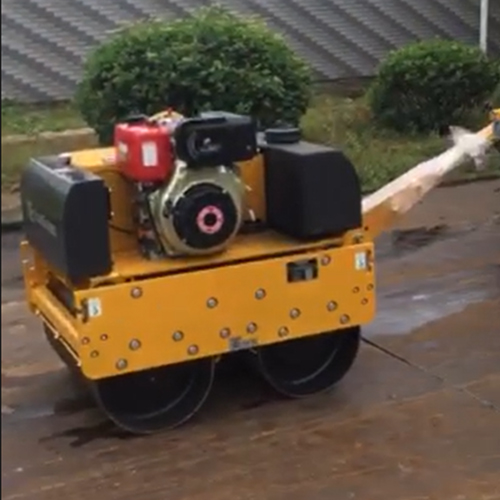

10.walk-behind/Drive vibrator roller application scenarios

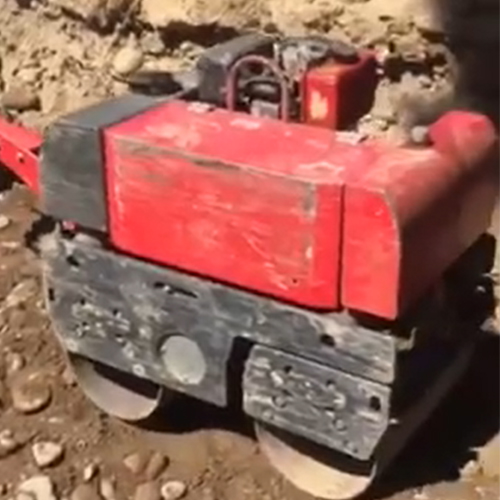

Muddy road

highway

cobblestone pavement



11.walk-behind/Drive vibrator roller hyperlink









12.END


ASOK is looking forward to your arrival!

All roads lead to Rome, high-quality road machinery, Rome is at ASOK.
