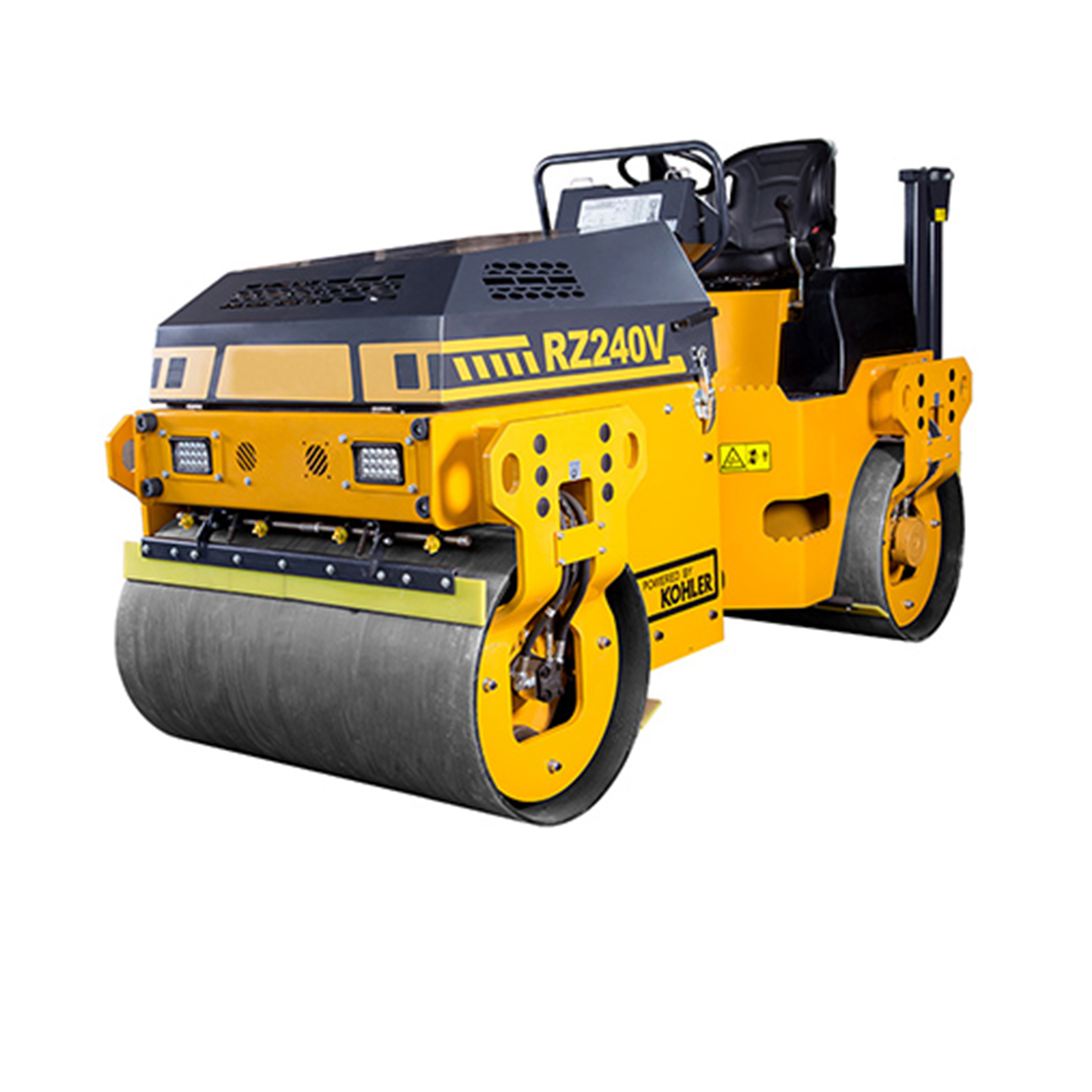

RZ240V/RZ235V Ride-on Double drum Vibratory roller with Large 200L water tank

ASOK 3600KGS Ride on Vibration roller is suitable for compaction of asphalt, compaction of non-cohesive and cohesive soil and compaction of stabilized soils. It is used primarily for small-scale compaction work such as pavements, cycle paths, small roads and small parking areas-places that need compaction but are difficult to reach with a larger roller

Features：

Famous brand KOHLER KDW1404 Diesel engine , excellent performance, easy to start-up;

2.Famous Italy variable pump, fixed displacement motor, steppless speed, easy to change direction;

3.Ergonomic layout and design of the operating controls:the easy drive steering wheel,multifunctional control lever,and comfortable armrests.

4.Flip-open engine hood provides easy accessibility to engine and components for daily maintenance and service.

5.Large 200L water tank is equipped with pressurized water system offers consistent water flow .

SEND INQUIRY NOW

Shipping time:: 15days

Port of departure:: Ningbo

MOQ:: 1

SEND INQUIRY NOW

Product parameters

Model	RZ240V	RZ235V
Weight	3600kg	3300kg
Max Working Weight	3900kg	3500kgs
Triction
Rated Speed	9km/h	9km/h
Vertical Pendulum Angle	±7°	±7°
Gradeability	40%	40%
Compacting
Centrifugal Force	32KN	32KN
Static Line Force	154/161kg/cm	154/161kg/cm
Vibration Frequency	60Hz	60Hz
Water Tank Capacity	200L	200L
Engine
Manufacturer	KOHLER KDW1404	KOHLER KDW1404
Type	Water-Cool Engine	Water-Cool Engine
Rated Power	21.7kW	21.7kW
Oil Capacity	40L	40L
Hydraulic System
Hydraulic Pump	Poclain	Poclain
Hydraulic Motor	Poclain	Poclain
Emergency Braking/Stop	Emergency Button	Emergency Button
Measurement
Whole Machine Size	2745x1430x2650mm	2745x1430x2650mm
Packing Size	2745x1430x2650mm	2745x1430x2650mm

Product Details

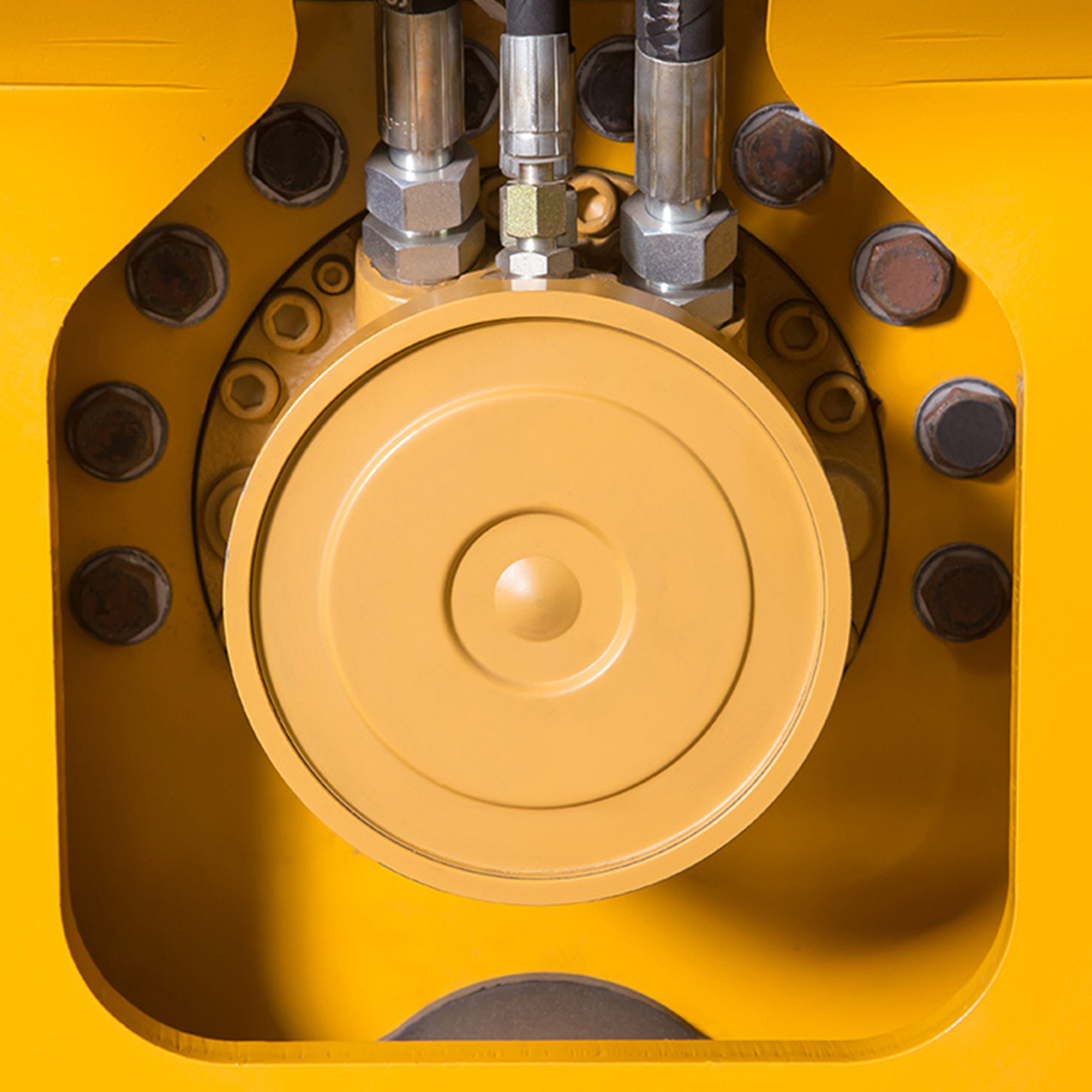

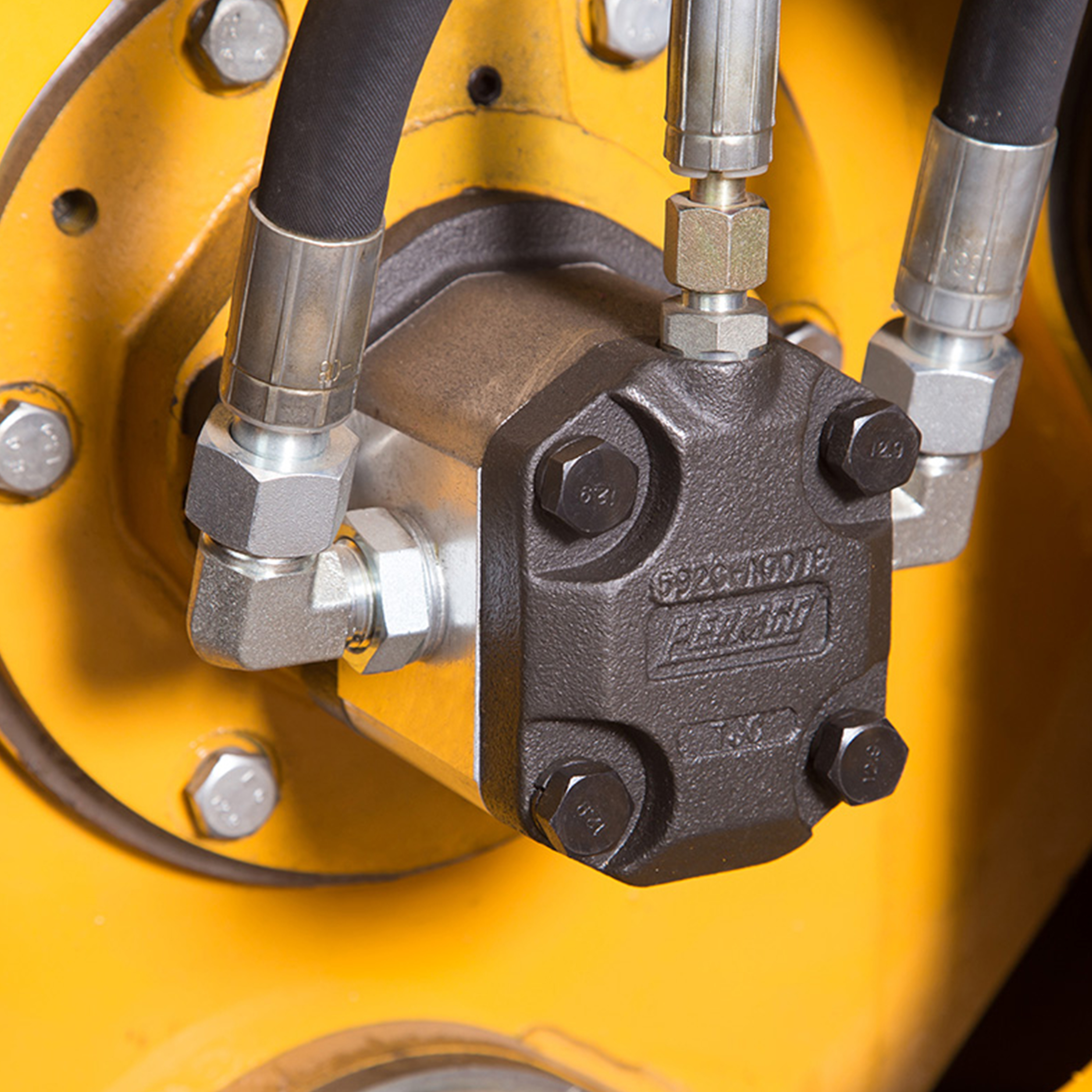

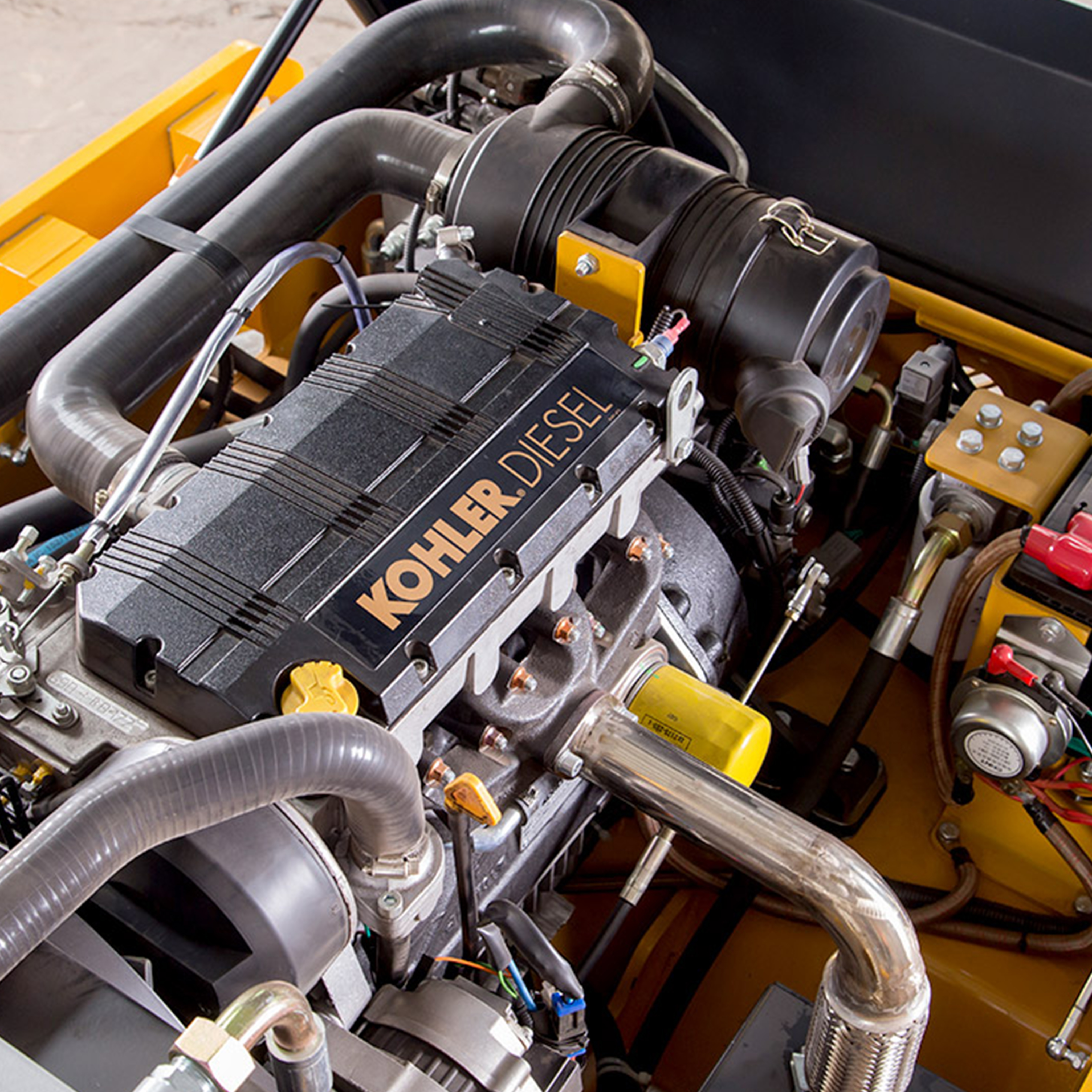

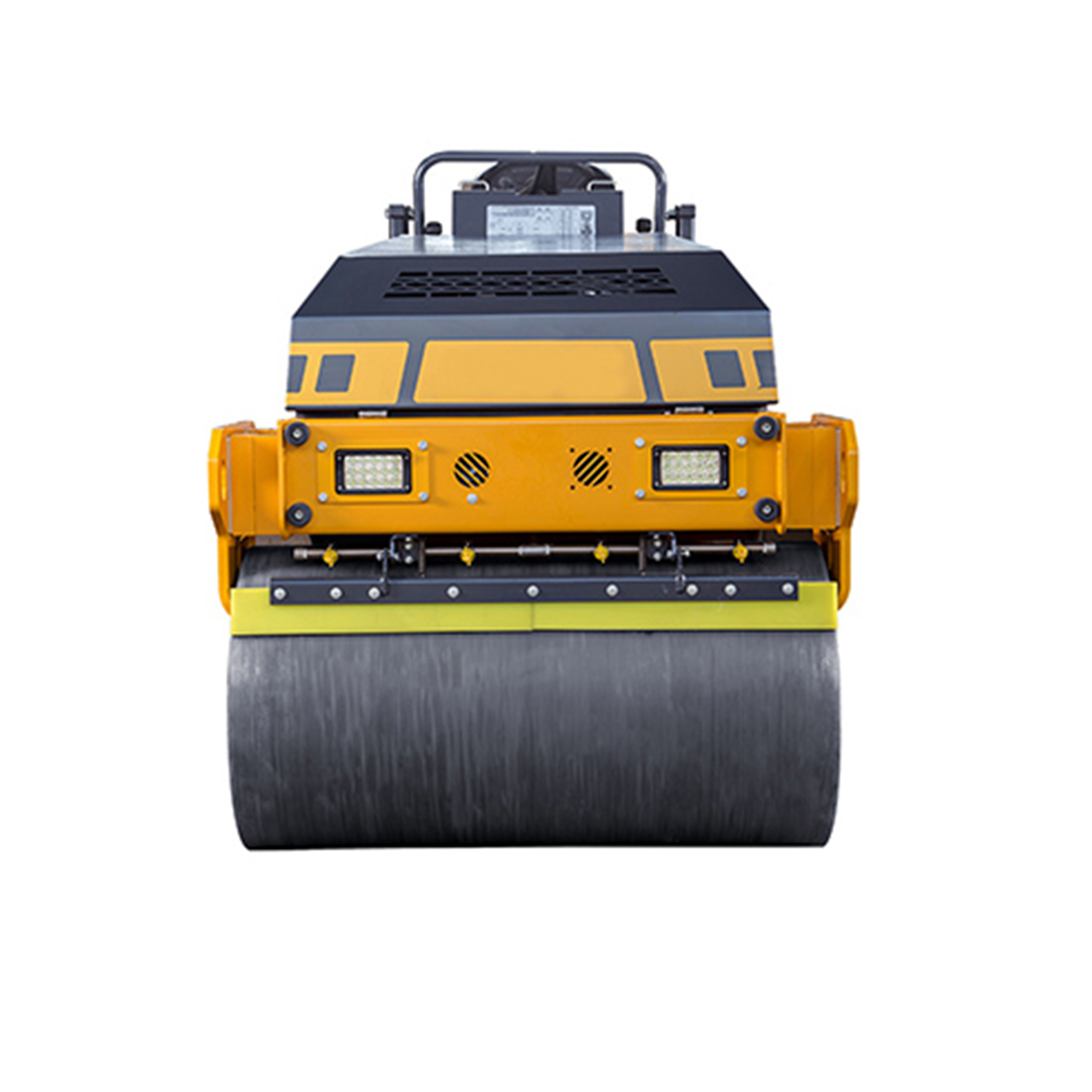

Product partial picture

FAQ

Can you supply the relevant documentation?
Yes, we can provide most documentation including Certificates of Analysis / Conformance; Insurance; Origin, and other export documents where required.
Do you have a minimum order quantity?
As usually ,the mini order is base on 1~50pcs .Different product will be different .
What are your prices?
Our price is calculated according to the cost of the product, production time and labor costs, and our price is very reasonable.
