Road Marking Machine
VR

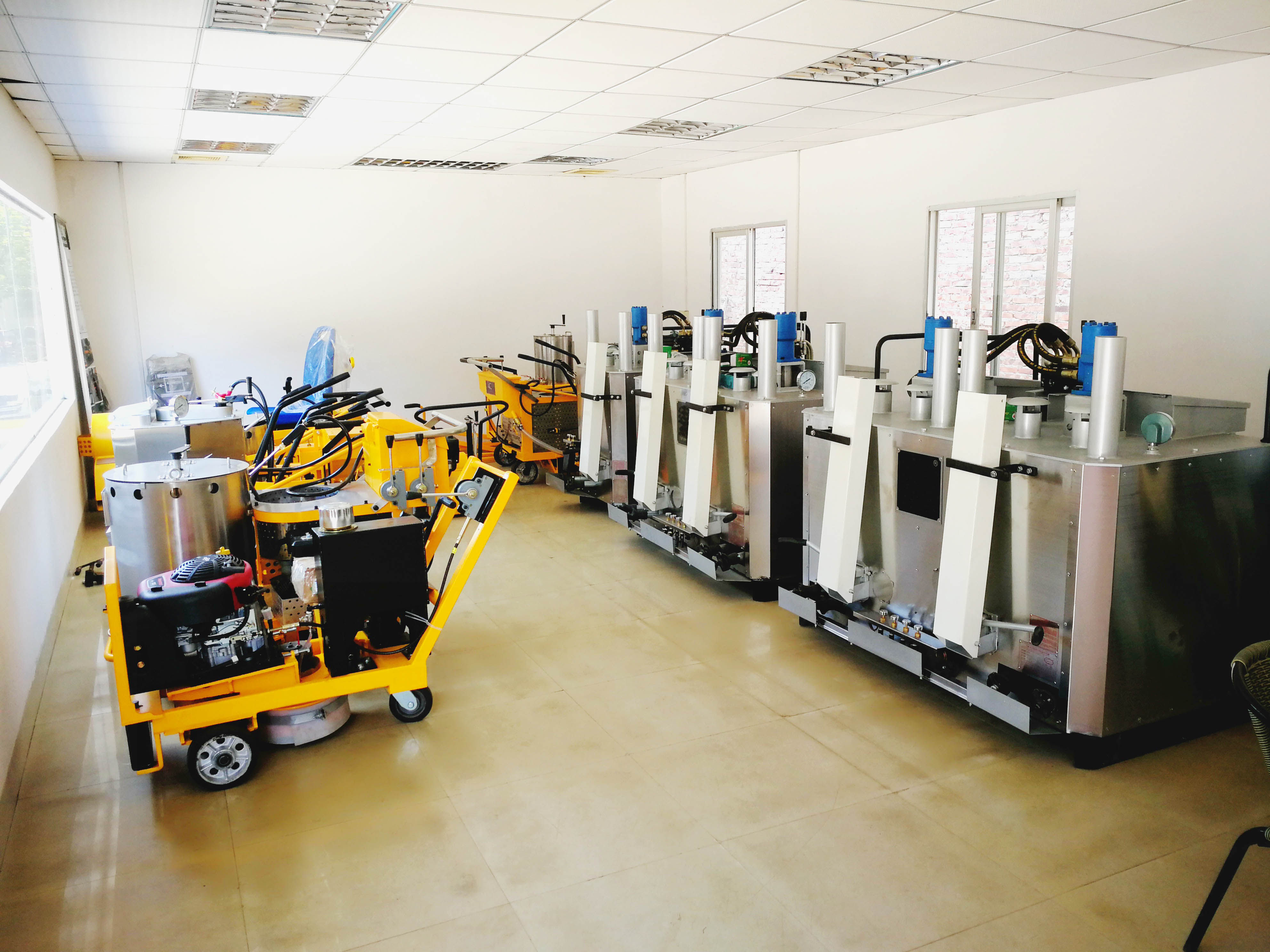

Factory overview

1
production process
Strictly control and pay attention to every detail

2
Package
Carton packaging, neat and uniform

3

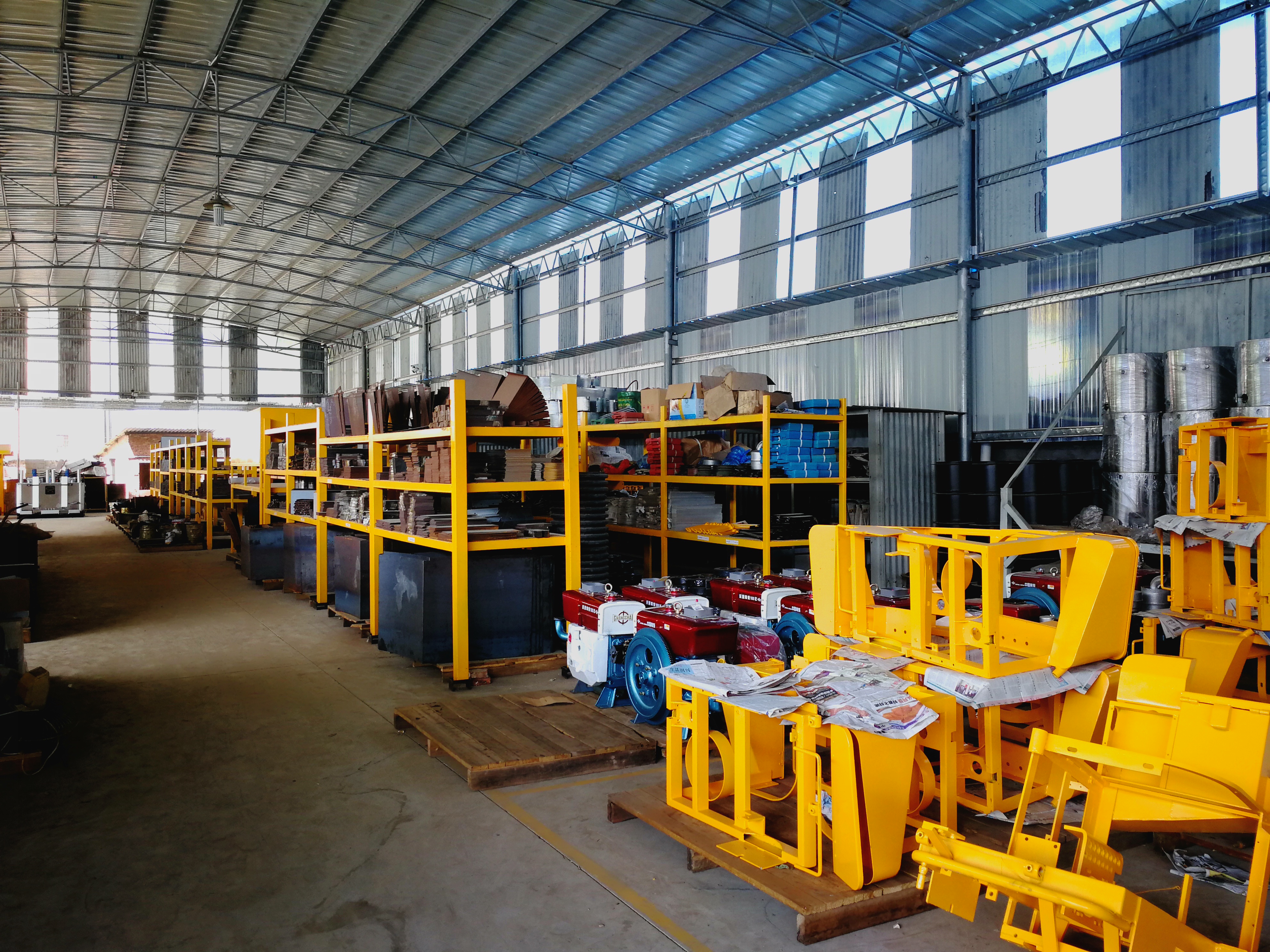

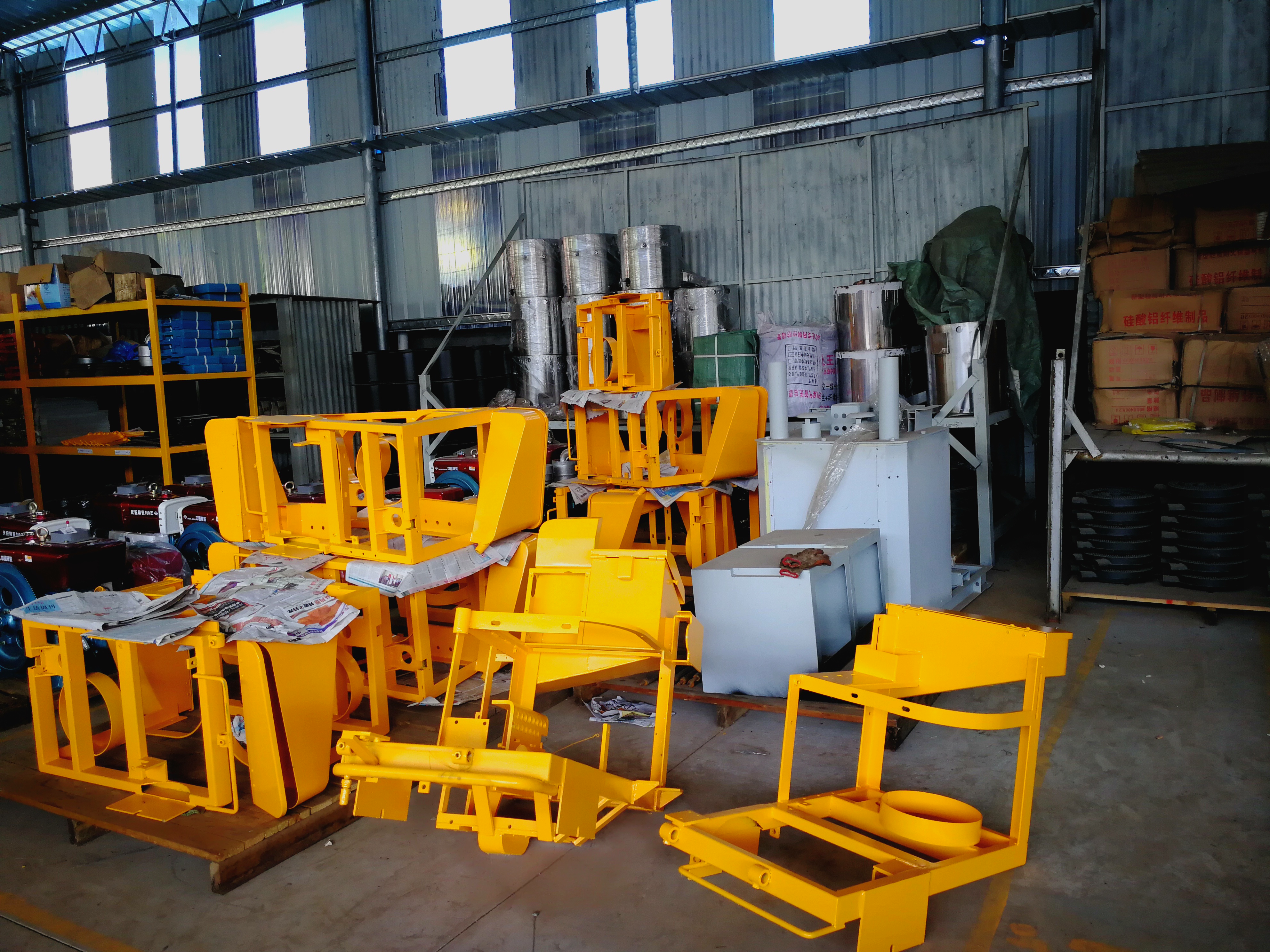

Factory area
2000㎡ super large area, mass production



Product working diagram

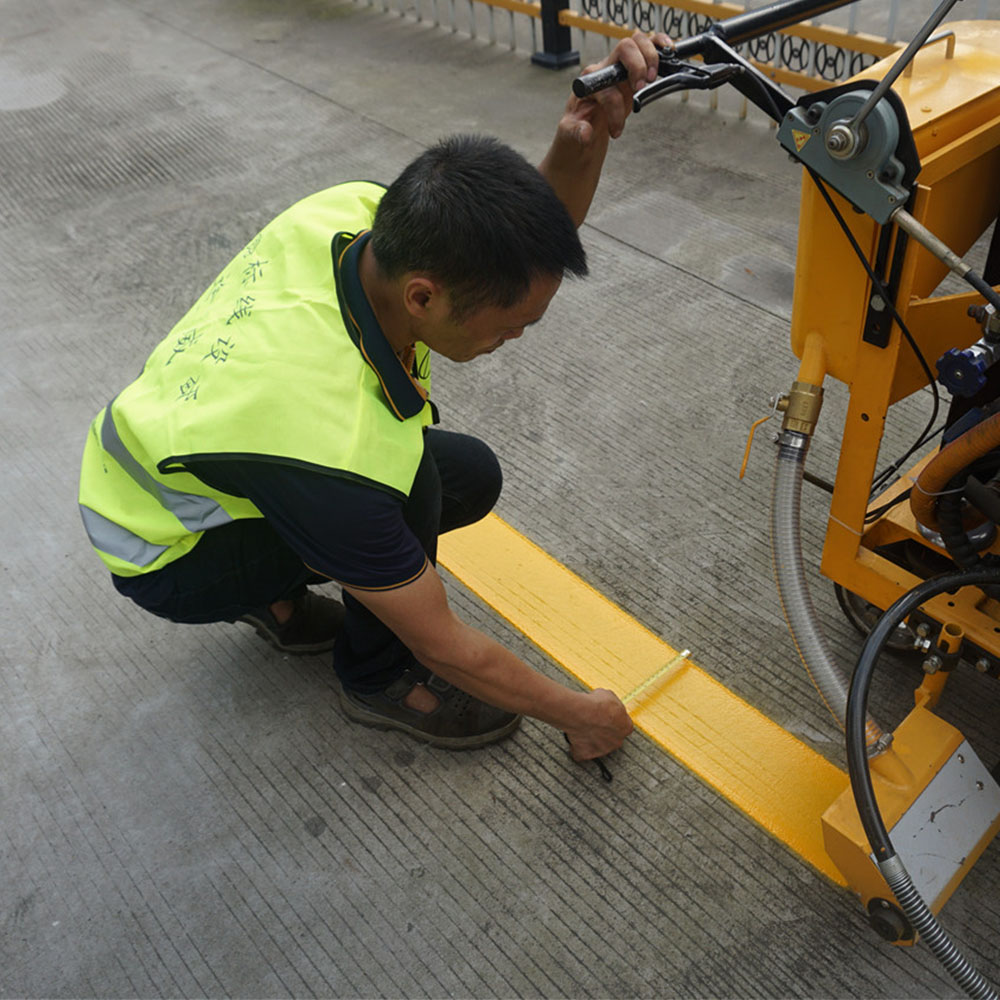

highway yellow line

++

Road section near school

++

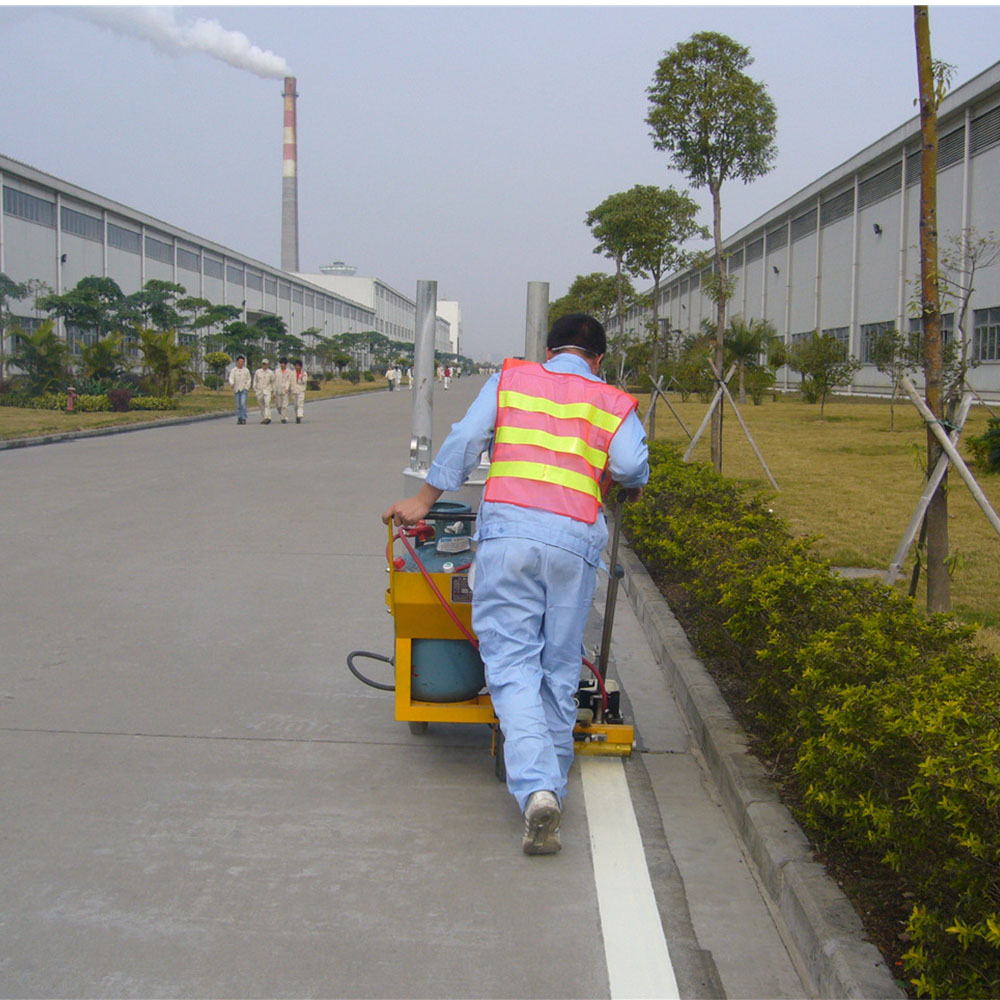

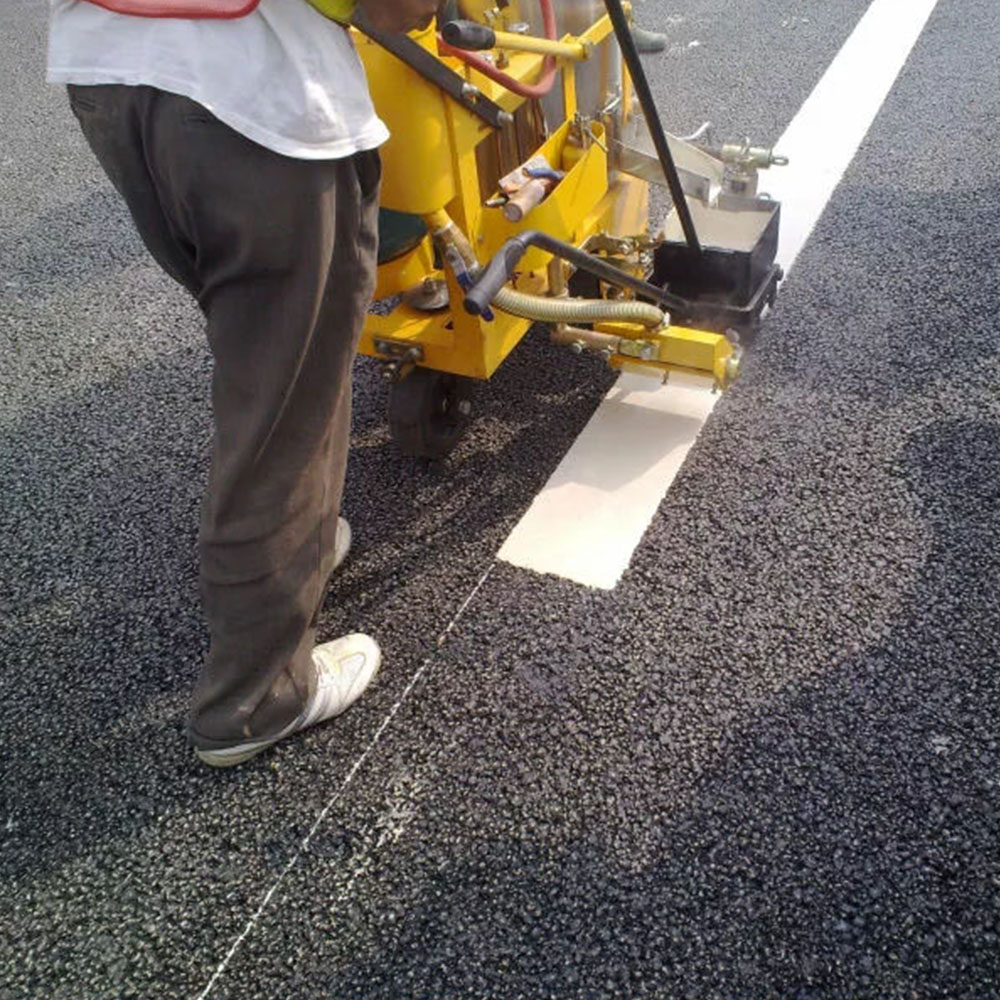

highway white line



++






Product parameters


TW-A Self-propelled Road Marking Machine

Outer dimensions(L*W*H)

1400 X1050 X1050mm

Total weight of machine

230kg

Capacity of glass beads box

25kg

Capacity of stirring tank

120kg

Engine power

HONDA gasoline engine of 5.5HP

Walking installment:

Hydraulic continuously variable transmission

Walking speed

0-5km/h

Lineation speed

>800m/hdepends on coating, line thickness

Gradient

30%about 16.5º

Coat thickness

1.2-4mm

Glass bead dispensing method

Flexible shaft driven, automatically clutch

Temperature maintenance of paints

170-220

LPG tank

15kg/10kg

Marking width

Can be 50,80,100,120,150,200,230,250,300,400,

450, 500mm, by changing different sizes of marking hopper.

Work with a preheater (Yes/No)

YES

Daily work efficiency

2000 m2

Could equip with  boosting driver, boosting plate, boosting chair

Boosting Plate /Boosting Chair

(Please feel free to contact us if you need detailed consultation on parameters and professional questions.)



Product details (text introduction)


Hydraulic Continuously Variable Transmission: The TW-A is equipped with a hydraulic continuously variable transmission device, enabling automatic machine walking. This not only enhances speed but also improves overall effectiveness, making road marking operations faster and more efficient.


Versatile Marking Hopper: The machine offers a complete range of marking hoppers with sizes ranging from 50mm to 450mm. These hoppers come with options of single or double handles, providing versatility to cater to different road marking requirements. This flexibility ensures adaptability to a variety of marking projects.


User-friendly Marking Hopper Design: The TW-A features a user-friendly marking hopper design, ensuring ease of use for operators. The range of hopper sizes and handle configurations allows for precise and controlled marking, enhancing the quality of road markings.


Heavy-duty Chassis with Optimal Design: The road marking machine is built on a heavy-duty chassis with a lightweight design and excellent mechanical engineering. The front wheels are strategically spaced wider, contributing to stability during operation. The choice of light and heavy-duty materials for the frame ensures durability and reliability, making the TW-A a robust solution for road marking.


Logistics Services


  • USPS Express Mail:fast, inexpensive and reliable with tracking

  • USPS Priority Mail:cheaper, little slower with tracking

  • USPS First Class Mail:no insurance, no tracking

  • FedEx:very fast and reliable (we offer huge discounts negotiated on behalf of our customers).

  • DHL:very fast and reliable, large discounts

  • FedEx Freight:for heavy or oversize packages

  • Airmail Economy:cheap method fo inexpensive items

  • Airmail Priority:cheap method fo inexpensive items, little faster than Economy

  • Boxberry Courier:fast and reliable courier service to Russia

  • Boxberry Local Pickup:cheaper Boxberry option, package delivered to pickup point

  • Shipito Australia Preferred Carrier:fast, reliable and affordable shipping method to Australia

  • Shipito Preferred Carrier with DPD Express:fast, reliable and affordable shipping method to many countries in Europe

  • Aramex:fast shipping provider focusing on Middle East and Asia

  • MPS - Multiple Piece Shipment:more savings when shipping multiple packages to the same address with DHL and FedEx



Place an order, purchase



transportation



air transport



Deliver order



provide information


Company Profile


1. With 28 years manufacturing experience and more than 15 years export experience and specializes in the research and manufacture of Building machinery


2. We obtain worldwide authentication ,such as  VDE,CE, GS,UL, ETL, and so on.


3 Quick reply to customer questions within 5 hours


4. Delivery date :within 5-7 days for Sample ready  and  mass production 15-45 days after receive the deposit.


5. Customization : OEM & ODM  customized design ,We can change the color/logo according to your personal requirements.



6.  Product information and sales tools training ,to help you win great popularity in te local marekt


7. Follow up customers' feedback after receive the products, andt try our best to solve and improve the quality and service

8. over 90% of products are exported


9. Focusing on Exclusive Agent and take our customers grow up together


10. We have 6 excellent International sales,2 engineers with 15 years of experience and 3 QC,We keep good quality and competitive price to ensure our customers benefit


11. 12 months  quality guarantee,Provide video service  after-sales


12. Quality products that have been exported to over 50 countries
