1.Energy saving and environmental protection: saving 30% materials compared with traditional air spraying, no air-assistance, no splash, and environmental protection
2.The airless spraying technology that drives the high-pressure pump with a gasoline engine is applied to mark on sports field,the line shape is clear, smooth, full,and uniform with high working-efficiency.
3.Strong effect: high pressure atomizing effect, strong adhesion, no dead angle in construction, smooth and even surface.

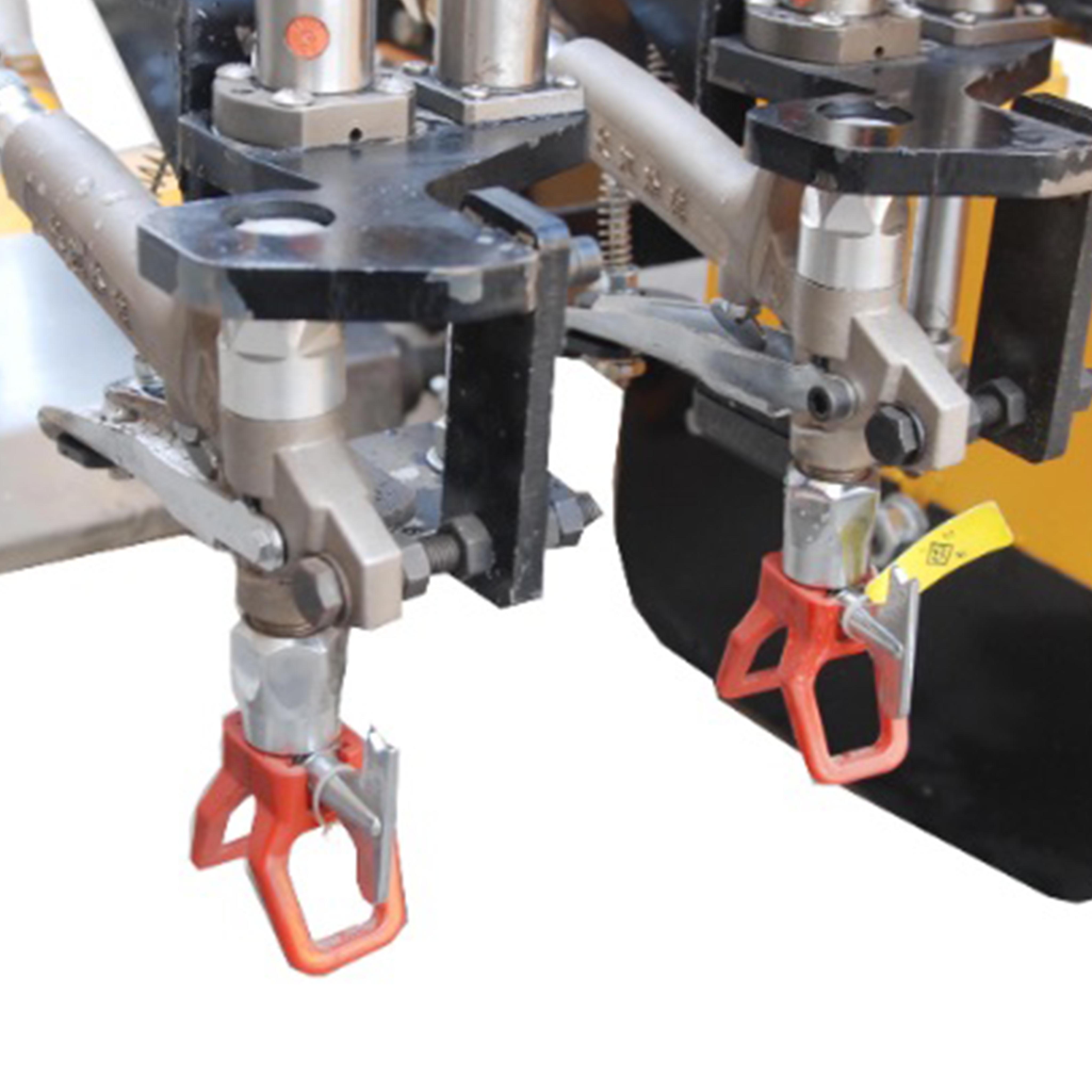

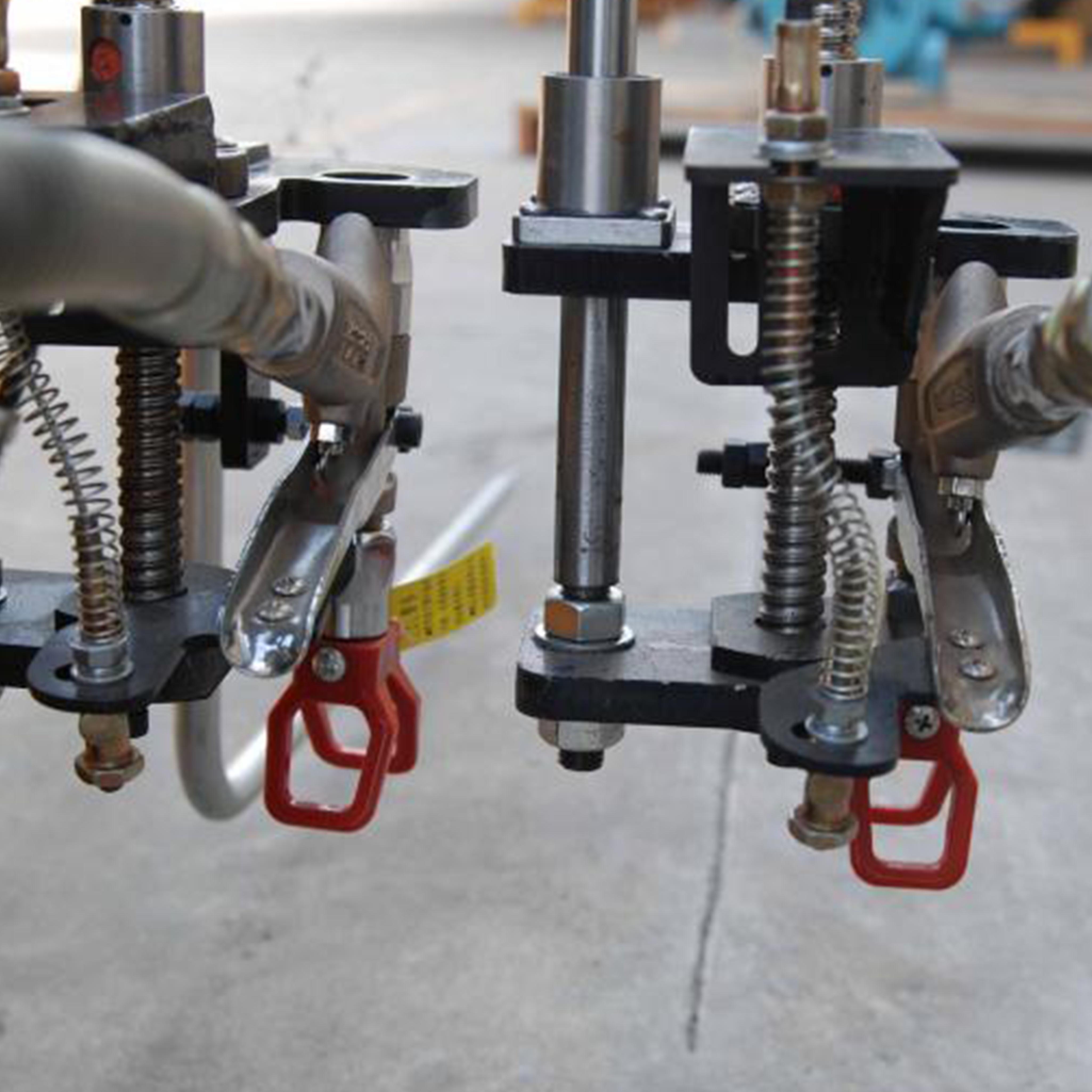

4.The nozzle is easy to disassemble, and different nozzles can be replaced to control different line width. Can be used as a general airless spray for marking or sign.
5.Pushing by hand, turning freely, reliable orientation and flexible steering.
As one of the professional road marking machine manufacturers in China, ASOK has always enjoyed a good reputation all over the country

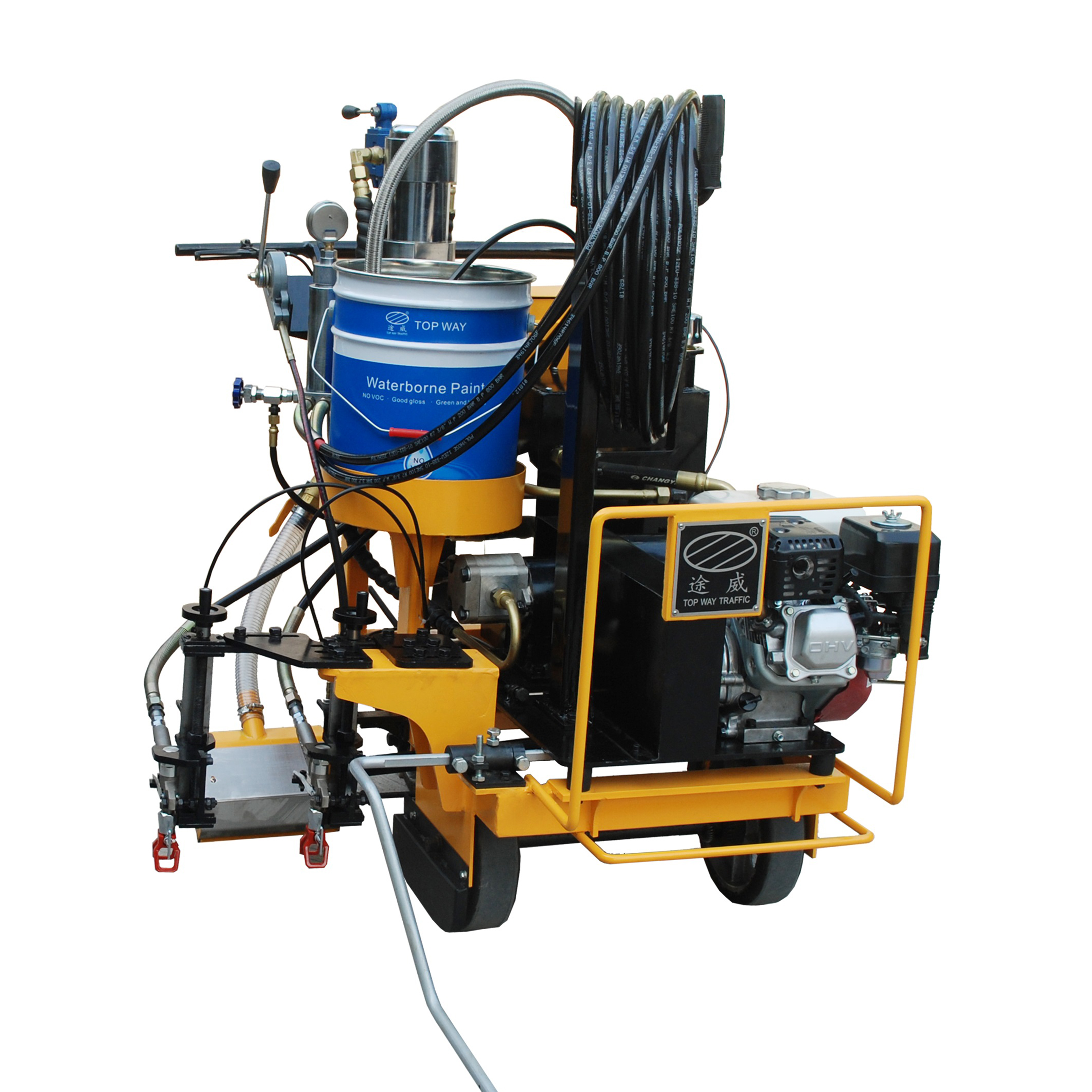

TW-CP Cold Paints Spraying Machine | |
Outer dimensions(L*W*H) | 1250 mm X1000 mm X1200mm |
Total weight of machine | 240KG |
Power Engine | 5.5HP Honda engine |
Suitable coating | Cold spray marking paint (acrylic acid) |
Paint flow | 10L/Min |
Spraying pump pressure | 8-12MPA |
Matching nozzle | Changjiang nozzles |
Marking width | 50,80,100,120,150,200,230,250,300mm, etc. The machine is more suitable for marking 450mm zebra stripes. |
Spraying gun | Can be used simultaneously or separately |
Coating thickness | 1.2-4mm |
Optional accessories | 1. Glass bead box 2. Clutch flexible shaft control system |
Daily work efficiency | 3000m² |
Could equip with boosting driver, boosting plate, boosting chair? | Boosting Drive (with Engine ) |
