TW-A Self-propelled Road Marking Machine compared with similar products on the market, it has incomparable outstanding advantages in terms of performance, quality, appearance, etc., and enjoys a good reputation in the market.ACE ASOK Machinery summarizes the defects of past products, and continuously improves them. The specifications of TW-A Self-propelled Road Marking Machine can be customized according to your needs.
ACE line painting equipment could offer high quality manual road marking machine. Hand Push Marking Machine is one of the key machines for thermo-melting marking. The marking quality depends on the stability of machine frame and the operating range of marking hopper, which reflect the difference in performance of machine.
Applicable for:

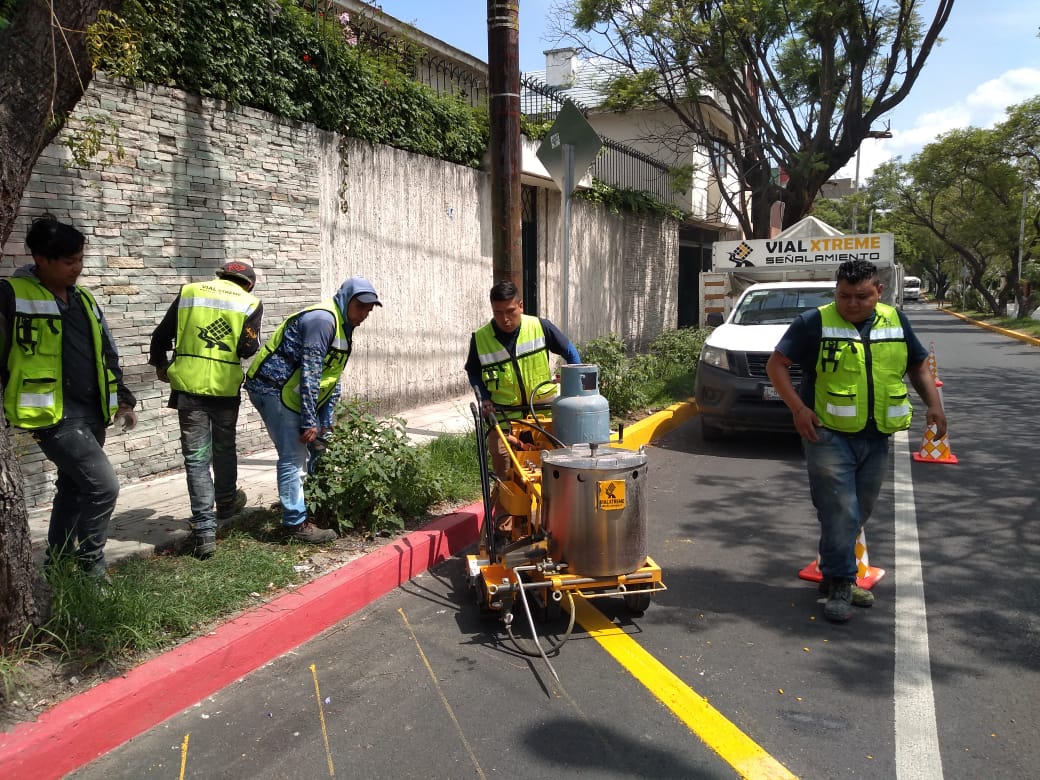

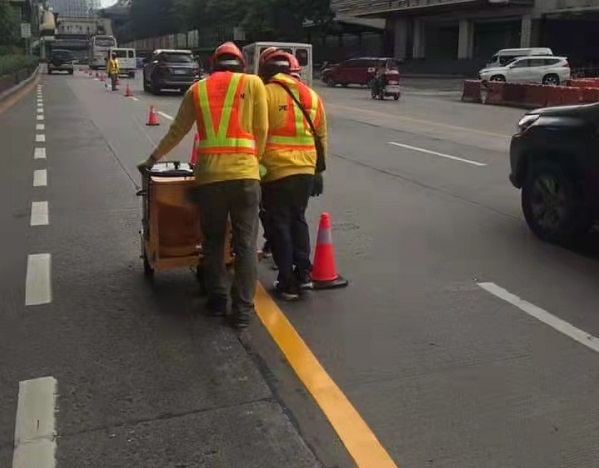

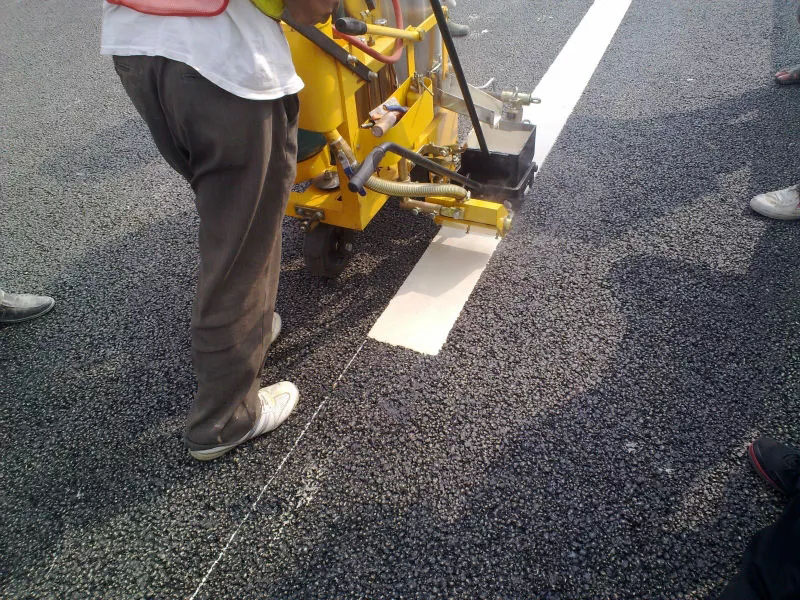

Thermoplastic Road Marking Machine is used for marking reflective lines (straight lines, dotted lines, direction arrows, letters and symbols) on high way, city street, parking lot, factory and warehouse. It have two models of Hand Push and automatic one (engine driven).
Customized TW-A Self-propelled Road Marking Machine manufacturers From China | ACE ASOK Machinery

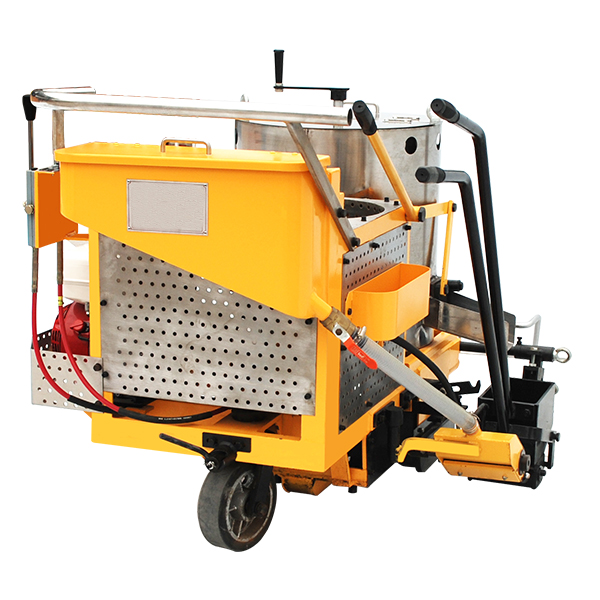

TW-A Self-propelled Road Marking Machine | |
Outer dimensions(L*W*H) | 1400 X1050 X1050mm |
Total weight of machine | 230kg |
Capacity of glass beads box | 25kg |
Capacity of stirring tank | 120kg |
Engine power | HONDA gasoline engine of 5.5HP |
Walking installment: | Hydraulic continuously variable transmission |
Walking speed | 0-5km/h |
Lineation speed | >800m/h(depends on coating, line thickness) |
Gradient | 30%(about 16.5º) |
Coat thickness | 1.2-4mm |
Glass bead dispensing method | Flexible shaft driven, automatically clutch |
Temperature maintenance of paints | 170-220℃ |
LPG tank | 15kg/10kg |
Marking width | Can be 50,80,100,120,150,200,230,250,300,400, 450, 500mm, by changing different sizes of marking hopper. |
Work with a preheater (Yes/No) | YES |
Daily work efficiency | 2000 m2 |
Could equip with boosting driver, boosting plate, boosting chair? | Boosting Plate /Boosting Chair |
Unobstructed and flexible universal wheels,
automatic glass bead spreader
