DESCRIPTION



1.Hydraulic Continuously Variable Transmission: The Road Marking Machine from ASOK is equipped with a hydraulic continuously variable transmission device. This feature enables automatic movement of the machine, making it faster and more effective in carrying out road marking tasks.


2.Liquefied Marking Hopper with Various Sizes: The machine offers a range of marking hoppers with sizes varying from 50mm to 450mm. These hoppers are designed to hold the marking material in a liquefied state for precise and efficient road marking. Additionally, customers can choose between single handle or double handle options, providing flexibility and ease of use.


3.Heavy-Duty Chassis with Light Weight: The Road Marking Machine features a heavy-duty chassis with a well-designed mechanical structure. Despite the heavy-duty nature, the chassis is engineered to be lightweight, making it easier to maneuver and operate efficiently. The front wheel spacing is widened, and materials with a combination of light and heavy-duty properties are chosen for the frame, ensuring durability and stability during operation.


Overall, ASOK is reputed as a professional Road Marking Machine manufacturer, likely known for producing machines with advanced features and quality construction. The hydraulic continuously variable transmission, versatile marking hoppers, and heavy-duty yet lightweight chassis are some of the factors that contribute to their good reputation in the industry.


Product Parameters

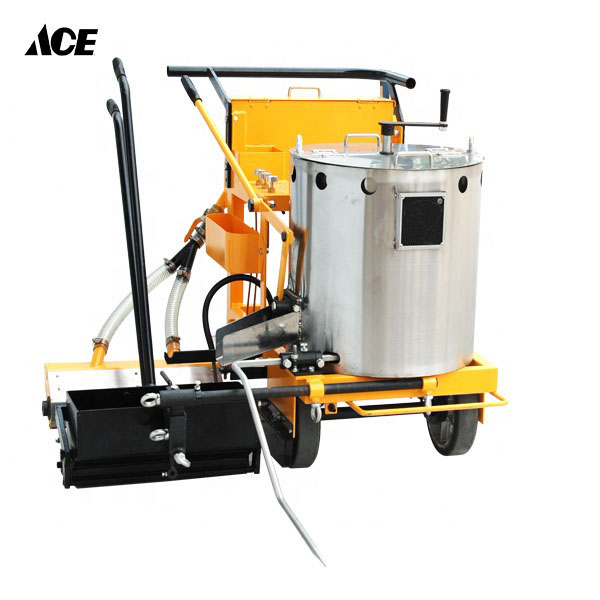

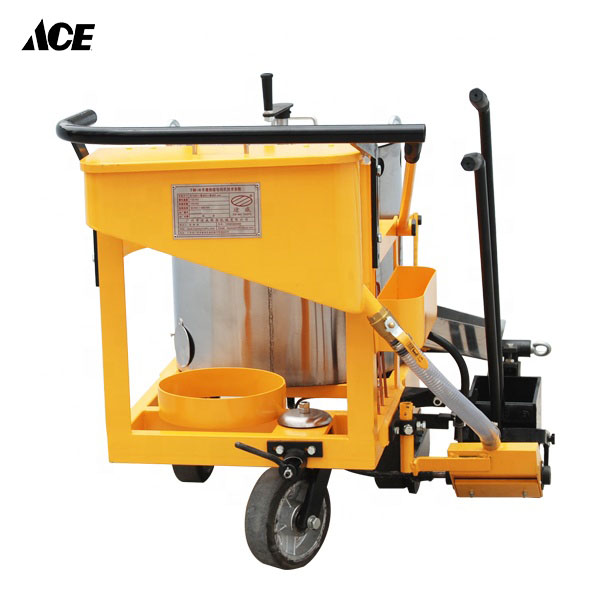

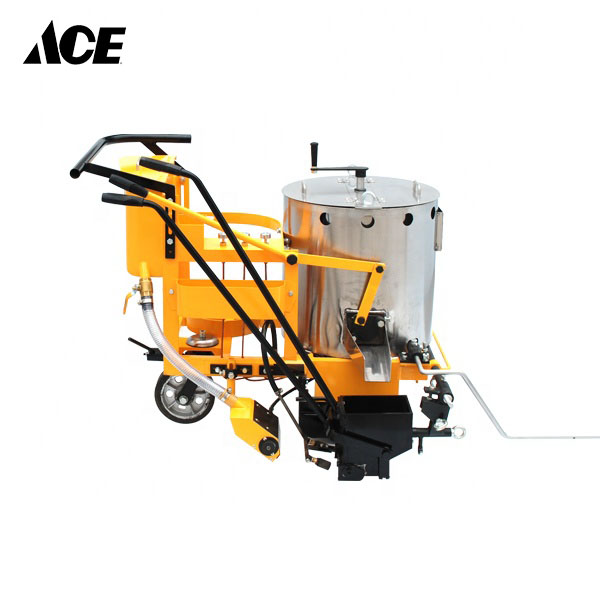

Hand Push Marking Machine (Screed type)

Model

TW-H

Cover

Thermoplastic

Engine

Manual one, no engine

Dimensions

1200 mm *900 mm*900mm

Output capacity

About 1500m/h for standard single continuous line

Paints thickness

1.2-4mm

Application Width

100mm,150mm,200mm

Temperature maintenance of paints

170-220

LPG cylinder norm

15kg10kg

Marking width

50,80,100,120,150,200,230,250,300mm, etc. The machine is more suitable for marking 450mm zebra stripes.

Tank capacity for thermoplastic

105kg

Function

Keep melted paint warm and mark line.

Total weight of machine

125kg

Capacity of glass beads box

25kg

Bead dispensing method

Gear Driven, Automatically Clutch

Work with a preheater

Yes

Daily work efficiency

1000 m2

Could equip with  boosting driver, boosting plate, boosting chair

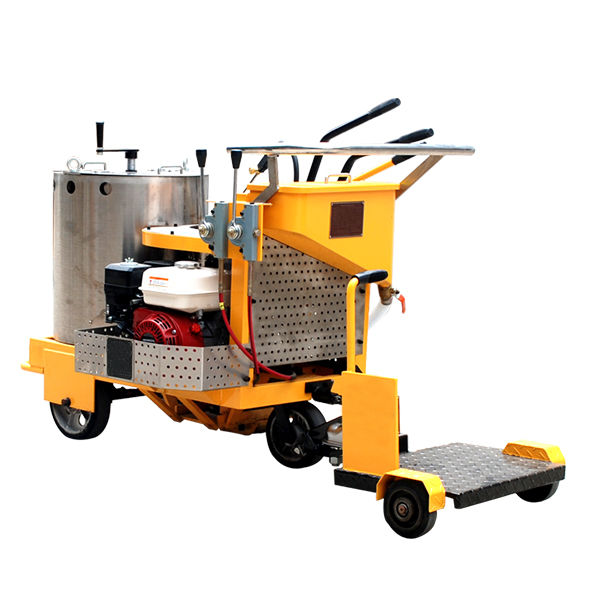

Boosting Drive (with Engine )

Product Features



Heavy-duty chassis: the weight light with good mechanical design(widen the space between the front wheels

Marking hopper: a complete range of marking hopper, the size from 50mm to 450mm, have single handle or double handle

For traditional self–propelled marking machines, the liquefied Marking hopper



Product advantages



  1. Energy saving and environmental protection: saving 30% materials compared with traditional air spraying, no air-assistance, no splash, and environmental protection


2.The airless spraying technology that drives the high-pressure pump with a gasoline engine is applied to mark on sports field,the line shape is clear, smooth, full,and uniform with high working-efficiency.


3.Strong effect: high pressure atomizing effect, strong adhesion, no dead angle in construction, smooth and even surface.


4.The nozzle is easy to disassemble, and different nozzles can be replaced to control different line width. Can be used as a general airless spray for marking or sign.


5.Pushing by hand, turning freely, reliable orientation and flexible steering.



Product Comparison


normal power, stabilized
VS
High power, high operation

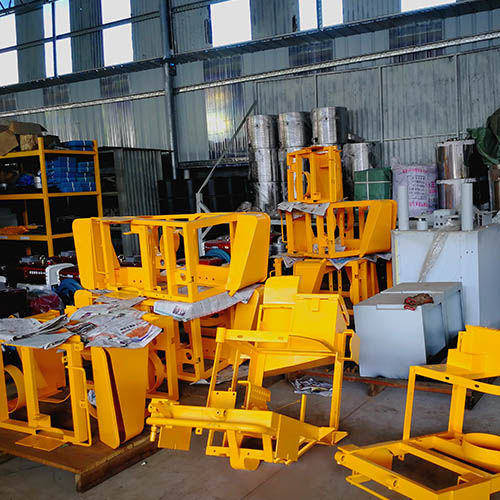

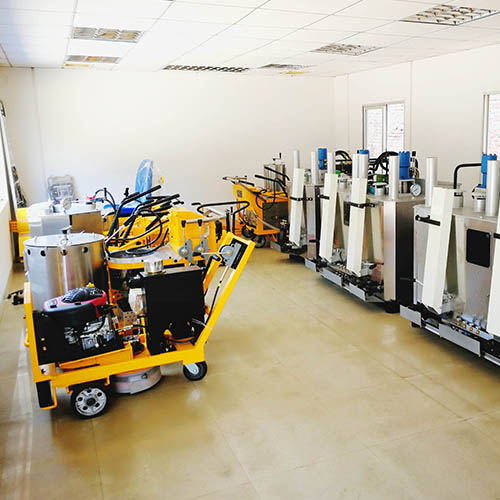

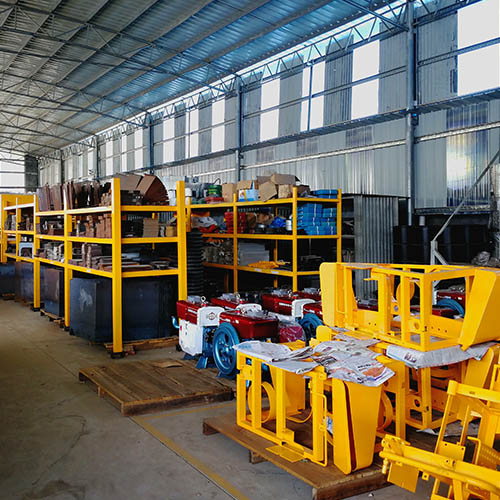

Factory Image



Factory new

++

Orderly rows

++

clean and tidy

++


Product details

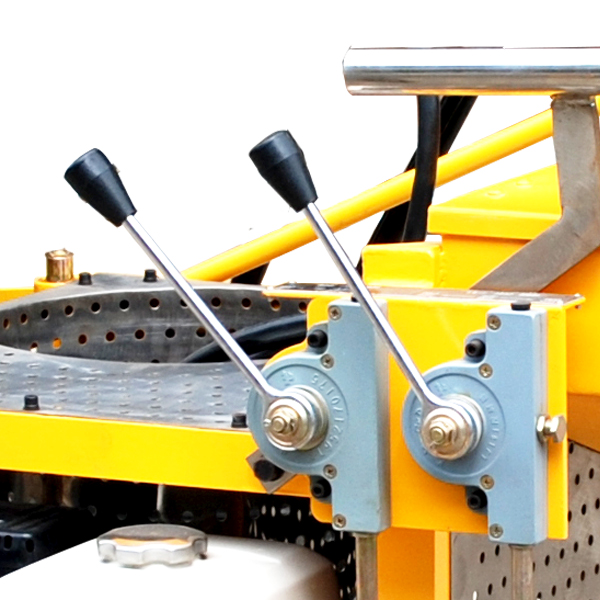

handle grip



side detail


back design

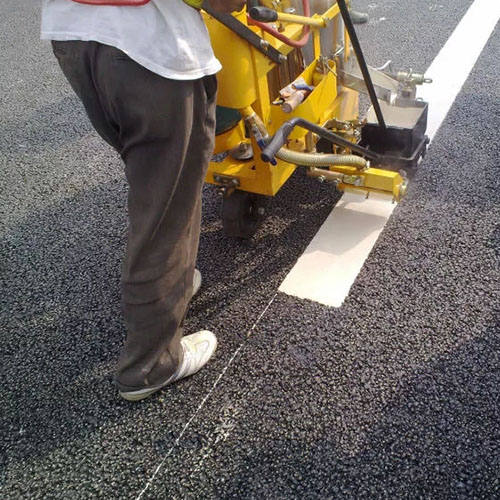

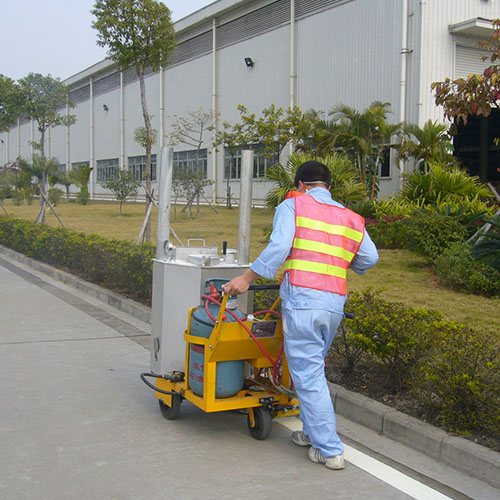

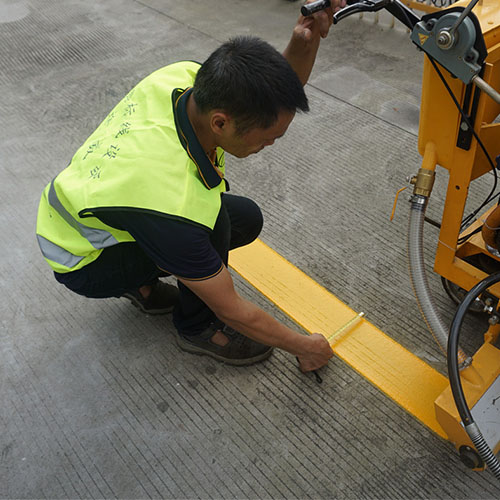

Application Scenario Diagram



clear line

++

save material

++

evenly distributed

++


Customer Feedback



Very good road striper, I have ordered - Lacey from the UK

++


QUESTIONS



FAQ
  • What is the average lead time?
    For samples, the lead time is about 7 days. For mass production, the lead time is 20-30 days after receiving the deposit payment. The lead times become effective when (1) we have received your deposit, and (2) we have your final approval for your products. If our lead times do not work with your deadline, please go over your requirements with your sale. In all cases we will try to accommodate your needs. In most cases we are able to do so.
  • Can you supply the relevant documentation?
    Yes, we can provide most documentation including Certificates of Analysis / Conformance; Insurance; Origin, and other export documents where required.
  • Do you have a minimum order quantity?
    The MOQ of our order is 1, but there is a certain shipping discount for more quantity.
