1.Hand-driven chain drives impellers to agitate melting materials, being light and handy in operation.
2. Specialized mid-pressure furnace is equipped for industrial use, which has high thermal efficiency and fast melting.
3. The unique controllable switch valve of the fire road can let the operator observe the situation of the spit fire and adjust the controller of the fire road and the flame. Thus make the marking work safer and more efficient.
4. Two movable extraction stacks discharge exhaust gas in time to maintain good working environment.
5. Triple-layered removable covers make it convenient to clean the kettle and change melting materials in different colors.

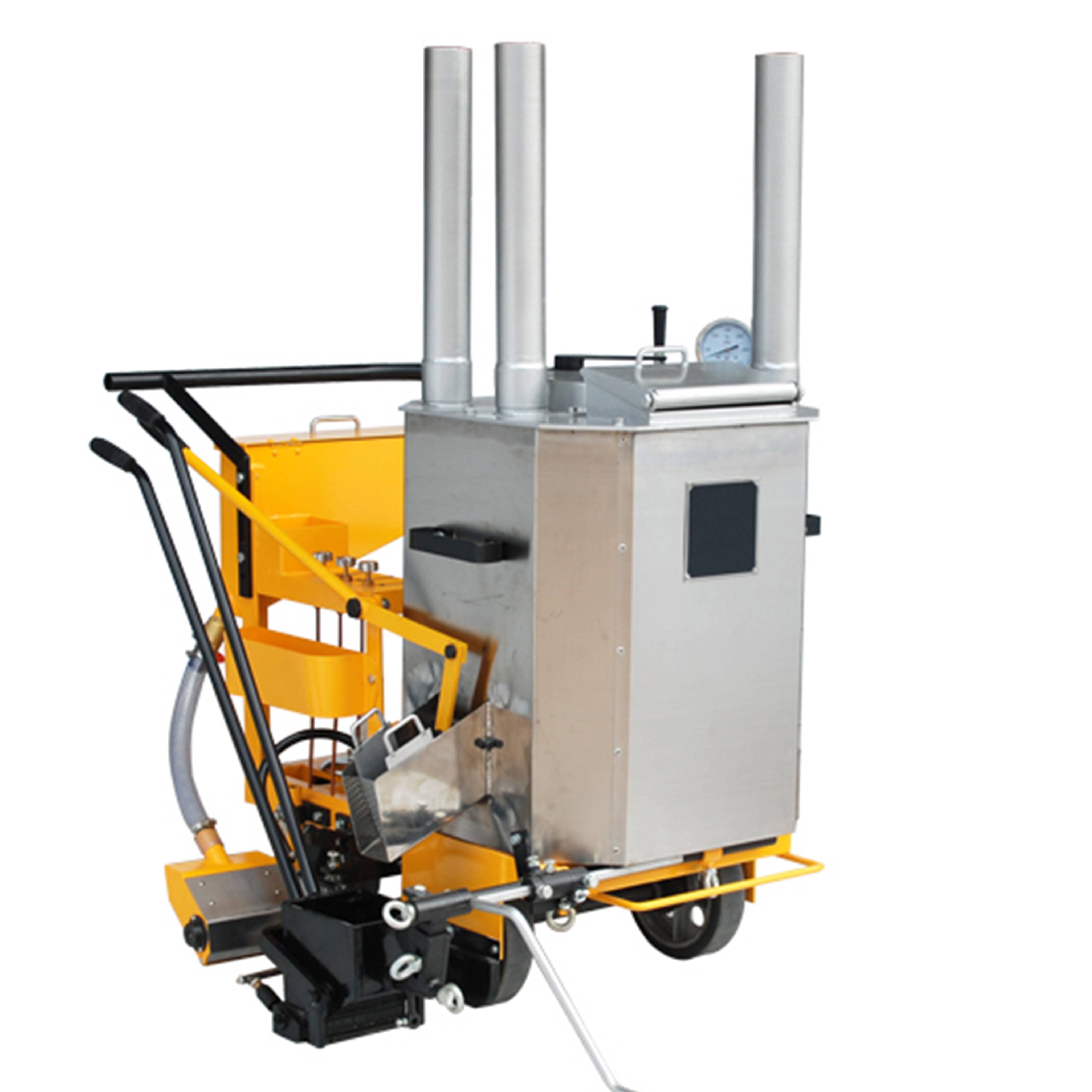

TW-FJ All-in-one Thermoplastic Kneader Marking Machine | |
Outer dimensions(L*W*H) | 1200X900X1100mm |
Total weight of machine | 220KG |
Coating material tank capacity | 120KG |
Capacity of glass bead box | 25KG |
Coat thickness | 1.2--4mm |
Bead dispending method | Gear driven, Automatically Clutch |
Temperature of heated coating material | 170-220℃ |
LPG cylinder norm | 15KG |
Marking width | 100、150、200、300mm，more applicable to zebra lines of 400、450mm |
Daily work efficiency | 150m2 |
Could equip with boosting driver, boosting plate, boosting chair？ | Boosting Plate /Boosting Chair |
