A construction equipment supplier of construction machinery solutions for 25 years.

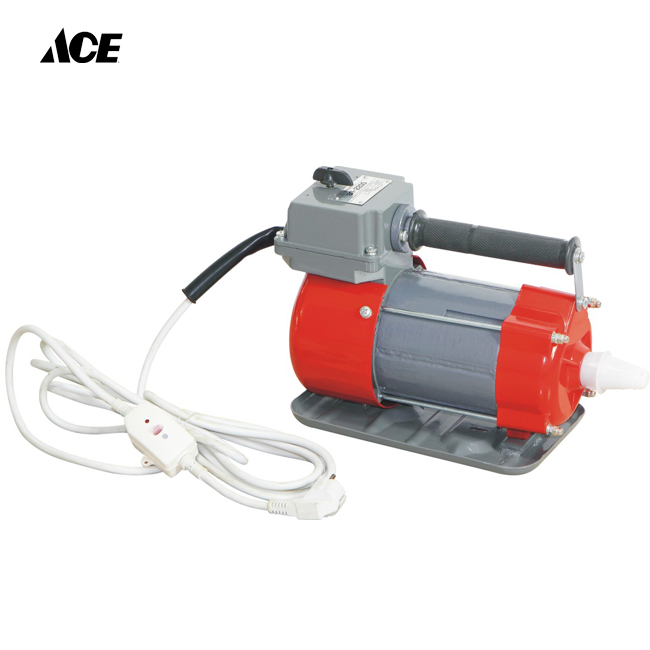

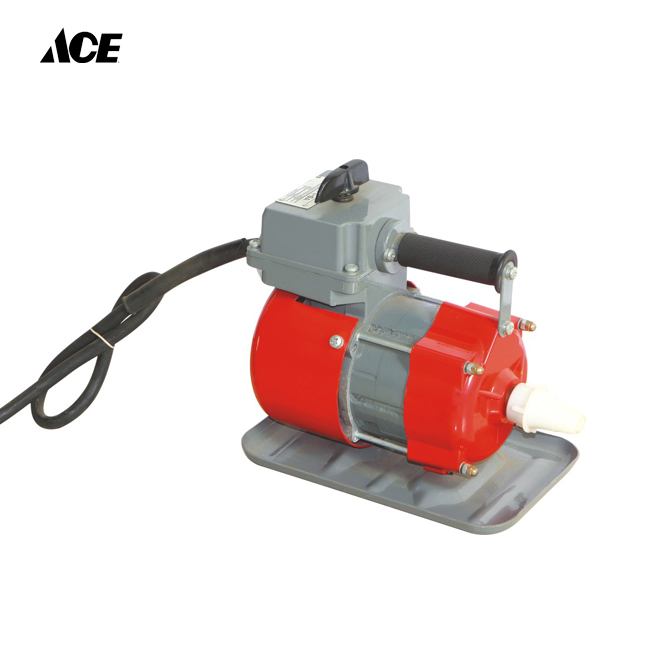

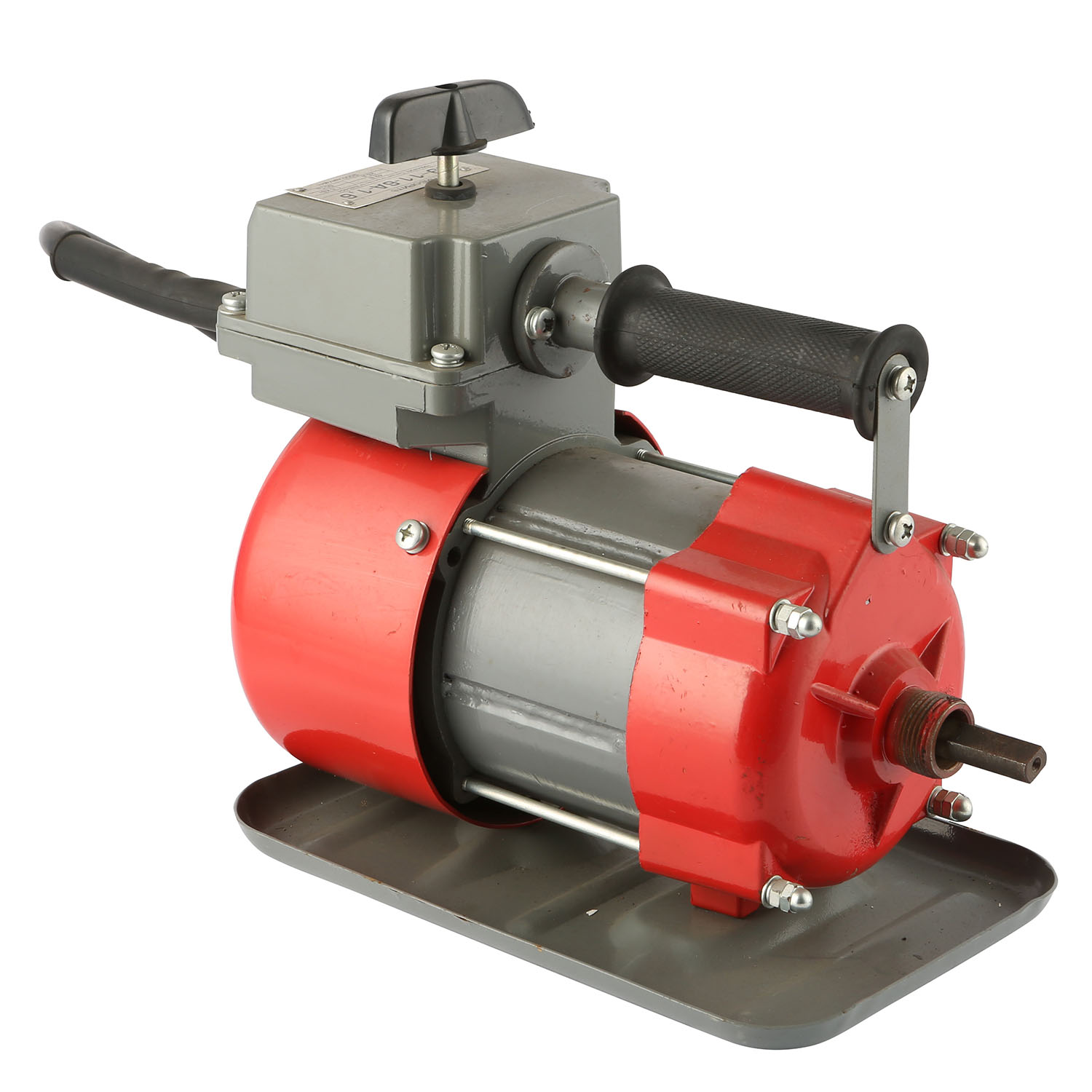

Ningbo Ace Machinery Co.,Ltd. relying on strong innovation ability and firm R&D perseverance, successfully developed VNS-14 Construction Machine Russia Type 220V Electric Motor Concrete Vibrator. It is delicately designed to comply with the industry standard. Combining all good performance of adopted raw materials, our VNS-14 Construction Machine Russia Type 220V Electric Motor Concrete Vibrator has been proved to be applied to the field(s) of Concrete Vibrator.Our staff has tested multiple times that in the applied fields, the product can give out its best performance such as durability and stability.
| Condition: | New | Place of Origin: | Zhejiang, China |
| Brand Name: | ACE | Type: | Internal |
| Drive Mode: | Electric Vibrator | Frequency: | 200 |
| Vibrating Amplitude: | 1.2 | Length of Flexible Shaft: | 2-8Meter |
| Voltage: | 220V | Power: | 2000 |
| Weight: | 23kg | Dimension(L*W*H): | 38*22*32.5cm |
| After-sales Service Provided: | Overseas third-party support available | Certification: | CE |
| ITEM: | Russia concrete vibrator | Engine: | Electric Motor |
| packing way: | carton | original: | zhejiang,china |
| length(m): | 1 to 12m |
Quick and prompt delivery
Reasonable and competitive price
Long and experienced history
Stable and excellent assembly
Our factory is professionally engaged in the production of construction machinery.The products are sell well all over the world.
Our factory have worked in this field for about 15 years.The products have ready market at lowest ,high quality and with good service all over the world.

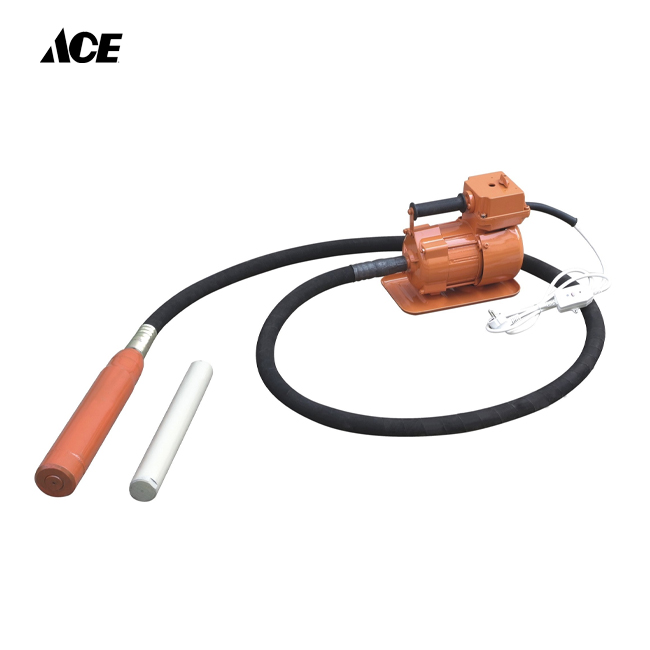

parts of Concrete poker Vibrator
| Russia Concrete Vibrator | |||||||
| ITEM | Vibrator Head | Vibrator hose | |||||
| Model | ZX-51 | 3.0Mtr | 4.5Mtr | 6Mtr | |||
| Diameter(mm) | 51 | ||||||
| Length(mm) | 440 | ||||||
| Vibrating Frequency(hz) | 200 | ||||||
| Vibrating Ampitude(mm) | 1.2 | ||||||
| Diameter of Flexible Hose | 36 | 36 | |||||
| Diameter of Flexible Shaft | 14 | 14 | |||||
| Weight | 4.18 | 8 | 11.5 | ||||
| Packing Size | 46*29*12(10pcs) | 60*60*4.5 | 65*60*4.5 | 75*60*4.5 | |||
| parts of Concrete poker Vibrator | |||||||
| ITEM | Concrete Vibrator Motor | ||||||
| Model | VN-10 | VN-14 | VN-16 | VNS-10 | VNS-14 | VNS-12 | |
| Power(kw) | 1 | 1.4 | 1.6 | 1 | 1.4 | 2.2 | |
| Voltage(v) | 42 | 42 | 42*24*16 | 220 | 220 | 220 | |
| Frequency(hz) | 50 | 50 | 50 | 50 | 50 | 50 | |
| Current(A) | 16 | 24 | 26 | 7.02 | 7.02 | 9.5 | |
| Working spped | 3000 | 3000 | 3000 | 3000 | 3000 | 3000 | |
| Packing Size | 38*22*32.5 | 38*22*32.5 | 38*22*32.5 | 38*22*32.5 | 38*22*32.5 | 43*22*32.5 | |
| Net weight(kgs) | 12 | 12.3 | 13.9 | 14 | 15.6 | 18.5 | |
other type
