A construction equipment supplier of construction machinery solutions for 25 years.
The introduction of technology enables us to provide cost-effective and high-quality 350L Portable Electric Motor Engine Manual Cement Concrete Mixer Price.There are plenty of styles and sizes to choose from.
Applying the technology to the manufacturing process of the product turns out to be highly helpful. Featuring stability and durability,350L Portable Electric Motor Engine Manual Cement Concrete Mixer Price is suitable for the field(s) of Concrete Mixers. We can manufacture this product to your exact specifications. Ningbo Ace Machinery Co.,Ltd. have realized the importance of technology. In recent years, we have been investing heavily in technology improvement and upgrades and the research and development of new products. In this way, we can occupy a more competitive position in the industry.
| Applicable Industries: | Building Material Shops, Manufacturing Plant, Farms, Home Use, Construction works | Showroom Location: | Germany, India |
| Condition: | New | Place of Origin: | Zhejiang, China |
| Brand Name: | ACE | Motor Power: | 6HP |
| Charging Capacity: | 350L | Reclaiming capacity: | 310L |
| Speed of Mixing Drum: | 28r/min | Water Supply Mode: | Manual |
| Discharge Way: | Manual | Outline Dimension: | 205*95*128cm |
| Warranty: | 1 Year | UNIQUE SELLING POINT: | Long lifetime |
| After Warranty Service: | Video technical support, Online support, Spare parts | Local Service Location: | United States, Germany, Mexico |
| After-sales Service Provided: | Video technical support, Online support | Product name: | Cocnrete Mixer |
| Keywords: | Diesel Engine Cement Mixer |

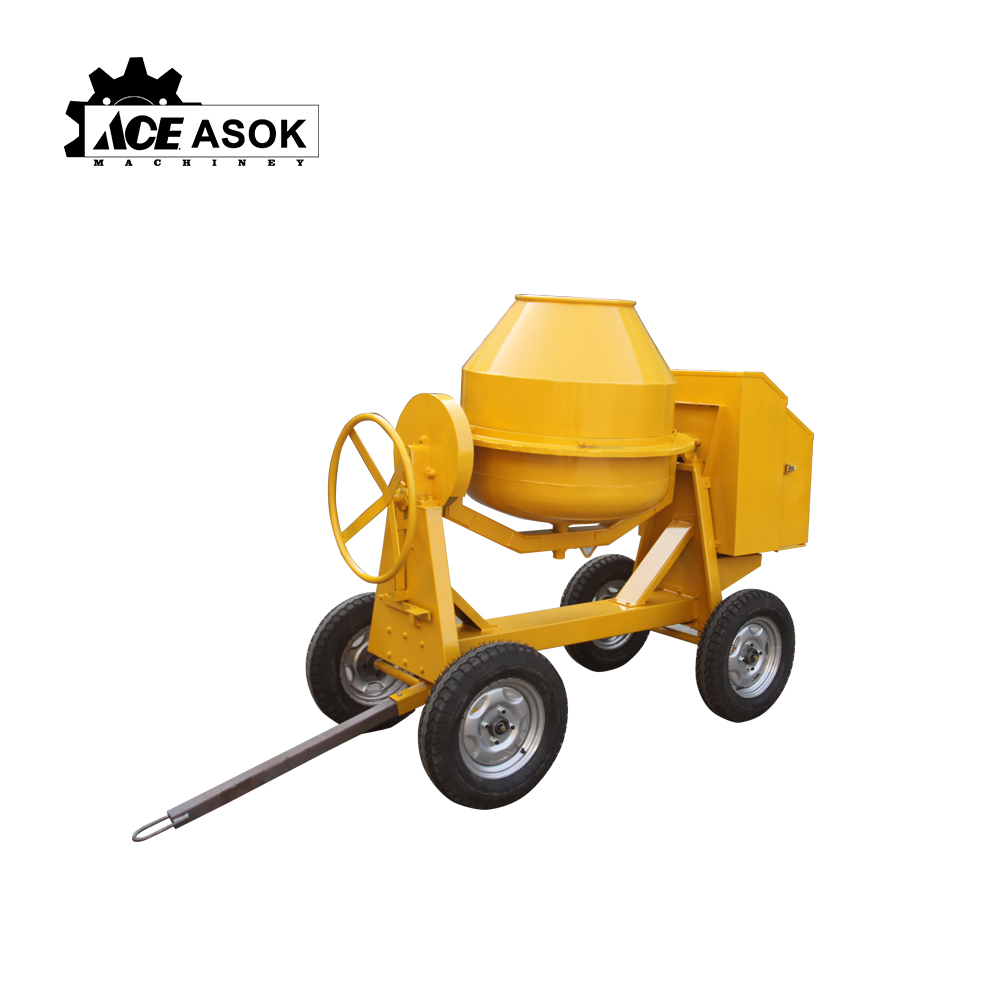

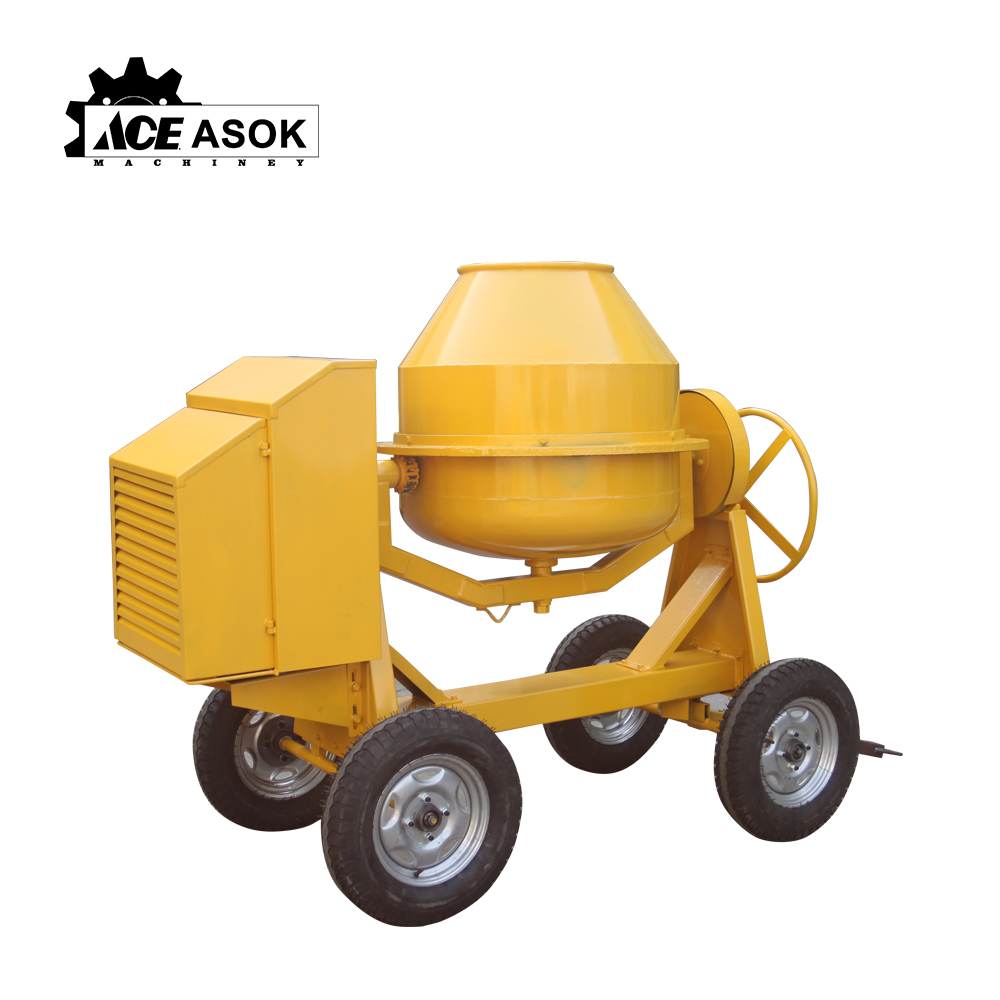

TDCM350-D Diesel engine Tilting Drum Concrete Mixer
The concrete mixer ranges from the large-duty mixing truck to the mini mixer. It is a useful tool for either homeowners who attempt small concrete projects or contractors who should complete large-scale projects where large batches of concrete and mortar need to be mixed. The machine is designed for safe, reliable functioning as well as large capacity.
Features
1. Rugged mixing drum comes with reinforced rim and highly efficient paddles.
2. Outstanding mixing performance
3. Long-lasting
4. Limited maintenance
5. An extra handle is mounted onto the rear end of the compact vehicle
6. Lockable engine compartment
7. Ergonomically designed concrete mixer is supplied with anti-tip system.
8. Locking system for large handle wheel and foot pedal.
9. Rugged, dependable chassis is also easy to clean.
10. The machine can be supplied with either two wheels or four wheels.
| Model | TDCM 350-D | TDCM 350-DT | TDCM 350-E | TDCM 350-ET | TDCM400-D |
| Total Drum Capacity | 350L | 400L | |||
| Mixing Capacity | 310L | 330L | |||
| Productivity | 4-53m³/h | 5-6m³/h | |||
| Drum Rotating Speed | 28r/min | 24r/min | |||
| Power Type | Single Cylinder, Gasoline engine | Three Phase, Asynchronous Electric Motor | Horizontal, Single Cylinder, FourStroke and water cooled | ||
| Power | 6-10HP | 4HP | 8HP | ||
| Tyre Size | 4.00-12 | 4.50-12 | |||
| Tyre Quantity | Four wheels | Two wheels | Four wheels | Two wheels | Four wheels |
| Gross Weight | 340 | 320KGS | 310KGS | 290KGS | 460KGS |
| Packing Dimension(L*W*H) | 2050*950*1280mm | 1750*1000*1260mm | |||
FAQ:
Q : What's your payment terms ?
A: Usually we accept T/T ,L/C at sight or western Union
Q: Would you accept OEM and ODM ?
A: The design of machine such as colour ,artwork and sketch can customized
Q : How to control quality ?
A: We inspect all the spare parts before assembly the machine and we need test every machine
after assembly.
Q : How can I choose the most suitable model ?
A: Please tell me your detailed flow rate ,voltage ,applications ,then we can make suggestions for you.
Q :What's your MOQ ?
A: Trail order can be accepted with 2-10 sets ,we warmly welcome agent in your market.
