Product Introduction

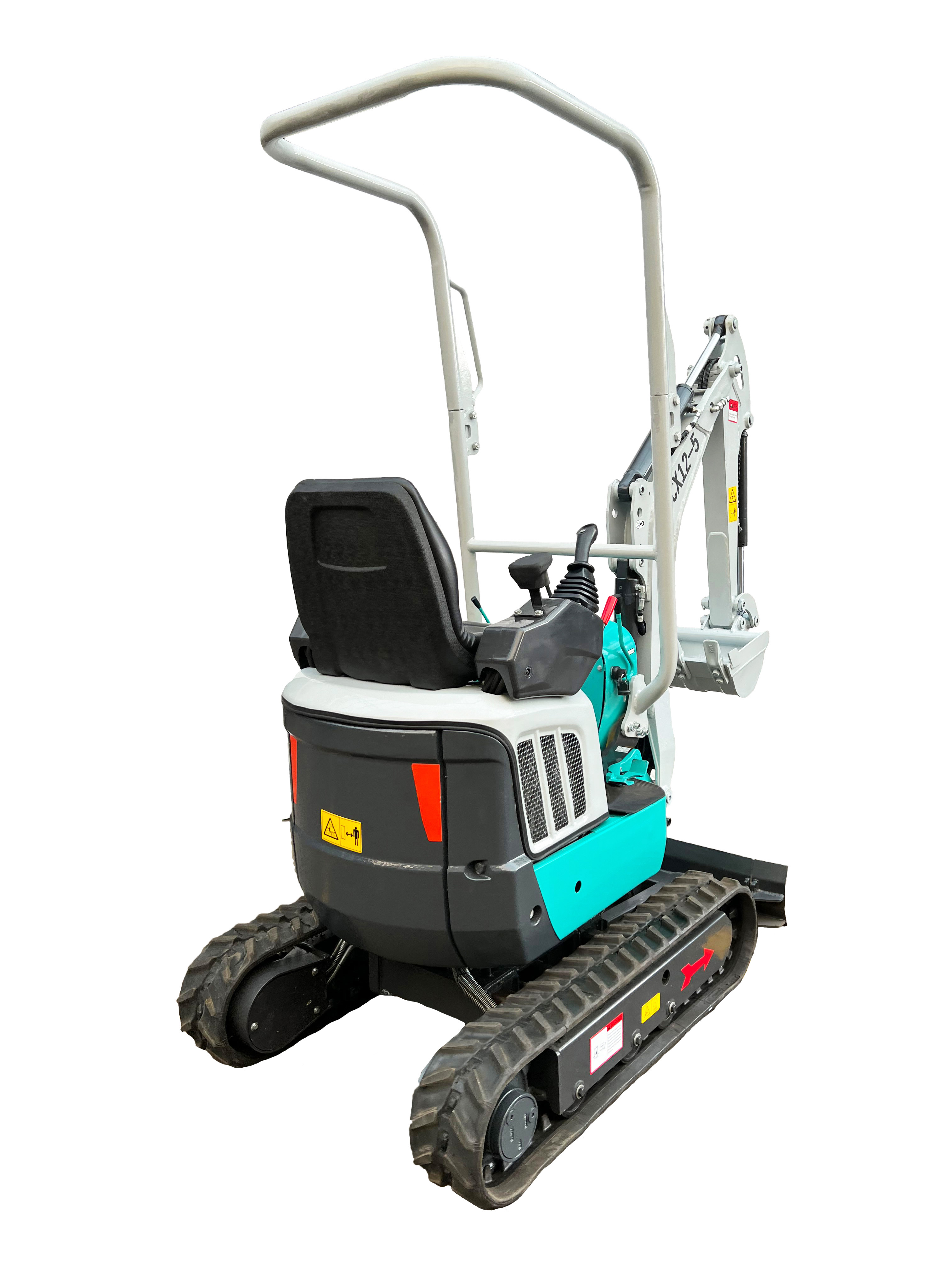

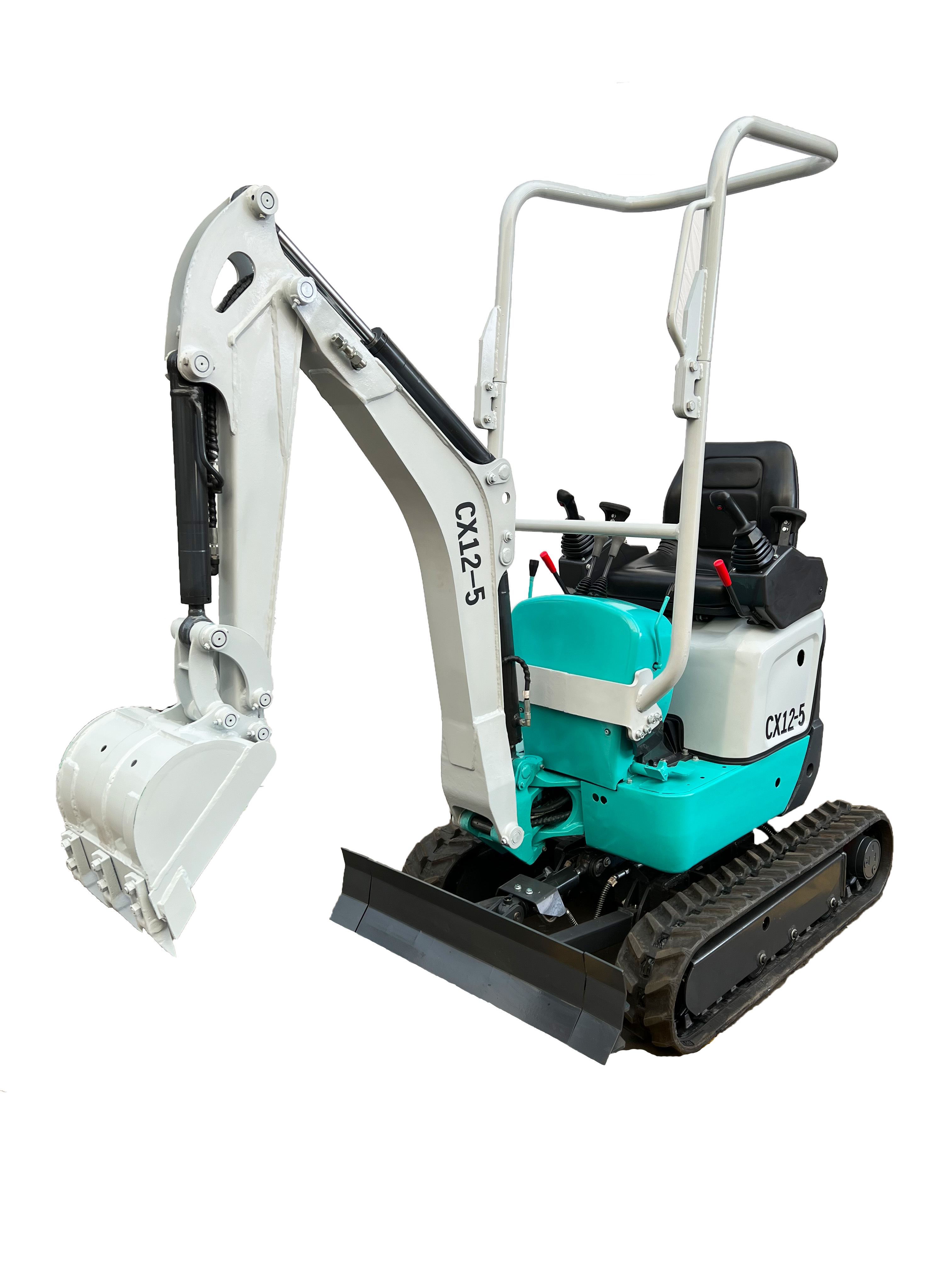

The CX12-5 mini excavator is a versatile and compact road machinery that can be widely used in various construction projects. Its small size allows it to work efficiently in narrow or limited access areas.


The machine is designed with ease of maintenance in mind, reducing downtime and costs associated with maintenance and repairs. Additionally, the advanced anti-theft system significantly reduces the risk of theft, providing greater security to its owners.


The CX12-5 is also suitable for various accessories, increasing its versatility and usefulness on construction sites. It is equipped with a powerful and reliable Kubota engine, known for its durability and high performance.


Overall, the CX12-5 mini excavator is an excellent choice for construction companies looking for a compact and versatile machine that can tackle a range of tasks efficiently.


Table parameters
  • Engine System
    Kubota original engine
  • Operating weight
    1180KG
  • Bucket capacity std.SAE/CECE(m³)
    0.024/0.020
  • Bucket width (with without side teeth)
    398/380
  • Model
    D722-EF11
  • Type
    Water-cooled diesel engine E-TVCS
  • Output ISO 14396 NET                         PS/rpm
    10.2/2500
  • kW/rpm
    7.6/2050
  • Bore X Stroke                                         mm
    67 X68
  • Displacement                                         cc
    719


  • Overall length
    2980
  • Overall height
    2260
  • Swivelling speed
    8.3
  • Rubber shoe width
    180
  • Tumbler distance
    1010
  • Dozer size( width X height)
    750/990 X 200
  • Hydraulic reservoir(L)
    12.6
  • Fuel tank capacity(L)
    12
  • Travel Motor
    Eaton Orbital motor
  • Max. travelling speed (low / high) km/h
    single speed ,2km/h
Product Details



01

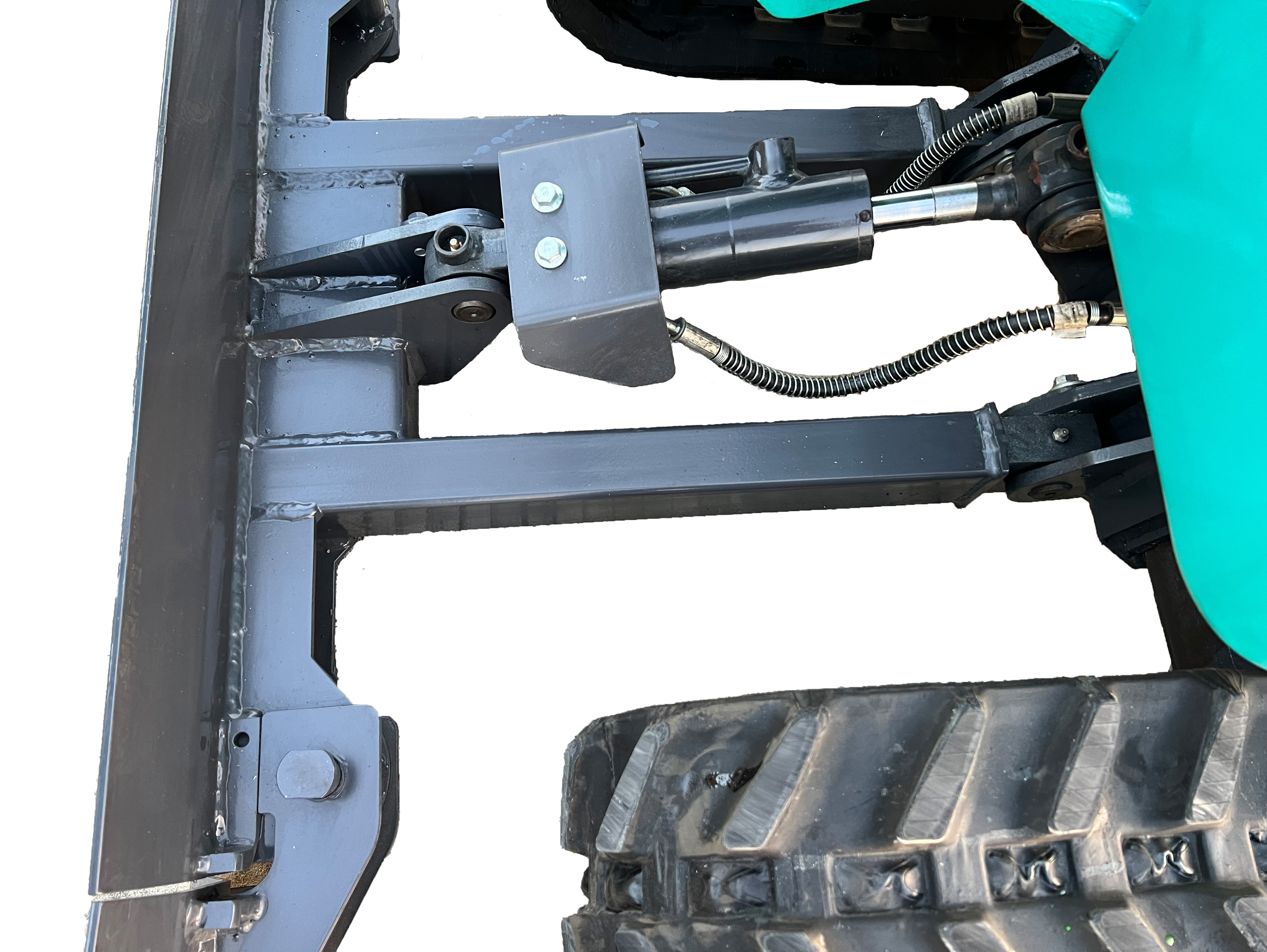

TWO-PIECE HOSE DESIGN
When an on-site replacement of a dozer cylinder supply hose is necessary, its two-piece design simplifies the job.

02

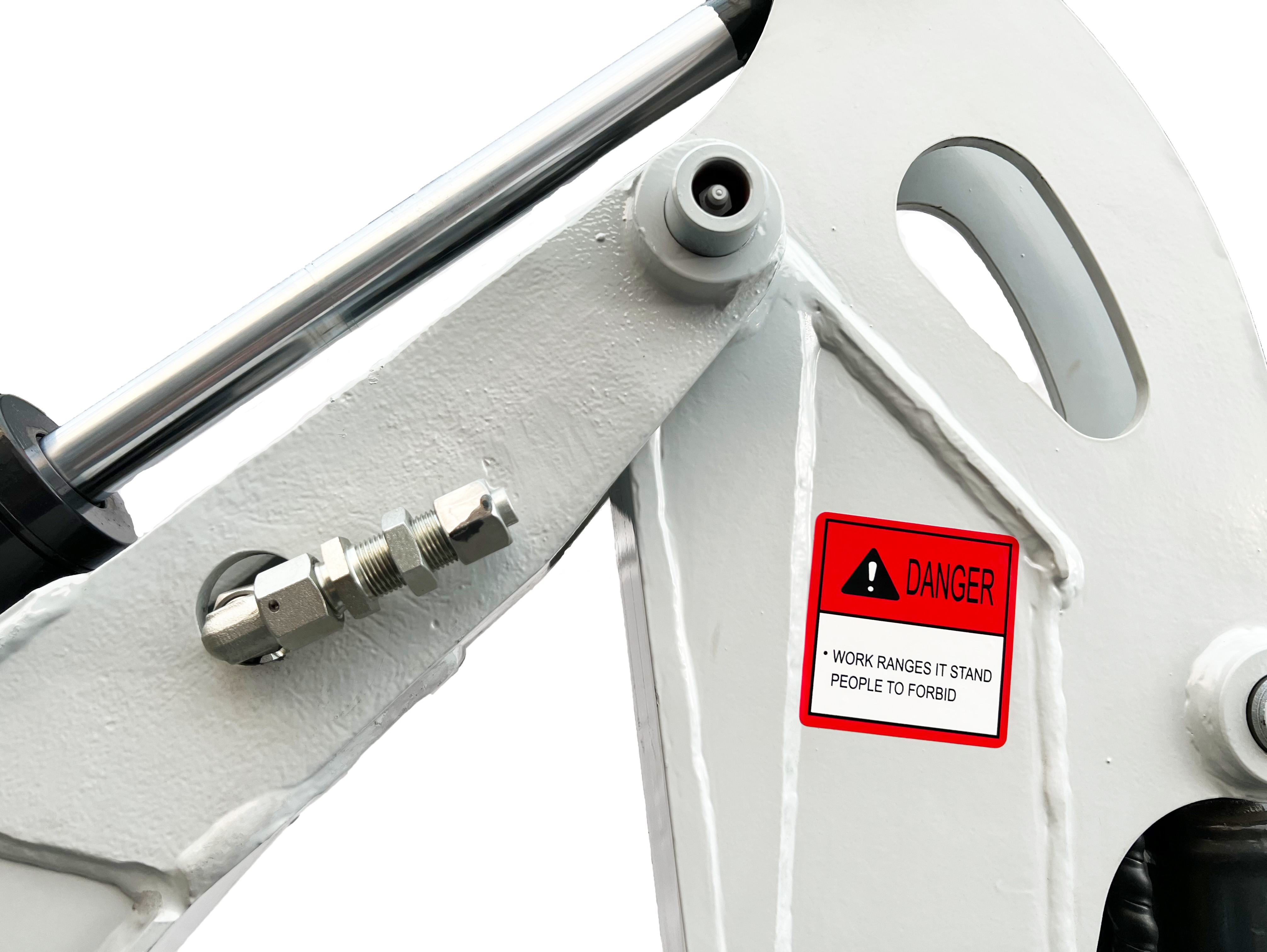

PROTECTED HYDRAULIC SERVICE PORT PIPES
With the CX12-5, you'll never need to replace the hydraulic service port pipes again. To reduce the risk of damaging the hydraulic piping, the service port pipes are hidden inside the boom, and its service ports are conveniently located at the end of the boom.

03

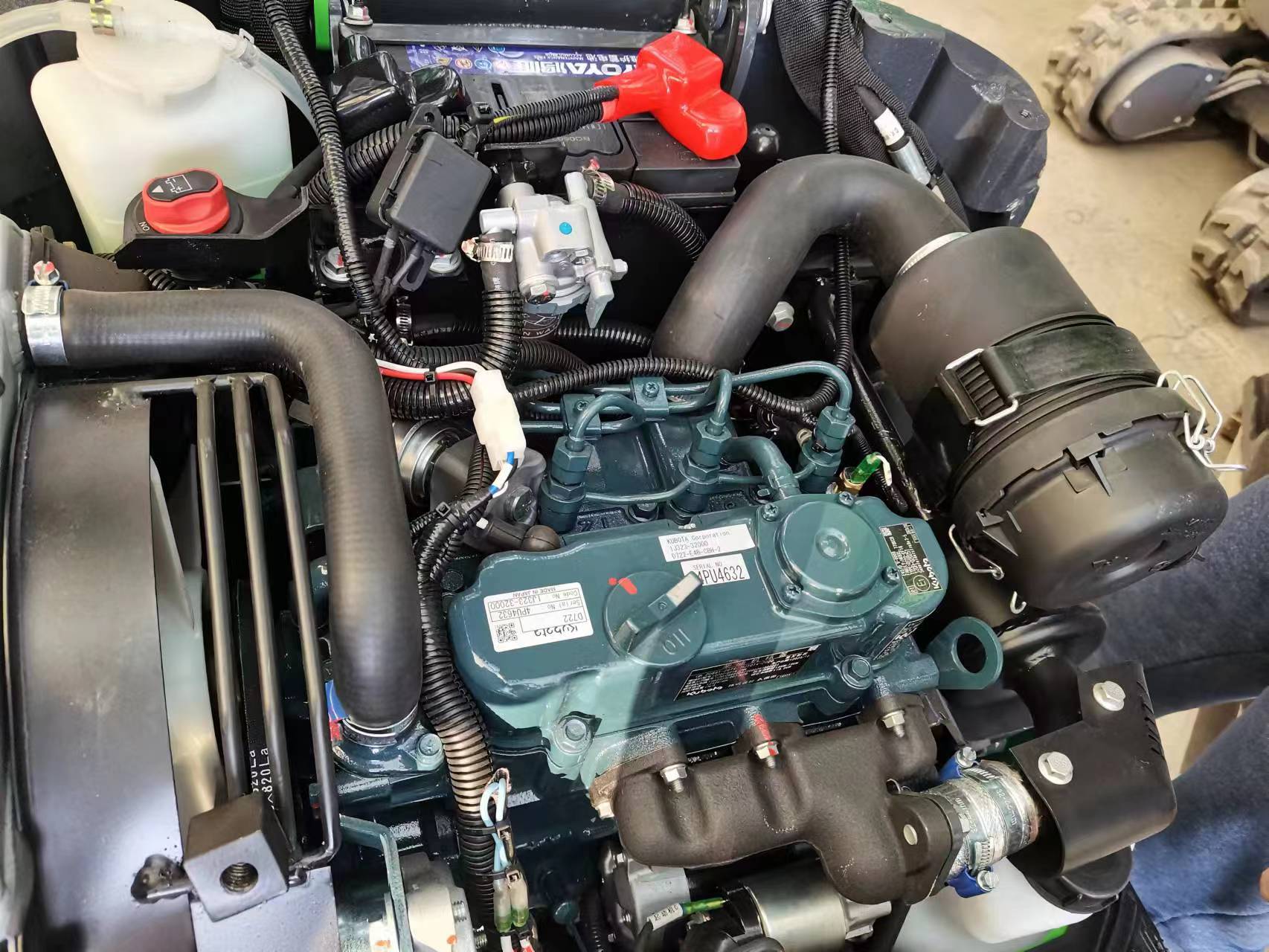

KUBOTA STAGE V ENGINE

Highly trusted in the compact industrial machinery market, the efficient combustion created by our engine's unique Three Vortex Combustion System reduces exhaust emission and noise. Its layout also puts most components within easy reach for faster maintenance. Furthermore, it is now fully Stage-V compliant.

04

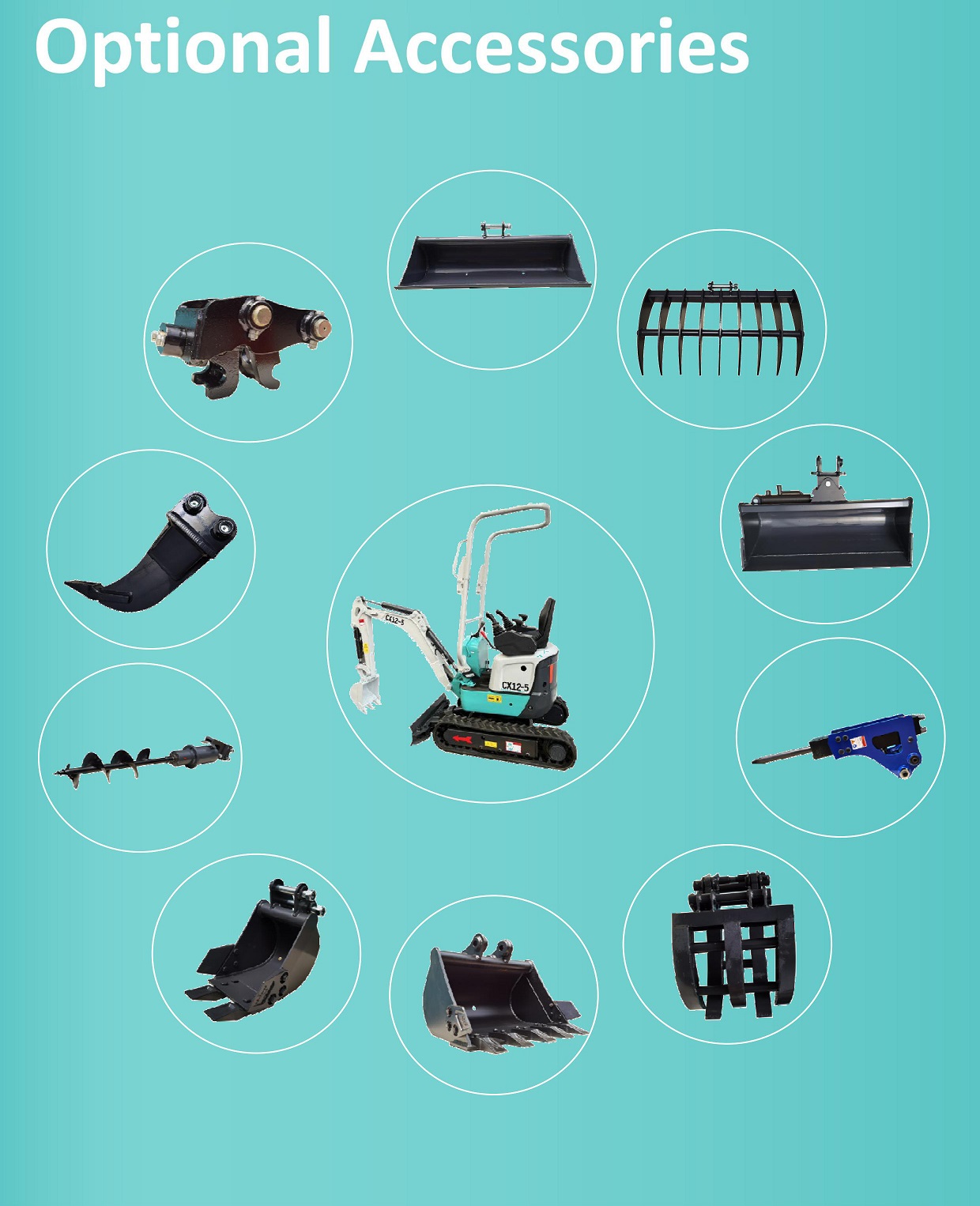

Replacement of various accessories
Replacing multiple accessories such as augers and nail guns, one excavator easily solves all problems





Serviceability

After-sale service
After sales consultation, machine issues, and warranty issues
Seek advice from
Any questions or operating principles that the machine may not understand
Personalization
Customized colors, trademarks, and other customer needs
Manage
Unique factory with strict control over machine quality
Factory Introduction

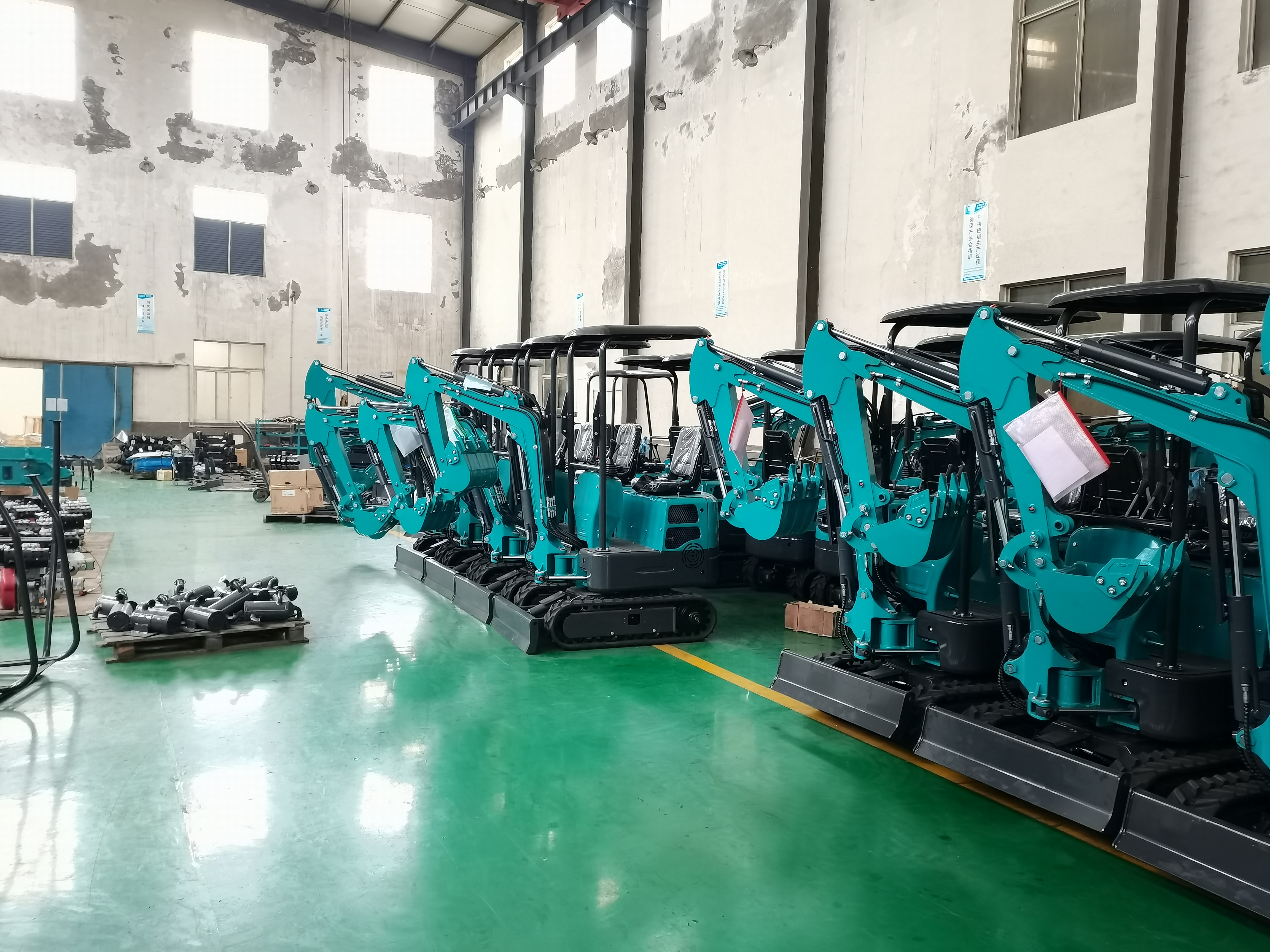

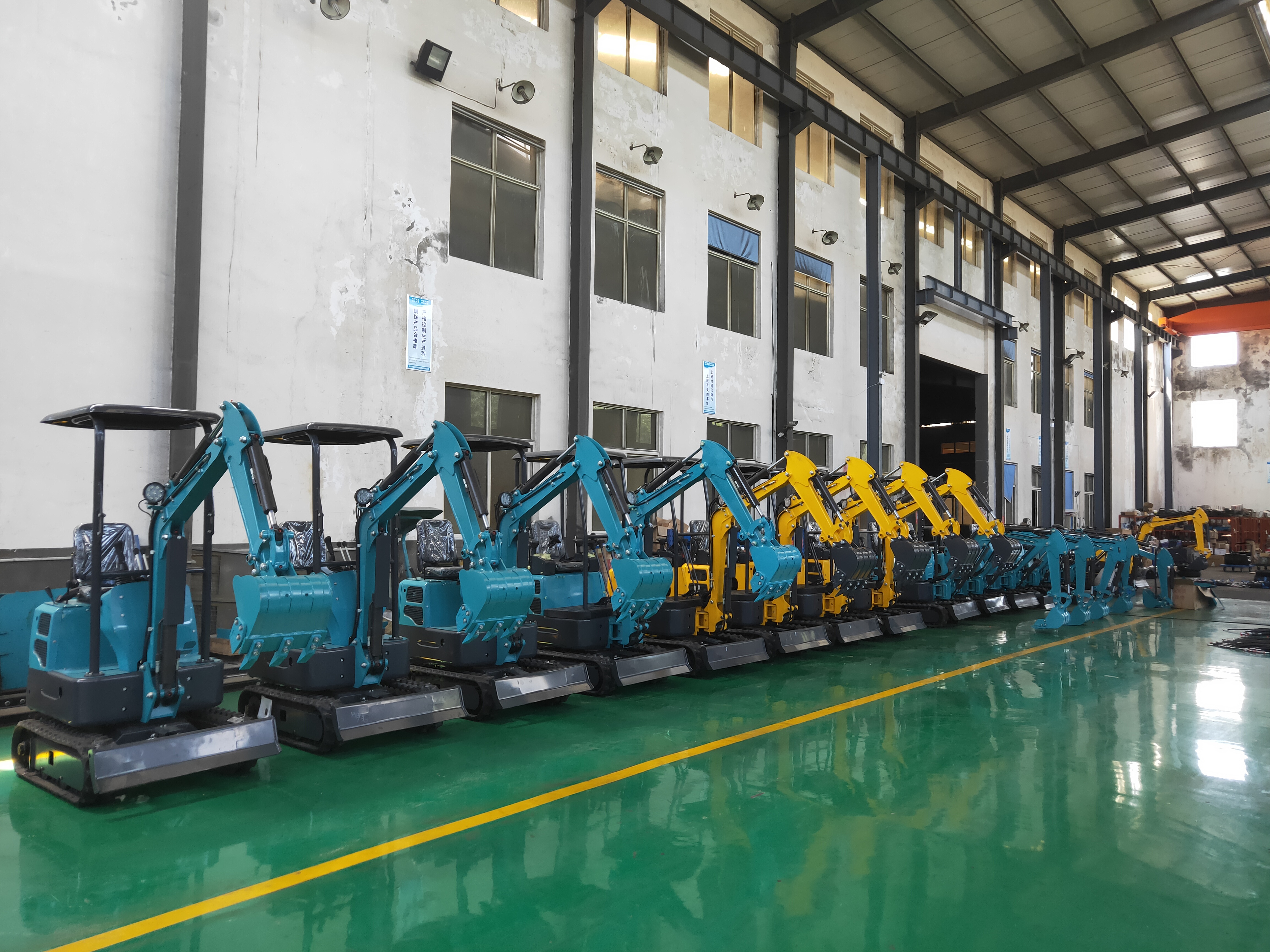

Factory internal diagram

++




ACE, just for making better excavators

++


Customer's Feedback


Customers from Australia

This is the excavator we purchased from ACE for a year, and we have maintained it very well.



Customers from the UK

ACE's products are very good. After a detailed introduction at the booth, we pre ordered one



Customers from Saudi Arabia

A detailed introduction to the combination of excavator performance, this is our second purchase and we are fortunate to collaborate with ACE

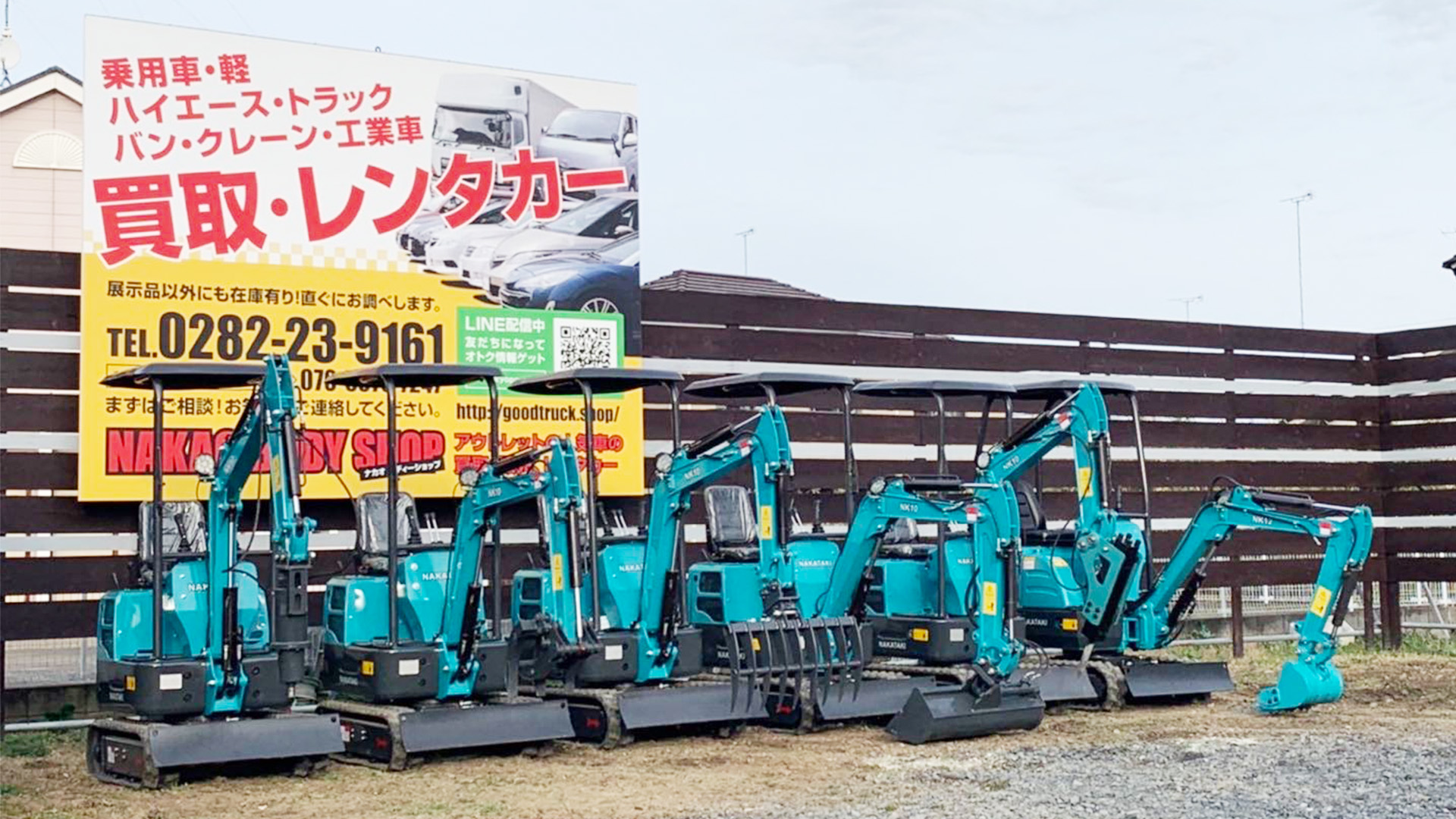

Customer factories in Japan

We are a good partner with ACE, and after several collaborations, we have fully trusted them and sold their products in our own country


FAQ

Frequently Ask Questions
  • How long does it take for the goods to arrive at their destination from production?
    FThe production cycle of excavators is 15 days, and we will try our best to control the time required from shipment to the destination port within 1 month to ensure that customers can receive the goods on time.
  • Can you supply the relevant documentation?
    Yes, we can provide most documentation including Certificates of Analysis / Conformance; Insurance; Origin, and other export documents where required.
  • Do you have a MOQ?
    This product can be purchased separately, and there is a shipping discount for 2 or more units. We only want to be a better merchant!
  • What are your prices?
    Our price is not the lowest, but it is the most reasonable because our unique operating technology and the production of excavators require professional manpower and resources. For old customers, we will relax and reduce it to our maximum discount
