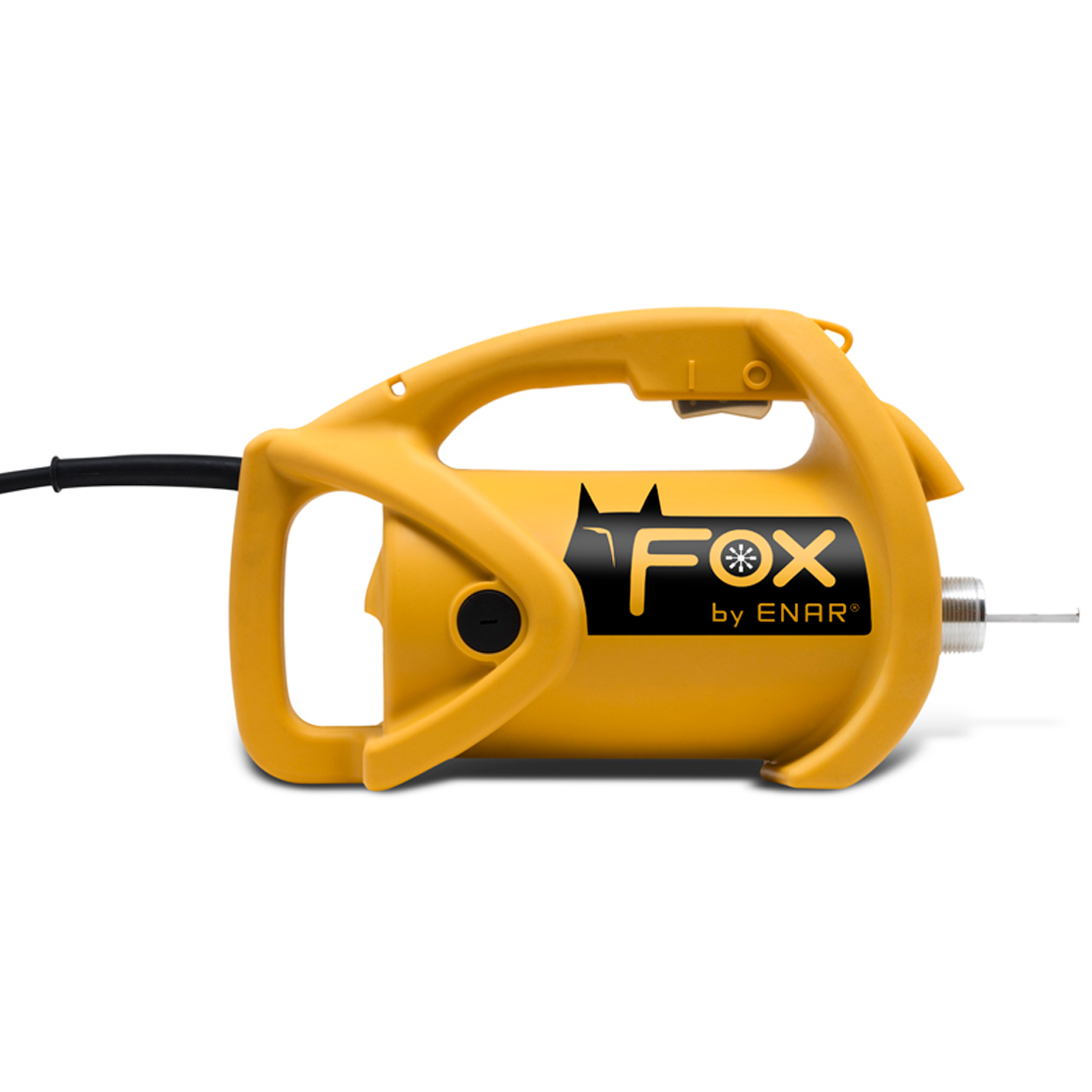

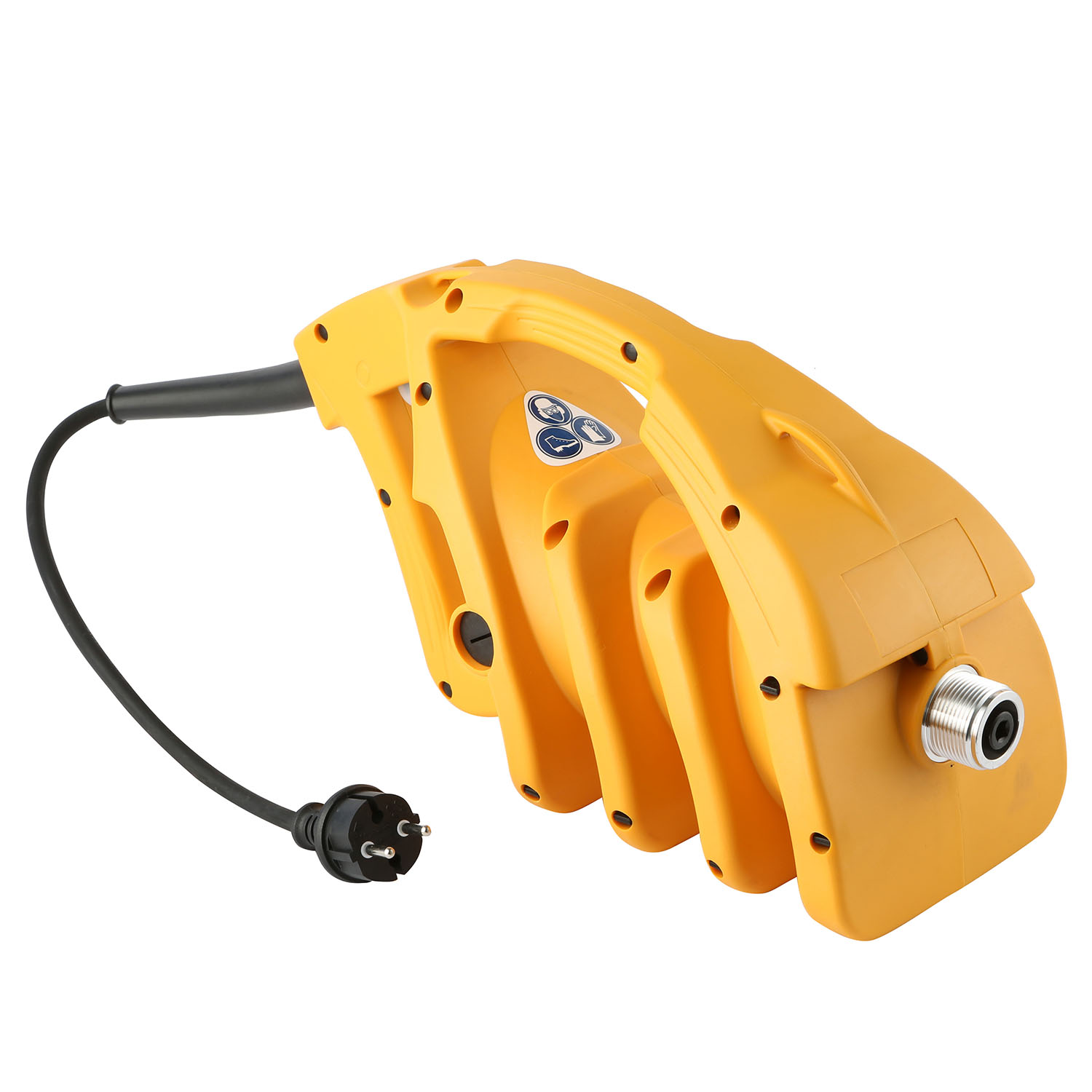

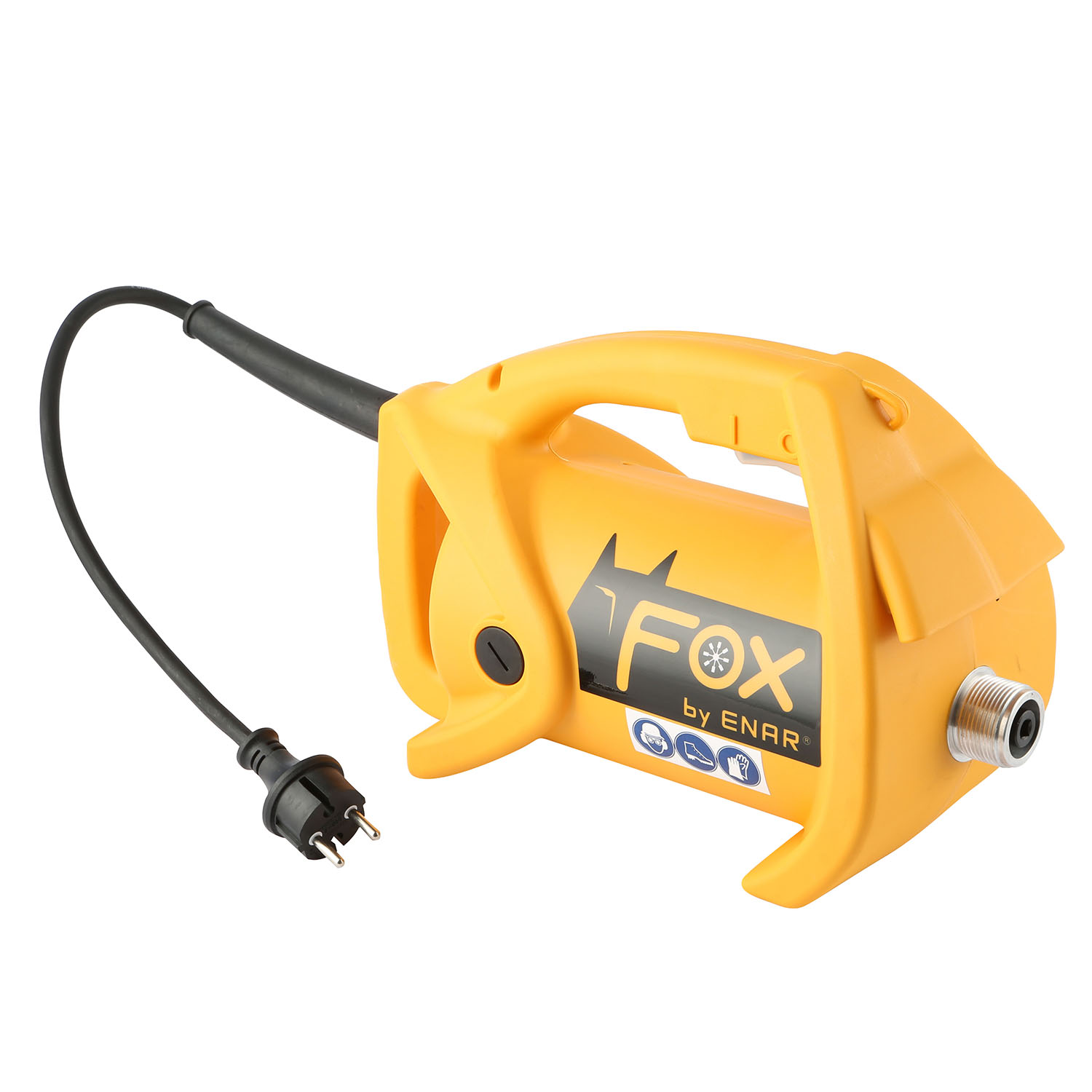

FOX, portable electric concrete vibrator

FOX portable concrete vibrator/electric concrete vibrator/high frequency concrete vibrator . A very light and easy to handle concrete vibrator that comes with a shoulder strap for easy transport. The FOX comes with a 3hp motor to run the full range of AX vibrators (25mm to 58mm) and TAX transmissions (0.5m to 6m).

The TAX transmissions are reinforced and the AX poker heads are fitted with 4 oiled bearings for intensive use. The housing of the FOX is highly resistant and uses air filters to protect against dust and dirt entering and causing damage. The FOX is available with several types of coupling and has the unique advantage of being able to easily replace the carbon brushes.

Specification Date :

Type

FOX  type

Model

FOX-230

Rated input power

2300W

Rated voltage

220V

Rated Frequency

50HZ

No-load speed

18000 r/min

Weight

5.8kgs

Packing size

354x105x205mm

Matched vibrator shaft ( produce by our factory ):


Item

High-frequency   vibrator shaft

Model

(mm)

ZX-28

ZX-38

ZX-48

ZX-50

Diameter of   head

(mm)

28

38

45

50

Length of   head

L (mm)

300

345

370

410

Vibrating   Frequency

(HZ)

200

200

200

200

Vibrating   Ampitude

(mm)

0.8

1.2

1.3

1.35

Diameter of   flexiable hose

D(mm)

28

28

28

28

Diameter of   flexiable shaft

D(mm)

10

10

10

10

packing size

cm

75*75*5.5cm

Application:

FAQ

1
What are your prices?
Our prices are subject to change depending on supply and other market factors. We will send you an updated price list after your company contact us for further information.
2
What kinds of payment methods do you accept?
You can make the payment to our bank account, Western Union :30% deposit in advance, 70% balance against the copy of B/L.
3
What is the average lead time?
For samples, the lead time is about 7 days. For mass production, the lead time is 20-30 days after receiving the deposit payment. The lead times become effective when (1) we have received your deposit, and (2) we have your final approval for your products. If our lead times do not work with your deadline, please go over your requirements with your sale. In all cases we will try to accommodate your needs. In most cases we are able to do so.
