Place of Origin: | China | Brand Name: | RHINOCEROS |
Model Number: | XN08 | Condition: | New |
Moving Type: | Crawler Excavator | Operating Weight: | 800kg |
Bucket capacity: | 0.025m3 | Maximum Digging Height: | 2365mm |
Maximum Digging Depth: | 1650mm | Machine Weight: | 0.8T |
Max Digging Radius: | 340mm | Rated Speed: | 5.5km/h |
After-sales Service Provided: | Overseas third-party support available | Certification: | CE ISO |
Product name: | Hydraulic Mini Excavator Prices |

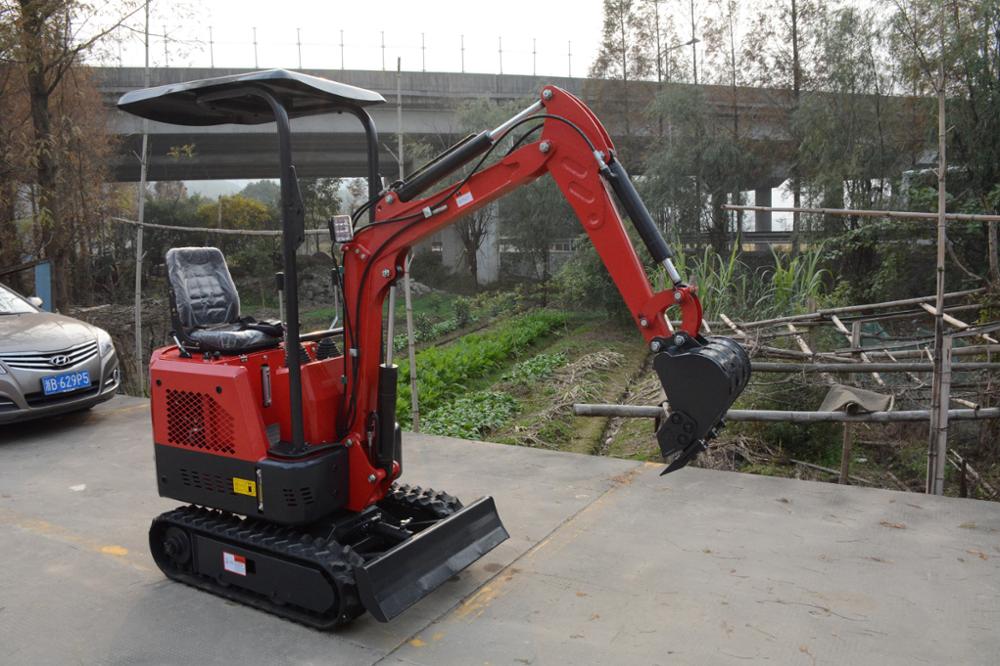

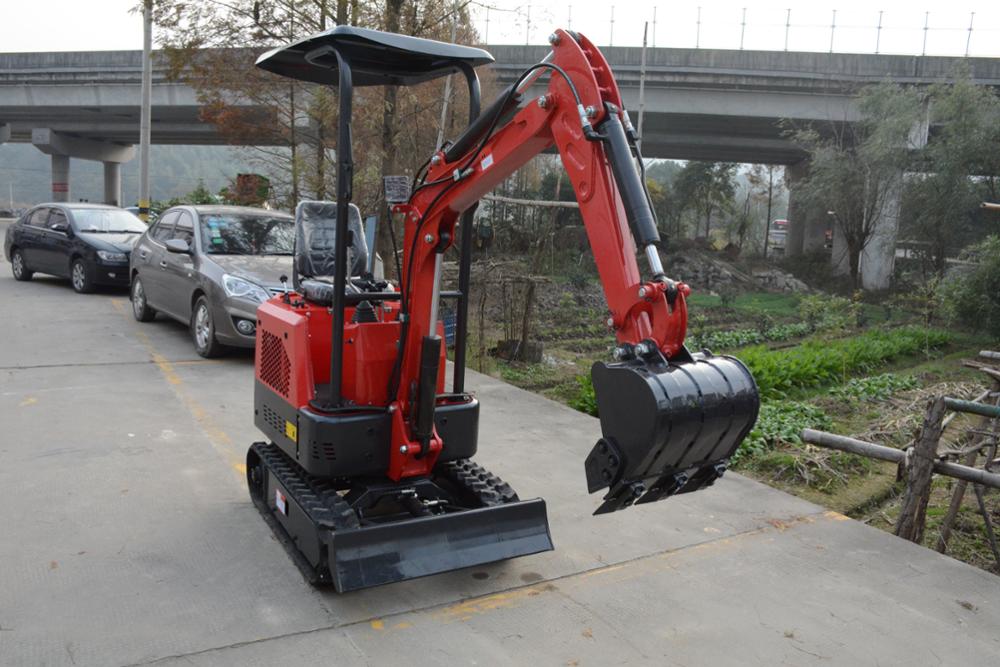

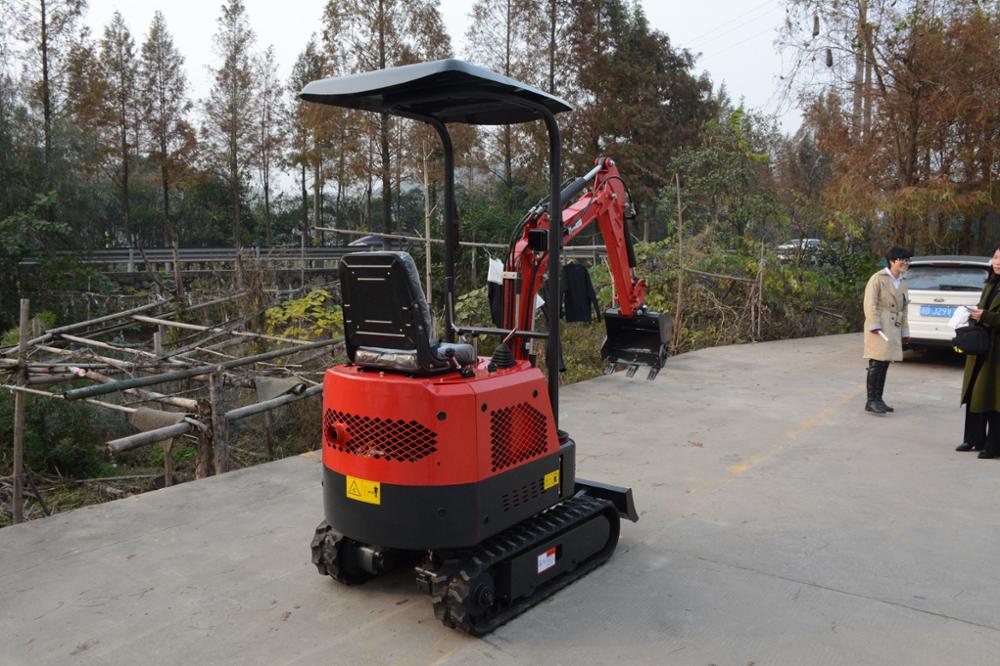

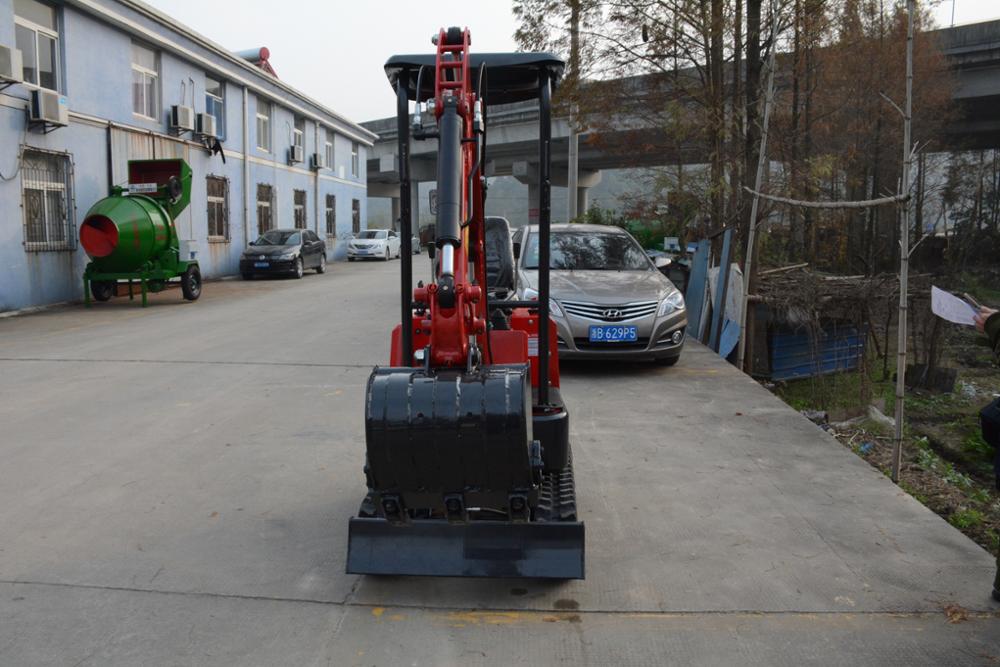

New Hydraulic Mini Excavator Prices 800kgs
This excavator is designed for small works, small projects, in garden, farmland, municipal works,vegetable greenhouse, digging trench It is with small engine, simple design, easy to maintain.
Model | XN08 |
Operating Weight | 800kg |
Digging bucket capacity | 0.025cbm/100kg |
Bucket width | 340mm |
Engine | CHANGCHAI |
Rated power | 8.6 kw/1800r/min |
Displacement | 0.499 L |
Bore stroke | 70x55 |
Main pump | CBK-F6.8 |
Displacement | 6.8ml/r |
Swing motor | SJ-TECH (MP-1-160) |
Traveling motor | KERSEN 310 |
Travel speed | 1.5km/h |
MAIN DEMENSIONS | |
Overall dimension( LxWxH) | 1877x896x1990 mm |
Wheelbase | 770 mm |
Total length of track | 960mm |
Platform ground clearance | 376 mm |
Platform back turning radius | 664 mm |
Chassis width | 896 mm |
Track width | 180 mm |
Chassis ground clearance | 132 mm |
Track height | 320 mm |
OPERATING RANGE | |
Max. Digging depth | 1650 mm |
Max. Vertical digging depth | 1376 mm |
Max. Digging height | 2365 mm |
Max. Dumping height | 1655 mm |
Max. Digging radius on ground | 2560 mm |
Min. Rotation radius | 1200 mm |
Max. Upgrade height of bulldozer blade | 165 mm |
Max. Digging depth of bulldozer blade | 170 mm |
