1
production process
Strictly control and pay attention to every detail
2
Package
Carton packaging, neat and uniform
3

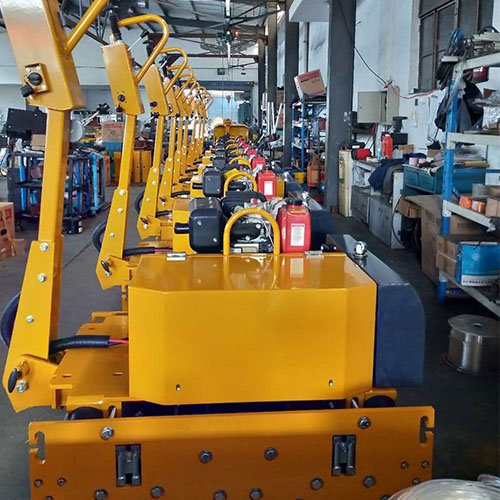

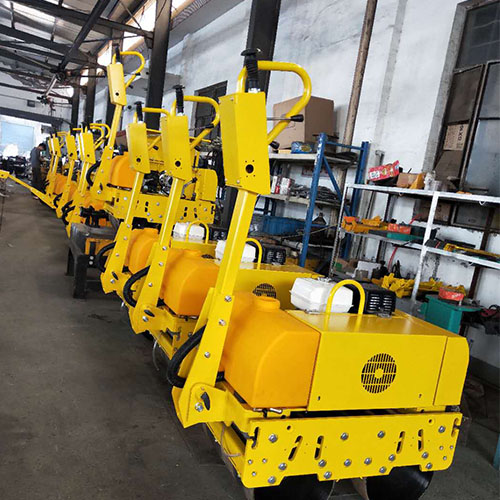

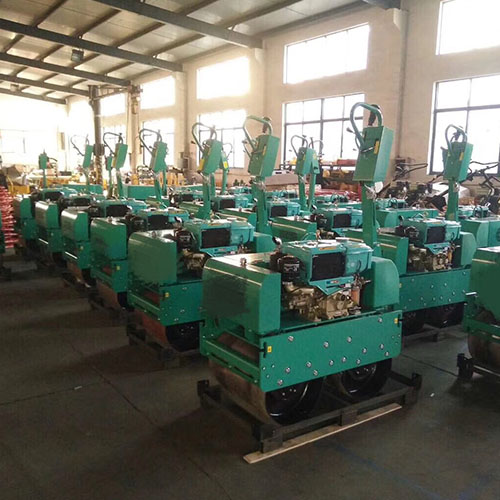

Factory area
2000㎡ super large area, mass production
|
Model
|
RL500D
|
RL600D
|
RL700D
|
RL900D
|
|
Engine
|
Diesel engine 178F 6.0HP
|
Diesel engine 186FE 9.0HP
|
|
Weight (KGS)
|
630
|
720
|
740
|
810
|
|
Vibratory Frequency (times/min)
|
3600
|
3600
|
3600
|
3600
|
|
Centrifugal Force (KN)
|
15
|
20
|
24
|
30
|
|
Max. Travelling Speed (KM/H)
|
2.5
|
2.5
|
2.5
|
2.5
|
|
Gradeability (%)
|
20
|
20
|
20
|
20
|
|
water tank capacity (L)
|
32
|
35
|
35
|
35
|
|
fuel tank capacity (L)
|
25
|
25
|
25
|
25
|
|
Vibratory Wheel Dia (mm)
|
377
|
377
|
426
|
426
|
|
Vibratory Wheel Width (mm)
|
600
|
650
|
650
|
700
|
|
packing size(cm)
|
131*74*112cm (handle 162*31*38)
|
（Please feel free to contact us if you need detailed consultation on parameters and professional questions.）
Product details (text introduction)
Custom-Made Water-Cooled Diesel Engine:The heart of our Double-drum Vibrator Roller lies in its custom-made water-cooled diesel engine. Not only does it exhibit superior heat dissipation capabilities, but it also boasts substantial power, especially well-suited for operation in scorching environments. This engine is a testament to our commitment to efficiency and reliability.
High-Tensile Strength Steel Construction:The drum and body are crafted from C45 steel, offering better tensile strength compared to Q235. This construction ensures a longer service life, making the Double-drum Vibrator Roller a robust and durable solution for various compaction applications.
Precision Laser Cutting:Utilizing state-of-the-art laser cutting technology ensures that the steel components are free from deformation caused by twisting and bending. This process results in high dimensional accuracy, surpassing traditional flame cutting methods and guaranteeing precision in every detail.
Corrosion-Free Water Tanks:Featuring two 65-liter, corrosion-free water tanks mounted at the rear of the roller, our design not only reduces sound but also minimizes dust during operation. This thoughtful addition ensures a clean and controlled working environment, contributing to the longevity of the equipment.
User-Friendly Vibration Control:The vibration is seamlessly controlled by an easy-to-reach on-and-off switch integrated into the speed-controlled hand lever. This user-friendly design enhances operator control and comfort during compaction tasks.
Dual Scraper Bars for Asphalt Work:To maintain optimal performance when working on asphalt, each drum is equipped with two scraper bars. This ensures a clean drum surface, preventing material buildup and facilitating efficient compaction.
Optimal Side and Curb Clearance:The Double-drum Vibrator Roller is designed with minimal overhang, offering suitable side and curb clearance. This feature allows for close proximity operation to pavements, curbs, and other obstacles, enhancing versatility on the job site.
Ergonomically Designed Handle with Dead Man Control:Prioritizing operator safety and comfort, the ergonomically designed handle features a dead man control, offering protection during reversing applications. This ensures a secure working environment and enhances the overall user experience.
-
USPS Express Mail:fast, inexpensive and reliable with tracking
-
USPS Priority Mail:cheaper, little slower with tracking
-
USPS First Class Mail:no insurance, no tracking
-
FedEx:very fast and reliable (we offer huge discounts negotiated on behalf of our customers).
-
DHL:very fast and reliable, large discounts
-
FedEx Freight:for heavy or oversize packages
-
Airmail Economy:cheap method fo inexpensive items
-
Airmail Priority:cheap method fo inexpensive items, little faster than Economy
-
Boxberry Courier:fast and reliable courier service to Russia
-
Boxberry Local Pickup:cheaper Boxberry option, package delivered to pickup point
-
Shipito Australia Preferred Carrier:fast, reliable and affordable shipping method to Australia
-
Shipito Preferred Carrier with DPD Express:fast, reliable and affordable shipping method to many countries in Europe
-
Aramex:fast shipping provider focusing on Middle East and Asia
-
MPS - Multiple Piece Shipment:more savings when shipping multiple packages to the same address with DHL and FedEx
1. With 28 years manufacturing experience and more than 15 years export experience and specializes in the research and manufacture of Building machinery
2. We obtain worldwide authentication ,such as VDE,CE, GS,UL, ETL, and so on.
3 Quick reply to customer questions within 5 hours
4. Delivery date :within 5-7 days for Sample ready and mass production 15-45 days after receive the deposit.
5. Customization : OEM & ODM customized design ,We can change the color/logo according to your personal requirements.
6. Product information and sales tools training ,to help you win great popularity in te local marekt
7. Follow up customers' feedback after receive the products, andt try our best to solve and improve the quality and service
8. over 90% of products are exported
9. Focusing on Exclusive Agent and take our customers grow up together
10. We have 6 excellent International sales,2 engineers with 15 years of experience and 3 QC,We keep good quality and competitive price to ensure our customers benefit
11. 12 months quality guarantee,Provide video service after-sales
12. Quality products that have been exported to over 50 countries
END(Recommended products in our store）
Animal husbandry, a good helper for orchards

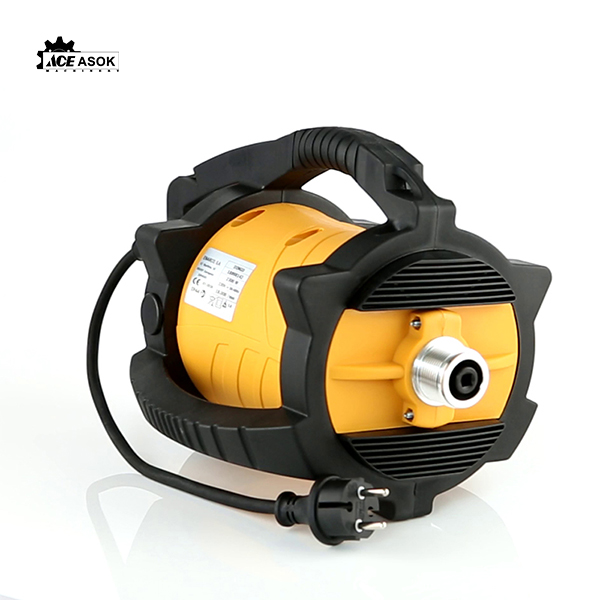

Dingo type 2300W Concrete Vibrator
