A construction equipment supplier of construction machinery solutions for 30 years. WhatsApp:+86-18968212829
1.Articulated movement with power-assist provides accurate,positive steering control and increases maneuverability in confined job sites .
2. The hydraulic pump and motors are connected in series to offer the maximum traction and smooth rolling as well as excellent gradeability .
3. 40mm side clearance allows close operations near walls and obstructions .
4. Curb clearance 412mm insures flush compaction to the curb.
5. Unobstructed driver visibility-open,uncluttered operator's platform allows clear views .
Mainly used to compacting and maintaining various roads in narrow area conditions: building construction, backfilling for pipeline, gymnasium ground pipeline channel and drainage trench etc. This double drum vibration road roller havs compact design and good performance in narrow condition works. with diesel engine, it's hydraulic vibration, hydraulic transmission and hydraulic steering.

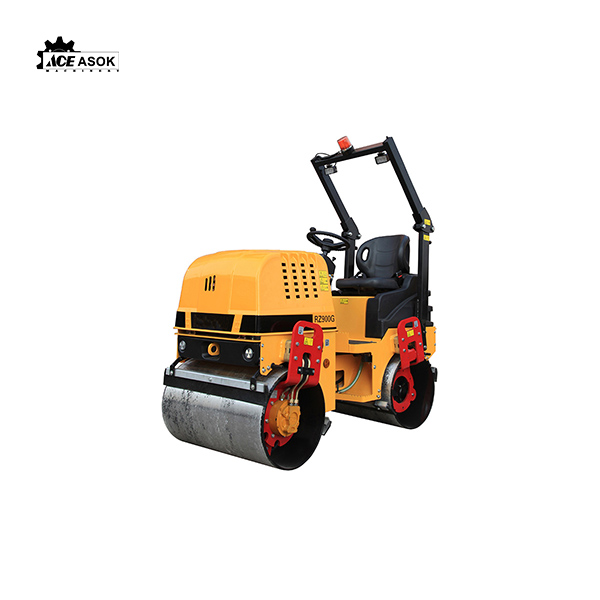

Ride-on Double drum Vibratory roller RZ900D/RZ900G
1.Articulated Movement with Power-Assist Steering:The RZ900D/RZ900G is equipped with articulated movement and power-assist steering, providing accurate and positive control. This feature significantly enhances maneuverability in confined job sites, ensuring precise steering for optimal compaction.
2.Series-Connected Hydraulic Pump and Motors:The hydraulic pump and motors are intelligently connected in series, offering maximum traction and smooth rolling. This design not only ensures efficient compaction but also provides excellent gradeability, allowing the roller to perform well on various terrains.
3.Close Operation Capability:With a 40mm side clearance, this roller allows for close operations near walls and obstructions. This capability is essential in narrow areas where precision is required to achieve uniform compaction.
4.Flush Compaction to the Curb:The RZ900D/RZ900G features a curb clearance of 412mm, ensuring flush compaction to the curb. This is particularly beneficial in urban environments and road projects where maintaining a consistent and even compaction near curbs is crucial.
5.Unobstructed Operator Visibility:The operator's platform is designed to be open and uncluttered, providing clear views for the driver. This unobstructed visibility is essential for safe and efficient operation, allowing the operator to monitor the compaction process with ease.
6.Compact Design for Narrow Conditions:This double drum vibration road roller is specifically designed with a compact structure, making it ideal for narrow and confined job sites. Its performance in such conditions is enhanced by a diesel engine, hydraulic vibration, hydraulic transmission, and hydraulic steering.
|
Model |
RZ900G |
RZ900D |
|
Weight |
||
|
Max Working Weight |
1500kg |
1500kg |
|
Triction |
||
|
Rated Speed |
9km/h |
9km/h |
|
Vertical Pendulum Angle |
±7° |
±7° |
|
Gradeability |
35% |
35% |
|
Compacting |
||
|
Centrifugal Force |
16KN |
16KN |
|
Static Line Force |
6.6/8.0kg/cm |
6.6/8.0kg/cm |
|
Vibration Frequency |
70Hz |
65Hz |
|
Water Tank Capacity |
125L |
125L |
|
Engine |
3600r/min |
|
|
Manufacturer |
HONDA Gx630 20HP |
KUBOTA D722-E3 |
|
Type |
Air-Cool Engine |
Water-Cool Engine |
|
Rated Power |
20HP |
18.8HP |
|
Oil Capacity |
23L |
23L |
|
Hydraulic System |
||
|
Hydraulic Pump |
Poclain |
Poclain |
|
Hydraulic Motor |
Poclain |
Poclain |
|
Emergency Braking/Stop |
Emergency Button |
Emergency Button |
|
Measurement |
||
|
Whole Machine Size |
2240x1040x1800mm |
2240x1040x1800mm |
|
Packing Size |
2240x1040x1800mm |
2240x1040x1800mm |

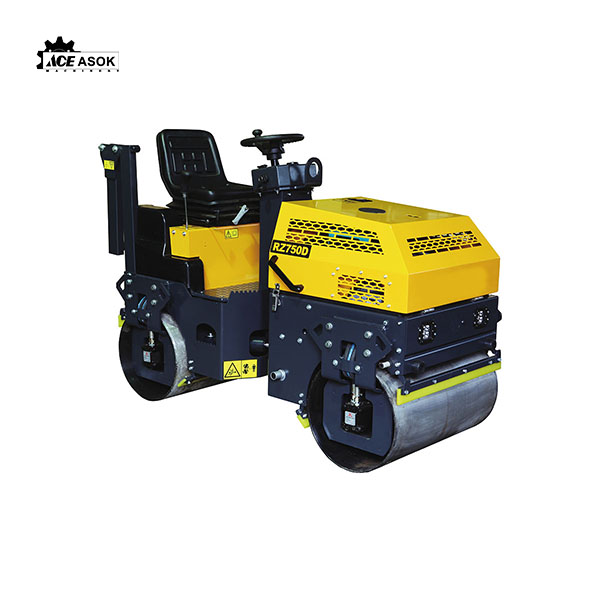

RIDE ON VIBRATION ROLLER RZ750D 900KGS
