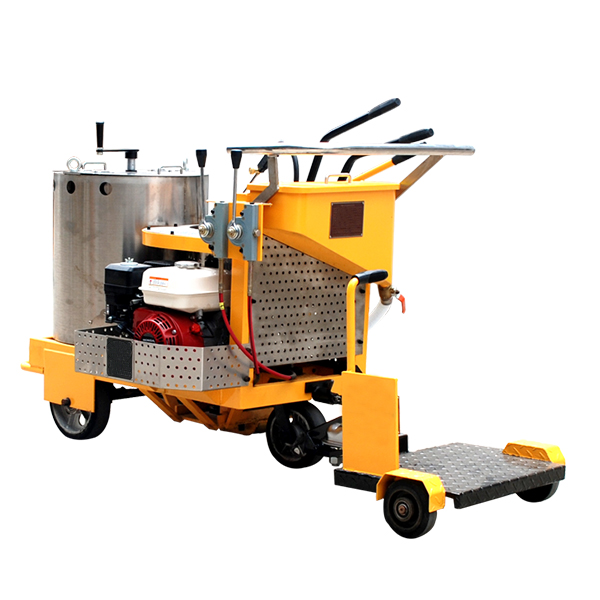

TW-A Self-propelled Road Marking Machine, is one of the key machines for thermo-melting marking. The marking quality depends on the stability of machine frame and the operating range of marking hopper, which reflect the difference in performance of machine.
The machine is used for marking reflective lines (straight lines, dotted lines, direction arrows, letters and symbols) on high way, city street, parking lot, factory and warehouse. It have hand push or Gasoline Engine driven automatically walk.
As one of the professional pavement marking machine manufacturers in China, we have always enjoyed a good reputation among our global customers.
TW-A
Marking Function: This machine is designed for applying thermo-melting markings, including reflective lines such as straight lines, dotted lines, directional arrows, letters, and symbols. These markings are typically used on various surfaces, including highways, city streets, parking lots, factories, and warehouses.
Propulsion Options: The machine offers two propulsion options - it can be hand-pushed or driven by a Gasoline Engine for automatic movement. This provides flexibility in terms of how the machine is operated and moved during the marking process.
Importance of Machine Stability: The quality of the markings depends on the stability of the machine frame. A stable machine frame ensures precise and consistent markings, contributing to overall road safety and aesthetics.
Operating Range of Marking Hopper: The operating range of the marking hopper is another crucial factor for the quality of road markings. A well-designed and adjustable marking hopper allows for flexibility in creating different types of road markings.
Reputation as a Manufacturer: The statement mentions that the manufacturer of this road marking machine is known as one of the professional pavement marking machine manufacturers in China. The company enjoys a good reputation among its global customers, which implies reliability and trustworthiness in terms of product quality and customer service.
TW-A Self-propelled Road Marking Machine | |
Outer dimensions(L*W*H) | 1400 X1050 X1050mm |
Total weight of machine | 230kg |
Capacity of glass beads box | 25kg |
Capacity of stirring tank | 120kg |
Engine power | HONDA gasoline engine of 5.5HP |
Walking installment: | Hydraulic continuously variable transmission |
Walking speed | 0-5km/h |
Lineation speed | >800m/h（depends on coating, line thickness） |
Gradient | 30%（about 16.5º） |
Coat thickness | 1.2-4mm |
Glass bead dispensing method | Flexible shaft driven, automatically clutch |
Temperature maintenance of paints | 170-220℃ |
LPG tank | 15kg/10kg |
Marking width | Can be 50,80,100,120,150,200,230,250,300,400, 450, 500mm, by changing different sizes of marking hopper. |
Work with a preheater (Yes/No) | YES |
Daily work efficiency | 2000 m2 |
Could equip with boosting driver, boosting plate, boosting chair？ | Boosting Plate /Boosting Chair |
