A construction equipment supplier of construction machinery solutions for 25 years.
The product is conveniently used on the job site where electrical power is not available.
Item | Gasoline engine vibrator, Dynapac type | |||
Model | ZXH | ZXL | ZXR | ZXRC |
Engine Model | HONDA GX160 | Loncin GF200 | ROBIN EY20 | Robin copy RB20 |
Engine type | 4-stroke 25° Single-cylinder with Air-cooled | |||
Borex stroke | 68*45mm | 1-67*52mm | ||
Displacement | 163 cm3 | 183cm3 | ||
Compression Ratio | 8.5:1 | 8.5:1 | ||
Max power | 5.5hp/3600rpm | 6.5hp/3600rpm | 5.0hp/3600rpm | 5.0hp/3600rpm |
Recommded power using | 4.8hp/3600rpm | 4.8hp/3600rpm | 3.5hp /3600rpm | 3.5hp /3600rpm |
Fuel Tank capacity | 3.6L | 3.6L | 3.8L | 3.8L |
Fuel consumption | 230g/hp-hr (313g/kwh) | 230g/hp-hr (313g/kwh) | 230g/hp-hr (313g/kwh) | 230g/hp-hr (313g/kwh) |
packing size | 53*39*43cm | 53*39*43cm | 53*39*53cm | 53*39*53cm |
N..W/G.W. | 20kgs/22kgs | 20kgs/22kgs | 20kgs/22kgs | 20kgs/22kgs |
Model | ZX-32 | ZX-38 | ZX-45 / 6M | ZX-60 / 6M |
Out Dia of Head | 32mm | 38mm | 45mm | 60mm |
Out Dia of hose | 30MM | 30MM | 32MM | 36MM |
Out Dia of shaft | 10MM | 10MM | 12MM | 13MM |
packing size | 75*75*7 cm | 75*75*7 cm | 75*75*7 cm | 75*75*7 cm |
N..W/G.W.( for 6mtr ) | 11.8kgs/12.8kgs | 11.8kgs/12.8kgs | 16.2kgs/17.2kgs | 23kgs/24kgs |

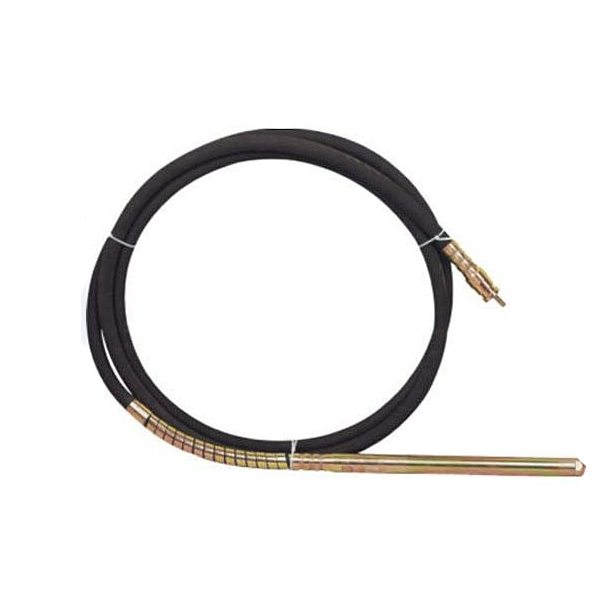

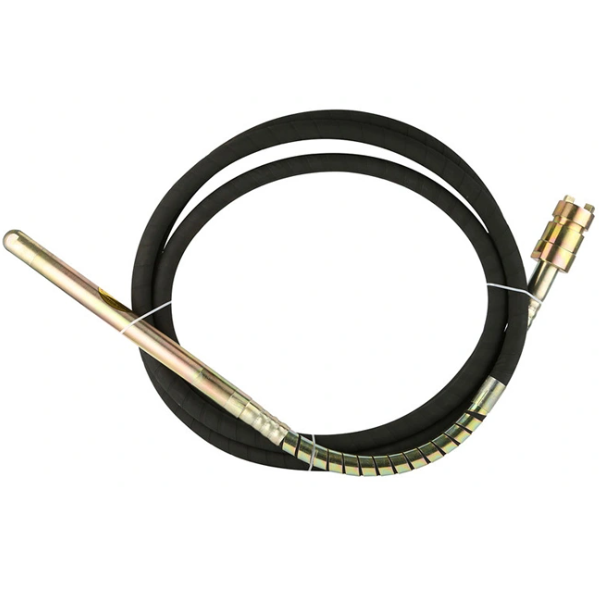

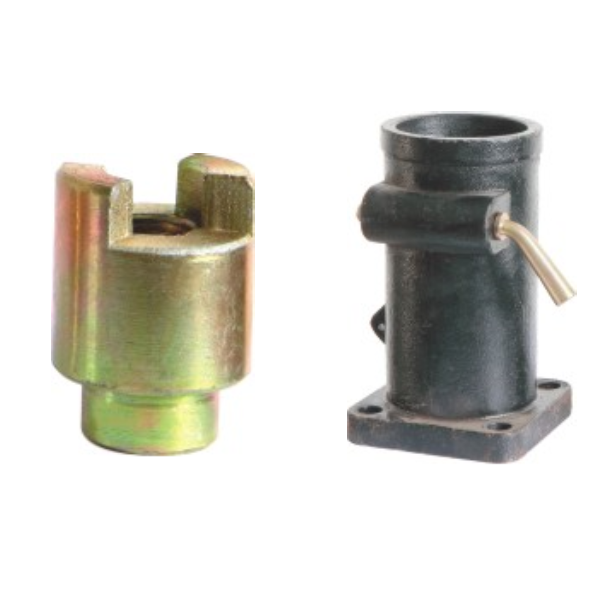

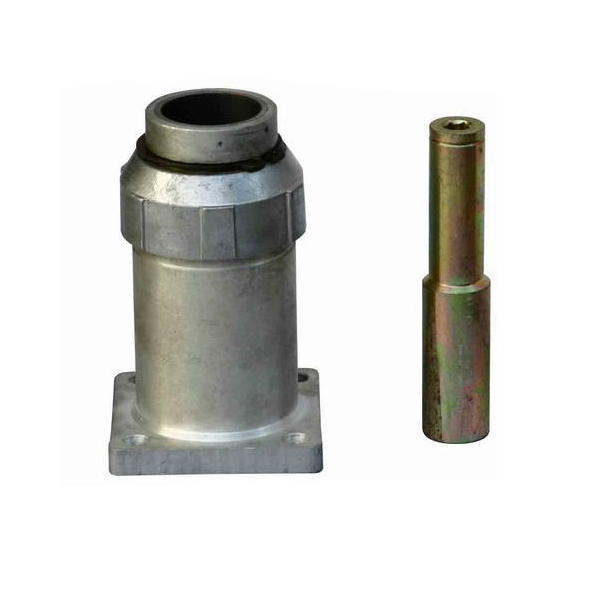

PS: Below is a picture of the accessories.

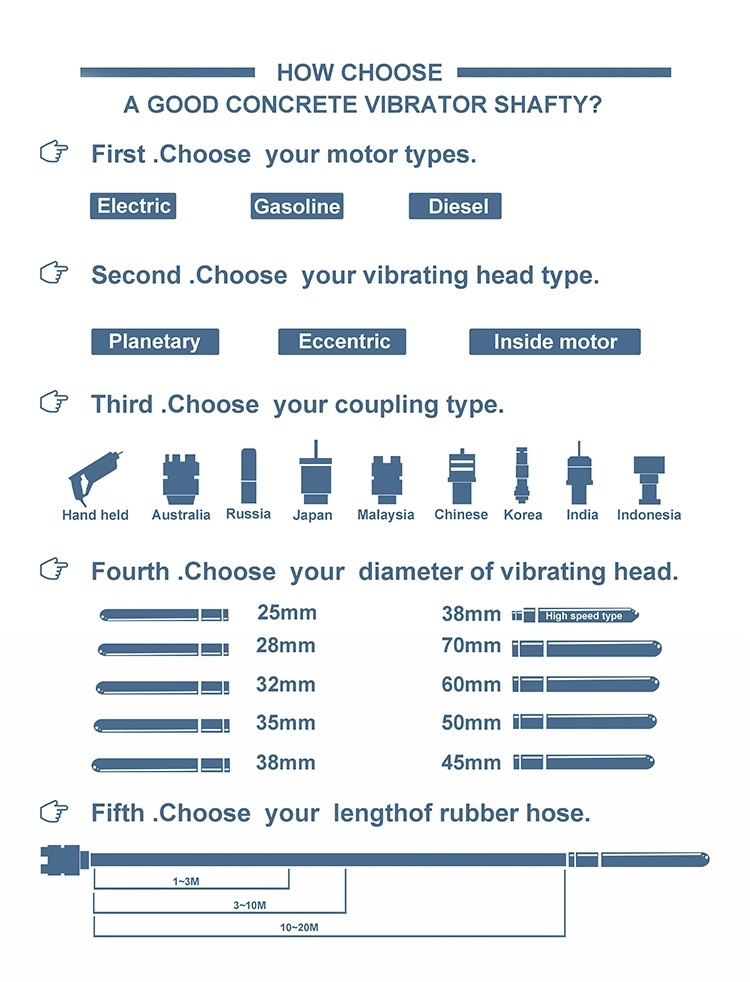

How Choose A Good Concrete Vibrator Shafty?
FIRST.
Choose your motor types.
SECOND.
Choose your vibrating head type.
THIRD.
Chooes your coupling type.
FOURTH.
Choose your diameter of vibraing head.
FIFTH
Choose your lengthof rubber hose.

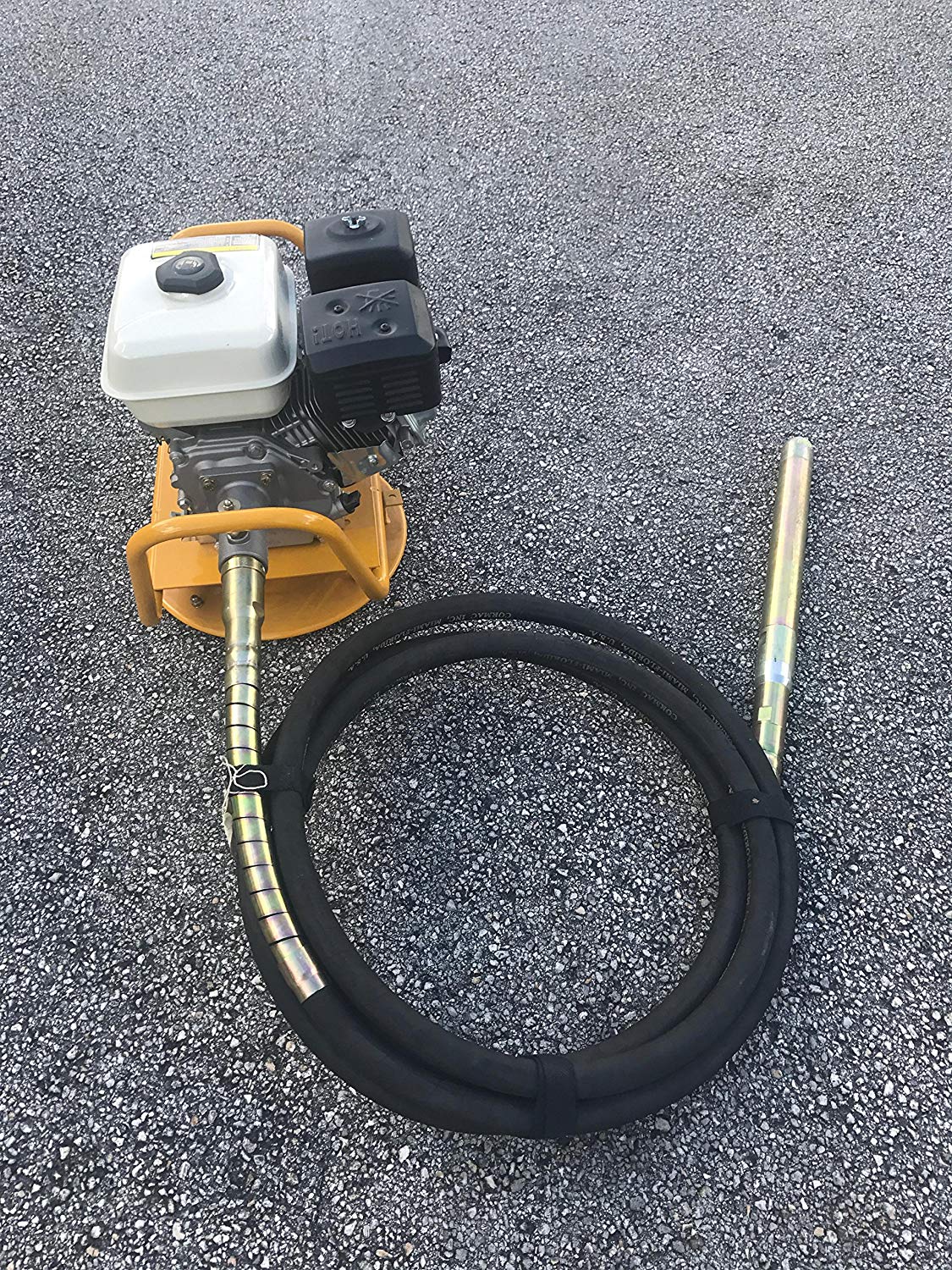

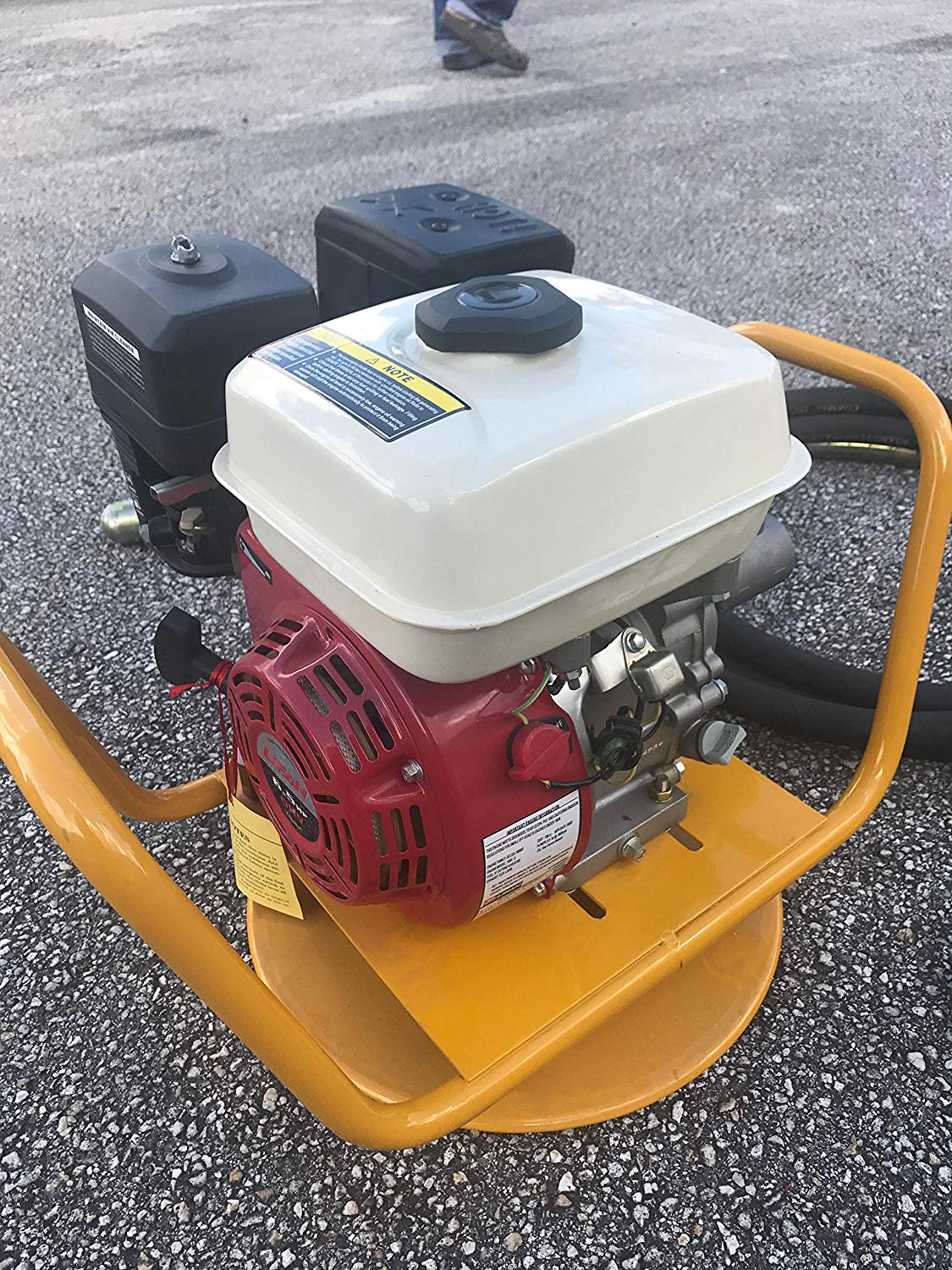

Gasoline engine concrete vibrator utilizes either a gasoline engine of Honda, Lifan, or Robin brand, or a diesel engine to transmit motion. It is compatible with vibrator shafts of various sizes. The product is conveniently used on the job site where electrical power is not available.

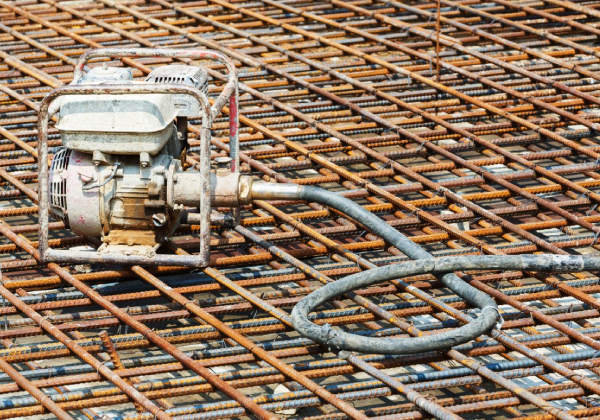

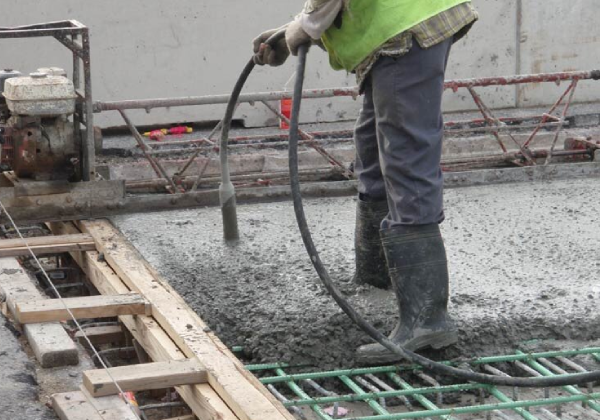

Applications for: It is suitable for common concrete compaction, widely uesd in regular concrete compaction for repair road,build road,building house and some concrete pouring .
