High Quality High Speed type Concrete vibrator shaft factory with 28 years Wholesale


The ACE High Frequency Poker vibrator shaft incorporates off-centered weights into the 18000rpm electric motor to generate high frequency vibration. Via the flexible tube, the vibrator transmits the vibration to the poker via the flexible tube. It is spun as much as 12,000 times per minute, which makes it easy to cause resonance with the poured concrete.

MAIN Feature:

1. Product Name:12000RPM High speed concrete vibrator shaft

2. Head size:Vibrator head is from 35mm/38mm//45mm/50mm

3. Material of hose:Rubber hose base on 65Mn steel ling with 16~18mm width and 1.75mm thickness ,the hardness is 80~90 degree and 1000~1100n tension

4. Material of flexible shaft:The torsional of flexible hose  is 65N.m with 5~7 layers and 65MN steel

5. Quality control:For Flexible hose, we have done rubber aging test, tensile test, flexible shaft have torsion test, 100% inspection after assembly


Specification Date :



Item

High-frequency   vibrator shaft

Model

(mm)

ZX-35

ZX-38

ZX-40

ZX-45

ZX-48

Diameter of head

(mm)

35

38

40

45

48

Length of head

L (mm)

330

380

335

390

335

Vibrating Frequency

(HZ)

200

200

200

200

200

Vibrating Ampitude

(mm)

0.91

1.1

1.2

1.2

1.3

Diameter of flexiable hose

D(mm)

30

30

30

30

30

Diameter of flexiable shaft

D(mm)

10

10

10

10

10

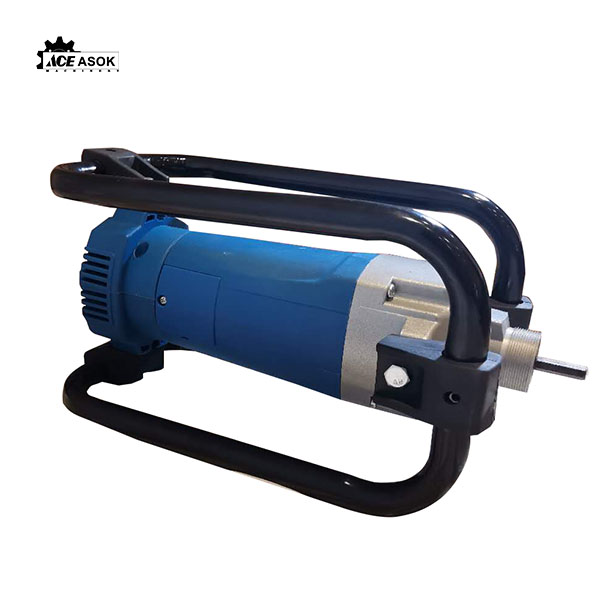

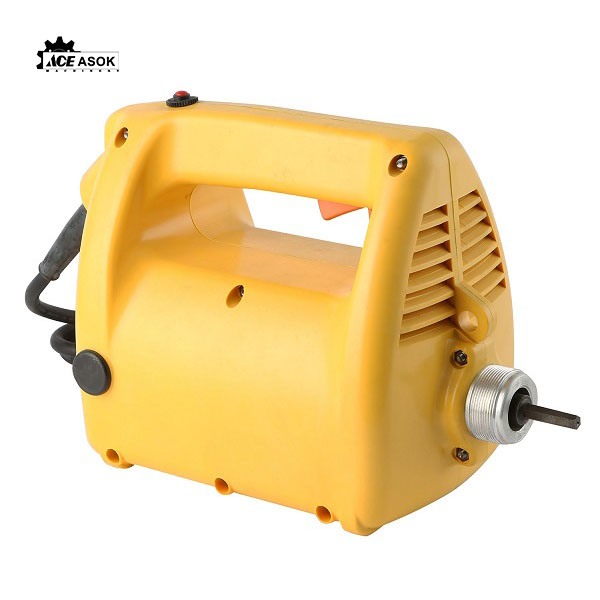

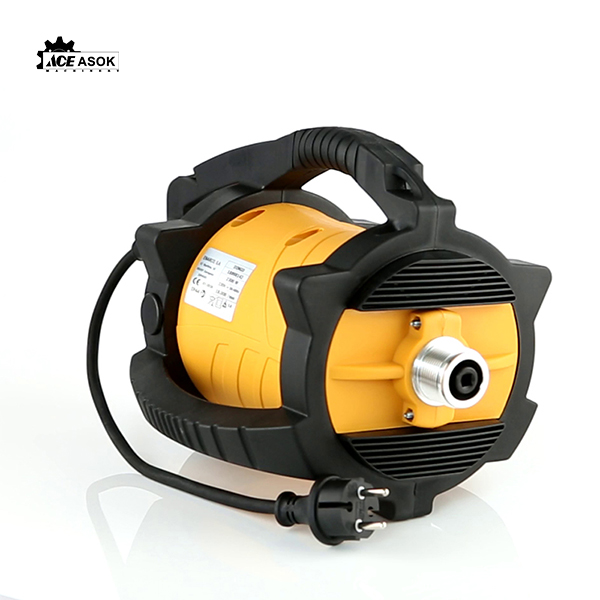

Drive the vibrator motor :

ZID-UL-200H 2000W/18000RPM

High Frequency concrete vibrator


ZID-UL-230 2300W/18000RPM

High Frequency concrete vibrator


Enar type 2300W/18000RPM

High Frequency concrete vibrator

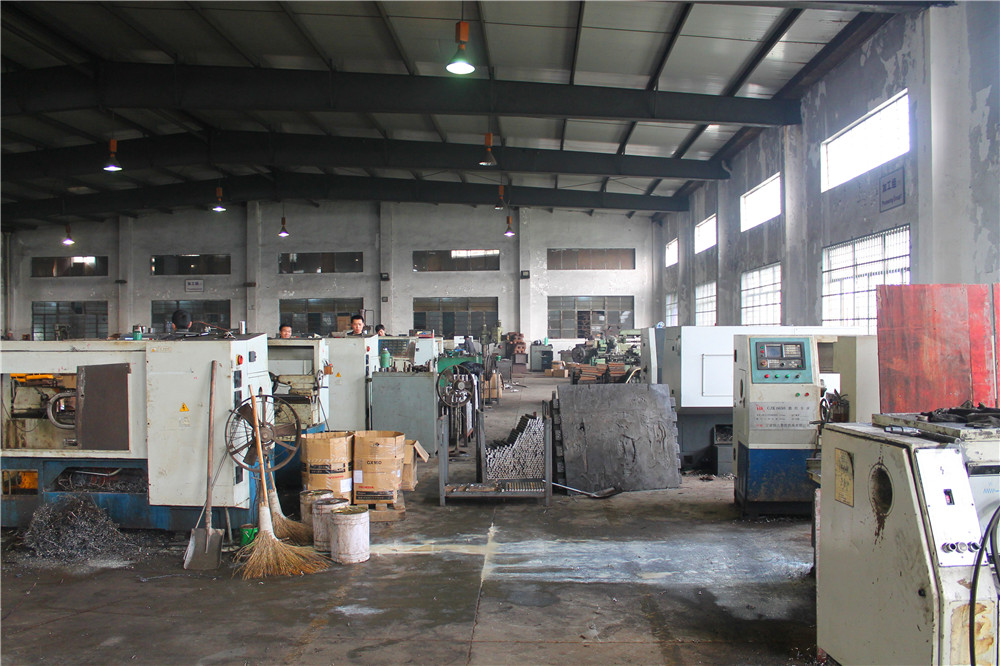

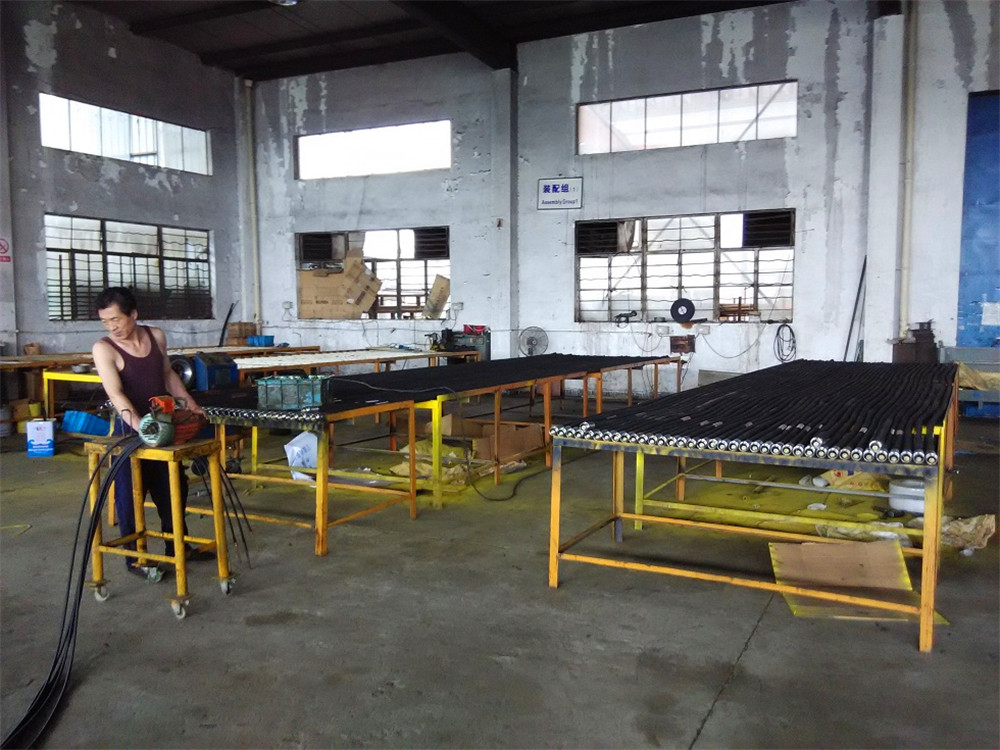

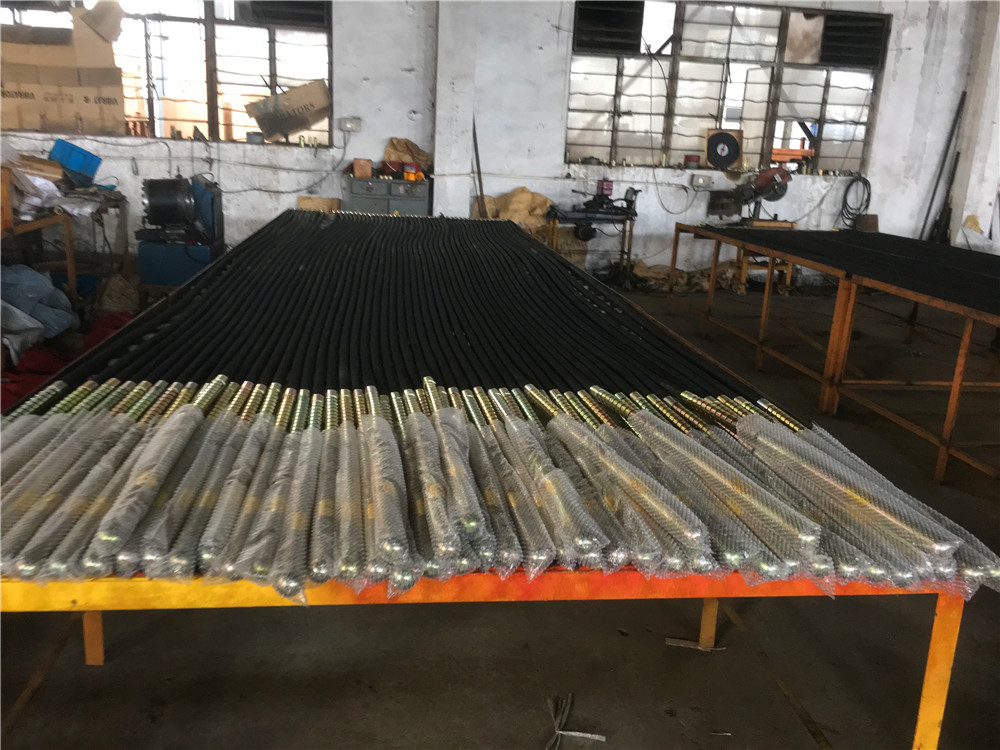

Factory Produce Line:

                 Production Line 1


                                               Production Line 2



           All the metal parts are produced by ourself

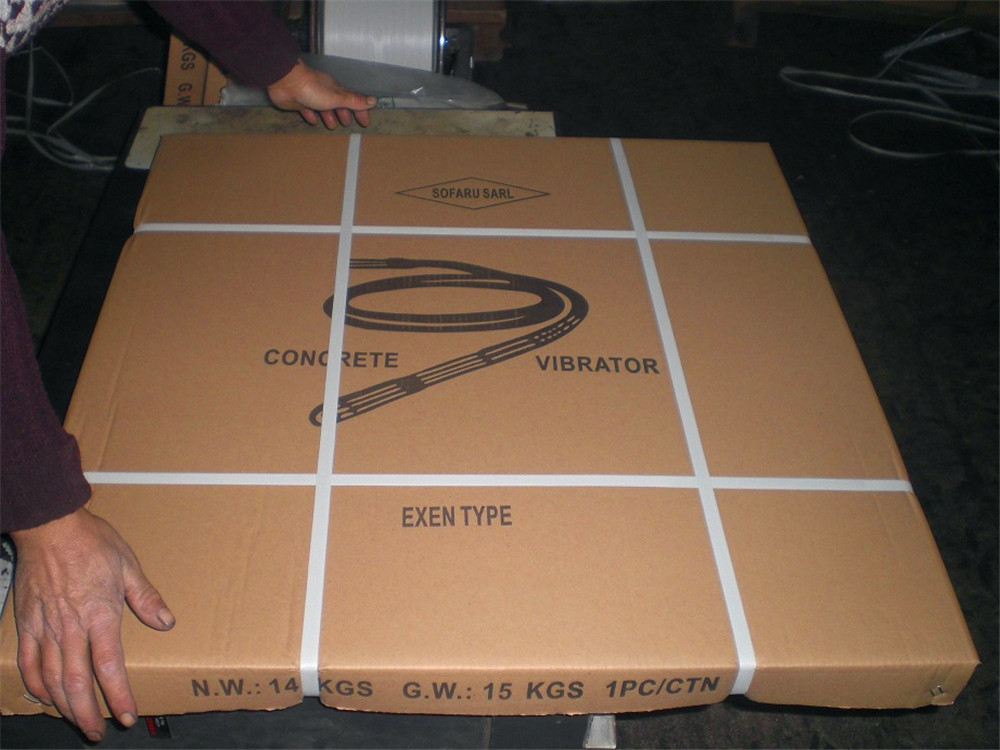

Packing Pictures:

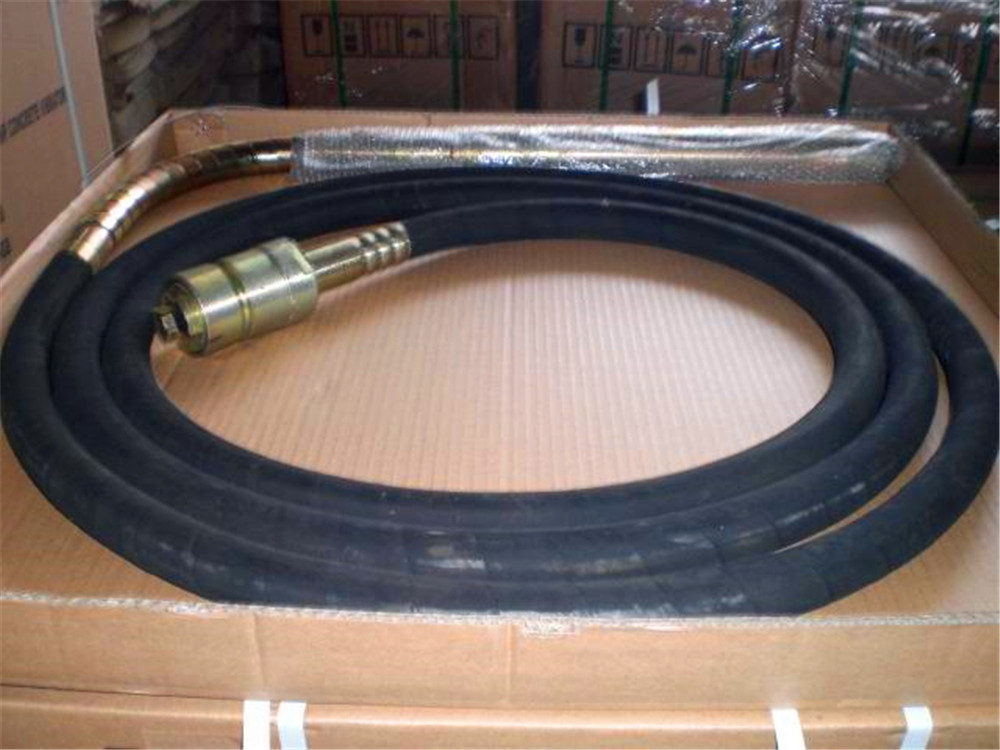

                    one pc for one carton



                       Strong carton to pack

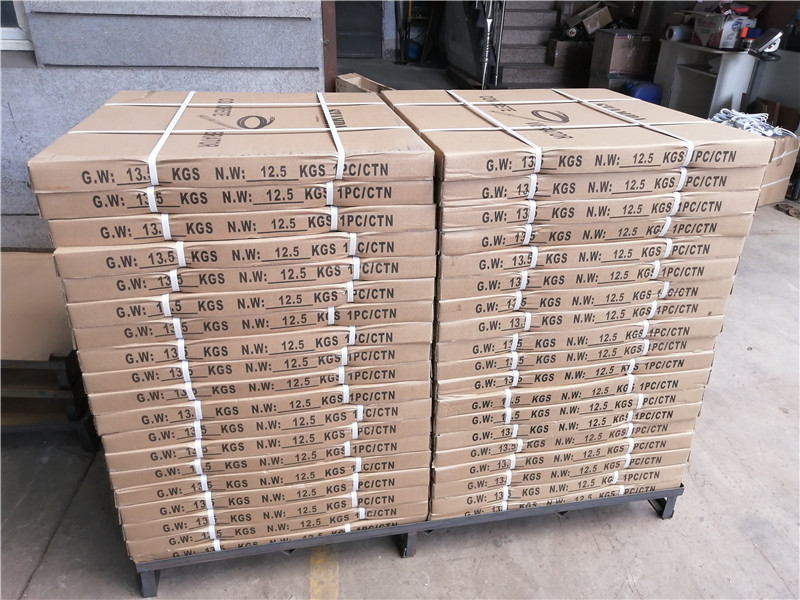

                               50 pcs for one pallent


Customers' feedback :

           Feedback from our UK Customers



            Feedback from our Germany Customers



               Feedback from our Malaysia Customers


FAQ

1.What are your prices?

Our prices are subject to change depending on supply and other market factors. We will send you an updated price list after your company contact us for further information.

2.Do you guarantee safe and secure delivery of products?

Yes, we always use high quality export packaging. We also use specialized hazard packing for dangerous goods and validated cold storage shippers for temperature sensitive items. Specialist packaging and non-standard packing requirements may incur an additional charge.

3.Can you supply the relevant documentation?

Yes, we can provide most documentation including Certificates of Analysis / Conformance; Insurance; Origin, and other export documents where required.
