ACE Electric Tamping rammer machine with 10.0KN Vibrating force, is suit for compacting the road-bed with low water content that heavy compactor could not work. Electric motor is transferred to reciprocating motion by crank gear, which will pass it on vibrating foot through spring cylinder. It has strong impact force in small and light size.
Feature:
1. 78KGS Tamping rammer with 10.0kn centrifugal force

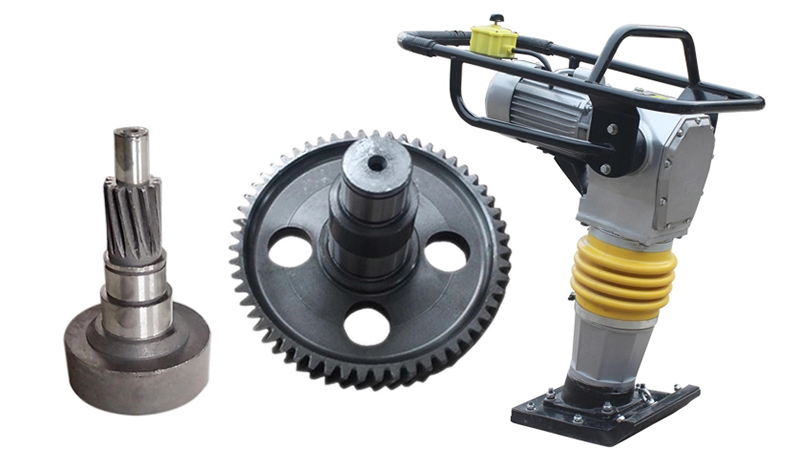

2. Forging gears are made of tools steel,adopt 6 times quenching workmanship,2years warranty is availabel for the gears

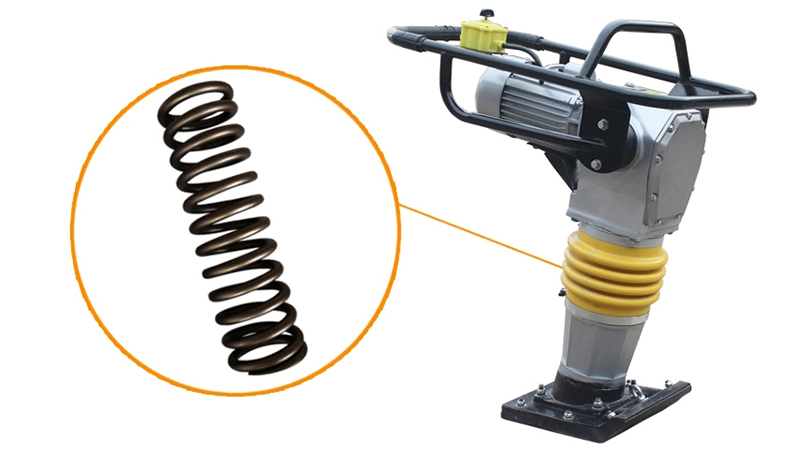

3. Double springs design guarantee the high compact force,60SI2MN material make it more durable

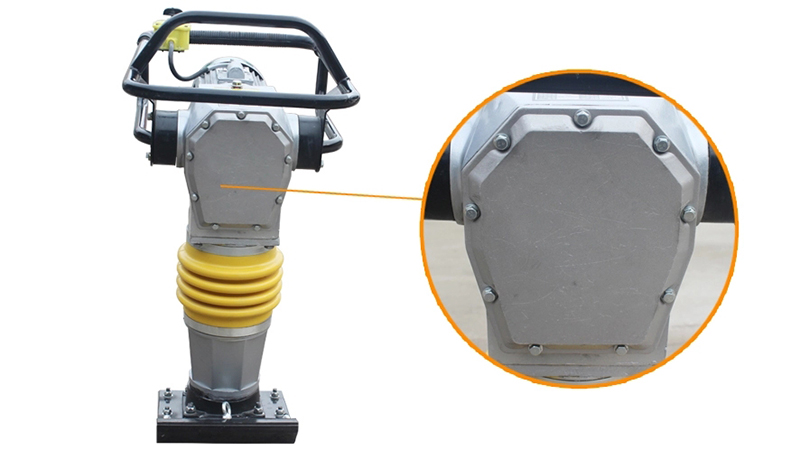

4. Aluminum alloy gearbox has good heat radiaction and light of the head
Application:
Electric Tamping rammer /impact rammer is suitable for compact the Cohesive soils--clay is cohesive; its particles stick together. Therefore, a machine with a high impact force is required to ram the soil and force the air out, arranging the particles. A rammer is the best choice.
Competitive Electric Tamping Rammer impact rammer China Manufacturer-ACE ASOK Machinery
| Motor power | Electric Tamping Rammer | ||
| Model | HCD80 | HCD90 | HCD80G (Aluminum alloy box) |
| Motor power | 2.2KW | 3.0KW | 2.2KW |
| Voltage | 380v~50HZ or 220v~50HZ | ||
| Leap Height | 40 ~ 65 mm | 40 ~ 65 mm | 40 ~ 65 mm |
| Tampring Force | 10KN | ||
| Tampring Frequency | 612+/-50 times/min | ||

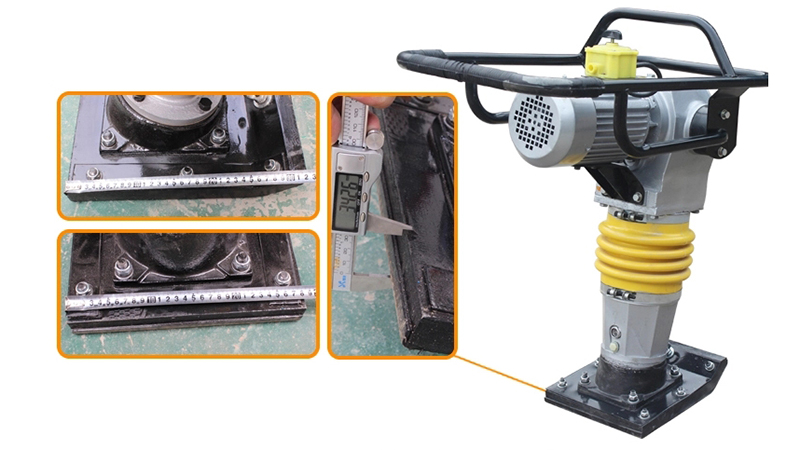

| Plate size | 285*330mm | ||
| Net Weight | 72kgs | 85kgs | 78kgs |
| packing size | 610*520*970mm | ||
