ACE HCR90K-2 Rammer compactor factory are designed to hand in the tough site condition.It enjoyed well balance, easy to operate and excellent manoeuvr ability in trenches and around pipes. Besides, every rammer is performance tested before it is released from the factory. We focused on the users feeling and long use life for the machine.
Feature:
1. 78KGS Tamping rammer with 14.0KN centrifugal force
2. Different brands of engine can be used in this machine such as Honda, Robin&Chinese engine. Always accept OEM/ODM.
3. High quality lower shell accepts more compacting force and offering splash lubrication which can lower the noise.

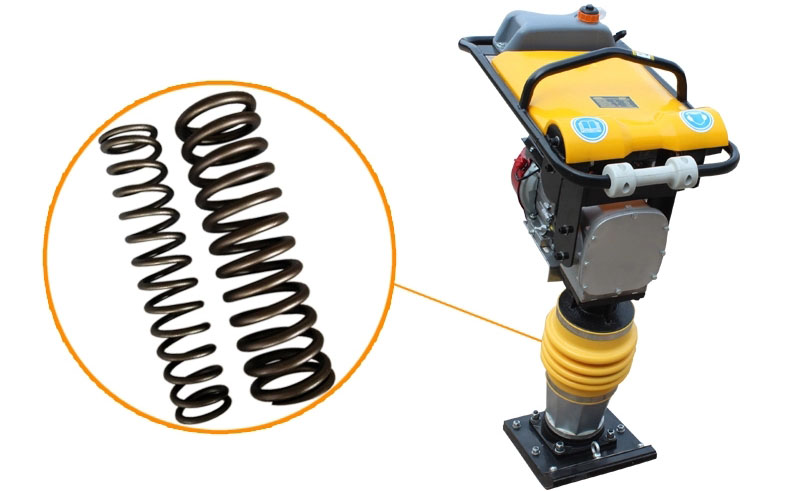

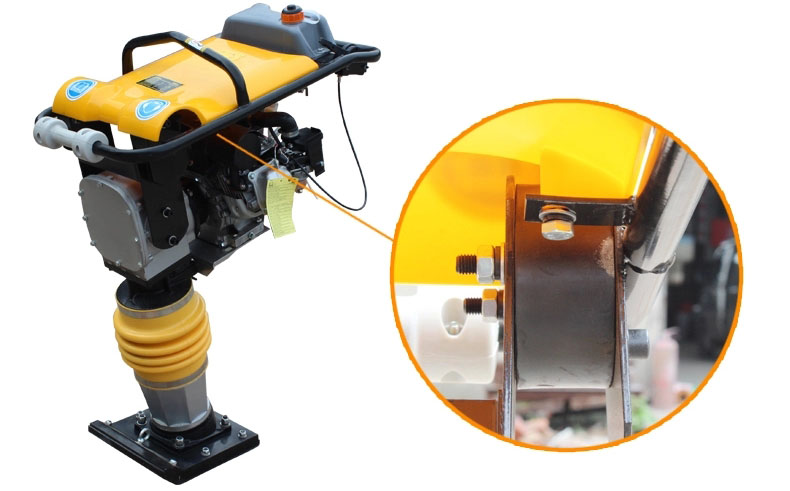

4. Two shock-absorbing rubbers can reduce the flowing vibration to hand and improve operating comfortable.
Application:
Rammer Compactor Often use for compacting COHESIVE soils, such as clay and silt in small repair jobs and in narrow confined areas, trenches or housing sites. But they also Could be used on sand land and gravel areas.
Robin Tamping Rammer Compactor OEM Manufacturer with 28 years
Model | HCR90K-2 | ||||
Engine Model | Robin EH12-2D | HONDA GX160 | HONDA GX120 | Loncin LC168-2H | Diesel engine 170F |
Engine Power KW(HP) | 3.0 (4.0) | 4.0 (5.5) | 2.2(3.0) | 4.8(6.5) | 3.2(4.2) |
Weight kg(lbs) | 72(158) | 78(169) | 70(154) | 78(169) | 88(193) |
Max Jumping Stroke | 6.5cm (2.6in) | ||||
Max Impact Force | 14.0 KN | ||||
Impact Number | 450 ~ 850 times/min | ||||

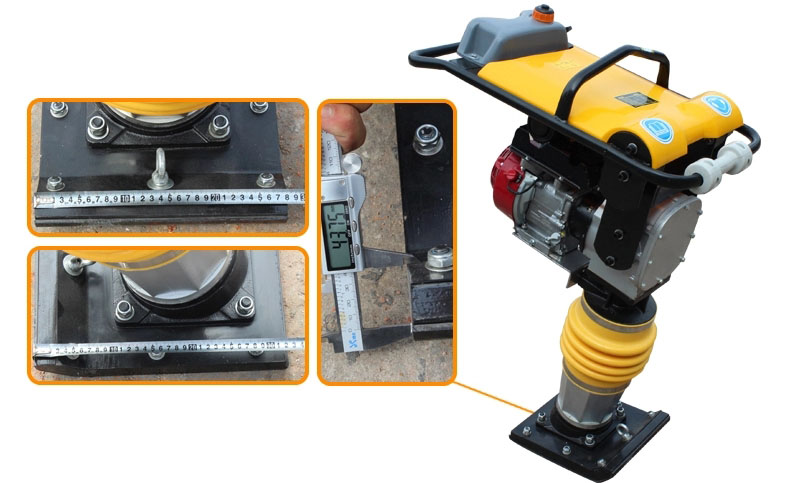

Plate size | 330*285 mm (13*11in) | ||||
packing size | 460*740*1020mm |
