Crawler concrete mixers are specialized engineering machines designed for challenging terrains. Their core advantage lies in the integration of concrete mixing, transportation, and superior off-road performance. Equipped with a military-grade rubber track chassis, these mixers distribute ground pressure over a large contact area, ensuring stable operation even on extreme surfaces such as mud, snow, and steep slopes. This design enables them to adapt efficiently to a wide range of terrains and working environments.

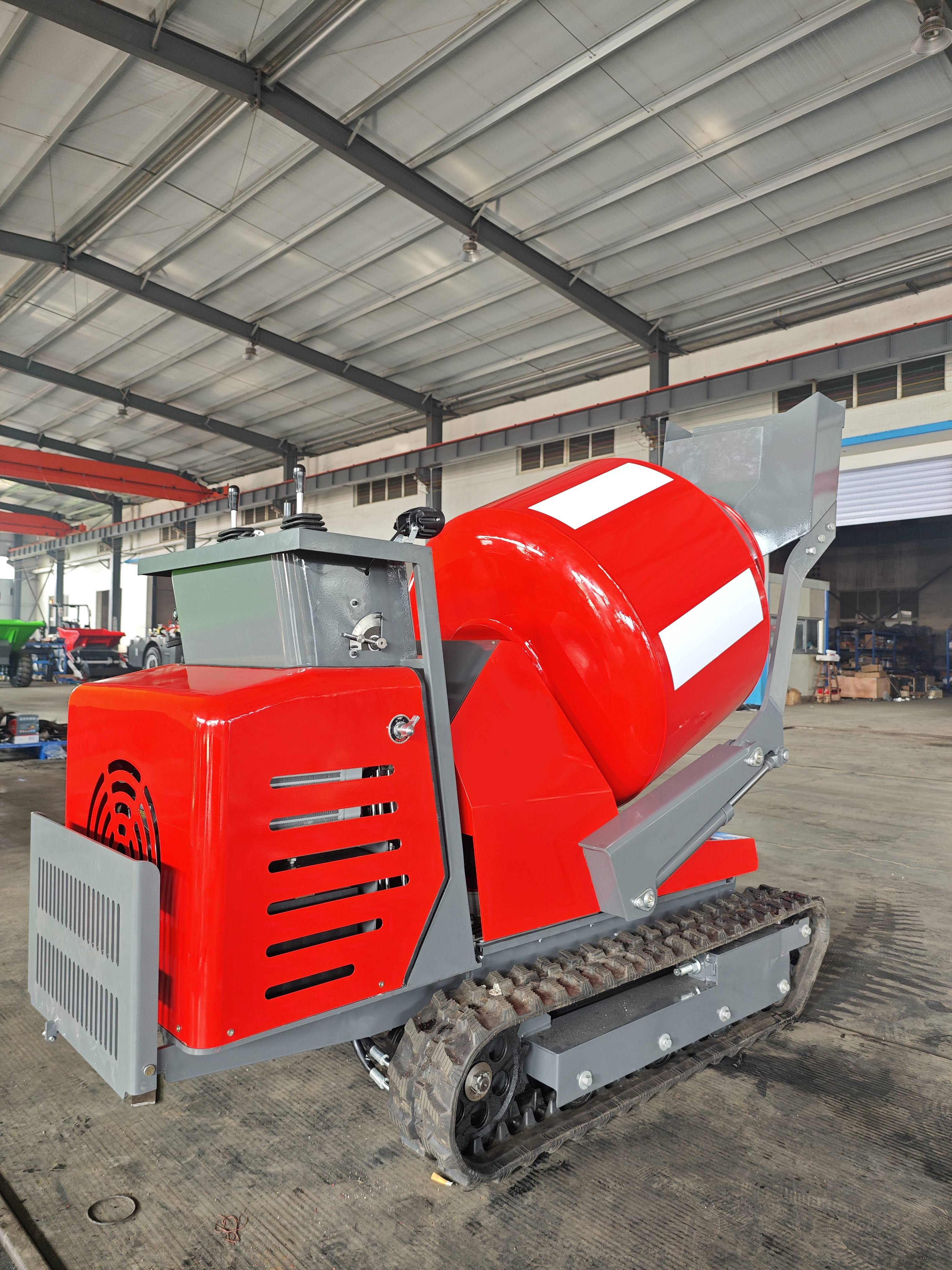

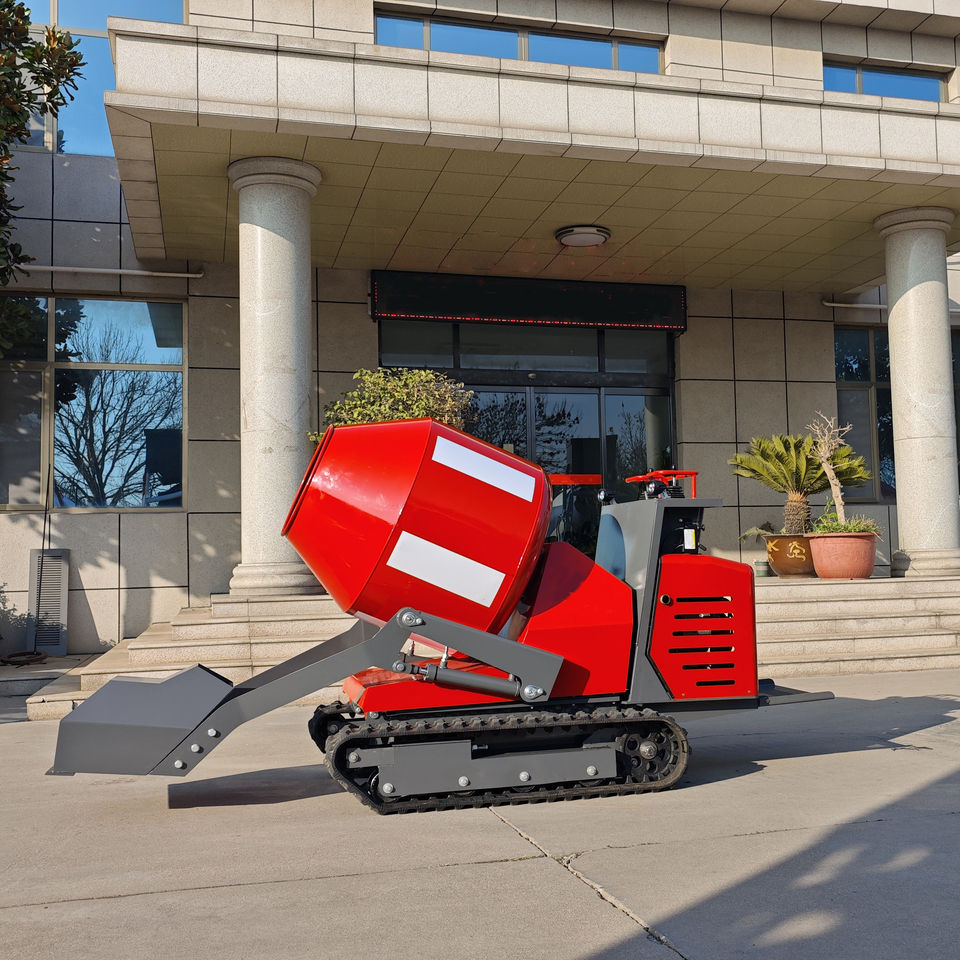

The SCM-500 gasoline-powered tracked self-loading concrete mixer truck is a small concrete construction equipment integrating loading, mixing, transportation, and unloading. It adopts a military-grade rubber track chassis system, possessing excellent terrain adaptability and off-road performance, and is designed specifically for complex working conditions.
Equipped with a high-powered Runtong RATO V-twin engine, it ensures efficient and stable operation in various harsh construction environments.
| Key attributes | |||
| Brand Name | ACE | Power(W) | 26HP |
| Engine Capacity | 740cc | Core Components | Engine,Bearing,Gearbox |
| Place of Origin | Ningbo,China | Weight | 1000 kg |
| Warranty | 1 Year | UNIQUE SELLING POINT | High operating efficiency |
| Video outgoing-inspection | Provided | Machinery TestReport | Provided |
| Make | ACE | Dimension(L*W*H) | 2930*1100*1530mm |
| Product name | Concrete Mixer Truck | Power type | Gasoline Engine |
| Machine weight | 1000kg | Total volume | 500L |
| Concrete per batch | 320L | Engine brand | RATO R740D |
| Rated speed | 3600 | Engine type | V-twin,4stroke,OHV |
| Bore x stroke | 82X70mm | Compression ratio | 8.2:1 |
| Packaging and delivery | |||
| Selling Units | Single item | Single package size | 3200X1300X1700 mm |
| Sinqle qross | 1000.000 kg | ||
Powerful and Stable Performance
Equipped with a Briggs & Stratton/Pioneer engine, 420cc displacement, rated power 13.5HP/3600rpm, mixing power 7.5kW, charging capacity 300L, providing stable and efficient power output.
Highly Efficient and Precise Mixing and Unloading
The mixing tank has an effective capacity of 190 dm³, a diameter of 720 mm, and a length of 800 mm, ensuring high mixing uniformity. It employs a hydraulic tilting system with a tilting angle of up to 100°, allowing for controllable unloading speed and ensuring construction quality.
Compact, Flexible, and Convenient Design
The machine's dimensions without the foot pedal and hopper are 1800 x 900 x 1500 mm; with the foot pedal and hopper, the dimensions are 2500 x 900 x 1500 mm. The chassis width is 850 mm, and the overall weight is 750 kg, facilitating transportation and operation in confined spaces.
Practical and Thoughtful Details
A large 6.5L fuel tank is compatible with 92# gasoline, providing long-lasting power. The 460mm diameter filling inlet facilitates easy filling, and the 500*80mm leakage outlet makes cleaning and maintenance easier. With a travel speed of 3 km/h, operation is safe and easy to control.
Small-scale Construction Projects: Suitable for rural self-built houses, villa construction, small road repairs, municipal pipeline laying, landscaping projects, etc., precisely matching small-scale concrete needs.
Complex Site Operations: Ideal for workshop and factory renovations, warehouse and freight yard repairs, airport runway maintenance, short-distance dock handling, etc., offering significant advantages in scenarios with limited space or uneven ground.
Auxiliary Construction Applications: Suitable for partial material replenishment in large-scale construction projects, tunnel construction support, scenic walkway construction, farm barn renovation, etc., serving as supplementary equipment to large construction machinery and improving overall construction efficiency.
Special Environment Operations: Ideal for scenarios where traditional large mixer trucks cannot access, such as muddy construction sites, mountainous construction, and narrow alleyway renovations in old urban areas, efficiently completing concrete mixing and transportation tasks.
