This product is a 38mm diameter (1.5-inch) Dynapac concrete vibrator, designed for ordinary concrete compaction. It can be used with electric, gasoline or diesel vibrators. With its excellent vibration performance and flexible adaptability, it is widely used in various construction projects and is a core tool for improving the quality of concrete construction.

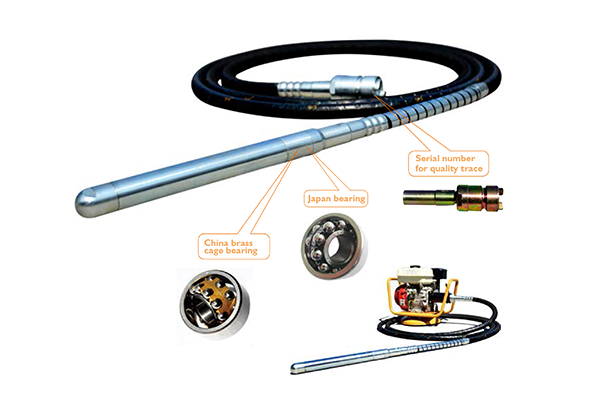

The vibrator shaft is a core tool designed specifically for concrete compaction operations. It has a diameter of 38mm (1.5 inches) and is suitable for vibrators of various drive types such as electric, gasoline or diesel, and has a wide range of applicability.

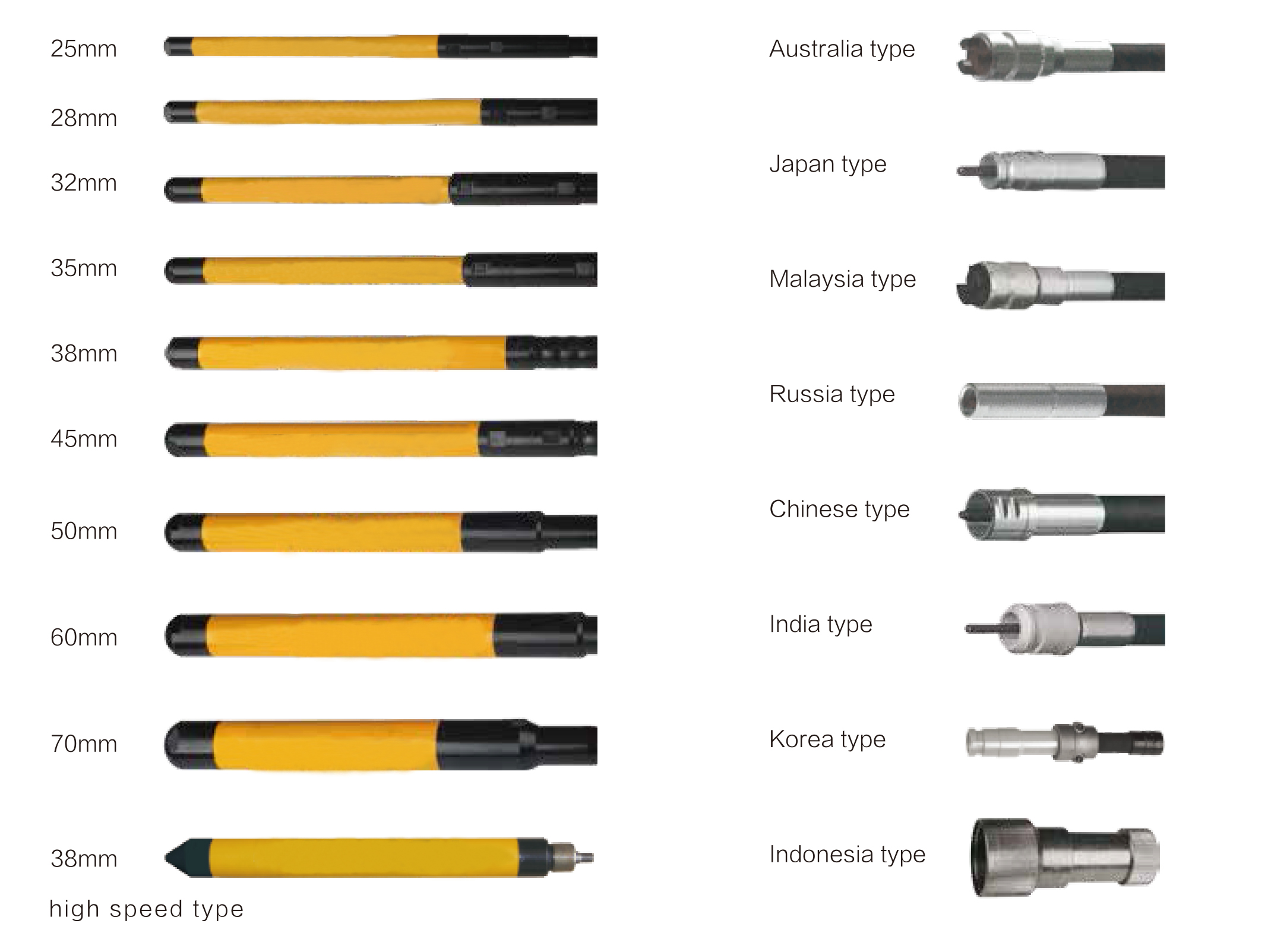

Model | ZX-32 | ZX-38 | ZX-45 | ZX-60 | ZX-35 | ZX-50 | ZX-70 | |
Diameter | ￠(mm) | 32 | 38 | 45 | 60 | 35 | 50 | 70 |
Length | L (mm) | 583 | 580 | 583 | 577 | 400 | 479 | 555 |
Vibrating Frequency | (HZ) | 220 | 200 | 200 | 200 | 200 | 200 | 200 |
Vibrating Ampitude | (mm) | 0.82 | 1.2 | 1.2 | 1.25 | 0.91 | 1.15 | 1.35 |
Diameter of flexiable hose | D(mm) | 30 | 30 | 32 | 36 | 30 | 36 | 36 |
Diameter of flexiable shaft | D(mm) | 10 | 10 | 12 | 13 | 10 | 13 | 13 |
Weiht with 6mtr hose | (kg) | 12.42 | 12.65 | 15.92 | 22 | 14 | 20.5 | 24 |
packing size | cm | 75*75*5.5 cm | ||||||
Applications
Suitable for general concrete compaction operations, covering the following scenarios:
Bridge and port construction
Large dam construction
High-rise building foundation irrigation piles (columns)
Densely reinforced reinforced concrete walls
Large, medium, and small construction projects requiring concrete compaction
Advantages and Benefits
Excellent construction results: Excellent compaction, effectively reducing bubbles within concrete, improving impermeability, and ensuring structural strength.
Stable and reliable performance: Stable operation, excellent mechanical properties, and a low-noise design reduce environmental disturbances during construction. High wear resistance and extended service life.
Flexible compatibility: Compatible with electric, gasoline, or diesel vibrators, and adaptable to different brands of drive equipment, meeting diverse construction needs.
Since our oversea distribution network was established in 2005, we have secured export destinations in regions including the Americas, Africa, Eastern Europe, Southeast Asia, the Middle-East, etc.
ACE tools are approved by industry standards such as CE and CCC. Starting in 2009, our production facilities have been audited on a yearly basis by professionals from the TÜV SÜD Group.
Now we have the products almost including all kinds of small road construction machines like the concrete mixer, concrete vibrator, plate compactor, tamping rammer and power trowel.
We have a registered capital of 1.3 million RMB and more than 120 employees including 3 product engineers, 3 production supervisors, 4 warehouse managers, 5 QA consultants, 8 operational personnel, and 95 skilled laborers.
