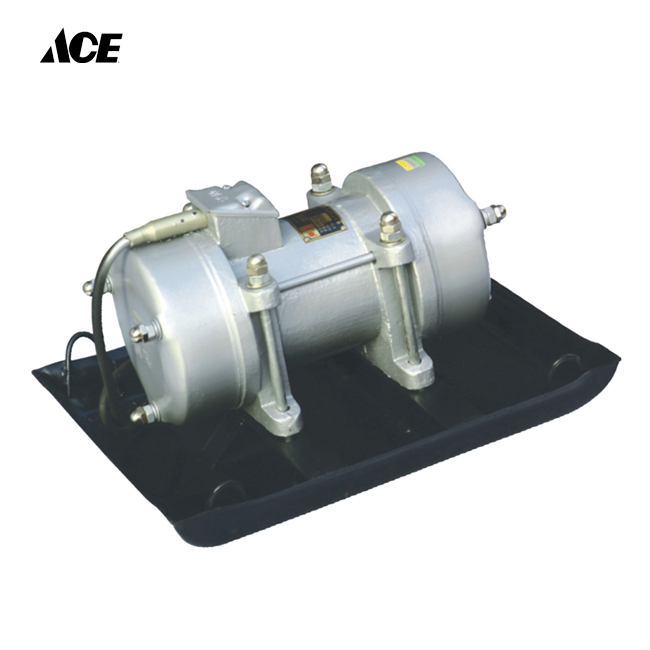

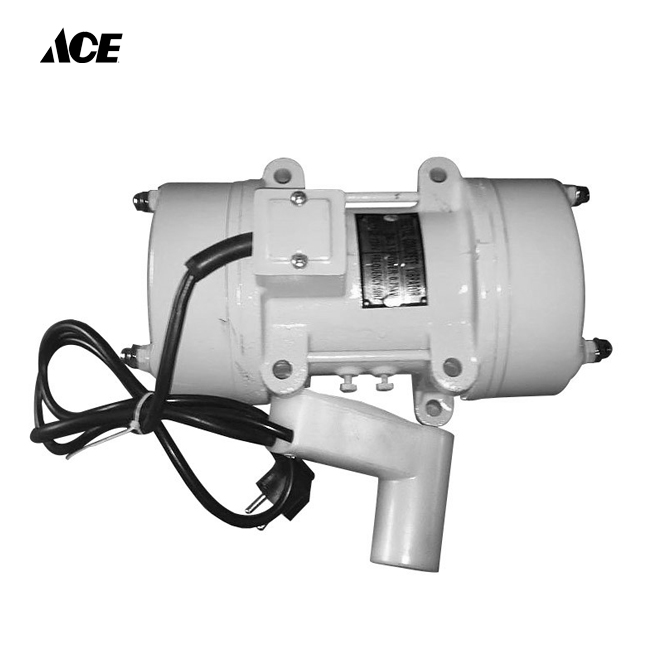

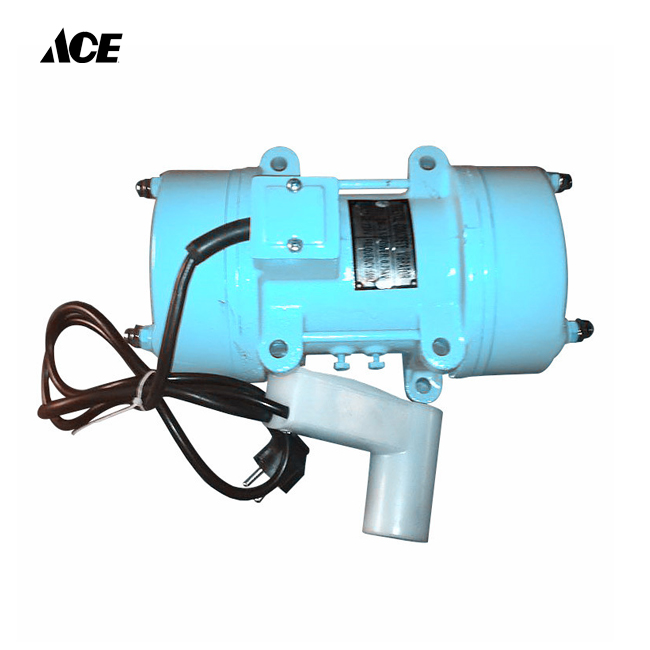

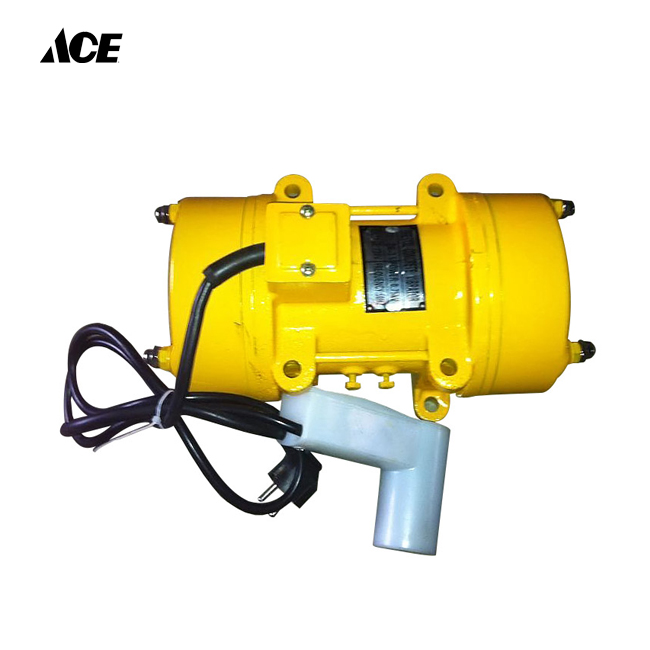

The external vibrator 0.35KW/0.55KW/0.75KW/1.1KW/1.5KW/3.0KW and 2.2KW utilizes a three-phase induction motor having two off-centered weights installed on both
ends of the rotor shaft.
The off-centered weight called eccentric block spins at high frequency, causing vibrating motion. widely used in the vibration of plastic, semi-plastic, semi dry, and dry
concrete, suitable tools for the concrete cast of slabs, road surface, ground and roofing in buildings，It is a great vibration tool.
ZW series external vibrator,as the general vibrating source,its charactering is light weigh,small volume,easy adjustment of vibrating force.
They can be vibrating source for vibrating conveyor,vibrating feeder,vibrating screens,filter concrete forms,vibrating polisher,vibrating drier and close-proof device for block during vibrating etc.,widely used in mining,metallurgy,coal,industry,electric power,construction,chemical industry,casting,food and light industry ect.
The winding is made by copper wire absolutely,nodular cast iron used for the housings of high power units,which can made the equipment durable ,increase the capacity of the intergral equipment to handle the material.It is a great vibration tool.
ITEM | External vibrator | ||||||
MODEL | ZW-15 | ZW-25 | ZW-35 | ZW-50 | ZW-70 | ZW-90 | ZW-100 |
Power (KW) | 0.35KW | 0.55KW | 0.75KW | 1.1KW | 1.5KW | 2.2KW | 3.0KW |
Speed(RPM) | 2840 | 2840 | 2840 | 2840 | 2840 | 2840 | 2840 |
Centrifugal Force | 350 | 350 | 350 | 500 | 700 | 980 | 1100 |
Voltage (V) | 380/42 | 380/42 | 380/42 | 380/42 | 380/42 | 380/42 | 380/42 |
Frequency (HZ) | 50/60 | 50/60 | 50/60 | 50/60 | 50/60 | 50/60 | 50/60 |
Weight (KGS) | 10.0 | 10.8 | 10.8 | 18.6 | 19.2 | 28.8 | 35 |
Packing size (CM) | 21.5*18.5*15 | 33*19*22.5 | 33*19*22.5 | 42*22*25 | 42*22*25 | 48.5*26.5*28 | 56*29*32 |
It is commonly seen on modern construction sites, where it is primarily used to consolidate the face of freshly-poured concrete foundation as well as compact the surface of pre-cast concrete. Other uses of the vibrator are on the vibrating table, brick making machine, plastic, semi-plastic and vibrating screen to provide vibrating motion.
IMPORTANT
1. This series of concrete vibrator is safe, reliable, stable performance, simple structure, easy maintenance.
2. Concrete vibrator adopts special-designed vibration motor.
3. Concrete vibrator adopts full-enclosed structure, anti-dust anti-moisture.
Concrete vibrator adopts special-designed vibration motor
Concrete vibrator adopts full-enclosed structure, anti-dust anti-moisture
Multi faceted, mainly used in modern construction sites.
