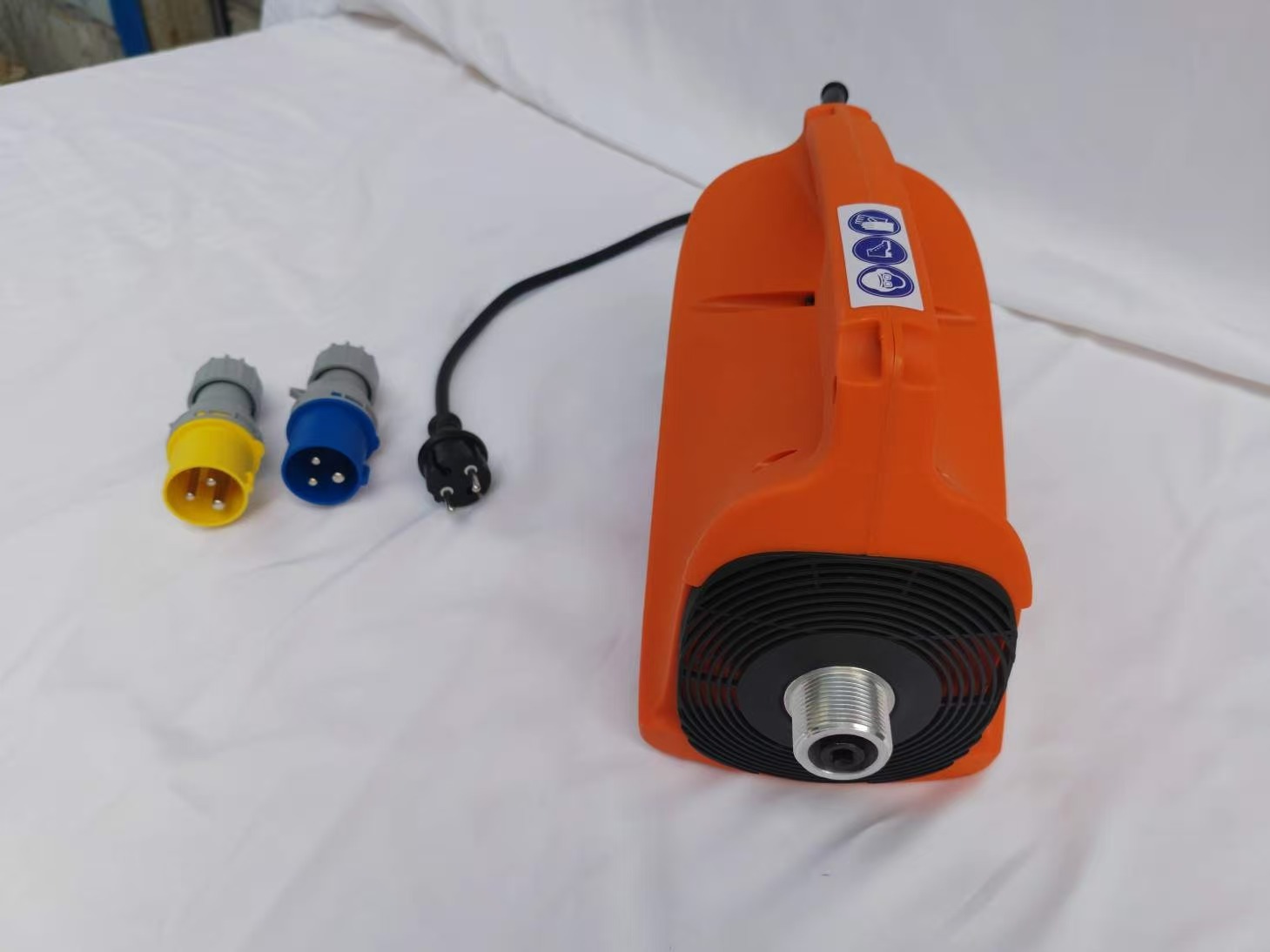

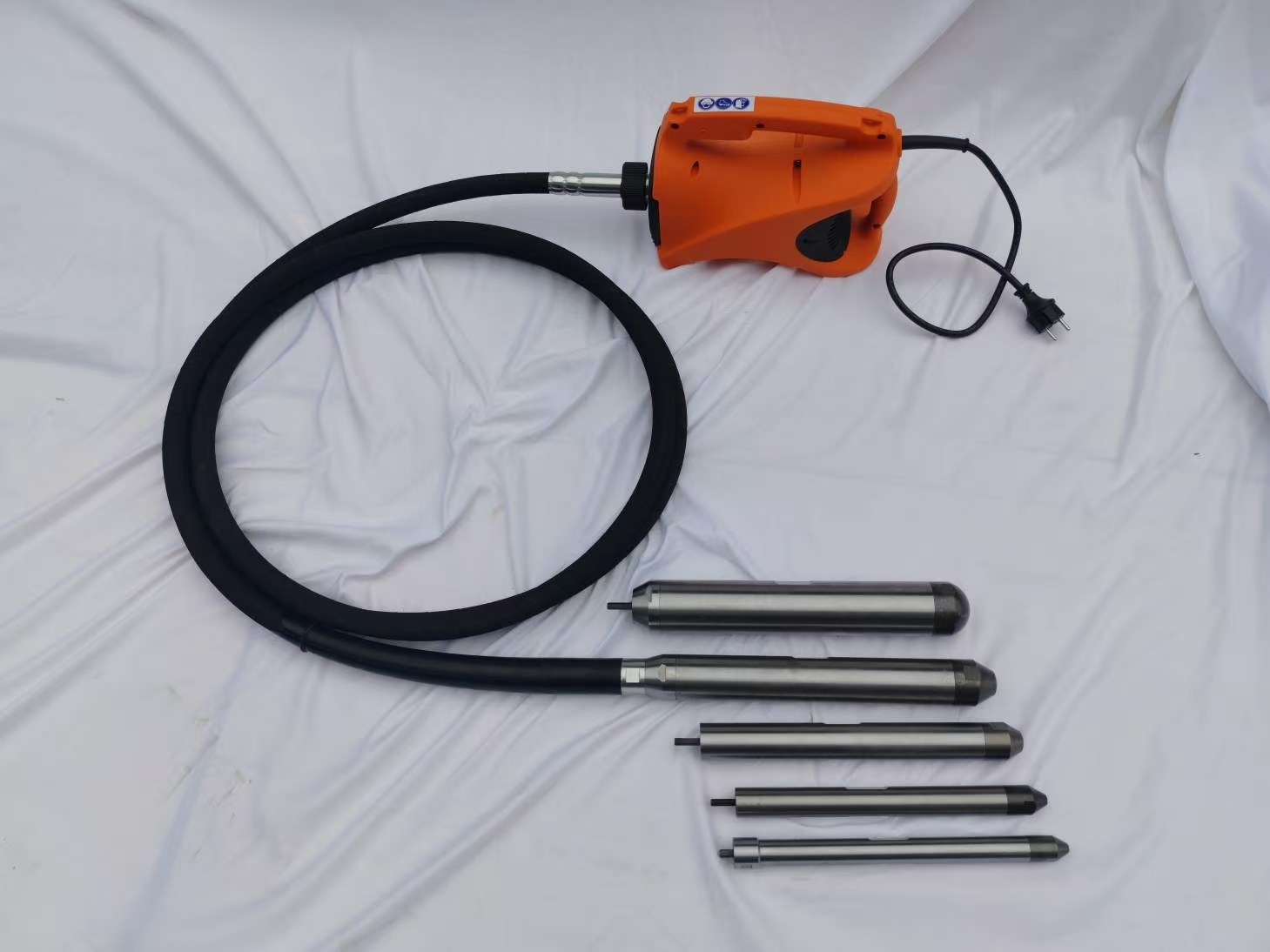

The SUPER X is a high-speed electric drive motor for eccentric concrete vibrator systems. Available in two models (230V and 115V), it is suitable for concrete vibration operations in construction, infrastructure, and other fields. Its core advantages include high power output, strong reliability, easy maintenance, and low noise design. It supports a variety of flexible transmission systems and vibrating rod models to meet different working conditions.
| Model NO | SUPER X 230V /SUPER X 115V | Weight | 5.5KG |
| Size(LxWxH) | 400*170*230MM | Specific Use | Construction machinery |
| VoltageFrequency | 230V/115V50nz/60hz | Trademark | ACE |
| Insulation Class | Double insulation IPX4 | Manufancture Standards | EN 60745-2-12:2003 |
| Load speed | 12000 | Unloaded Speed | 17500 |
| Rated Power | 2300w | Cord -Plug | HO7RN-F 3x1.5mm2 |
| Flexible Transmissions | |||
| MODEL | LENGTH (m) | WEIGHT(kg) | |
| XT-E 1M | SXT-E 1M | 1 | 2.3 |
| XT-E 2M | SXT-E 2M | 2 | 3.5 |
| XT-E 3M | SXT-E 3M | 3 | 5.5 |
| XT-E 4M | SXT-E 4M | 4 | 6.8 |
| XT-E 5M | SXT-E 5M | 5 | 8.5 |
| XT-E 6M | SXT-E 6M | 6 | 10.4 |
| XP Pokers | ||||
| MODEL | DIAMETER (mm) | LENGTH(mm) | WEIGHT(kg) | VIBRATION(m/s2) |
| XP 25 | 25 | 322 | 0.9 | 1.16 |
| XP 30 | 29 | 305 | 1.1 | 1.28 |
| XP 38 | 38 | 324 | 2.7 | 1.41 |
| XP 48 | 48 | 361 | 3.5 | 1.53 |
| XP 58 | 58 | 360.5 | 5.2 | 2.11 |
- Powerful & reliable motor.
- Strong & Waterproofed housing with integrated filter.
- Well protected carbon brush but easy change, convenient for maintenance.
- Low noise & soft vibration on flexible shaft.
- Easy assembling & disassembling for coupling between motor & shaft, no any tool needed.
- Interchangeable poker head to all flexible shaft.
- Variety size of poker head could be suitable for different working condition.
