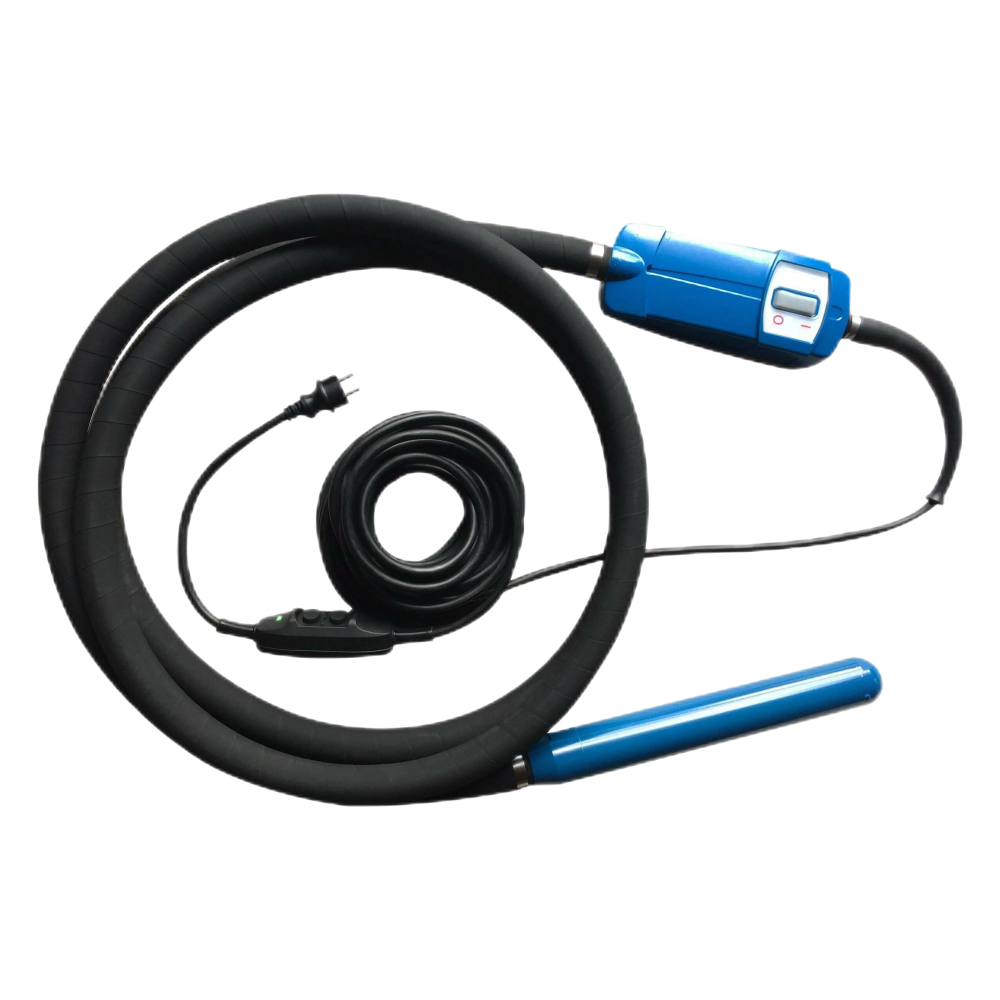

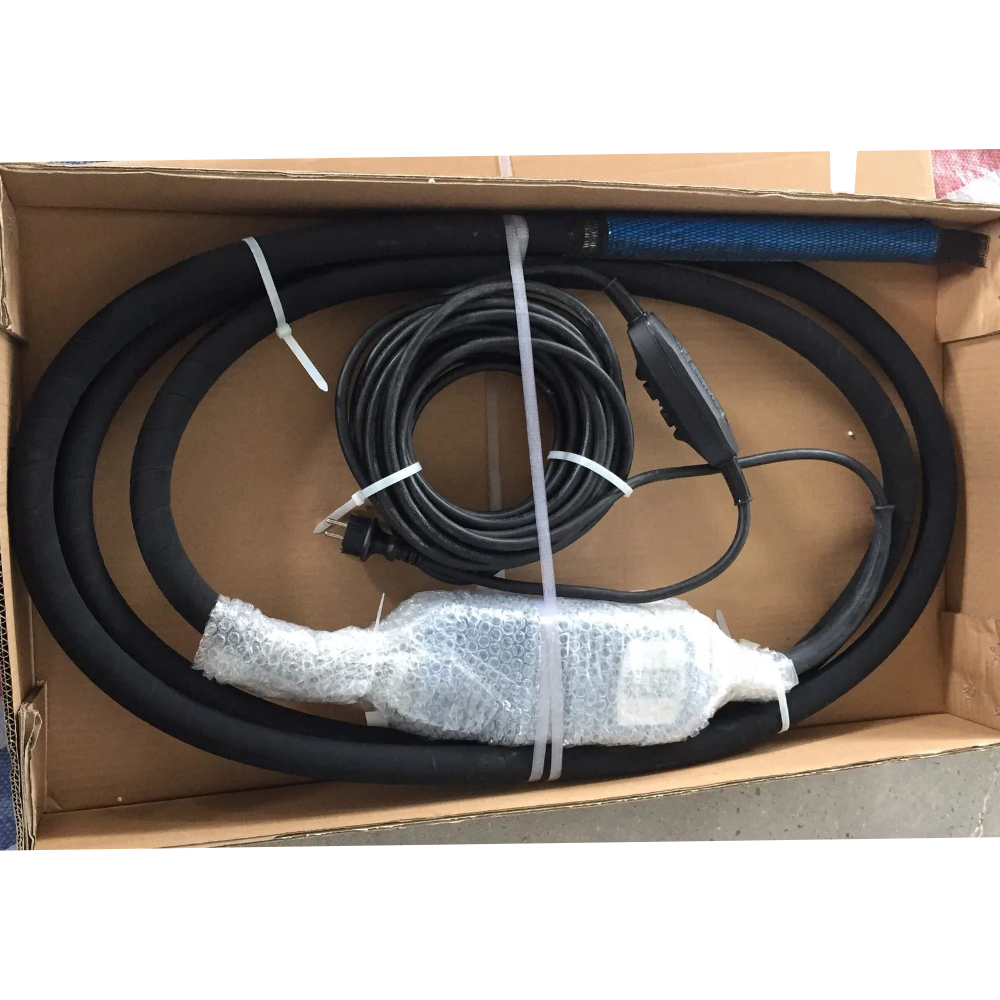

OSCAR is an electronic converter that could provide a 3 phase 200Hz power, to drive a motor-in-head poker. It is the top level product for concrete vibrator.
The eccentric block is equipped on the rotor directly, no any losses for transmission. So with a much lower power motor, it produces a high vibration on poker, it is the highest efficiency system for concrete vibrator
| Model | OSACAR 38 | OSACAR 50 | OSACAR 58 | OSACAR 68 |
| Tube diameter(mm) | 38 | 50 | 58 | 65 |
| Supply voltage | 220V-1-50Hz/110V-60Hz | |||
| Length of tube(mm) | 350 | 390 | 440 | 440 |
| Hose length(m) | 5 | 5 | 5 | 5 |
| Cable length(m) | 15 | 15 | 15 | 15 |
| Tube weight(kg) | 4.8 | 7.2 | 8.7 | 10.1 |
| Total weight(kg) | 17.1 | 19.5 | ?1 | 23.4 |
| Capacity vibration(m3/h) | 11 | 19 | 30 | 35 |
| Frequency in concrete(pmt) | 12000 | 12000 | 12000 | 12000 |
| Amps(A) | 1.2/2.4 | 1.9/3.8 | 2.5/5.0 | 2.9/5.8 |
| Vibration type | Eccentric | Eccentric | Eccentric | Eccentric |
| Centrifugal force(N) | 1600 | 3900 | 5700 | 6500 |
| Vibration(m/s2) | 3.8 | 4.5 | 4.6 | 4.9 |
| Sound pressure level(db(A) | 70 | 71 | 71 | 72 |
| Protection class(lP) | IP67 | IP67 | IP67 | IP67 |
| Technical Data | |||||
| MODEL | WEIGHT (KG) | VOLTAGE (V) | FREQUENCY (Hz) | POWER (kW) | VIBRATION (m/s2) |
| OSCAR 38 | 14 | 230/115 | 50-60 | 0.58 | 3.8 |
| OSCAR 50 | 18 | 230/115 | 50-60 | 0.85 | 4.5 |
| OSCAR 58 | 20 | 230/115 | 50-60 | 1.10 | 4.6 |
| OSCAR 65 | 23 | 230/115 | 50-60 | 1.50 | 4.9 |
| *The PRCD system (protective residual current device) is optional. | |||||
- Easy & the most comfortable vibrator for operation.
- Aluminum housing for the electronic converter, a modern design with bigger surface for cooling, no temperature
on converter in working.
- The PCB is fixed with resin inside housing, no problem for moving & shaking.
- Waterproof & dust-proof system that achieve IP67.
- Fully protected in converter against overloading, leakage, lack of phase, short circuit.
- Much bigger range for the length of flexible shaft.
- Variety size of poker head could be suitable for different working condition.
- Non-noise in working.
