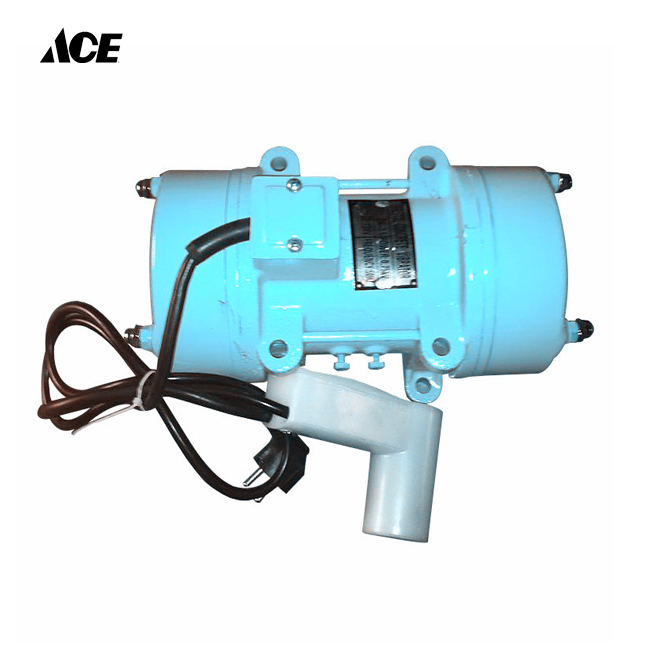

The external concrete vibrator comes with a base plate. It is commonly seen on modern construction sites, where it is primarily used to consolidate the face of freshly-poured concrete foundation as well as compact the surface of pre-cast concrete. Other uses of the vibrator are on the vibrating table, brick making machine, and vibrating screen to provide vibrating motion.
The external vibrator 0.35KW/0.55KW/0.75KW/1.1KW/1.5KW/2.2KW and 2.2KW utilizes a three-phase induction motor having two off-centered weights installed on both ends of the rotor shaft. The off-centered weight called eccentric block spins at high frequency, causing vibrating motion. widely used in the vibration of plastic, semi-plastic, semi dry, and dry concrete, suitable tools for the concrete cast of slabs, road surface, ground and roofing in buildings
It is commonly seen on modern construction sites, where it is primarily used to consolidate the face of freshly-poured concrete foundation as well as compact the surface of pre-cast concrete. Other uses of the vibrator are on the vibrating table, brick making machine, plastic, semi-plastic and vibrating screen to provide vibrating motion.
Main Features
1. This series of concrete vibrator is safe, reliable, stable performance, simple structure, easy maintenance.
2. Concrete vibrator adopts special-designed vibration motor.
3. Concrete vibrator adopts full-enclosed structure, anti-dust anti-moisture.
Ningbo ACE Machinery as a solution provider for building machinery with 28 years’s experience .With a widely range of compaction machinery and concrete machinery ,mini excavator .
As a customer-oriented company, we would like to put ourselves in customers' shoes to understand their situations as we deliver customer-specific service and effectively go about our daily practice. At ACE, we understand that selling our machine to customers is not the end of the deal but a new start of a valued partnership.
Mission : We provide innovative construction equipment offering will make your work life easier.
Vision: To be the excellent global provider of construction equipment for professional contractors.
Values: customer focused, Innovation, Grateful, win-win together
Introducing our external concrete vibrator, an indispensable tool on modern construction sites for consolidating freshly-poured concrete foundations and compacting pre-cast surfaces. With its base plate design, this vibrator is versatile, finding applications beyond concrete work, including vibrating tables, brick making machines, and vibrating screens to provide vibrating motion.
Available in various power options ranging from 0.35KW to 2.2KW, our external vibrator features a three-phase induction motor with off-centered weights on both ends of the rotor shaft. These eccentric blocks spin at high frequencies, generating powerful vibrating motion, making it suitable for vibrating plastic, semi-plastic, semi-dry, and dry concrete. Ideal for concrete casting of slabs, road surfaces, ground, and roofing in buildings.
Key Features:
Safe, reliable, and stable performance with a simple structure for easy maintenance.
2.Special-designed vibration motor ensures optimal performance.
3.Full-enclosed structure provides protection against dust and moisture, enhancing durability and longevity.
Experience the safety, reliability, and efficiency of our external concrete vibrator, designed to meet the demands of modern construction projects.
ITEM | External vibrator | ||||||
MODEL | ZW-15 | ZW-25 | ZW-35 | ZW-50 | ZW-70 | ZW-90 | ZW-100 |
Power (KW) | 0.37KW | 0.55KW | 0.75KW | 1.1KW | 1.5KW | 2.2KW | 3.0KW |
Speed(RPM) | 2840 | 2840 | 2840 | 2840 | 2840 | 2840 | 2840 |
Centrifugal Force | 350 | 350 | 350 | 500 | 700 | 980 | 1100 |
Voltage (V) | 380/42 | 380/42 | 380/42 | 380/42 | 380/42 | 380/42 | 380/42 |
Frequency (HZ) | 50/60 | 50/60 | 50/60 | 50/60 | 50/60 | 50/60 | 50/60 |
Weight (KGS) | 10.0 | 10.8 | 10.8 | 18.6 | 19.2 | 28.8 | 35 |
Packing size (CM) | 21.5*18.5*15 | 33*19*22.5 | 33*19*22.5 | 42*22*25 | 42*22*25 | 48.5*26.5*28 | 56*29*32 |
Note:If you have any other questions about the product, please feel free to contact us for answers.
cement floor vibrating
Pavement plane vibration
