road marking machine
VR

Ningbo Ace Machinery Co.,Ltd. using unique innovative thinking and strong innovation capabilities, we have developed new products with cross-age significance. Well-integrated use of technologies contributes to the high-efficiency manufacturing process.It has been proved that the product is indispensable in the field(s) of Road Marking Machines. In the future,Traffic Airless Thermoplastic Road Line Marking Painting Machine will increase more capital and technology investment to continuously improve the comprehensive competitiveness of the enterprise, and strive to remain invincible in the market forever.

Applicable Industries:Hotels, Garment Shops, Building Material Shops, Machinery Repair Shops, Retail, Construction works , Advertising CompanyShowroom Location:Canada, Turkey, United States, France, Philippines, Brazil, Peru, Pakistan, Mexico
Video outgoing-inspection:ProvidedMachinery Test Report:Provided
Marketing Type:New Product 2020Warranty of core components:1 Year
Core Components:Engine, BearingCondition:New
Power:LPG tank normPlace of Origin:Zhejiang, China
Brand Name:ACEDimension(L*W*H):1200*900*900mm
Weight:125kgFeatures:More stable;Blod pointer
Warranty:1 YearUNIQUE SELLING POINT:Low Maintenance Cost
keyword:road marking machineProduct Name:road marking machine
capacity of glass besds case:25kgcapacity of stirring tank:105kg
After Warranty Service:Video technical support, Online supportLocal Service Location:Canada, Turkey, United Kingdom, United States, France, Germany, Philippines, Brazil, Peru, Saudi Arabia, Pakistan, India, Mexico, Thailand, Malaysia, Kenya
After-sales Service Provided:Free spare parts, Video technical support, Online supportCertification:CE

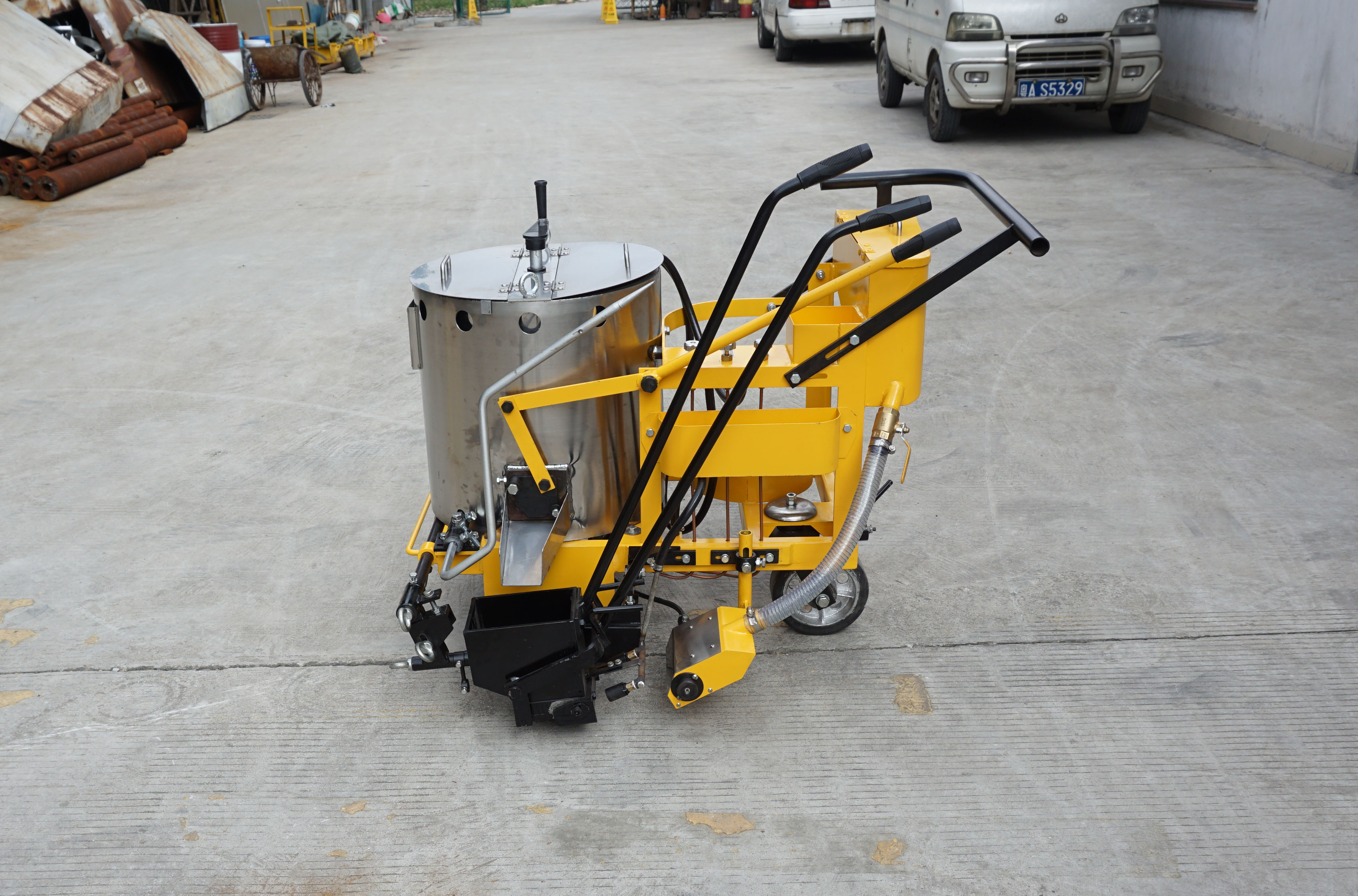

Thermoplastic Road Machine for Highway Marking

Thermoplastic Road Marking Machine is used for marking reflective lines (straight lines, dotted lines, direction arrows, letters and symbols) on high way, city street, parking lot, factory and warehouse. It have two models of Hand Push and automatic one (engine driven).

Main Features of Thermoplastic Road Marking Machine:

1.More stable:

Through gravity adjustment, widened front wheel, the Marking Machine is more stable than traditional ones when marking 450mm zebra crossing.

2.Lighter:

Through repeatedly gravity test, rechoose new shaft, the marking machine is much lighter, reduced operator's working intensity. So the marking works become easier and more effectively.


3.Easy to operate:



Marking hopper's operating range minimized from 300mm to 200mm, more accurately , easier to control, therefore such problems as slow hopper withdrawal and uneven finishing mark edge are solved. A multi-point sliding block pressing structure is used to avoid material leakage witch often occurs to similar products due to the two tightly pressed sides and large deformation in the middle of product alike.



Technical Parameters



No. Item

Technical parameters

1 Outer dimensions 1200 mm*900 mm*900mm
2 Total weight of machine 125kg
3 Capacity of glass bead box 25kg
4 Capacity of stirring tank 105kg
5 Coat thickness 1.2-4mm
6 Bead dispensing method Gear Driven, Automatically Clutch
7 Markingwidth

50,80,100,120,150,200,230,250,300mm,the machine

is more suitable for marking 450mm zebra stripes
