State-of-the-art technologies introduced and upgraded for the more efficient and stable manufacturing of the product. It functions perfectly in the application scenario(s) of Concrete Vibrator. By virtue of continuous technological innovation, we have mastered the core and most advanced technology in the industry, and will use advanced technology to produce High frequency Eccentric Electric Portable Concrete Vibrator, effectively solving the pain points that have always plagued the industry. Following scientific and advanced production standards, we have successfully made High frequency Eccentric Electric Portable Concrete Vibrator excellent in its performance. Through multiple times of tests, the 各种小型道路施工机械,如混凝土搅拌机、混凝土振捣器、平板压实机、夯实机和电动抹子 is proved to be of great and so on. Before its launch, it has passed the certifications of several international and national authorities.

Condition:NewPlace of Origin:Zhejiang, China
Brand Name:ACEType:Internal
Drive Mode:Electric VibratorFrequency:18000rpm
Vibrating Amplitude:1.2mLength of Flexible Shaft:1-6m
Voltage:110/220vWeight:6kg
Dimension(L*W*H):35*25*24cmWarranty:1 Year, 1 Year
After-sales Service Provided:Video technical support, Free spare parts, Online supportCertification:CE
Product name:High frequency Eccentric Electric Portable Concrete VibratorPower Source:Electric Motor 3hp
Application:Construction IndustryCoupling type:square
Speed:18000rpmModel:ZID-230D
Packing:cartonColor:Yellow

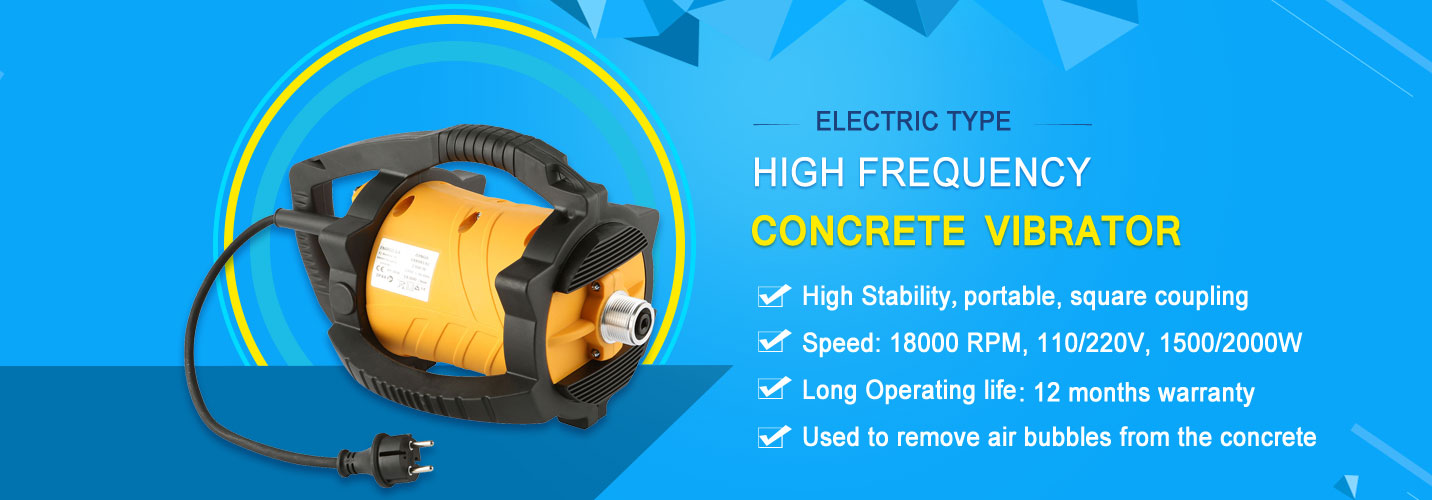

High frequency Eccentric Electric Portable Concrete Vibrator





1.The ZID Series high frequency concrete vibrator is an immersion type vibrator. During operation, the vibrating poker that is attached to the vibrator has to be immersed into the concrete. The poker has an eccentric vibrating element inside it.



2. The vibrator incorporates off-centered weights into the 18000rpm electric motor to generate high frequency vibration. Via the flexible tube,the vibrator transmits the vibration to the poker via the flexible tube. It is spun as much as 12000 times per minute, which makes it easy to cause resonance with the poured concrete.



3. The lightweight vibrator only weights to 5.2kgs to 6kgs, giving ease of operation. It is one of the most widely used products, know for its low noise,energy efficiency, reliable functioning,high safety, and good vibrating performance.



High-frequency Concrete vibrator



Type

Dingo type


Model

ZID--230D

Rated input power

2300W

Rated voltage

220V

Rated Frequency

50HZ

No-load speed

18000 r/min

Weight

6 kgs

Packing size

35*25*24cm



Match concrete vibrator shaft



Item

High-frequency vibrator shaft

Model

(mm)

ZX-35

ZX-38

ZX-45

Diameter of head

(mm)

35

38

45

Length of head

L (mm)

330

370

390

Vibrating Frequency

(HZ)

200

200

200

Vibrating Ampitude

(mm)

0.91

1.2

1.2

Diameter of flexiable hose

D(mm)

30

30

30

Diameter of flexiable shaft

D(mm)

10

10

10

packing size

cm

75*75*5.5cm











Q1:Are you manufacturer?
A: Yes, we are factory, but not just a factory, as we have sales team, own designers, own showroom, can help buyers to decide which products are their best choice, and all your inquiry will be replied within 24 hours.

Q2: How can I get a sample to check your quality ?
A: After price confirmation, you can require for samples to check our quality. We will charge for the sample cost, but the sample cost will be refundable after quantity order confirmation.

Q3: How long for the delivery time ?
A. Sample will be ready for delivery in 3~10 days. Quantity order will be ready for delivery in 20~45 days .

Q4:Could you do OEM Service?
A: Yes, we can do it. But you need give us your letter of authorization.

Q5: Can I buy other factory's products directly from you?
A: Yes, of course. There are already many customers cooperating with us in this way. We have over 12 years in the business with extensive knowledge of technology and market. Our good reputation in China has been awarded by Group as its selected business partner.

Q6:What is the convenient way to pay?
A: Trade Assurance, L/C, T/T, Western Union and Escrow are accepted, and if you have a better idea, please feel free to share with us.
