Always putting an emphasis on the improvement of the research and development, Ningbo Ace Machinery Co.,Ltd. has finally developed C-80t Cast-Iron Vibrating Plate Compactor C-80t. The product with improved properties and features is expected to lead the trend of the industry. The team uses the most advanced production equipment and independent research and development technology to minimize C-80t Cast-Iron Vibrating Plate Compactor C-80t development cycle and ensure the high quality and strong reliability of the product. Next,Ningbo Ace Machinery Co.,Ltd. will introduce more outstanding talents, invest more research and development funds, and improve market competitiveness.

Condition:NewApplication:road machinery
Power Type:GasolineBrand Name:ACE
Place of Origin:Zhejiang, ChinaPower:5.5hp
Dimension(L*W*H):830*520*790Weight:80kg
Warranty:1yearAfter-sales Service Provided:Overseas third-party support available
Certification:CEITEM::c80
color:yellowexcavator:compactor plate
gasoline:Robin/Honda/Loncinpacking way:hob with carton
plate size:500*480working speed(m/min):20

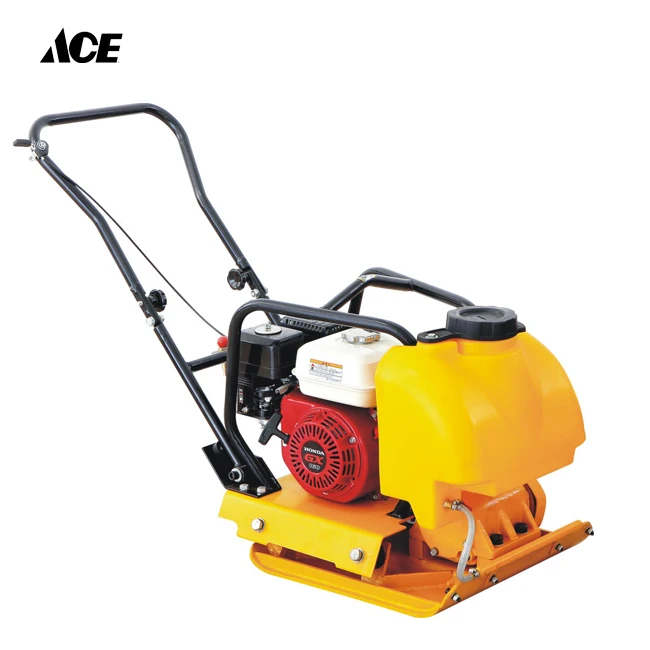

Wacker type roller plate compactor machine with water tank



Product Description

Feature
1. Foldaway handle for easy transportation and stock
2. Open plate provides self cleaning
3. Built-in wheel for easy transportation
4. Radius bass plate for easy access to corners
5. Sealed belt cover to prevent sand and soil in
6. Heavy-duty shock mounts reduces vibration to the upper engine and handle
7. Protective frame is available as optional
8. Easy remove water tank with built-in valve and on hose connection is available as optional
9. Centrally located lifting bar allows easy transportation.

***Note: Honda/Robin/YAMAHA or any Chinese Brand Gasoline engine Avaiable Upon Request.



Product Description





ModelC-80HDC-80 HCC-80RB
EnginePetrol,Honda GX160 5.5hpPetrol, Chinese 168F 5.5hpPetrol,Robin EY20 5.0hp
Type of combustionAir-cooled, single cylinder, 4-stroke
Centrifugal force13.5KN
Compaction depth30cm
Size of base plateL 500 × W 480mm
Vibrating Frequency5200 vpm
Travel Speed40 cm/s
Efficiency 660m2/hr
G.W./N.W.90kgs /80kgs
Shipping size85*54*79cm
Product lead-time25 days



Wacker type roller plate compactor machine with water tank
