Combining the efforts of all our staff and keeping up with the trend, Ningbo Ace Machinery Co.,Ltd. has developed the version of JZC350-DHL High quality used concrete mixer for sale . It is borne with the updated features and is expected to create values and benefits for customers. Concrete Mixers has won high attention and praise from the industry and market. To make us continue to thrive in the next decade and beyond, we must focus on improving our technology capabilities and gathering more talents in the industry. With our full efforts, Ningbo Ace Machinery Co.,Ltd. believe that we will stay ahead of other competitors in the future.
| Condition: | New | Place of Origin: | Zhejiang, China |
| Brand Name: | KZW | Model Number: | JZC350-DHL |
| Motor Power: | 13.2KW | Mixing Power: | concrete mixer machine |
| Charging Capacity: | 560L | Reclaiming capacity: | 350L |
| Speed of Mixing Drum: | 14 RPM | Water Supply Mode: | Automatic |
| Working Cycle Period: | 60s | Discharge Way: | by Reverse-Rotation |
| Outline Dimension: | 2700x2300x2300mm | After-sales Service Provided: | Overseas service center available |
| Diesel engine brand:: | YANMAR | Weight: | 1900kgs |
JZC350-DHL High quality used concrete mixer for sale
with lift with YANMAR Diesel engine power and Hydraulic Lifting Hopper
concrete mixer with lift is mixer of double conical drums which discharge concrete by reverse-rotation, suitable for mixing plastic and semi-dry & hard concrete with the size of aggregate up to 60mm. Mixing is carried out when the mixing drum rotates in normal direction, and discharge is performed when the mixing drum rotates in reversed direction. Each time, the mixing drum can handle 0.35 cubic meters of concrete.
It is featured by Diesel engine power, hydraulic tipping hopper, novel construction, advanced performance, high productivity, high mixing quality, compact structure, low energy consumption, simple operation, etc. Therefore, It is particularly suitable for circumstances like ordinary construction sites, road construction, bridge work and small-sized prefabricated-component factories etc.
Main Technical Parameter:
| concrete mixer machine with lift | ||
| Model | JZC350-DHL | |
| Discharging Capacity | 350 L | |
| Charging Capacity | 560 L | |
| Productivity | 10-14 m3/h | |
| Diesel engine brand | CHANGCHAI | YANMAR |
| Rated power of diesel engine | 12.1kw | 13.2kw |
| Speed of Mixing Drum | 14 RPM | |
| Displacement of Gear Pump | 18mL/r | |
| Flow Rate of Multi-way Valve | 63L/min | |
| Pressure of Hydraulic motor | 10Mpa | |
| Pressure of Multi-way Valve | 16Mpa | |
| Pressure of Balancing Valve | 31.5Mpa | |
| Accuracy of Water Supply | Error≤2% | |
| Max Trailing speed | 20km/h | |
| Power of water pump | 0.75KW | |
| Rated lifting height | 17m | |
| Thickness of mixing Drum | 6mm | |
| Maximum Size of Aggregate | 60 mm | |
| Tyre size | 6. 50-16 | |
| Dimensions (L×W×H) | 2700x2300x2300mm | |
| Overall Weight | 1850kgs | 1900kgs |

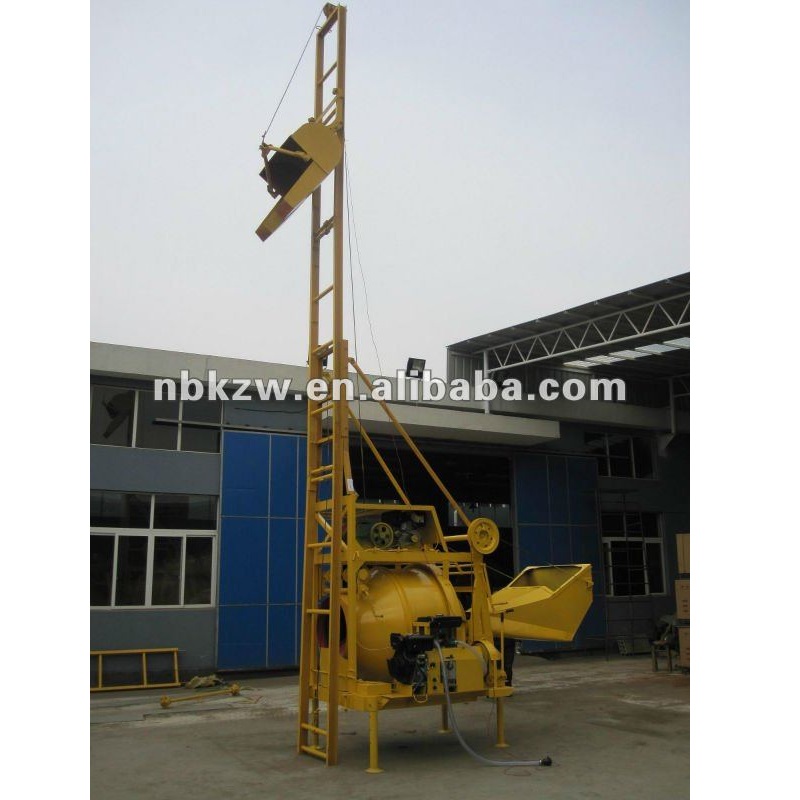

PICTURE FORM DIFFERENT ANGLE:
