1

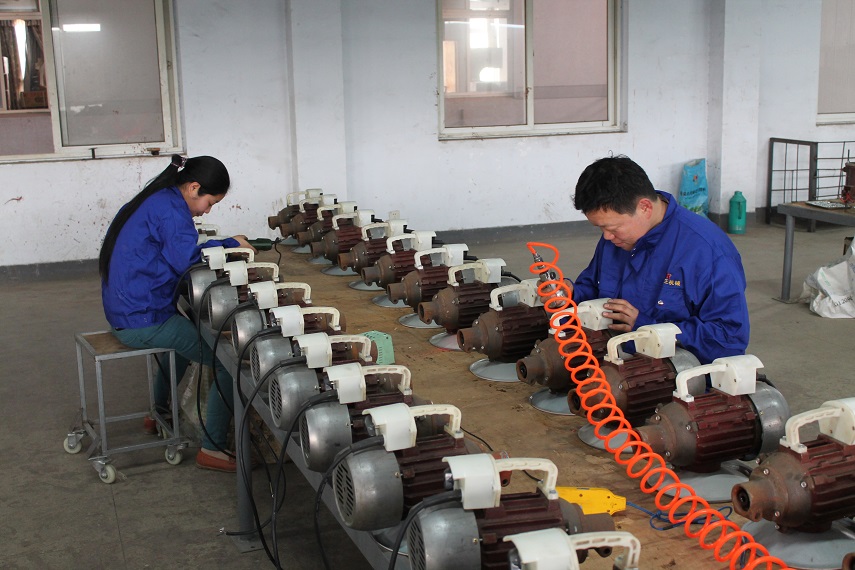

production process
Strictly control and pay attention to every detail
2
Package
Carton packaging, neat and uniform
3

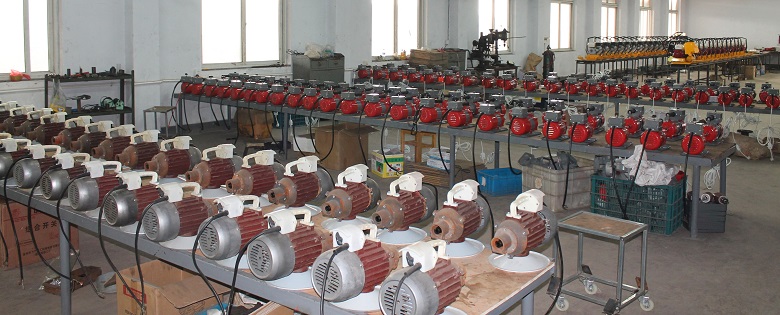

Factory area
2000㎡ super large area, mass production
Concrete floor, general road surface
++
Pavement that needs to be filled with holes
++
Item | Gasoline engine vibrator, Dynapac type |
Model | ZXH | ZXL | ZXR | ZXRC |
Engine Model | HONDA GX160 | Loncin GF200 | ROBIN EY20 | Robin copy RB20 |
Engine type | 4-stroke 25° Single-cylinder with Air-cooled |
Borex stroke | 68*45mm | 1-67*52mm |
Displacement | 163 cm3 | 183cm3 |
Compression Ratio | 8.5:1 | 8.5:1 |
Max power | 5.5hp/3600rpm | 6.5hp/3600rpm | 5.0hp/3600rpm | 5.0hp/3600rpm |
Recommded power using | 4.8hp/3600rpm | 4.8hp/3600rpm | 3.5hp /3600rpm | 3.5hp /3600rpm |
Fuel Tank capacity | 3.6L | 3.6L | 3.8L | 3.8L |
Fuel consumption | 230g/hp-hr (313g/kwh) | 230g/hp-hr (313g/kwh) | 230g/hp-hr (313g/kwh) | 230g/hp-hr (313g/kwh) |
packing size | 53*39*43cm | 53*39*43cm | 53*39*53cm | 53*39*53cm |
N..W/G.W. | 20kgs/22kgs | 20kgs/22kgs | 20kgs/22kgs | 20kgs/22kgs |
Model | ZX-32 | ZX-38 | ZX-45 / 6M | ZX-60 / 6M |
Out Dia of Head | 32mm | 38mm | 45mm | 60mm |
Out Dia of hose | 30MM | 30MM | 32MM | 36MM |
Out Dia of shaft | 10MM | 10MM | 12MM | 13MM |
packing size | 75*75*7 cm | 75*75*7 cm | 75*75*7 cm | 75*75*7 cm |
N..W/G.W.( for 6mtr ) | 11.8kgs/12.8kgs | 11.8kgs/12.8kgs | 16.2kgs/17.2kgs | 23kgs/24kgs |
PS: Below is the picture for two different of vibrator head. |
（Please feel free to contact us if you need detailed consultation on parameters and professional questions.）
Product details (text introduction)
Engine Options: The Gasoline Engine Concrete Vibrator is equipped with a choice of engines, including renowned brands such as Honda, Lifan, or Robin, ensuring reliable and consistent power transmission. Alternatively, a diesel engine option is available for applications that require diesel power.
Compatibility: This vibrator seamlessly pairs with vibrator shafts of various sizes, providing flexibility to cater to diverse construction needs. The compatibility with different shaft sizes enhances its adaptability on the job site.
Convenient Job Site Use: Designed for convenience, this concrete vibrator is ideal for job sites where electrical power is unavailable. The gasoline engine or diesel engine ensures mobility and ease of use, allowing for efficient concrete compaction in various construction scenarios.
USPS Express Mail:fast, inexpensive and reliable with tracking
USPS Priority Mail:cheaper, little slower with tracking
USPS First Class Mail:no insurance, no tracking
FedEx:very fast and reliable (we offer huge discounts negotiated on behalf of our customers).
DHL:very fast and reliable, large discounts
FedEx Freight:for heavy or oversize packages
Airmail Economy:cheap method fo inexpensive items
Airmail Priority:cheap method fo inexpensive items, little faster than Economy
Boxberry Courier:fast and reliable courier service to Russia
Boxberry Local Pickup:cheaper Boxberry option, package delivered to pickup point
Shipito Australia Preferred Carrier:fast, reliable and affordable shipping method to Australia
Shipito Preferred Carrier with DPD Express:fast, reliable and affordable shipping method to many countries in Europe
Aramex:fast shipping provider focusing on Middle East and Asia
MPS - Multiple Piece Shipment:more savings when shipping multiple packages to the same address with DHL and FedEx
1. With 28 years manufacturing experience and more than 15 years export experience and specializes in the research and manufacture of Building machinery
2. We obtain worldwide authentication ,such as VDE,CE, GS,UL, ETL, and so on.
3 Quick reply to customer questions within 5 hours
4. Delivery date :within 5-7 days for Sample ready and mass production 15-45 days after receive the deposit.
5. Customization : OEM & ODM customized design ,We can change the color/logo according to your personal requirements.
6. Product information and sales tools training ,to help you win great popularity in te local marekt
7. Follow up customers' feedback after receive the products, andt try our best to solve and improve the quality and service
8. over 90% of products are exported
9. Focusing on Exclusive Agent and take our customers grow up together
10. We have 6 excellent International sales,2 engineers with 15 years of experience and 3 QC,We keep good quality and competitive price to ensure our customers benefit
11. 12 months quality guarantee,Provide video service after-sales
12. Quality products that have been exported to over 50 countries
