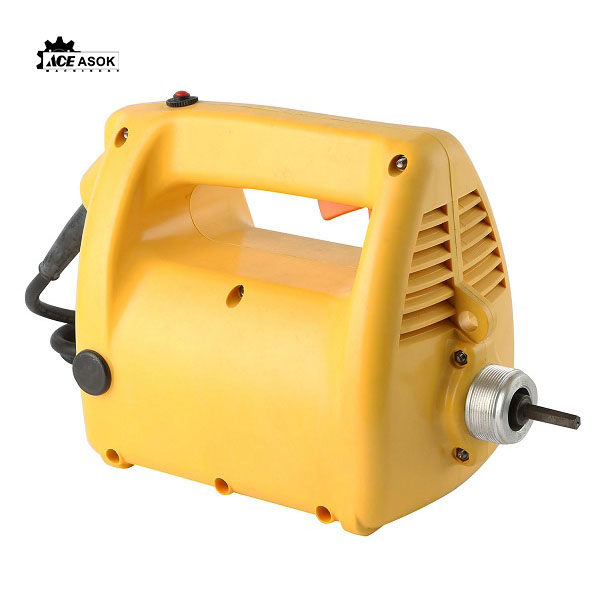

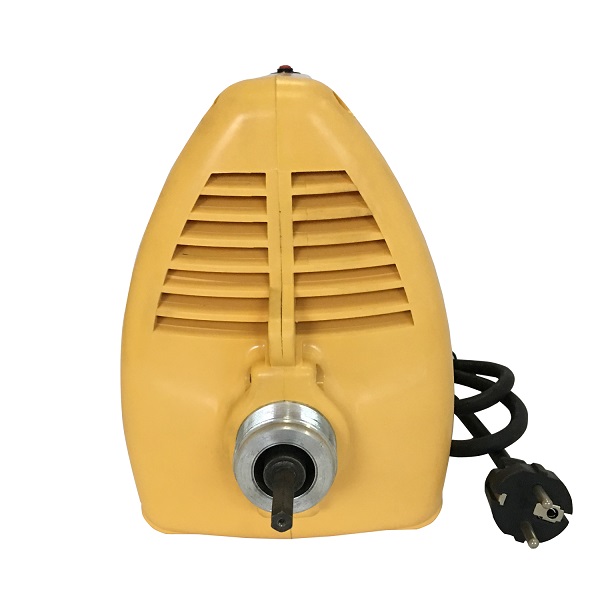

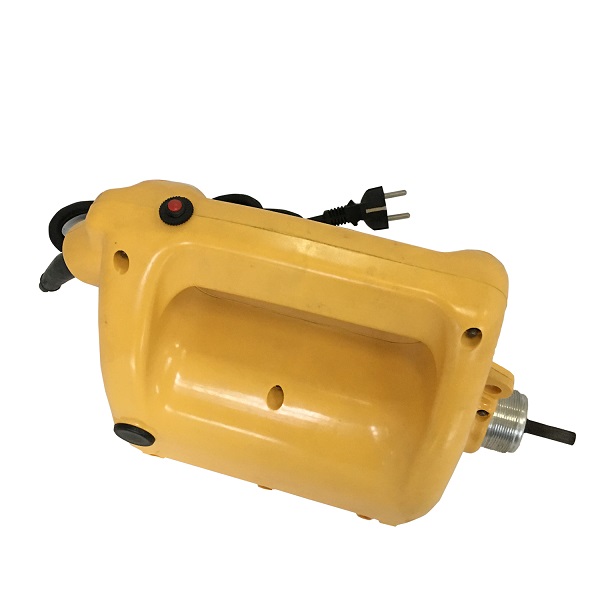

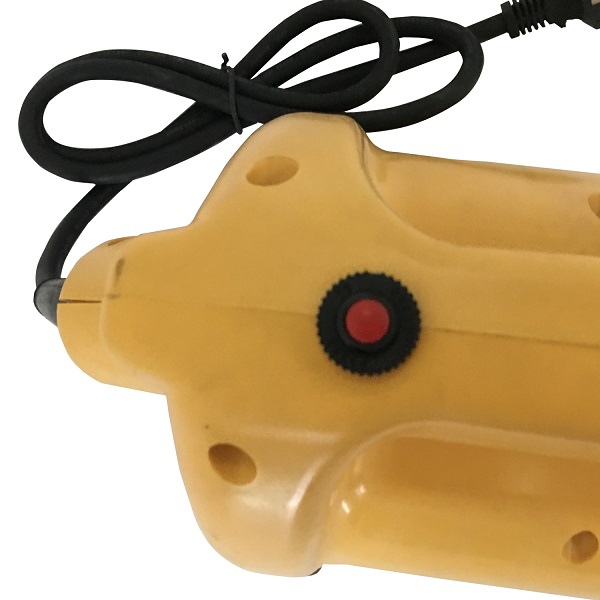

1500W-2300W High Frequency concrete vibrator. A very light and easy to handle concrete vibrator that comes with a shoulder strap for easy transport.
The vibrator incorporates off-centered weights into the 18000rpm electric motor to generate high frequency vibration. Via the flexible tube, the vibrator transmits the vibration to the poker via the flexible tube. It is spun as much as 12,000 times per minute, which makes it easy to cause resonance with the poured concrete.
As one of the professional concrete vibrator manufacturers in China, we have always enjoyed a good reputation around the world

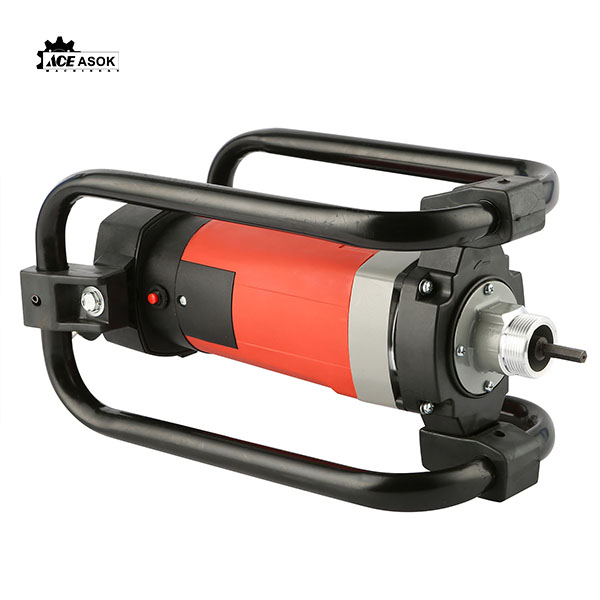

ZID-230C Wacker type Concrete Vibrator
Meet the 1500W-2300W High-Frequency Concrete Vibrator, your go-to solution for all your concrete needs. This versatile and lightweight vibrator, weighing a mere fraction of other options, comes equipped with a shoulder strap for effortless transport.
Powered by a robust 18000rpm electric motor with off-centered weights, it generates high-frequency vibrations that are transmitted through a flexible tube to the poker. Spinning as much as 12,000 times per minute, it effortlessly resonates with the poured concrete.
Widely acclaimed for its performance, it's celebrated for its ease of operation, low noise, and ability to generate reliable high-frequency vibrations. As one of the leading concrete vibrator manufacturers in China, we have built a reputation for delivering top-tier equipment that meets the needs of professionals worldwide. Choose the 1500W-2300W High-Frequency Concrete Vibrator and experience the perfect blend of convenience and exceptional performance for your concrete projects
|
Type |
Europe type |
|
|
Model |
ZID--150 |
ZID-230 |
|
Rated input power |
1500W |
2300W |
|
Rated voltage |
220V |
220V |
|
Rated Frequency |
50HZ |
50HZ |
|
No-load speed |
18000 r/min |
18000 r/min |
|
Weight |
5.24kgs |
5.5kgs |
|
Packing size |
34*20.5*26cm |
34*20.5*26cm |
|
Item |
High-frequency vibrator shaft |
|||
|
Model |
￠(mm) |
ZX-35 |
ZX-38 |
ZX-45 |
|
Diameter of head |
￠(mm) |
35 |
38 |
45 |
|
Length of head |
L (mm) |
330 |
380 |
390 |
|
Vibrating Frequency |
(HZ) |
200 |
200 |
200 |
|
Vibrating Ampitude |
(mm) |
0.91 |
1.1 |
1.2 |
|
Diameter of flexiable hose |
D(mm) |
30 |
30 |
30 |
|
Diameter of flexiable shaft |
D(mm) |
10 |
10 |
10 |
|
packing size |
cm |
75*75*5.5cm |
||
