DINGO portable concrete vibrator. A very light and easy to handle concrete vibrator that comes with a shoulder strap for easy transport, additionally, the DINGO has 3 handles for easy transportation as well as providing protection to the highly resistant housing.
The case also uses an air filter to protect against dust entering and causing damage. The DINGO comes with a 3hp motor to run the full range of ZX vibrators (25mm to 58mm) and TDX transmissions (0.5m to 6m). The TDX transmissions are reinforced and the ZX poker heads are fitted with 2 oiled bearings for intensive use
As one of the professional concrete vibrator manufacturers in China, we have always enjoyed a good reputation around the world

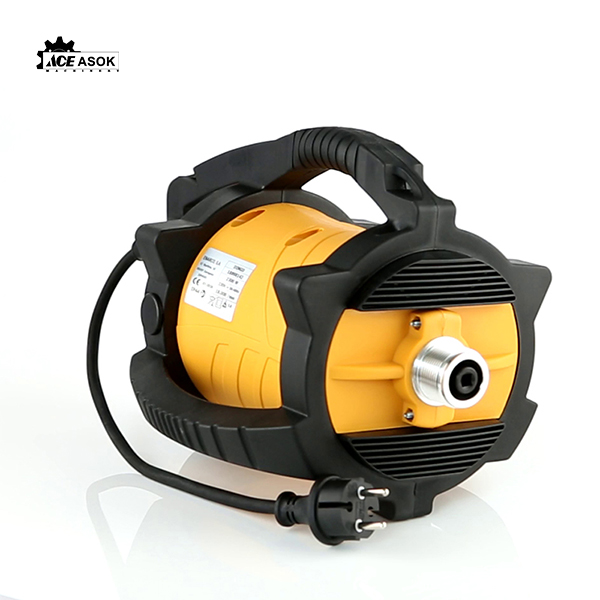

Dingo type 2300W High Frequency Concrete Vibrator
Meet the DINGO Portable Concrete Vibrator, your trusted partner in concrete work. It's not just lightweight and easy to handle, but also equipped with a convenient shoulder strap for effortless transport. For added protection and convenience, the DINGO features three handles that make it easy to carry and safeguard the robust housing.
But that's not all; we've taken extra steps to ensure the DINGO's durability and longevity. The housing employs an air filter to shield against dust, preventing potential damage. With a robust 3hp motor, the DINGO can handle the full range of ZX vibrators (25mm to 58mm) and TDX transmissions (0.5m to 6m). The TDX transmissions are reinforced for added strength, and the ZX poker heads are equipped with two oiled bearings, perfect for intensive use.
As one of the leading concrete vibrator manufacturers in China, our reputation for quality and innovation extends globally. Trust the DINGO to deliver outstanding performance for all your concrete projects
|
Type |
Dingo type |
Dingo type |
|
Model |
ZID--150D |
ZID--230D |
|
Rated input power |
1500W |
2300W |
|
Rated voltage |
110~ 220V |
110~ 220V |
|
Rated Frequency |
60HZ |
60HZ |
|
No-load speed |
18000 r/min |
18000 r/min |
|
Weight |
5.5 kgs |
5.8 kgs |
|
Packing size |
25*35*23cm |
25*35*23cm |
|
Item |
High-frequency vibrator shaft |
||||
|
Model |
￠(mm) |
ZX-25 |
ZX-38 |
ZX-48 |
ZX-58 |
|
Diameter of head |
￠(mm) |
25 |
38 |
48 |
58 |
|
Length of head |
L (mm) |
300 |
345 |
370 |
410 |
|
Vibrating Frequency |
(HZ) |
200 |
200 |
200 |
200 |
|
Vibrating Ampitude |
(mm) |
0.8 |
1.2 |
1.3 |
1.35 |
|
Diameter of flexiable hose |
D(mm) |
25 |
28 |
28 |
28 |
|
Diameter of flexiable shaft |
D(mm) |
10 |
10 |
10 |
10 |
|
packing size |
cm |
75*75*5.5cm |
|||
