A construction equipment supplier of construction machinery solutions for 25 years.
The Electric concrete vibrator is designed for use with the vibrating poker. It is created on the basis of pendulum theory. The 2840RPM drive unit is utilized to transmit vibrating torque to the poker via the flexible tube. The drive can be plugged to different types of power supply voltages including 380V, 220V, and 110V.

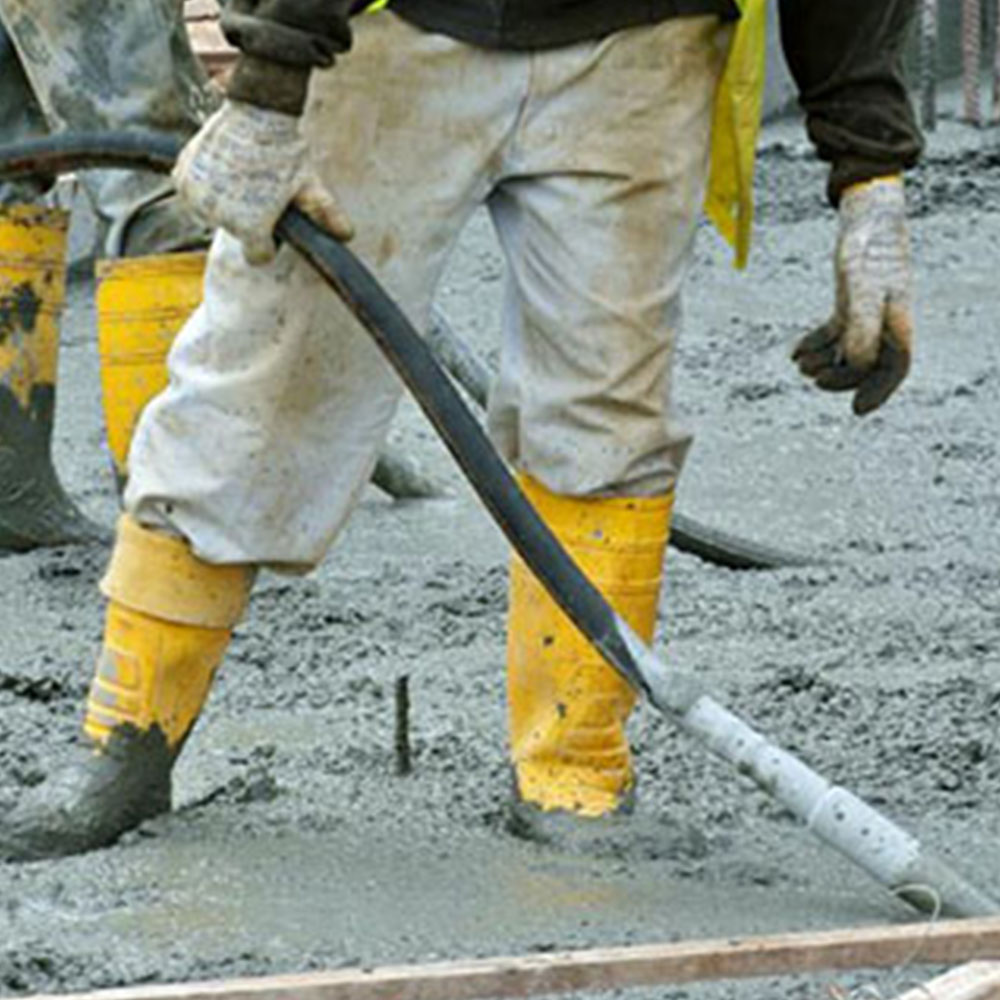

Application: widely uesd in many build road , harbor construction, the large-scale dam, the high-level building base .It has the density well, the air bubble few and repel seep the nature is strong and so on the merit, is guaranteed and improves the concrete construction quality the important tool.
As one of the professional manufacturers of high frequency concrete vibrators, we enjoy a good reputation all over the world

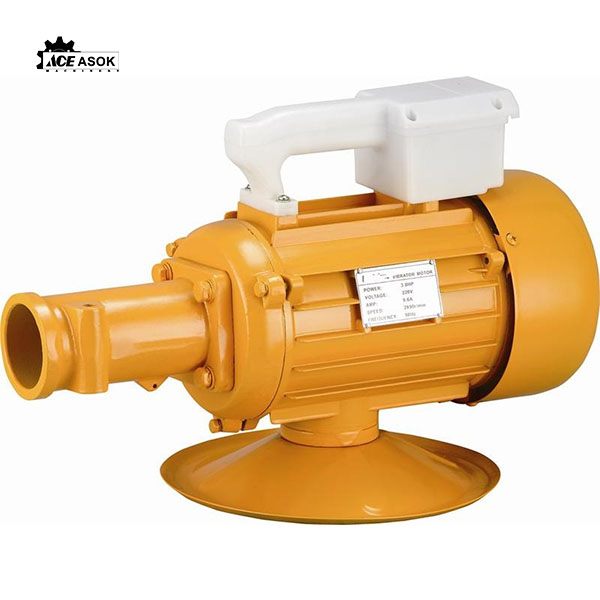

ZN Electric Concrete Vibrator
With a powerful 2840RPM drive unit, the vibrating torque is effectively transmitted to the poker through a flexible tube. This ensures effective concrete compaction and consolidation, resulting in improved construction quality.
Designed to be versatile, the drive unit can be plugged into different types of power supply voltages, including 380V, 220V, and 110V. This makes it suitable for various applications, including road construction, harbor projects, large-scale dams, and high-level building foundations.
One of the key advantages of the Electric Concrete Vibrator is its ability to achieve a well-compacted density in concrete, while minimizing the presence of air bubbles. Additionally, its strong resistance to seepage ensures the durability and longevity of the constructed concrete.
As a professional manufacturer of high-frequency concrete vibrators, we have earned a reputable standing worldwide. Our commitment to delivering reliable and high-performance equipment has made us a trusted choice for concrete construction professionals. Choose our Electric Concrete Vibrator to guarantee the quality and efficiency of your concrete construction projects.
Type | Korea type | Japanese type / Dynapac type | ||
Model | ZN50K | ZN70K | ZN50 | ZN70 |
Power | 1.5HP | 2.0HP | 1.5HP | 2.0HP |
Voltage/ Frequency | 220V /50HZ | 220V /50HZ | 220V /50HZ | 220V /50HZ |
Workingspeed(RPM) | 2850 | 2850 | 2850 | 2850 |
PACKING SIZE(cm) | 39*28*30 | 39*28*30 | 44.5*25*33 | 44.5*25*33 |
Weight (kgs) | 14KGS | 16KGS | 17KGS | 18KGS |
Model | Japanese type/ Dynapac type | |||||||
ZX-28 | ZX-32 | ZX-38 | ZX-45 | ZX-50 | ZX-60 | ZX-70 | ||
Diameter | ￠(mm) | 27 | 32 | 38 | 45 | 50 | 60 | 70 |
Length | L (mm) | 580 | 583 | 580 | 583 | 479 | 577 | 555 |
Vibrating Frequency | (HZ) | 220 | 220 | 200 | 200 | 200 | 200 | 200 |
Vibrating Ampitude | (mm) | 0.72 | 0.82 | 1.2 | 1.2 | 1.15 | 1.25 | 1.35 |
Diameter of flexiable hose | D(mm) | 30 | 30 | 30 | 32 | 36 | 36 | 36 |
Diameter of flexiable shaft | D(mm) | 10 | 10 | 10 | 12 | 13 | 13 | 13 |
Weiht with 6mtr hose | (kg) | 10.5 | 14.5 | 15 | 16.5 | 20.5 | 22 | 24 |
packing size | cm | 75*75*5.5 cm | ||||||
