A construction equipment supplier of construction machinery solutions for 25 years.

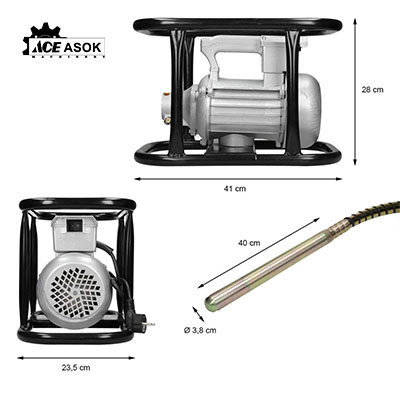

Electric concrete vibrator 1.5HP or 2.0HP with Frame work with concrete vibrator shaft 38mm or 45mm . It's top popular model in European .Using the pendulum principle ,2840RPM of the drive unit translates via the flexible shaft into the poker head.
Application:
Electric concrete vibrator is suitable to the commodity concrete, widely applies to the bridge, the harbor construction, the large-scale dam, the water wheel power plant, the high level building base pours into post picket,crowded reinforcing stell bar net coagulation dirt wall and major and medium small architectural engineering. It has the density well, the air bubble few and repel seep the nature is strong and so on the merit, is guaranteed and improves the concrete construction quality the important tool.
As one of the professional manufacturers of high frequency concrete vibrators, we enjoy a good reputation all over the world

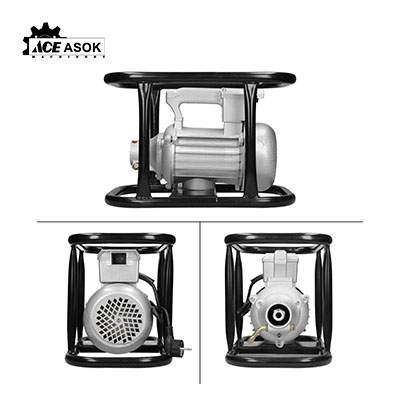

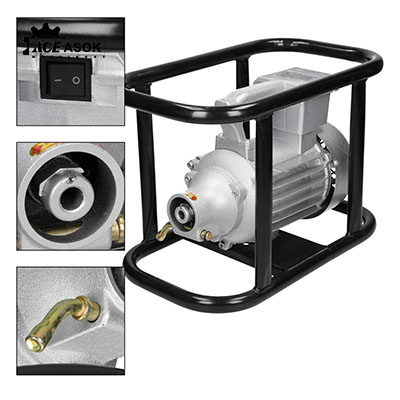

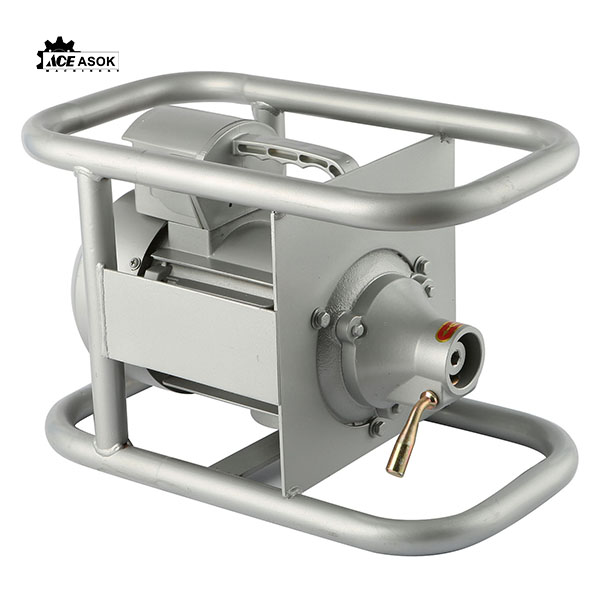

Electric Concrete Vibrator With Frame
Introducing our Electric Concrete Vibrator, available in 1.5HP or 2.0HP options, with a sturdy frame and a choice of concrete vibrator shafts in either 38mm or 45mm diameter. This model is highly popular in Europe for its reliability and effectiveness in concrete construction projects.
Our Electric Concrete Vibrator operates on the principle of pendulum motion, with the drive unit running at 2840RPM. This rotational motion is then transferred through a flexible shaft to the poker head, resulting in efficient concrete compaction and consolidation.
With its versatile application, our Electric Concrete Vibrator is suitable for various concrete projects such as bridges, harbor constructions, large-scale dams, water wheel power plants, high-rise building foundations, post pickets, reinforced steel bar networks, and even soil wall coagulation. It offers several advantages, including a well-compacted density, minimal air bubbles, and strong resistance to seepage, all of which contribute to improved concrete construction quality.
As a reputable manufacturer of high-frequency concrete vibrators, we have gained a strong reputation worldwide. Our products are designed with durability and performance in mind, ensuring efficient and reliable operation on every job site. Choose our Electric Concrete Vibrator to enhance your concrete construction projects and achieve optimal results.
|
ITEM |
CONCRETE VIBRATOR MOTOR |
|
|
Model |
ZN50FG |
ZNS70FG |
|
Power, (KW) |
1.1 |
1.5 |
|
Voltage, (V) |
220 |
220 |
|
Frequency, (HZ) |
50 |
50 |
|
Working speed(RPM) |
2840 |
2840 |
|
PACKING SIZE(cm) |
42.5*25*28 |
42.5*25*28 |
|
Weight (kgs) |
16 |
17 |
|
Item |
Concrete vibrator shaft |
|||||
|
Model |
￠(mm) |
ZX28 |
ZX-32 |
ZX-38 |
ZX-45 |
ZX-60 |
|
Diameter of head |
￠(mm) |
28 |
32 |
38 |
45 |
60 |
|
Length of head |
L (mm) |
380 |
410 |
420 |
420 |
410 |
|
Vibrating Frequency |
(HZ) |
183 |
185 |
185 |
185 |
200 |
|
Vibrating Ampitude |
(mm) |
0.81 |
0.9 |
1.0 |
1.2 |
1.5 |
|
Dia of flexiable hose |
D(mm) |
30 |
30 |
30 |
32 |
36 |
|
Diaof flexiable shaft |
D(mm) |
10 |
10 |
10 |
10 |
13 |
|
Weight (6mtr) |
(kg) |
9 |
13 |
14 |
16 |
21 |
|
packing size |
CM |
75*75*5.5 |
||||
