A construction equipment supplier of construction machinery solutions for 25 years.
Indian /Butterfly type Concrete vibrator needle ,Drive by Electric motor ,Robin 5.0HP petrol engine .Stable operation with good mechanical performance and good anti-wear performance
Head of needle have 35mm/38mm/40mm and 50mm
Rubber hoes with 40Mn steel ling,The tickness is 1.6MM，Width：16~18MM , 96 pcs steel wire .Rubber hose's tension is 800~900n and hardness is 75~80 degree
70# steel of Flexible shaft and the torsional is 57 N.m
100% Finished product inspection and 15% raw material inspection
Concrete pouring and compactor in Personal residence, large buildings, airports, highways and Repair ,build road ,... etc
Indian type
We are proud to introduce the Indian Butterfly Concrete Vibrator, powered by a choice of electric motor or Robin 5.0 HP gasoline engine.
Our vibrators come in different head sizes of 35mm, 38mm, 40mm and 50mm to meet your specific needs.

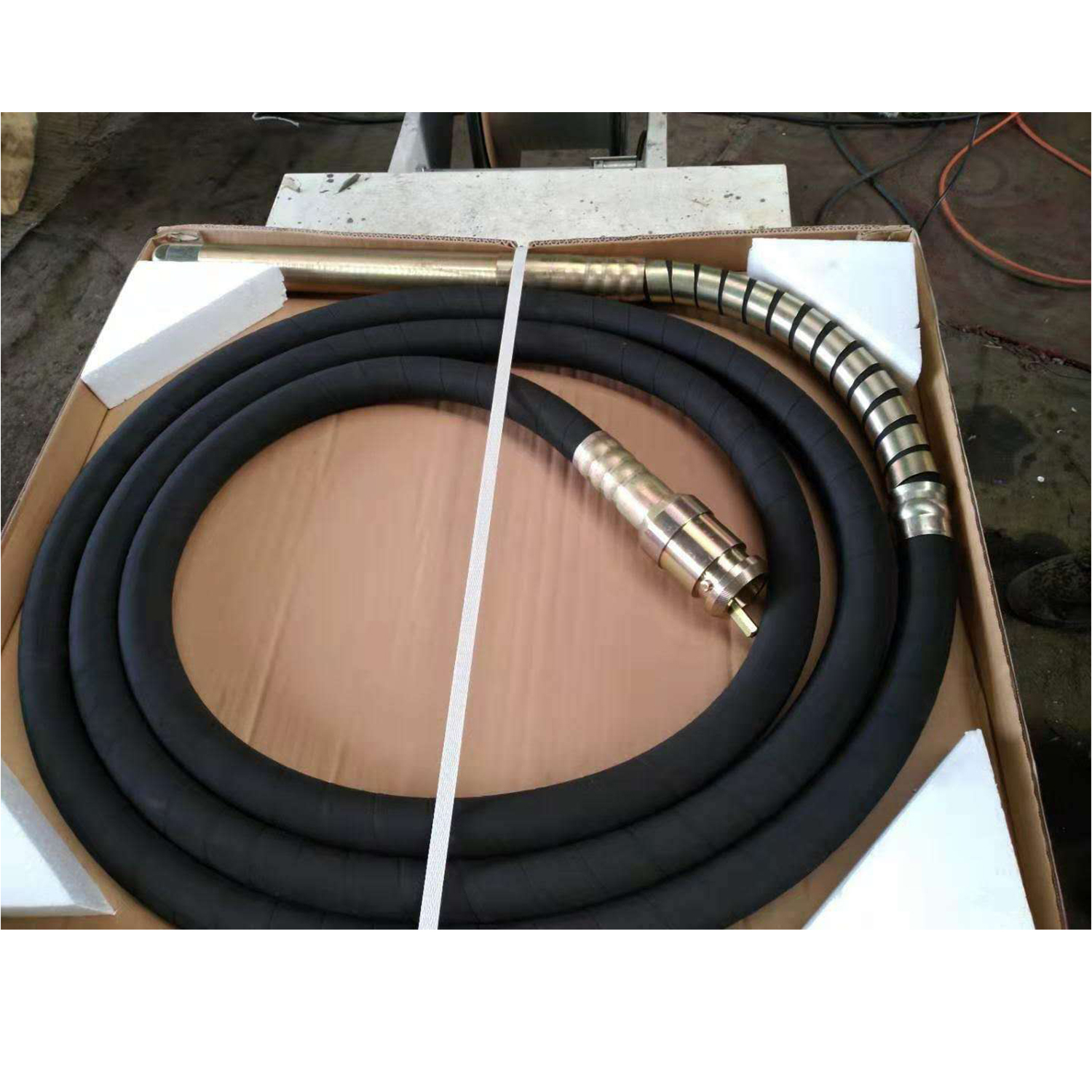

The rubber hose is reinforced with 40Mn steel wire, with a thickness of 1.6mm, a width of 16-18mm, and a total of 96 steel wires. The tensile force of rubber hose is 800-900N, and the hardness is 75-80 degrees.
The flexible shaft is made of 70# steel, with a torque strength of 57N.m.
In order to ensure product quality, we conduct 100% finished product inspection and 15% raw material inspection.
This Indian concrete vibrator performs stably in concrete placement and compaction with excellent mechanical properties and wear resistance. It can be used in various situations such as personal residences, large buildings, airports, highways and road repairs.
Choose our Indian concrete vibrators for efficient and reliable concrete compaction on your construction projects.
Model | ZX-32 | ZX-38 | ZX-40 | ZX-45 | ZX-60 | |
Diameter | ￠(mm) | 32 | 38 | 40 | 45 | 60 |
Length | L (mm) | 583 | 580 | 580 | 583 | 577 |
Vibrating Frequency | (HZ) | 220 | 200 | 200 | 200 | 200 |
Vibrating Ampitude | (mm) | 0.82 | 1.2 | 1.2 | 1.2 | 1.25 |
Diameter of flexiable hose | D(mm) | 38 | 38 | 38 | 38 | 38 |
Diameter of flexiable shaft | D(mm) | 12 | 12 | 12 | 13 | 13 |
Weiht with 6mtr hose | (kg) | 15 | 17 | 18 | 19 | 22 |
packing size | cm | 75*75*7 cm | ||||
