A construction equipment supplier of construction machinery solutions for 25 years.
Chinese type concrete vibrator needle 35mm/38mm and 50mm .Drive Electric vibrator ,different brand of Gasoline vibrator or Diesel vibrator.
We have some different size from 35mm/38mm/45mm/50mm/70mm
The ling of flexible hose is base on 40MN Steel,The tickness is 1.6MM，Width：16~18MM , 96 pcs steel wire，The tension of rubber is 800~900 N, Hardness： 75~80
Flexible shaft：70# steel ，The torsional：57N.m
15% raw material inspection and 100% Finished product inspection
Applications for: It is suitable for common concrete compaction, widely uesd in many places such as the bridge, the harbor construction, the large-scale dam, the high-level building base irrigation pile acted as a column, the crowded mat reinforcement coagulation dirt wall, the major and medium small architectural engineering.

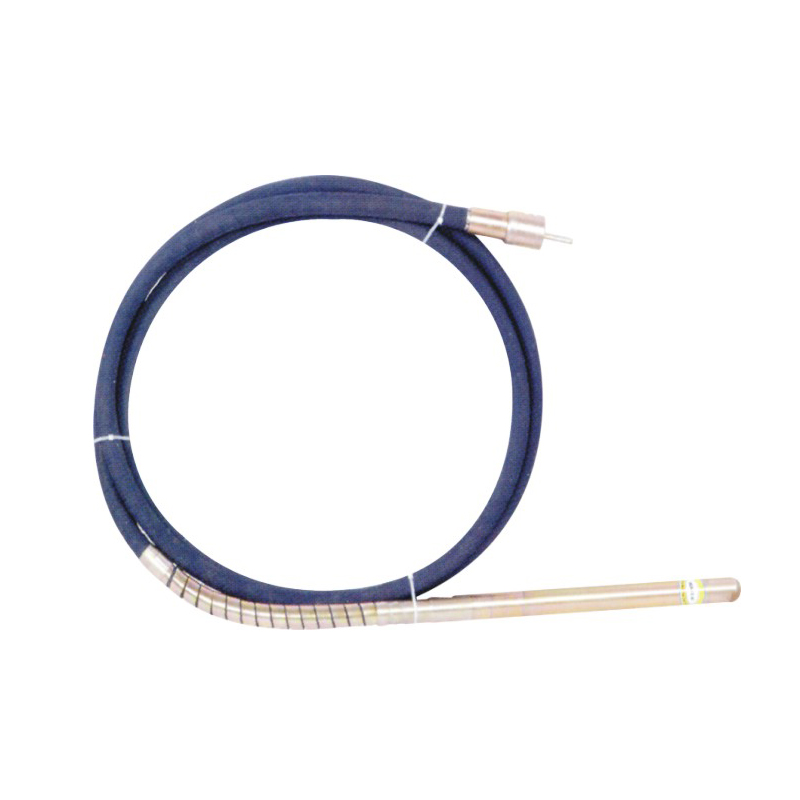

Chinese type concrete vibrator needles
Introducing our Chinese type concrete vibrator needles in sizes 35mm, 38mm, and 50mm, which are driven by electric vibrators or various brands of gasoline or diesel vibrators.
Our range includes different sizes, ranging from 35mm to 70mm, to cater to your specific needs.
The flexible hose is built with 40MN steel, with a thickness of 1.6mm and a width of 16-18mm. It consists of 96 steel wires, offering a tension of 800-900 N and a hardness of 75-80.
Constructed with 70# steel, the flexible shaft provides a torsional strength of 57N.m.
To ensure top-notch quality, we conduct a 15% raw material inspection and a 100% finished product inspection.

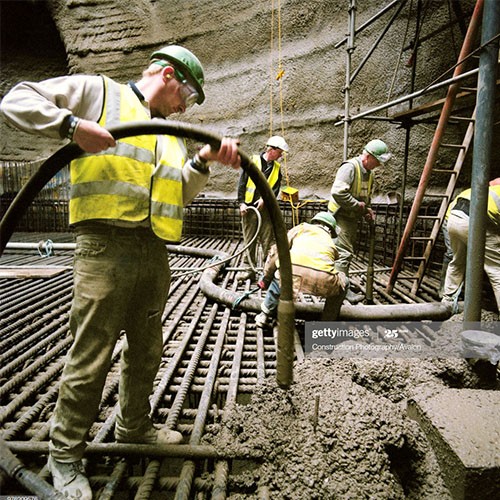

These concrete vibrator needles have versatile applications, making them suitable for common concrete compaction. They are widely used in various construction projects, including bridges, harbor construction, large-scale dams, high-level building foundations, irrigation pile structures, reinforcement of crowded mat walls, and both major and medium-small architectural engineering projects.
Choose our Chinese type concrete vibrator needles for efficient and reliable concrete compaction in your construction endeavors.
Model | ZX-35 | ZX-38 | ZX-50 | ZX-70 | |
Diameter | ￠(mm) | 35 | 38 | 50 | 70 |
Length | L (mm) | 400 | 580 | 479 | 555 |
Vibrating Frequency | (HZ) | 200 | 200 | 200 | 200 |
Vibrating Ampitude | (mm) | 0.91 | 1.2 | 1.15 | 1.35 |
Diameter of flexiable hose | D(mm) | 30 | 30 | 36 | 36 |
Diameter of flexiable shaft | D(mm) | 10 | 10 | 13 | 13 |
Weiht with 6mtr hose | (kg) | 14 | 12.65 | 20.5 | 24 |
packing size | cm | 75*75*5.5 | |||
