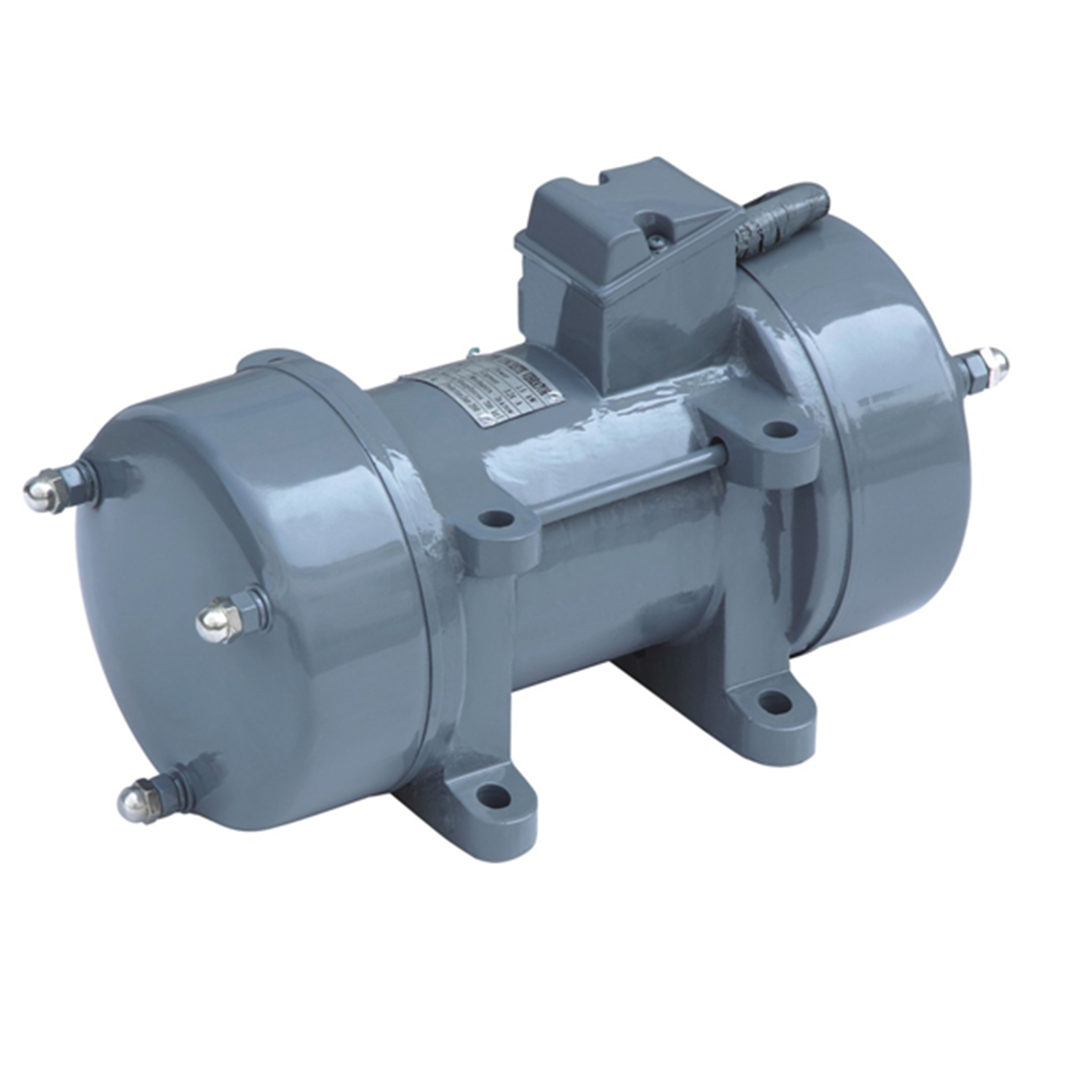

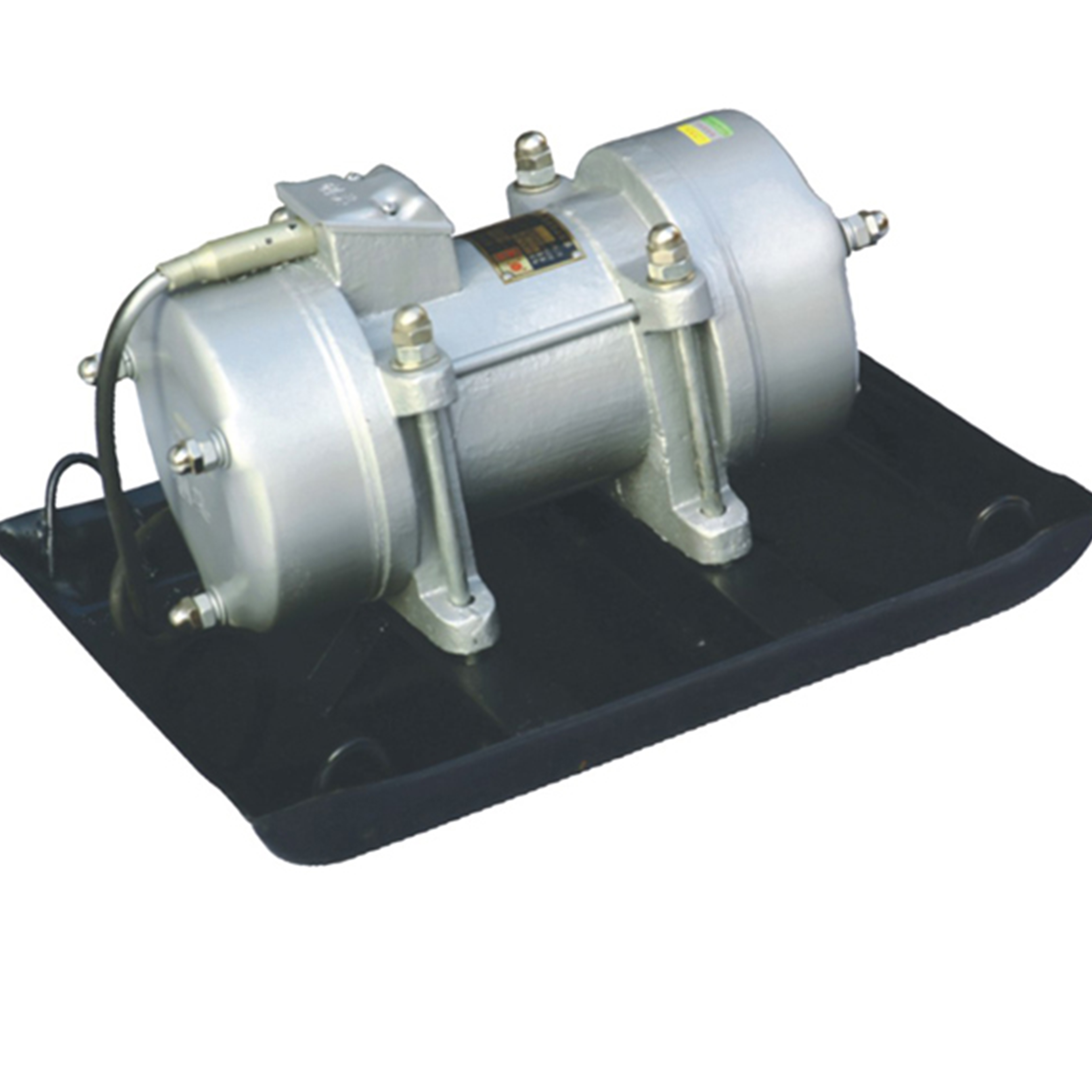

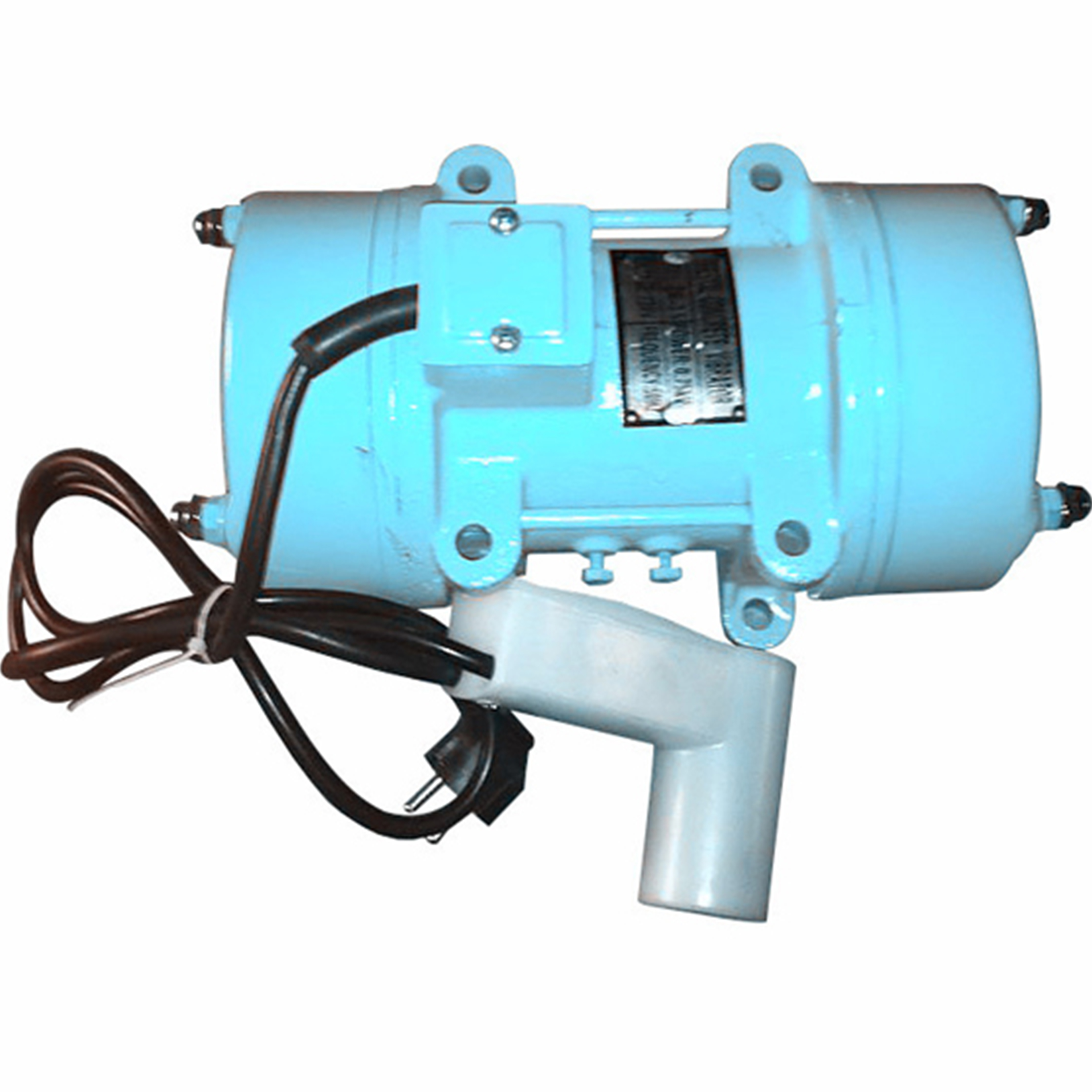

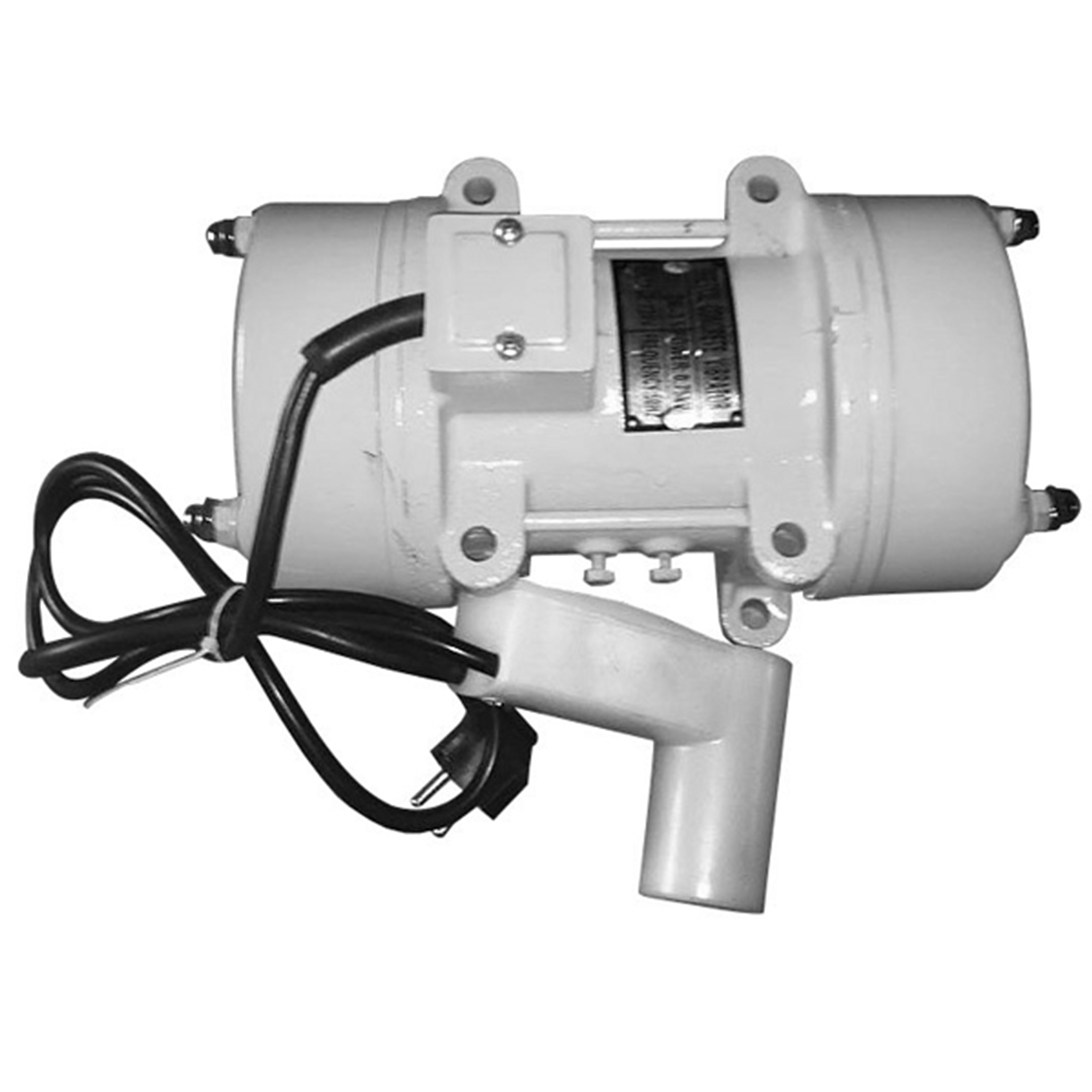

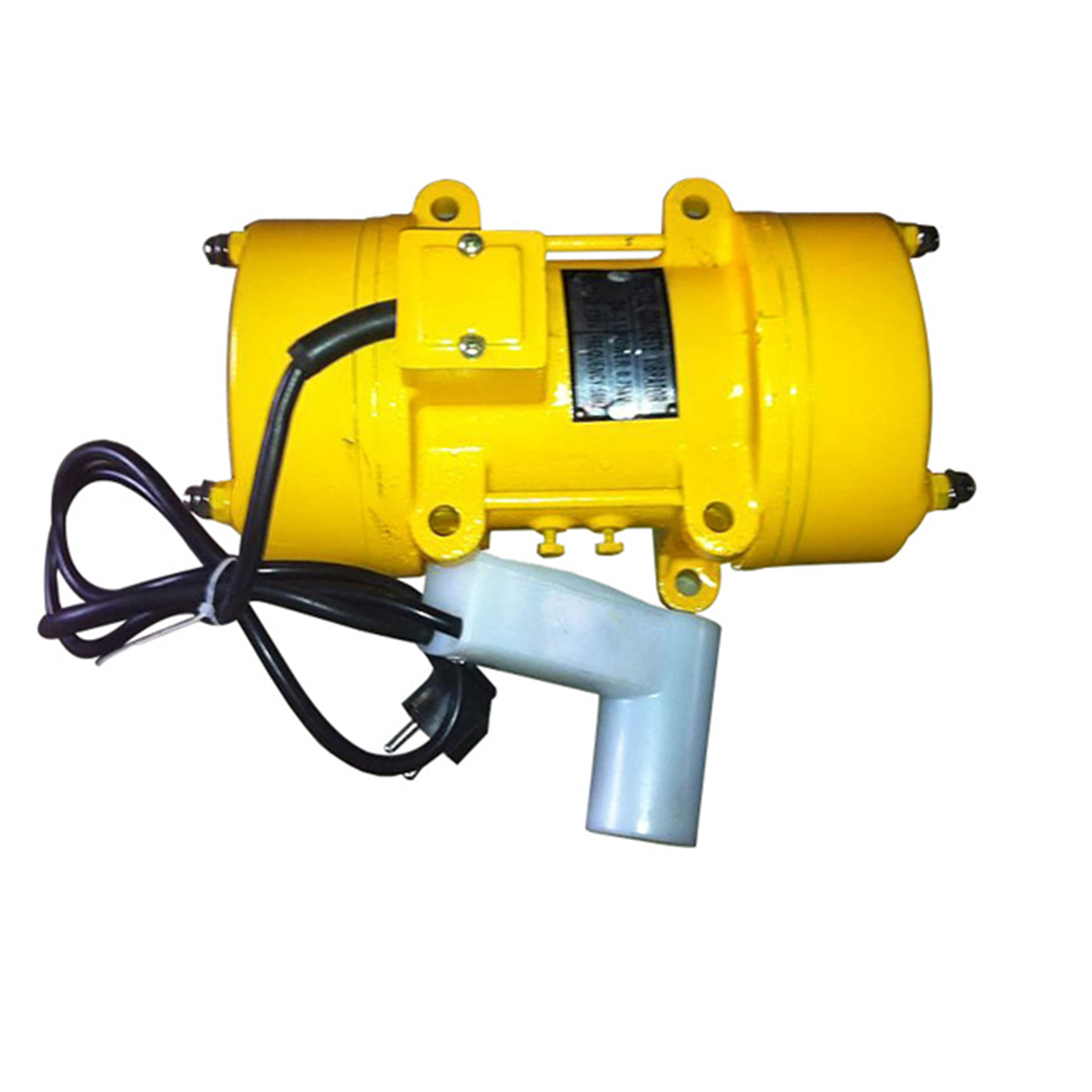

0.35KW/0.55KW/0.75KW/1.1KW/1.5KW/2.2KW and 2.2KW utilizes a three-phase induction motor having two off-centered weights installed on both ends of the rotor shaft. The off-centered weight called eccentric block spins at high frequency, causing vibrating motion. widely used in the vibration of plastic, semi-plastic, semi dry, and dry concrete, suitable tools for the concrete cast of slabs, road surface, ground and roofing in buildings
It is commonly seen on modern construction sites, where it is primarily used to consolidate the face of freshly-poured concrete foundation as well as compact the surface of pre-cast concrete. Other uses of the vibrator are on the vibrating table, brick making machine, plastic, semi-plastic and vibrating screen to provide vibrating motion
1.This series of concrete vibrator is safe, reliable, stable performance, simple structure, easy maintenance.
2. Concrete vibrator adopts special-designed vibration motor.
3. Concrete vibrator adopts full-enclosed structure, anti-dust anti-moisture.
ITEM | External vibrator | ||||||
MODEL | ZW-15 | ZW-25 | ZW-35 | ZW-50 | ZW-70 | ZW-90 | ZW-100 |
Power (KW) | 0.37KW | 0.55KW | 0.75KW | 1.1KW | 1.5KW | 2.2KW | 3.0KW |
Speed(RPM) | 2840 | 2840 | 2840 | 2840 | 2840 | 2840 | 2840 |
Centrifugal Force | 350 | 350 | 350 | 500 | 700 | 980 | 1100 |
Voltage (V) | 380/42 | 380/42 | 380/42 | 380/42 | 380/42 | 380/42 | 380/42 |
Frequency (HZ) | 50/60 | 50/60 | 50/60 | 50/60 | 50/60 | 50/60 | 50/60 |
Weight (KGS) | 10.0 | 10.8 | 10.8 | 18.6 | 19.2 | 28.8 | 35 |
Packing size (CM) | 21.5*18.5*15 | 33*19*22.5 | 33*19*22.5 | 42*22*25 | 42*22*25 | 48.5*26.5*28 | 56*29*32 |
