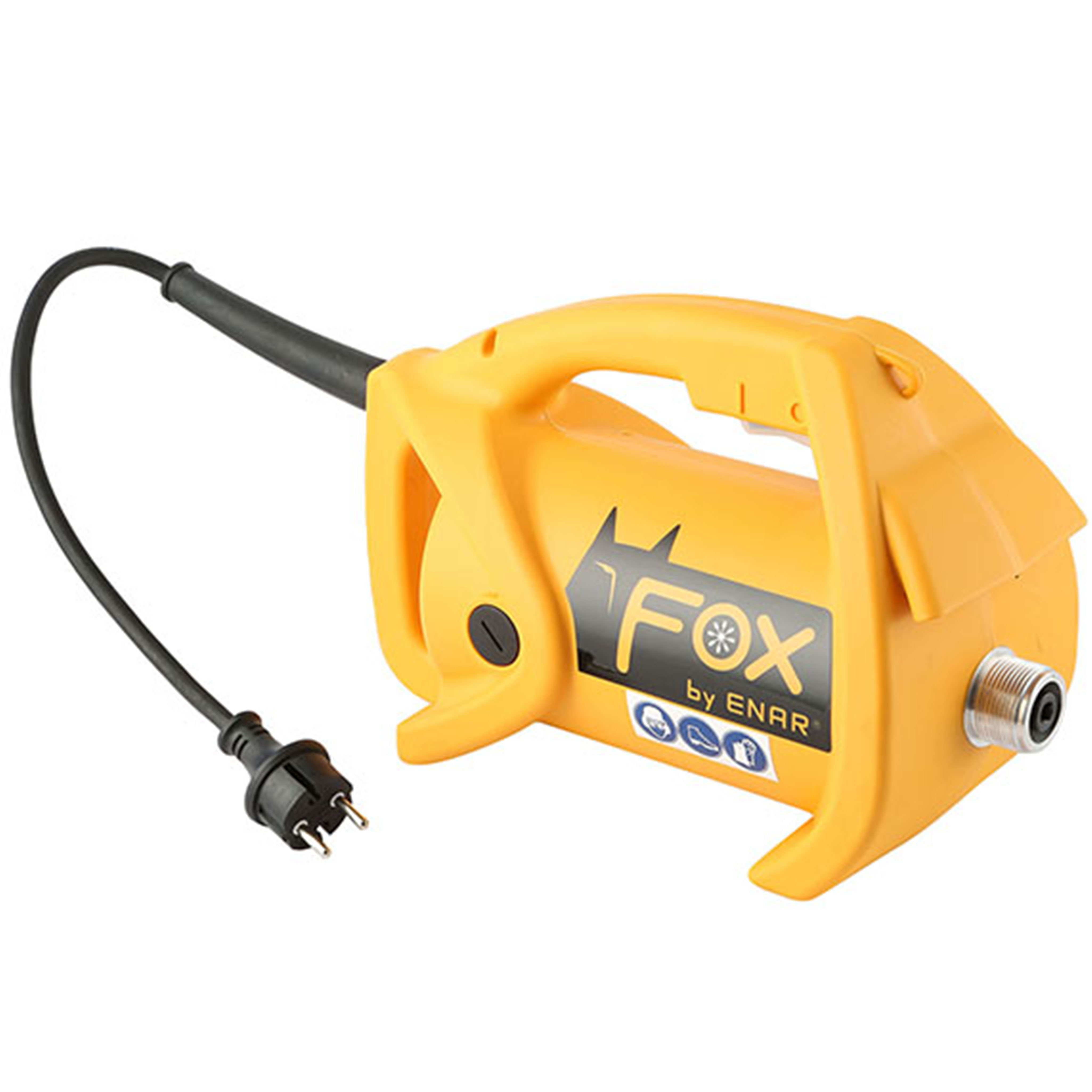

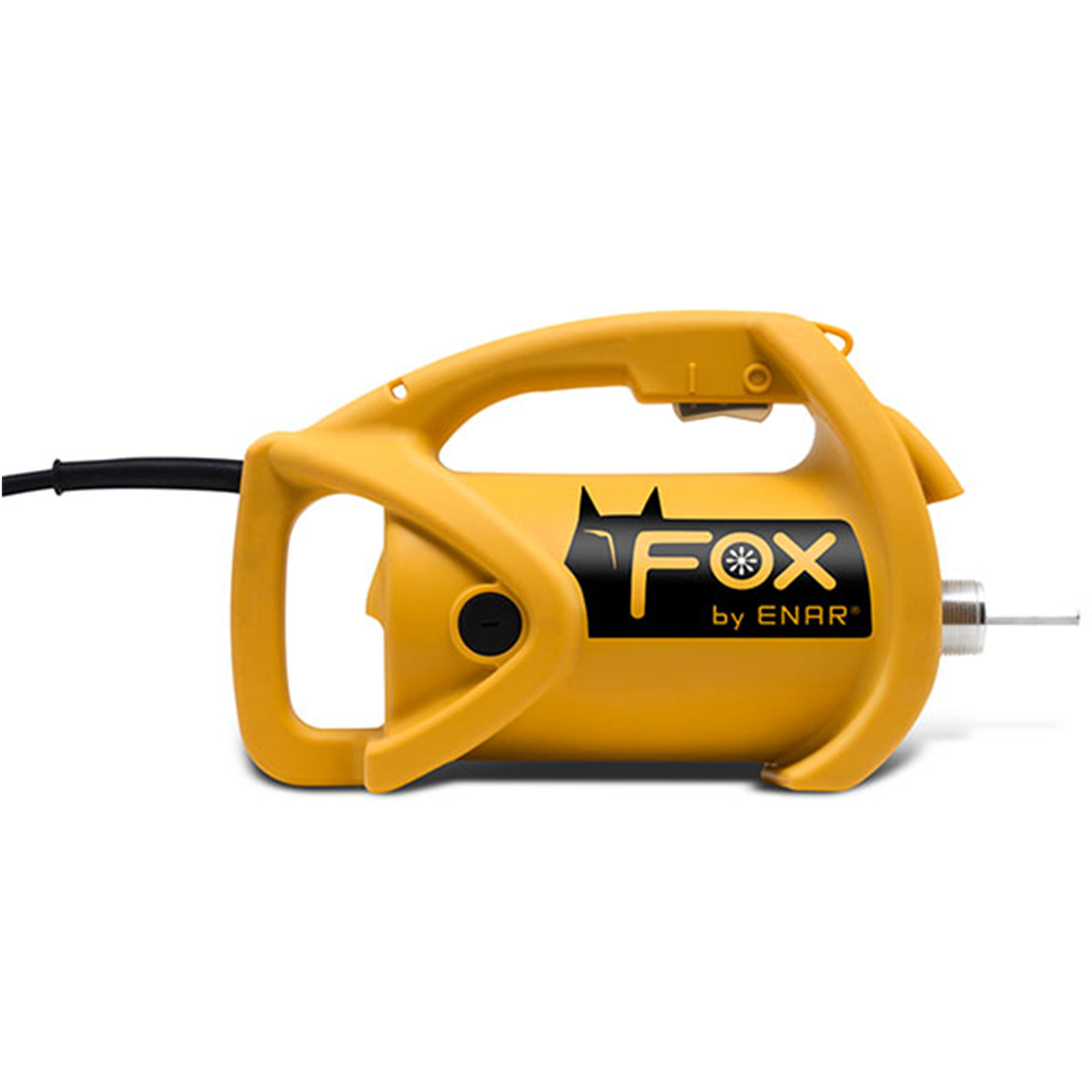

FOX Type 2300W High Frequency Concrete Vibrator. A very light and easy to handle concrete vibrator that comes with a shoulder strap for easy transport. The FOX comes with a 3hp motor to run the full range of ZX vibrators (25mm to 58mm) and TAX transmissions (0.5m to 6m).

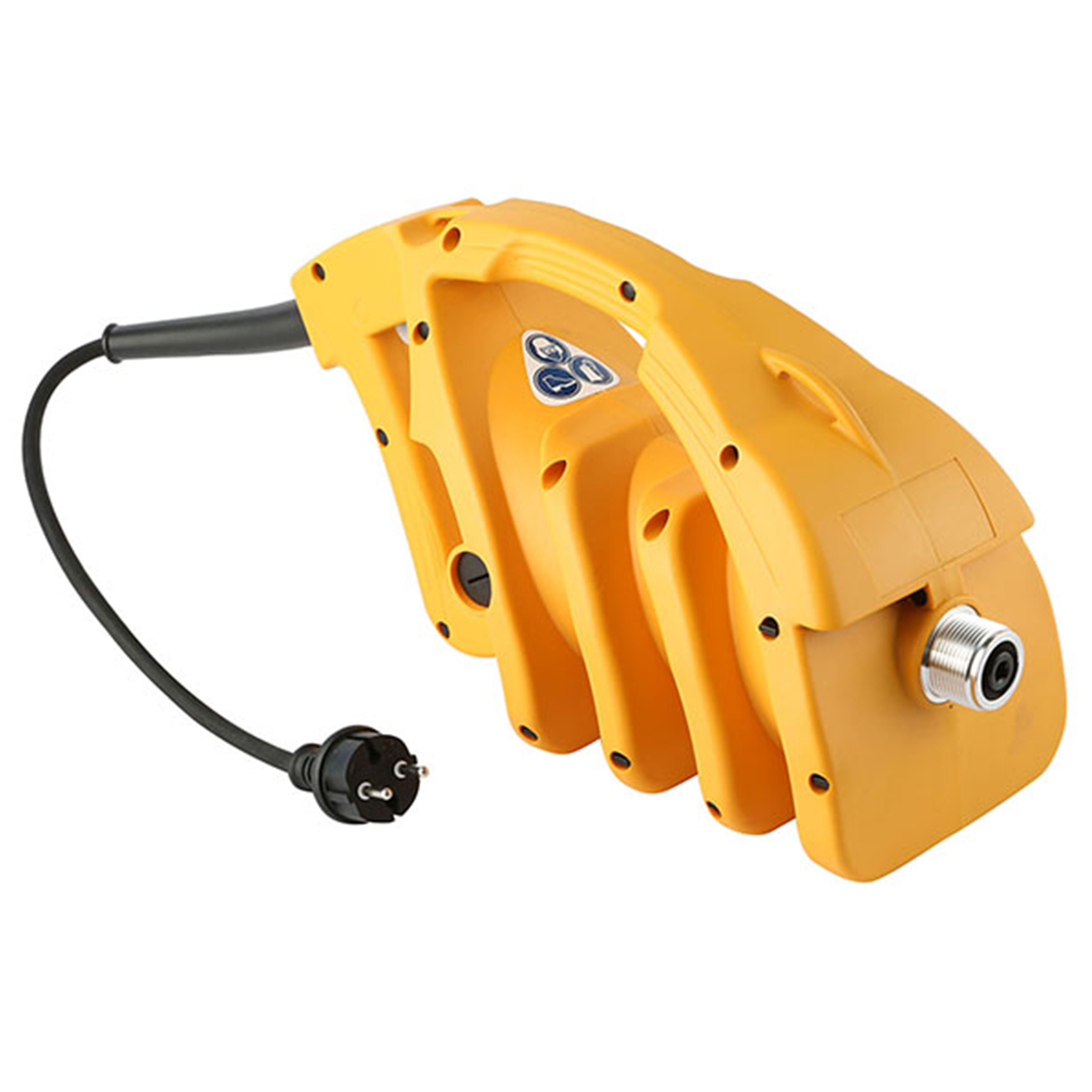

The TAX transmissions are reinforced and the AX poker heads are fitted with 2 oiled bearings for intensive use. The housing of the FOX is highly resistant and uses air filters to protect against dust and dirt entering and causing damage. The FOX is available with several types of coupling and has the unique advantage of being able to easily replace the carbon brushes.
Type | FOX type | Lupo type |
Model | FOX-230 | Lupo-230 |
Rated input power | 2300W | 2300W |
Rated voltage | 220V | 220V |
Rated Frequency | 50HZ | 50HZ |
No-load speed | 18000 r/min | 18000 r/min |
Weight | 5.8kgs | 5.4kgs |
Packing size | 354x105x205mm | 354x105x205mm |
Item | High-frequency vibrator shaft | |||
Model | ￠(mm) | ZX-35 | ZX-38 | ZX-45 |
Diameter of head | ￠(mm) | 35 | 38 | 45 |
Length of head | L (mm) | 330 | 370 | 390 |
Vibrating Frequency | (HZ) | 200 | 200 | 200 |
Vibrating Ampitude | (mm) | 0.91 | 1.2 | 1.2 |
Diameter of flexiable hose | D(mm) | 30 | 30 | 30 |
Diameter of flexiable shaft | D(mm) | 10 | 10 | 10 |
packing size | cm | 75*75*5.5cm | ||
