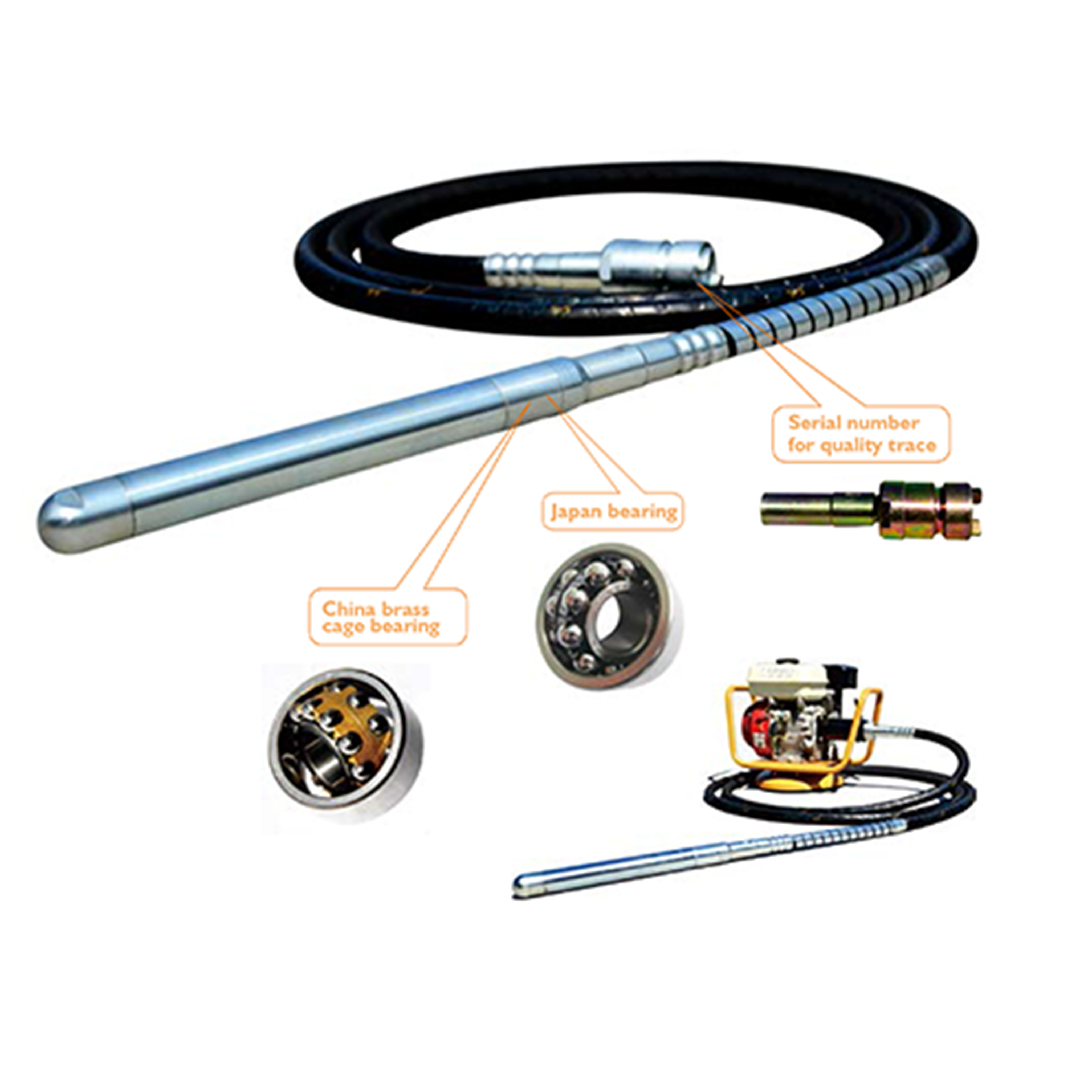

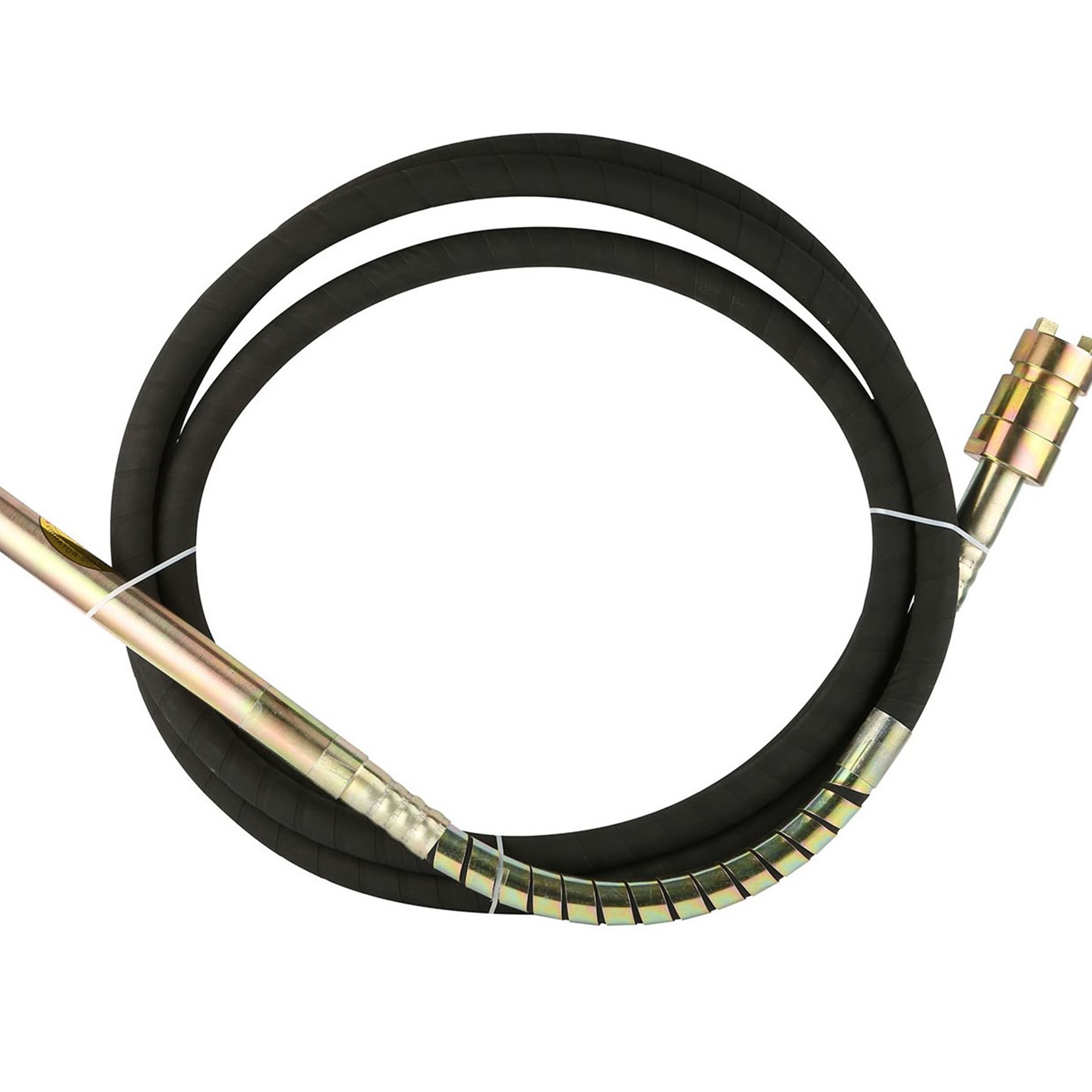

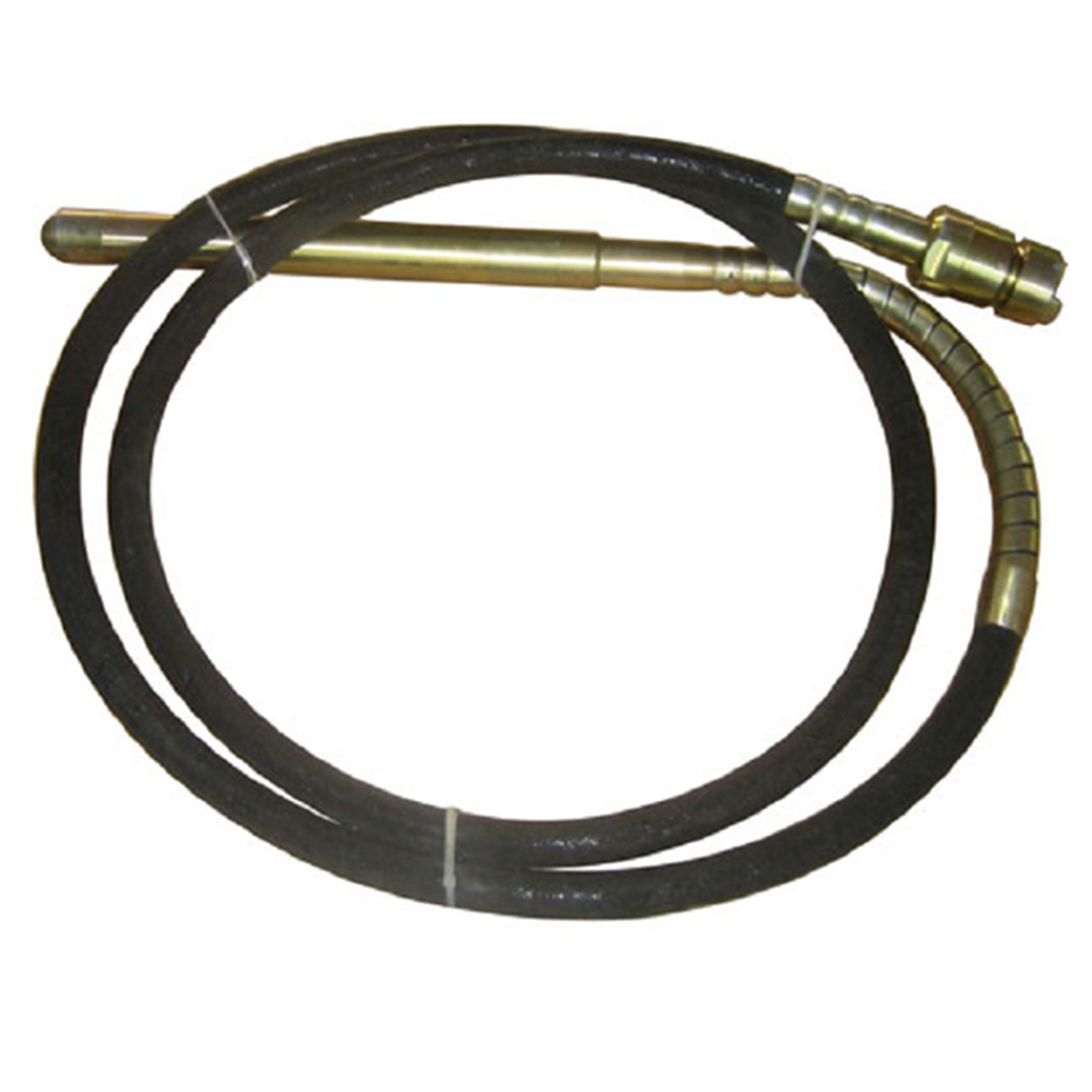

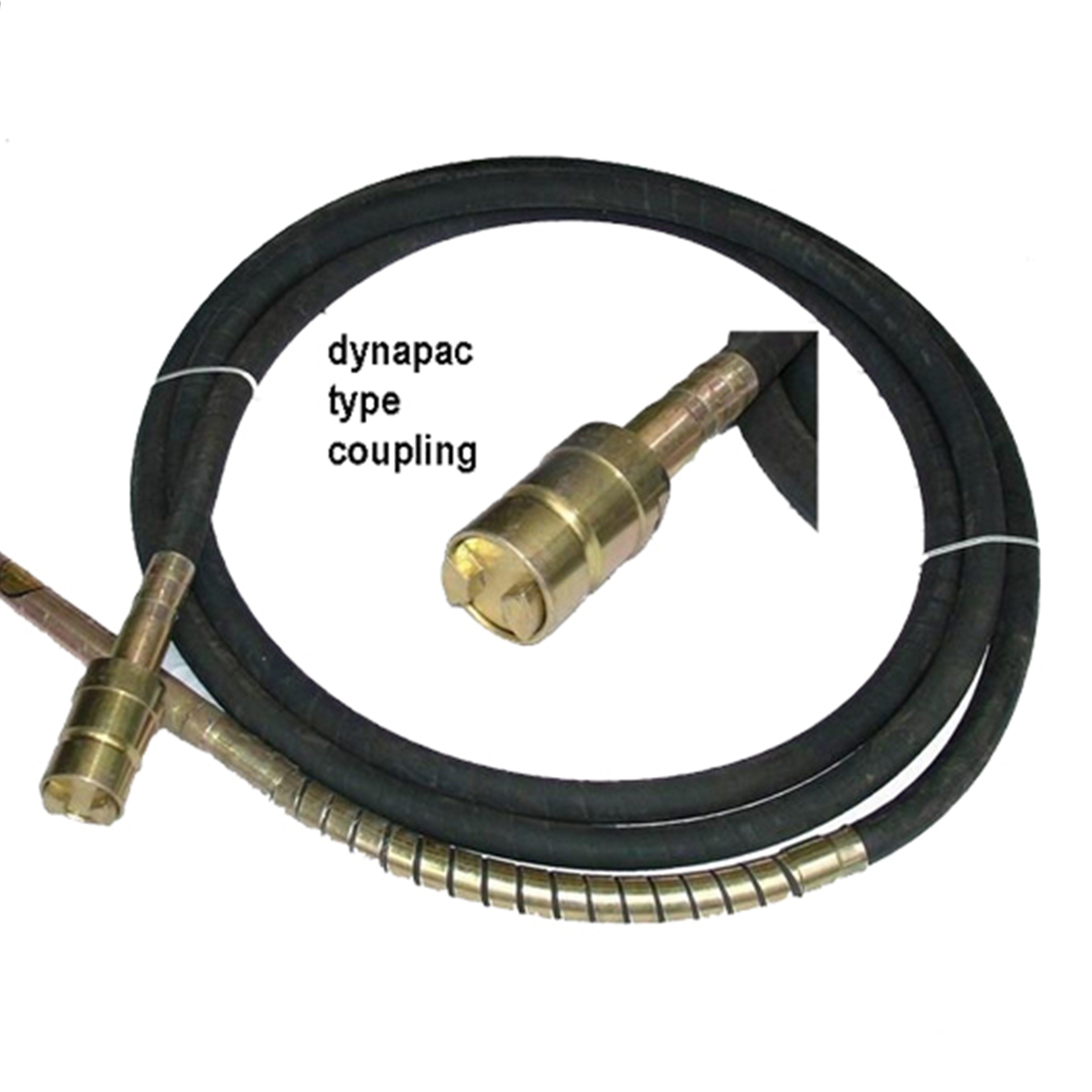

concrete vibrator shaft
A construction equipment supplier of construction machinery solutions for 25 years.
Language
A construction equipment supplier of construction machinery solutions for 25 years.
Application:
It is suitable for common concrete compaction, widely uesd in many places such as the bridge, the harbor construction, the large-scale dam, the high-level building base irrigation pile acted as a column, the crowded mat reinforcement coagulation dirt wall, the major and medium small architectural engineering.
It has the density well, the air bubble few and repel seep the nature is strong and so on the merit, is guaranteed and improves the concrete construction quality the important tool.
1.stable operation
2.good mechanical performance
3.low noise
4.good anti-wear performance
As one of the professional concrete vibrator shaft machinery manufacturers in China, ASOK has always enjoyed a good reputation
Model | ZX-32 | ZX-38 | ZX-45 | ZX-60 | ZX-35 | ZX-50 | ZX-70 | |
Diameter | ￠(mm) | 32 | 38 | 45 | 60 | 35 | 50 | 70 |
Length | L (mm) | 583 | 580 | 583 | 577 | 400 | 479 | 555 |
Vibrating Frequency | (HZ) | 220 | 200 | 200 | 200 | 200 | 200 | 200 |
Vibrating Ampitude | (mm) | 0.82 | 1.2 | 1.2 | 1.25 | 0.91 | 1.15 | 1.35 |
Diameter of flexiable hose | D(mm) | 30 | 30 | 32 | 36 | 30 | 36 | 36 |
Diameter of flexiable shaft | D(mm) | 10 | 10 | 12 | 13 | 10 | 13 | 13 |
Weiht with 6mtr hose | (kg) | 12.42 | 12.65 | 15.92 | 22 | 14 | 20.5 | 24 |
packing size | cm | 75*75*5.5 cm | ||||||
