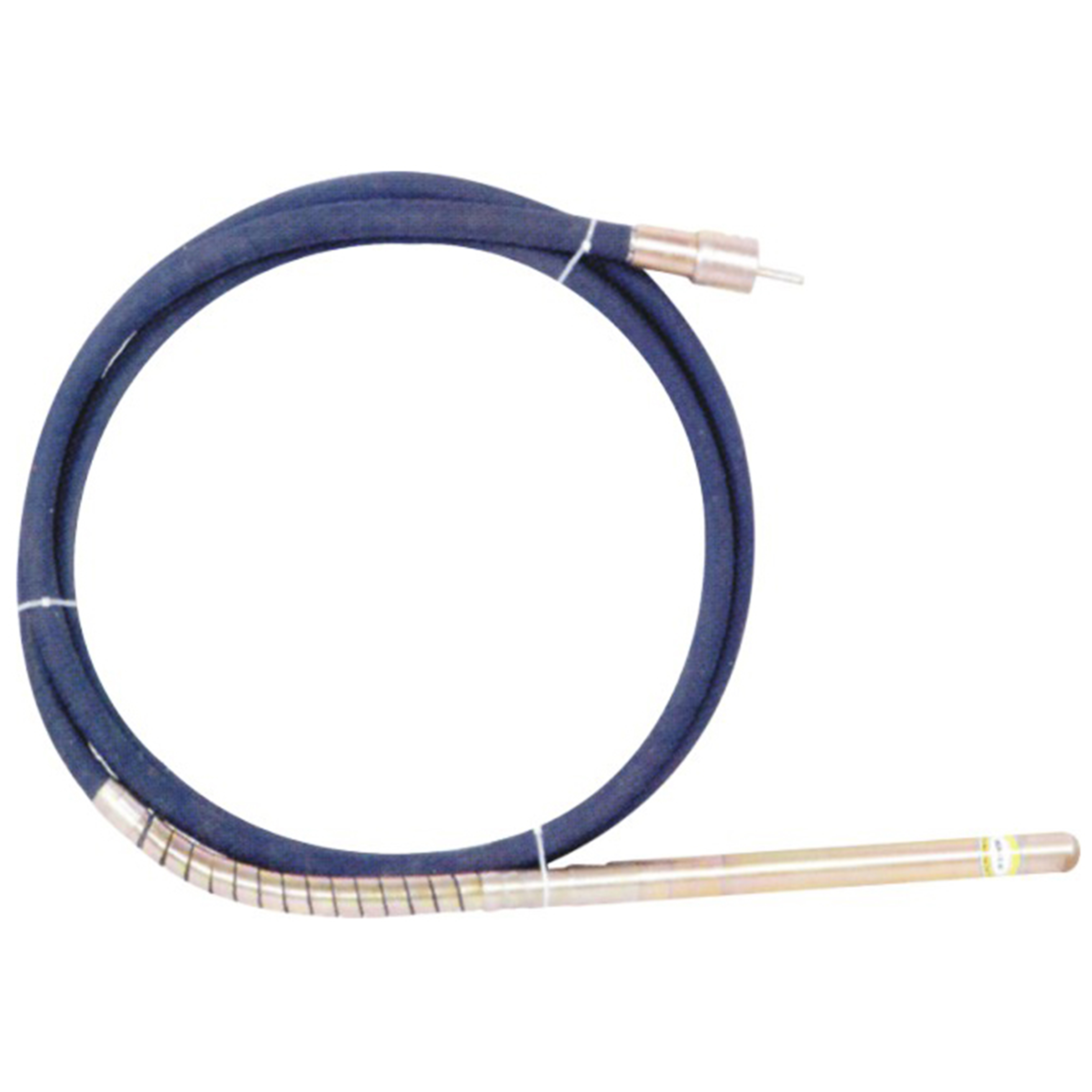

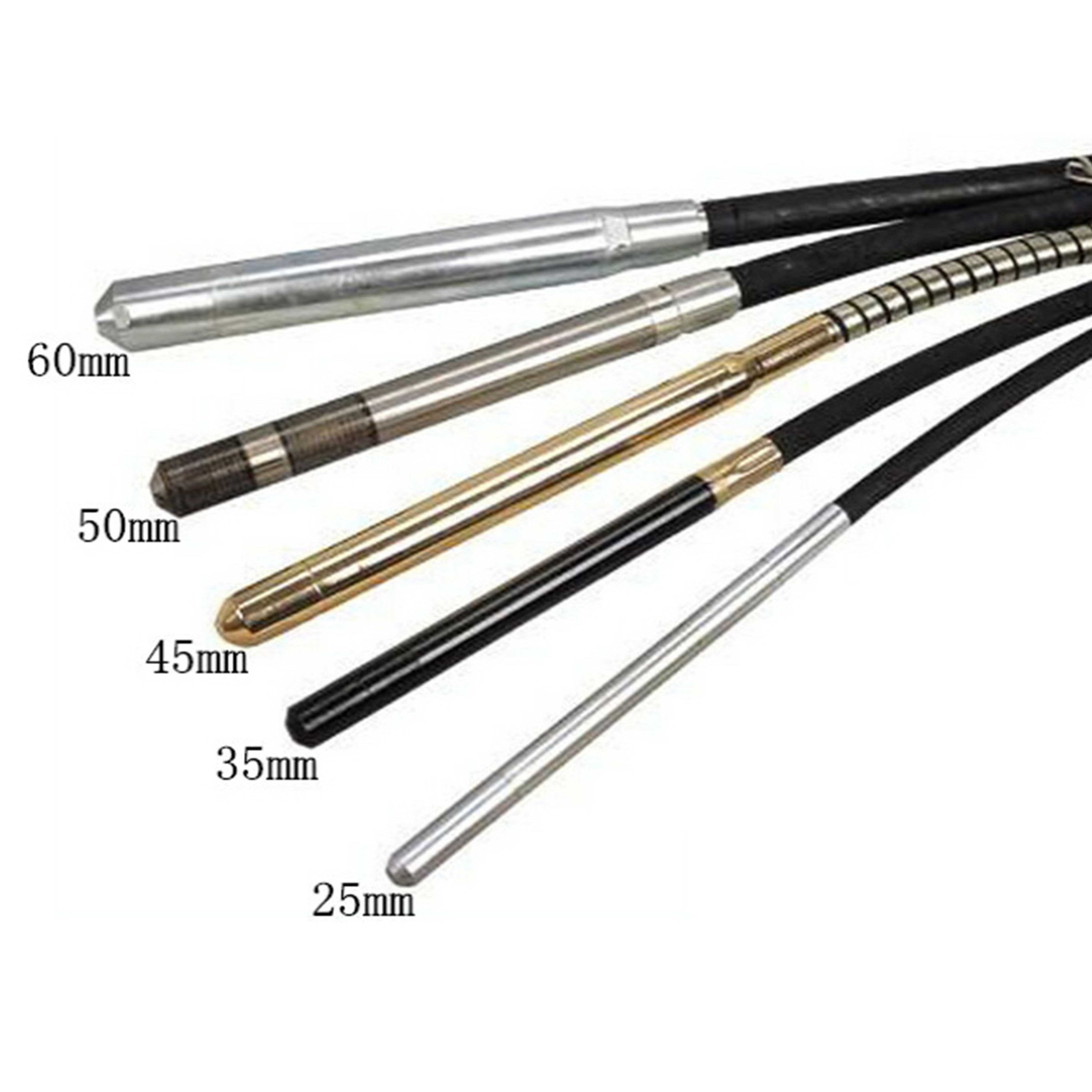

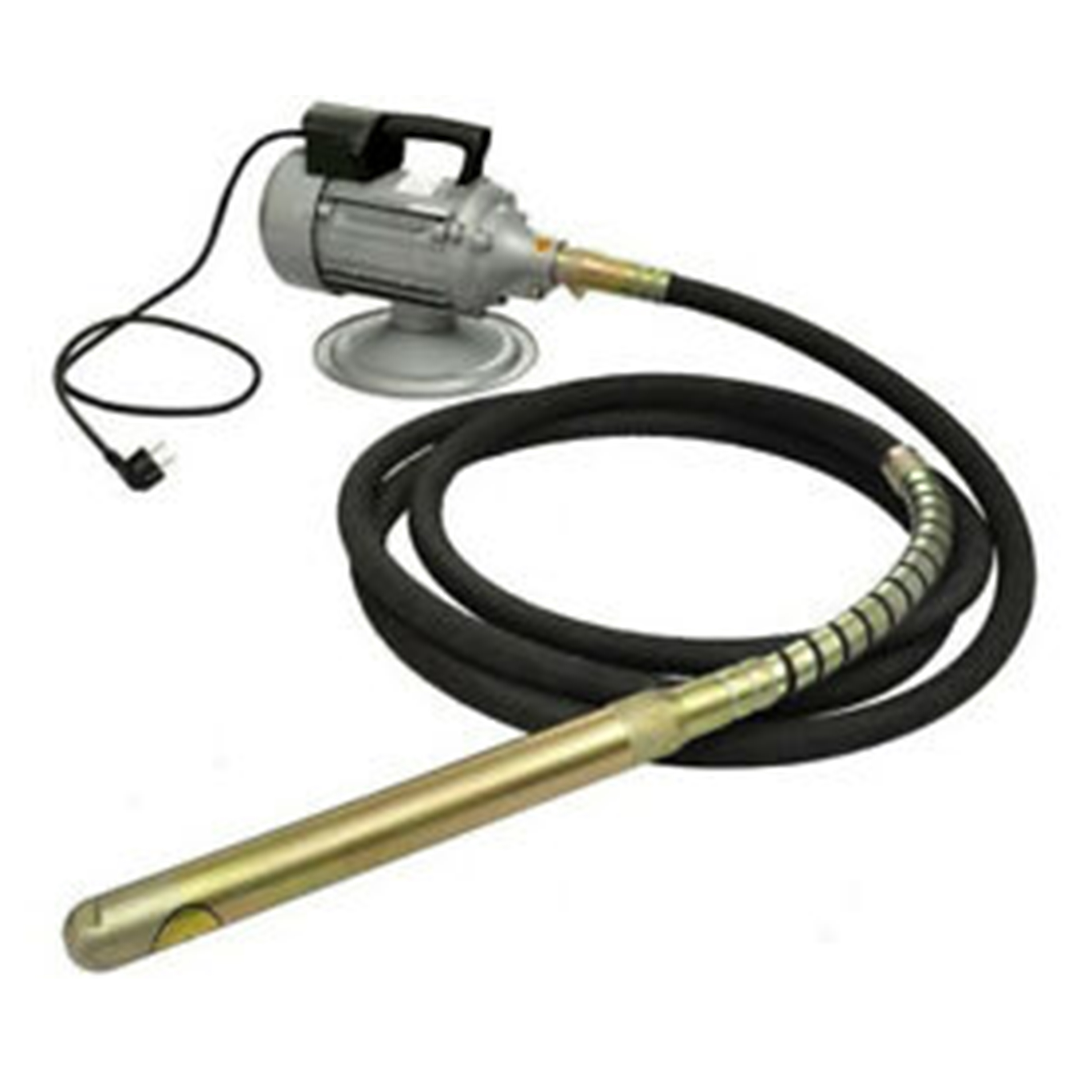

Chinese type concrete vibrator needle 35mm/38mm and 50mm/70mm .Drive Electric vibrator ,different brand of Gasoline vibrator or Diesel vibrator.
The ling of flexible hose is base on 40MN Steel,The tickness is 1.6MM，Width：16~18MM , 96 pcs steel wire,The tension of rubber is 800~900 N, Hardness:75~80 Flexible shaft：70# steel,The torsional：57N.m
15% raw material inspection and 100% Finished product inspection
Applications for: It is suitable for common concrete compaction, widely uesd in many places such as the bridge, the harbor construction, the large-scale dam, the high-level building base irrigation pile acted as a column, the crowded mat reinforcement coagulation dirt wall, the major and medium small architectural engineering.
As one of the concrete vibrator shaft machinery manufacturers in China, ASOK has always enjoyed a good reputation
Model | ZX-35 | ZX-38 | ZX-50 | ZX-70 | |
Diameter | ￠(mm) | 35 | 38 | 50 | 70 |
Length | L (mm) | 400 | 580 | 479 | 555 |
Vibrating Frequency | (HZ) | 200 | 200 | 200 | 200 |
Vibrating Ampitude | (mm) | 0.91 | 1.2 | 1.15 | 1.35 |
Diameter of flexiable hose | D(mm) | 30 | 30 | 36 | 36 |
Diameter of flexiable shaft | D(mm) | 10 | 10 | 13 | 13 |
Weiht with 6mtr hose | (kg) | 14 | 12.65 | 20.5 | 24 |
packing size | cm | 75*75*5.5 | |||
