China GW42E Automatic rebar bending machine manufacturers - ACE ASOK Machinery
The ACE Automatic rebar bending machine /iron rod bending machine /steel rod bending machine is ideal equipment for steel bar bending working. This model has reasonable design, simply structure.It enables to bend bars of diameters 6~50mm to various shapes, which is applicable in many kinds of construction projects such as bridge, tunnel etc.
Worry-saving: The main components can last for 10 years, and main wear parts can last for 3 years, which almost cost you nothing for maintenance.
Time-Saving: The international advanced design ensures the fastest bending speed.
The ACE Automatic rebar bending machine /iron rod bending machine /steel rod bending machine manufacturers
Products Advantages:
1.Adopt the totally enclosed type case so that distortion which happened under the condition of heavy load can be avoided.
2.Gear and gear shaft was made by high quality of structural steel, and the important parts under gone hardness treatment.

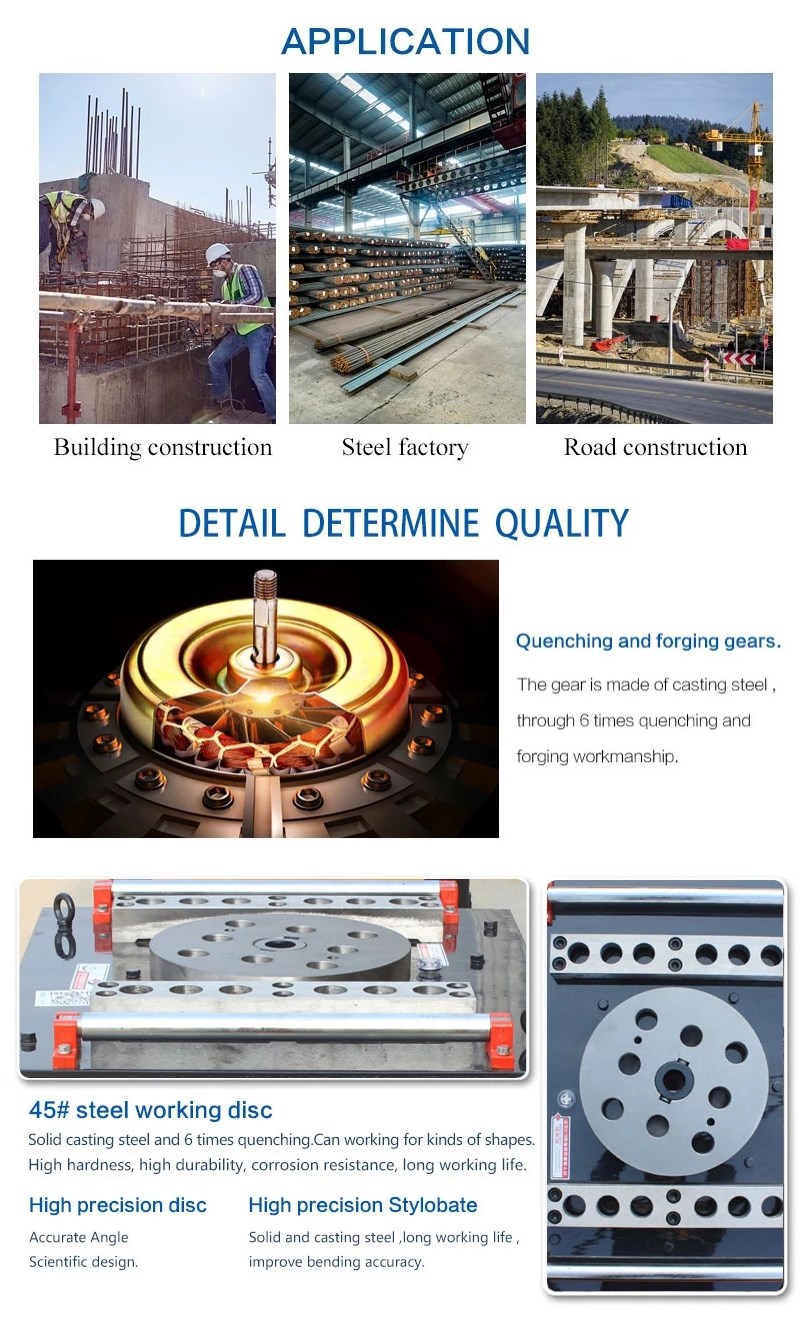

3.Working disk, stop gauge, pile head, and pile head casing were made by high quality of alloy steel which under gone hardness and treatment, together ensure a long working life.
ITEM | Automatic Steel bar bender machine | |
Model | GW42E | GW50E |
Bending round steel diamete | 6-42mm | 6-50mm |
ⅡGrade thread screw steel diamete | 6-32mm | 6-42mm |
Working plate diameter spec | 320mm | 420mm |
Main shaft speed | 8-15r/min | 8-15r/min |
Motor spec | 3KW/380V | 4KW/380V |
Motor speed | 1440t/min | 1440t/min |
Dimension | 910*910*890 mm | 1060×830×890mm |
Net weight/Gross weight | 287kgs/307kgs | 340kgs/360kgs |
packing size | 930*930*990 mm | 1080×850×990mm |
Maximum Quantity of Rebar to Be Bended at One Time :
Quantity of rebar to be bended at one time (pc) Maximum diameter of rebar (mm) | 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | ||
Single bending | σb | ≤450N/mm2 | 42 | 30 | 26 | 22 | 18 | 14 | 10 | 8 |
≤650N/mm2 | 36 | 26 | 22 | 20 | 16 | 12 | 8 | 6 | ||
≤850N/mm2 | 32 | 24 | 20 | 18 | 14 | 10 | 6 | |||
GW40 | ≤450N/mm2 | 38 | 30 | 25 | 20 | 16 | 12 | 10 | 8 | |
GW42 | ≤450N/mm2 | 40 | 30 | 25 | 20 | 16 | 14 | 10 | 8 | |
GW50 | ≤450N/mm2 | 42 | 34 | 28 | 22 | 18 | 14 | 10 | 8 | |
Doubling bending | σb | ≤450N/mm2 | 30 | 22 | 20 | 18 | 14 | 10 | 8 | 6 |
≤650N/mm2 | 28 | 20 | 18 | 16 | 12 | 8 | ||||
≤850N/mm2 | 26 | 18 | 16 | 14 | 10 | |||||
GW40 | ≤450N/mm2 | 30 | 18 | 16 | 14 | 10 | 8 | 6 | 4 | |
GW42 | ≤450N/mm2 | 30 | 20 | 18 | 14 | 10 | 8 | 6 | 4 | |
GW50 | ≤450N/mm2 | 32 | 25 | 20 | 16 | 14 | 10 | 8 | 6 | |
