MAIN Feature

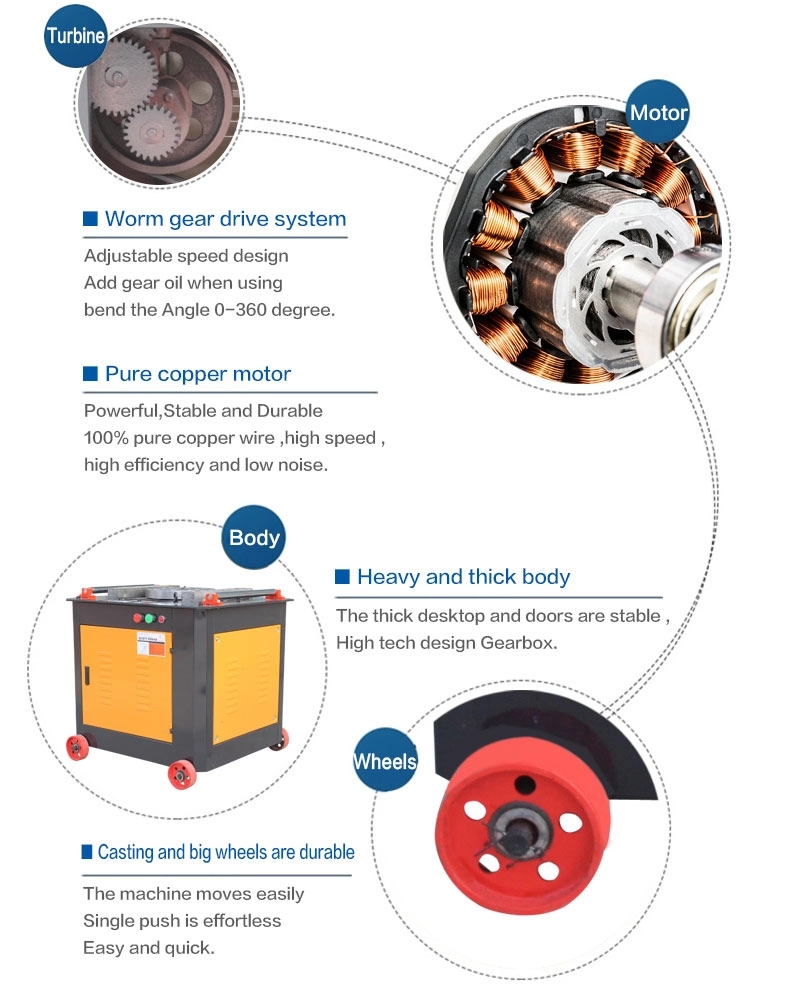

1.The high setting model adopted braking motor, insert pin type location disc to ensure the accuracy of bending radian and the convenience of adjustment.

2.The stop gauge can be installed from four different corners to realize the requirement of putting steel bar from various directions.

3.The controlling table adopted rotary type which made the transportation and operation full of humanization.

Specification Date
ITEM

Manual Steel bar bender machine

Model

GW40

GW50

Bending round steel diamete

6-40mm

6-50mm

ⅡGrade thread screw steel diamete

6-32mm

6-42mm

Working plate diameter spec

320mm

420mm

Main shaft speed

8-15r/min

8-15r/min

Motor spec

3KW/380V

4KW/380V

Motor speed

1440t/min

1440t/min

Dimension

890×690×840mm

1020*825*880 mm

Net weight/Gross weight

239kgs/258kgs

340kgs/366kgs

packing size

905*810*945 mmmm

1080×850×980mm


Maximum Quantity of rebar to be bended at one time


Quantity of rebar to be bended at one time (pc)Maximum diameter of rebar (mm)12345678
Single bendingGW40≤450N/mm2383025201612108
GW50≤450N/mm2423428221814108
Doubling bendingGW40≤450N/mm23018161410864
GW50≤450N/mm232252016141086

F A Q

Q1:Are you manufacturer?
A: Yes, we are factory, but not just a factory, as we have sales team, own designers, own showroom, can help buyers to decide which products are their best choice, and all your inquiry will be replied within 24 hours.

Q2: How can I get a sample to check your quality ?
A: After price confirmation, you can require for samples to check our quality. We will charge for the sample cost, but the sample cost will be refundable after quantity order confirmation.

Q3: How long for the delivery time ?
A. Sample will be ready for delivery in 3~10 days. Quantity order will be ready for delivery in 20~45 days .

Q4:Could you do OEM Service?
A: Yes, we can do it. But you need give us your letter of authorization.

Q5: Can I buy other factory's products directly from you?
A: Yes, of course. There are already many customers cooperating with us in this way. We have over 12 years in the business with extensive knowledge of technology and market. Our good reputation in China has been awarded by Alibaba Group as its selected business partner.

Q6:What is the convenient way to pay?
A: Trade Assurance, L/C, T/T, Western Union and Escrow are accepted, and if you have a better idea, please feel free to share with us.
